TT142-TEMQZ (1982)
Toyota Corona

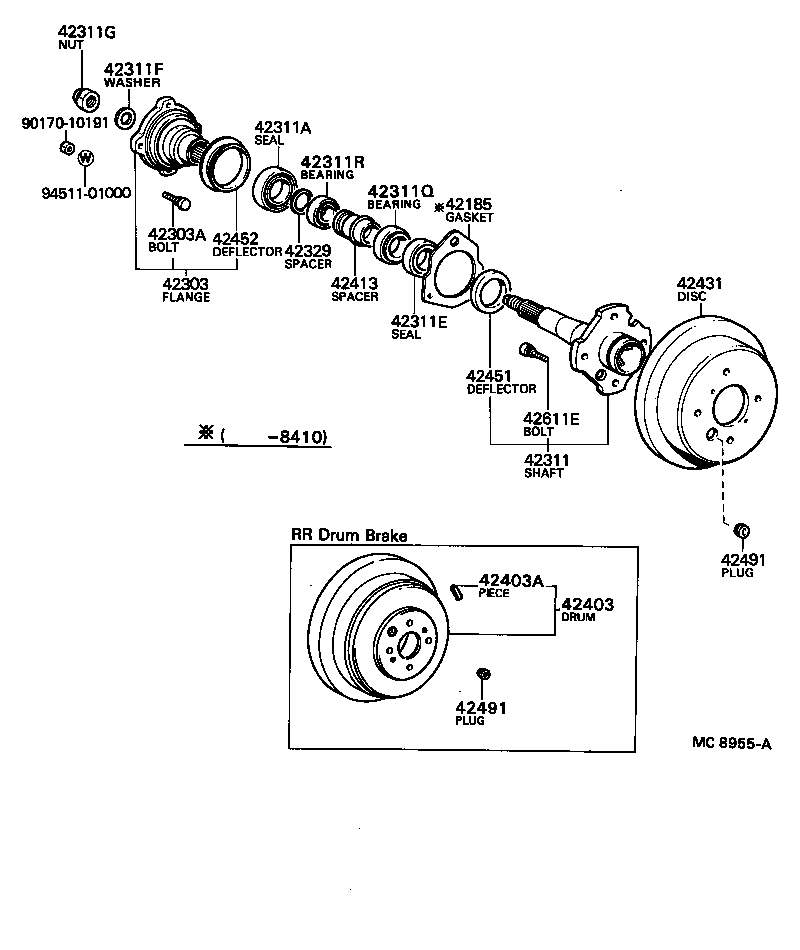

ILLUST NO. 2 OF 2(8201-8508)AT141,RT141,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22030 |
AT141,RT141,TT142 |
2 | ||
| 42303 - FLANGE SUB-ASSY, REAR AXLE | ||||
| 42303-22010 |
AT141,RT141,TT142 |
2 | ||
| 42303-22020 |
AT141,TT142 |
2 | ||
| 42303A - BOLT, SERRATION (FOR REAR AXLE FLANGE) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42301-22050 |
AT141,RT141,TT142 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-38009 |
AT141,RT141,TT142 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-48122 |
AT141,RT141,TT142 |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90201-20329 |
AT141,RT141,TT142 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-20061 |
AT141,RT141,TT142 |
2 | ||
| 42311Q - BEARING (FOR REAR AXLE SHAFT OUTER) | ||||
| 90368-34083 |
AT141,RT141,TT142 OUTER |
2 | ||
| 42311R - BEARING (FOR REAR AXLE SHAFT INNER) | ||||
| 90366-30001 |
AT141,RT141,TT142 INNER |
2 | ||
| 42329 - SPACER, REAR AXLE SHAFT | ||||
| 42329-22010 |
AT141,RT141,TT142 |
2 | ||
| 42413 - SPACER, REAR WHEEL BEARING | ||||
| 42413-22010 |
AT141,RT141,TT142 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-22060 |
AT141,RT141,TT142..GT,GTT |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-22010 |
AT141,RT141,TT142 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-22010 |
AT141,RT141,TT142 |
2 | ||
| 42452-30010 |
AT141,TT142 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
AT141,RT141,TT142..GT,GTT |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
AT141,RT141,TT142..GT,GTT |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02035 |
AT140,CT14#,RT141,ST140,TT14#,YT140 |
8 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

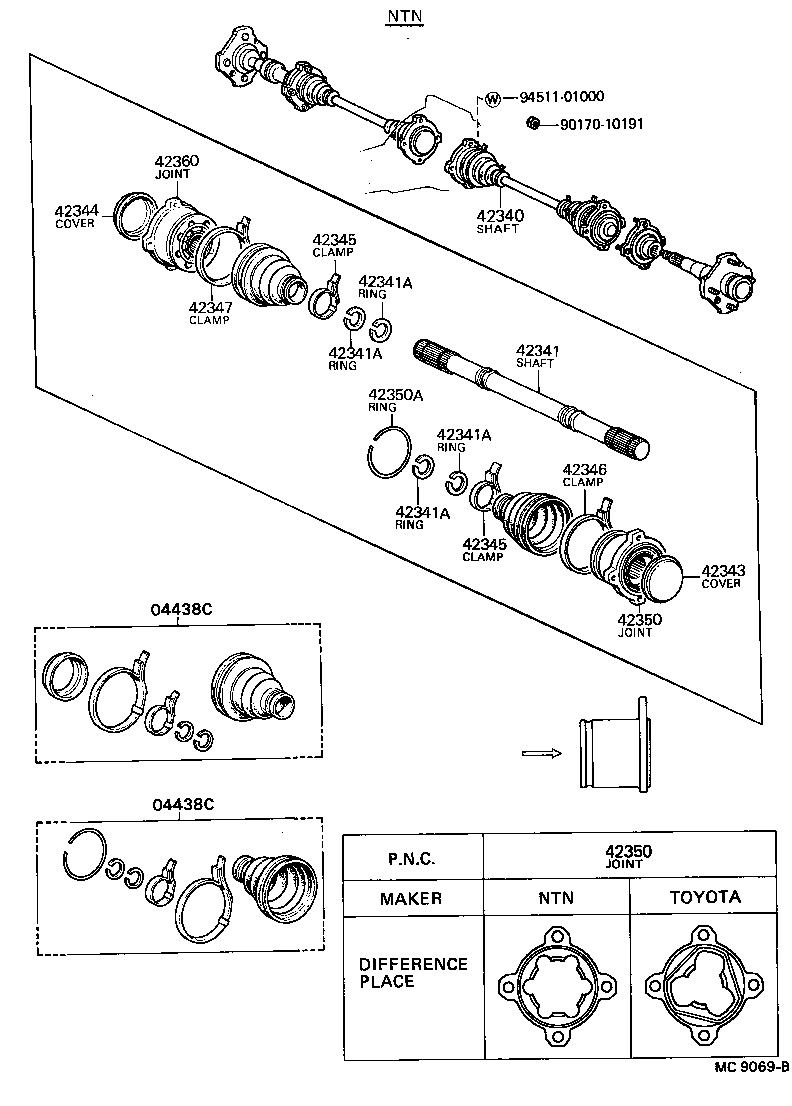

ILLUST NO. 1 OF 2(8201-8508)GT,SX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-14010 |
RT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-14020 |
AT141,RT141,TT142..GT,SX OUTER,TOYOTA |
2 | ||
| 04437-22010 |
AT141,RT141,TT142 INNER,NTN |
2 | ||
| 04437-14011 |
AT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-22020 |
AT141,RT141,TT142 OUTER,NTN |
2 | ||
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-14010 |
RT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-14020 |
AT141,RT141,TT142..GT,SX OUTER,TOYOTA |
2 | ||
| 04437-22010 |
AT141,RT141,TT142 INNER,NTN |
2 | ||
| 04437-14011 |
AT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-22020 |
AT141,RT141,TT142 OUTER,NTN |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-14010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42340-14020 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-14020 |
RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341-14021 |
AT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341-14010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42343-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42344-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
AT141,RT141,TT142 NTN |
4 | ||
| 42345-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
AT141,RT141,TT142 NTN |
4 | ||
| 42345-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42345-14020 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42345-14020 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42350-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42350-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42350-30010 |
AT141,TT142..GT,SX TOYOTA |
2 | ||
| 42360-14010 |
RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42360-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||

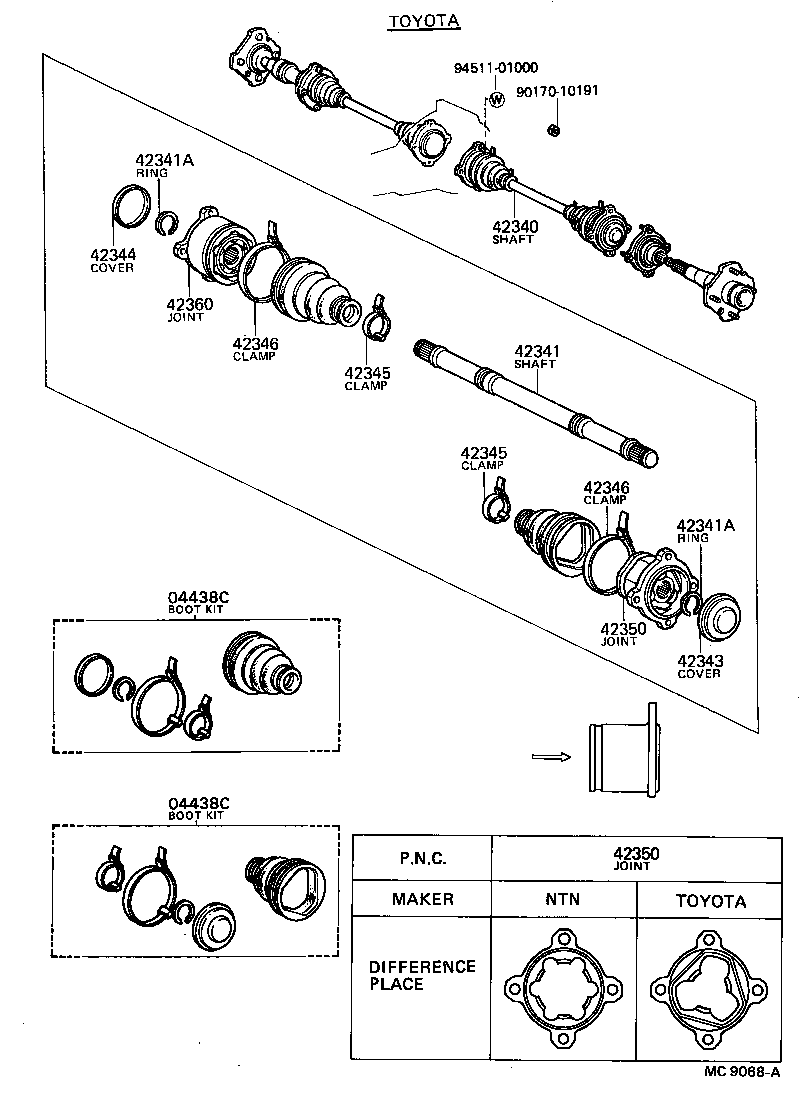

ILLUST NO. 1 OF 2(8201-8508)AT141,RT141,TT142
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-14010 |
RT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-14020 |
AT141,RT141,TT142..GT,SX OUTER,TOYOTA |
2 | ||
| 04437-22010 |
AT141,RT141,TT142 INNER,NTN |
2 | ||
| 04437-14011 |
AT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-22020 |
AT141,RT141,TT142 OUTER,NTN |
2 | ||
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04437-14010 |
RT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-14020 |
AT141,RT141,TT142..GT,SX OUTER,TOYOTA |
2 | ||
| 04437-22010 |
AT141,RT141,TT142 INNER,NTN |
2 | ||
| 04437-14011 |
AT141,TT142..GT,SX INNER,TOYOTA |
2 | ||
| 04437-22020 |
AT141,RT141,TT142 OUTER,NTN |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-14010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42340-14020 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341 - SHAFT, REAR DRIVE | ||||
| 42341-14020 |
RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341-14021 |
AT141,TT142..GT,SX TOYOTA |
2 | ||
| 42341-14010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-26005 |
AT141,RT141,TT142 NTN,T=2.5 |
4 | ||
| 90520-23024 |
RT141,TT142..GT,SX TOYOTA |
4 | ||
| 90520-23024 |
AT141,TT142..GT,SX OUTBOARD SIDE,TOYOTA |
2 | ||
| 90520-26004 |
AT141,RT141,TT142 NTN,T=1.5 |
4 | ||
| 90520-26028 |
AT141,TT142..GT,SX INBOARD SIDE,TOYOTA |
2 | ||
| 42343 - COVER, OUTBOARD JOINT END | ||||
| 42343-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42343-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42344 - COVER, REAR AXLE INBOARD JOINT END | ||||
| 42344-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42344-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
AT141,RT141,TT142 NTN |
4 | ||
| 42345-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 42345-22010 |
AT141,RT141,TT142 NTN |
4 | ||
| 42345-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42346-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42345-14020 |
AT141,RT141,TT142..GT,SX TOYOTA |
4 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42347-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42350-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD | ||||
| 42350-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| 42350-14010 |
AT141,RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42350A - RING, HOLE SNAP | ||||
| 90521-79001 |
AT141,RT141,TT142 NTN |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42350-30010 |
AT141,TT142..GT,SX TOYOTA |
2 | ||
| 42360-14010 |
RT141,TT142..GT,SX TOYOTA |
2 | ||
| 42360-22010 |
AT141,RT141,TT142 NTN |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
