TT142-TEMQZ (1982)
Toyota Corona
(8201-8508)AT141,TT142..GT,SX

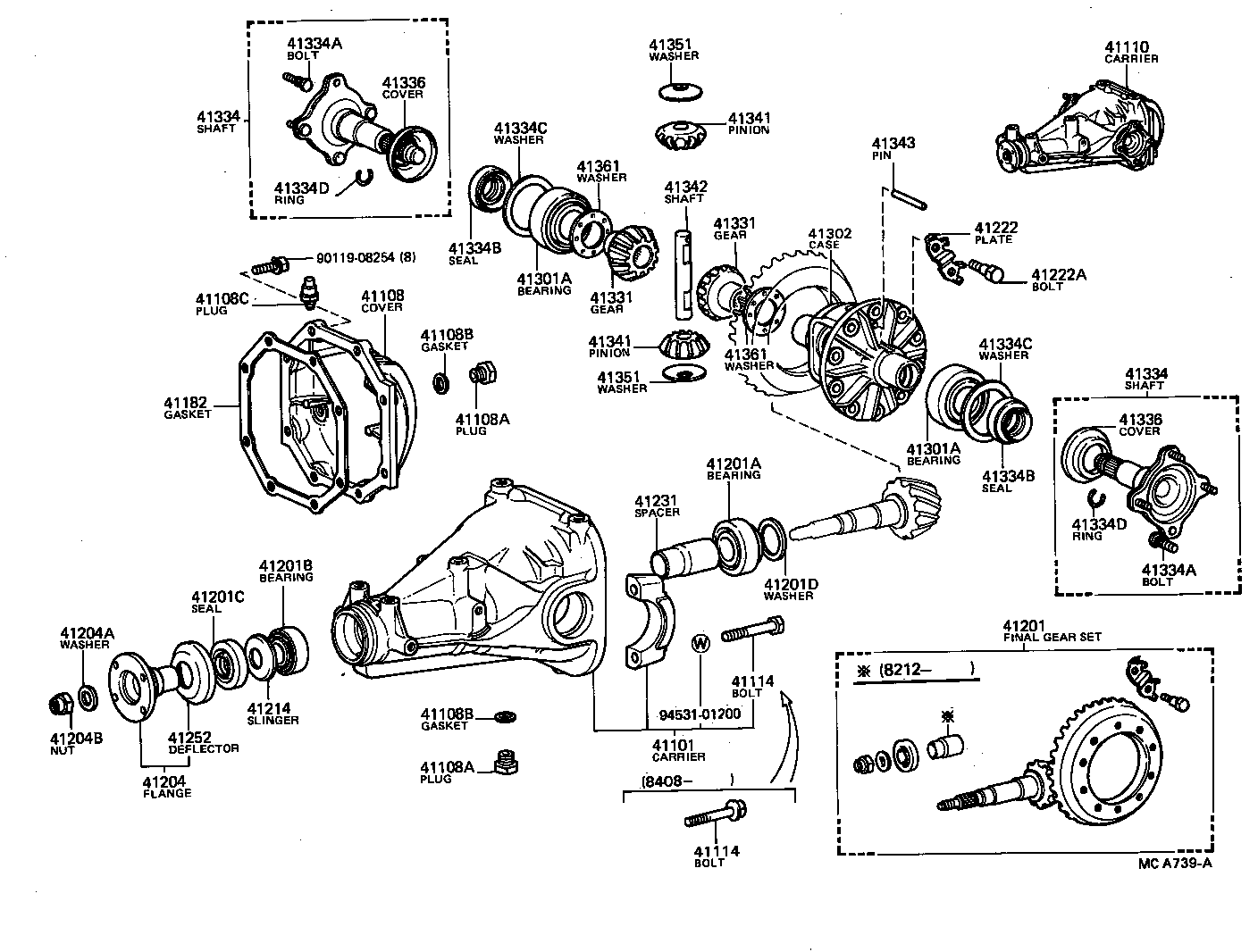

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22020 |
RT141,TT142..GT,GTT |
1 | ||
| 41101-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41181-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AT141,RT141,TT142 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-14210 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=F293,*FGR=41:10,W/LSD |
1 | ||
| 41110-22141 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=T292,*FGR=41:10 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 90101-12376 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
4 | ||
| 90105-12053 |
TT142 |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41182-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39158 |
RT141,TT142..GT,GTT *FGR=41:10=4.100 |
1 | ||
| 41201-39575 |
TT142..GTT *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RT141,TT142..GT,GTT |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RT141,TT142..GT,GTT |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38019 |
AT141,TT142..GT,SX |
1 | ||
| 90311-38010 |
RT141,TT142..GT,GTT |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35434 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.24,ﾏｰｸ 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35436 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35401 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35396 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35402 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.72,ﾏｰｸ 17,T=2.71-2.73 |
1 | ||
| 90201-35439 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35403 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35399 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35438 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41222-30040 |
RT141,TT142..GT,GTT |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AT14#,CT140,141,RT141,ST140,TT142 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-14030 |
AT141,TT142..GT,SX |
1 | ||
| 41302-14020 |
RT141,TT142..GT,GTT W/LSD |
1 | ||
| 41311-22050 |
RT141,TT142..GT,GTT |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
RT141,TT142..GT,GTT 厚さ=2.5 |
2 | ||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
RT141,TT142..GT,GTT 厚さ=2.5 |
2 | ||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
RT141,TT142..GT,GTT |
2 | ||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
RT141,TT142..GT,GTT |
2 | ||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
RT141,TT142..GT,GTT |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
(8201-8508)RT141,TT142..GT,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22020 |
RT141,TT142..GT,GTT |
1 | ||
| 41101-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41181-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AT141,RT141,TT142 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-14210 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=F293,*FGR=41:10,W/LSD |
1 | ||
| 41110-22141 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=T292,*FGR=41:10 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 90101-12376 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
4 | ||
| 90105-12053 |
TT142 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 90101-12376 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
4 | ||
| 90105-12053 |
TT142 |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41182-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39158 |
RT141,TT142..GT,GTT *FGR=41:10=4.100 |
1 | ||
| 41201-39575 |
TT142..GTT *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RT141,TT142..GT,GTT |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RT141,TT142..GT,GTT |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38019 |
AT141,TT142..GT,SX |
1 | ||
| 90311-38010 |
RT141,TT142..GT,GTT |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35434 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.24,ﾏｰｸ 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35436 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35401 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35396 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35402 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.72,ﾏｰｸ 17,T=2.71-2.73 |
1 | ||
| 90201-35439 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35403 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35399 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35438 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41222-30040 |
RT141,TT142..GT,GTT |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AT14#,CT140,141,RT141,ST140,TT142 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-14030 |
AT141,TT142..GT,SX |
1 | ||
| 41302-14020 |
RT141,TT142..GT,GTT W/LSD |
1 | ||
| 41311-22050 |
RT141,TT142..GT,GTT |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
RT141,TT142..GT,GTT 厚さ=2.5 |
2 | ||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
RT141,TT142..GT,GTT 厚さ=2.5 |
2 | ||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
RT141,TT142..GT,GTT |
2 | ||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
RT141,TT142..GT,GTT |
2 | ||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
RT141,TT142..GT,GTT |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RT141,TT142..GT,GTT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
RT141,TT142..GT,GTT |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
(8201-8508)RT141,TT142..GT,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-22020 |
RT141,TT142..GT,GTT |
1 | ||
| 41101-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41181-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41181-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18049 |
AT141,RT141,TT142 FILLER |
1 | ||
| 90341-18057 |
AT141,RT141,TT142 DRAIN |
1 | ||
| 90341-18006 |
AT141,TT142 FILLER |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
AT141,RT141,TT142 |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
AT141,RT141,TT142 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-14210 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=F293,*FGR=41:10,W/LSD |
1 | ||
| 41110-22141 |
RT141,TT142..GT,GTT *FGR=41:10=4.100,*AXC=T292,*FGR=41:10 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 90101-12376 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
4 | ||
| 90105-12053 |
TT142 |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-14020 |
AT141,TT142..GT,SX |
1 | ||
| 41182-22011 |
RT141,TT142..GT,GTT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39158 |
RT141,TT142..GT,GTT *FGR=41:10=4.100 |
1 | ||
| 41201-39575 |
TT142..GTT *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
RT141,TT142..GT,GTT |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
RT141,TT142..GT,GTT |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38019 |
AT141,TT142..GT,SX |
1 | ||
| 90311-38010 |
RT141,TT142..GT,GTT |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35434 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.24,ﾏｰｸ 01,T=2.23-2.25 |
1 | ||
| 90201-35404 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35436 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35401 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35398 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35396 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35402 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35441 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD 厚さ=2.72,ﾏｰｸ 17,T=2.71-2.73 |
1 | ||
| 90201-35439 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35403 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 90201-35400 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35399 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35438 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
4 | ||
| 41222-30040 |
RT141,TT142..GT,GTT |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AT14#,CT140,141,RT141,ST140,TT142 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
CT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45002 |
RT141,TT142..GT,GTT |
2 | ||
| 90368-41001 |
AT141,TT142..GT,SX |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-14030 |
AT141,TT142..GT,SX |
1 | ||
| 41302-14020 |
RT141,TT142..GT,GTT W/LSD |
1 | ||
| 41311-22050 |
RT141,TT142..GT,GTT |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-10195 |
RT141,TT142..GT,GTT |
8 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90206-10045 |
RT141,TT142..GT,GTT |
8 | ||
| 41308 - MEMBER KIT, CLUTCH | ||||
| 41308-22022 |
RT141,TT142..GT,GTT |
1 | ||
| 41308A - SPRING, COMPRESSION (FOR CLUTCH MEMBER) | ||||
| 90501-26644 |
RT141,TT142..GT,GTT |
4 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22041 |
RT141,TT142..GT,GTT |
2 | ||
| 41331-14030 |
AT141,TT142..GT,SX |
2 | ||
| 41305-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334 - SHAFT, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-14010 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41309-14020 |
AT141,TT142..GT,SX |
2 | ||
| 41309-22012 |
RT141,TT142..GT,GTT |
2 | ||
| 41334A - BOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10003 |
AT141,RT141,TT142 |
8 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
AT141,RT141,TT142 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-54001 |
AT141,TT142..GT,SX 厚さ=2.22,T=2.21-2.23 |
2 | ||
| 90201-54004 |
AT141,TT142..GT,SX 厚さ=2.31,T=2.30-2.32 |
2 | ||
| 90201-54009 |
AT141,TT142..GT,SX 厚さ=2.46,T=2.45-2.47 |
2 | ||
| 90201-54002 |
AT141,TT142..GT,SX 厚さ=2.25,T=2.24-2.26 |
2 | ||
| 90201-54008 |
AT141,TT142..GT,SX 厚さ=2.43,T=2.42-2.44 |
2 | ||
| 90201-54005 |
AT141,TT142..GT,SX 厚さ=2.34,T=2.33-2.35 |
2 | ||
| 90201-54013 |
AT141,TT142..GT,SX 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54014 |
AT141,TT142..GT,SX 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-54003 |
AT141,TT142..GT,SX 厚さ=2.28,T=2.27-2.29 |
2 | ||
| 90201-54010 |
AT141,TT142..GT,SX 厚さ=2.49,T=2.48-2.50 |
2 | ||
| 90201-54006 |
AT141,TT142..GT,SX 厚さ=2.37,T=2.36-2.38 |
2 | ||
| 90201-54018 |
AT141,TT142..GT,SX 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-54012 |
AT141,TT142..GT,SX 厚さ=2.55,T=2.54-2.56 |
2 | ||
| 90201-54024 |
AT141,TT142..GT,SX 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-54021 |
AT141,TT142..GT,SX 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-54023 |
AT141,TT142..GT,SX 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-54015 |
AT141,TT142..GT,SX 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-54007 |
AT141,TT142..GT,SX 厚さ=2.40,T=2.39-2.41 |
2 | ||
| 90201-54026 |
AT141,TT142..GT,SX 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-54025 |
AT141,TT142..GT,SX 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-54017 |
AT141,TT142..GT,SX 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-54022 |
AT141,TT142..GT,SX 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-54019 |
AT141,TT142..GT,SX 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-54027 |
AT141,TT142..GT,SX 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-54032 |
AT141,TT142..GT,SX 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-54016 |
AT141,TT142..GT,SX 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-54020 |
AT141,TT142..GT,SX 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-54031 |
AT141,TT142..GT,SX 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-54029 |
AT141,TT142..GT,SX 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-54028 |
AT141,TT142..GT,SX 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 90201-65007 |
RT141,TT142..GT,GTT 厚さ=2.58,T=2.57-2.59 |
2 | ||
| 90201-54011 |
AT141,TT142..GT,SX 厚さ=2.52,T=2.51-2.53 |
2 | ||
| 90201-54030 |
AT141,TT142..GT,SX 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-54033 |
AT141,TT142..GT,SX 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-54034 |
AT141,TT142..GT,SX 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65011 |
RT141,TT142..GT,GTT 厚さ=2.70,T=2.69-2.71 |
2 | ||
| 90201-65009 |
RT141,TT142..GT,GTT 厚さ=2.64,T=2.63-2.65 |
2 | ||
| 90201-65016 |
RT141,TT142..GT,GTT 厚さ=2.85,T=2.84-2.86 |
2 | ||
| 90201-65014 |
RT141,TT142..GT,GTT 厚さ=2.79,T=2.78-2.80 |
2 | ||
| 90201-65019 |
RT141,TT142..GT,GTT 厚さ=2.94,T=2.93-2.95 |
2 | ||
| 90201-65017 |
RT141,TT142..GT,GTT 厚さ=2.88,T=2.87-2.89 |
2 | ||
| 90201-65008 |
RT141,TT142..GT,GTT 厚さ=2.61,T=2.60-2.62 |
2 | ||
| 90201-65015 |
RT141,TT142..GT,GTT 厚さ=2.82,T=2.81-2.83 |
2 | ||
| 90201-65012 |
RT141,TT142..GT,GTT 厚さ=2.73,T=2.72-2.74 |
2 | ||
| 90201-65025 |
RT141,TT142..GT,GTT 厚さ=3.12,T=3.11-3.13 |
2 | ||
| 90201-65020 |
RT141,TT142..GT,GTT 厚さ=2.97,T=2.96-2.98 |
2 | ||
| 90201-65023 |
RT141,TT142..GT,GTT 厚さ=3.06,T=3.05-3.07 |
2 | ||
| 90201-65021 |
RT141,TT142..GT,GTT 厚さ=3.00,T=2.99-3.01 |
2 | ||
| 90201-65013 |
RT141,TT142..GT,GTT 厚さ=2.76,T=2.75-2.77 |
2 | ||
| 90201-65028 |
RT141,TT142..GT,GTT 厚さ=3.21,T=3.20-3.22 |
2 | ||
| 90201-65018 |
RT141,TT142..GT,GTT 厚さ=2.91,T=2.90-2.92 |
2 | ||
| 90201-65024 |
RT141,TT142..GT,GTT 厚さ=3.09,T=3.08-3.10 |
2 | ||
| 90201-65027 |
RT141,TT142..GT,GTT 厚さ=3.18,T=3.17-3.19 |
2 | ||
| 90201-65029 |
RT141,TT142..GT,GTT 厚さ=3.24,T=3.23-3.25 |
2 | ||
| 90201-65026 |
RT141,TT142..GT,GTT 厚さ=3.15,T=3.14-3.16 |
2 | ||
| 90201-65010 |
RT141,TT142..GT,GTT 厚さ=2.67,T=2.66-2.68 |
2 | ||
| 90201-65022 |
RT141,TT142..GT,GTT 厚さ=3.03,T=3.02-3.04 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
RT141,TT142..GT,GTT 厚さ=2.5 |
2 | ||
| 90520-22002 |
AT141,TT142..GT,SX 厚さ=1.4 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
RT141,TT142..GT,GTT |
2 | ||
| 41336-14010 |
AT141,TT142..GT,SX |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
RT141,TT142..GT,GTT |
2 | ||
| 41341-14031 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22051 |
RT141,TT142..GT,GTT 厚さ=1.80,ﾏｰｸ 1,T=1.785-1.815,W/LSD |
2 | ||
| 41361-22081 |
RT141,TT142..GT,GTT 厚さ=1.95,ﾏｰｸ 4,T=1.935-1.965,W/LSD |
2 | ||
| 41361-22071 |
RT141,TT142..GT,GTT 厚さ=1.90,ﾏｰｸ 3,T=1.885-1.915,W/LSD |
2 | ||
| 41361-30050 |
RT141,TT142..GT,GTT 厚さ=1.1,T=1.06-1.14 |
2 | ||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,T=1.985-2.015,W/LSD |
2 | ||
| 41361-22111 |
RT141,TT142..GT,GTT 厚さ=2.05,ﾏｰｸ 6,T=2.035-2.065,W/LSD |
2 | ||
| 41361-30070 |
RT141,TT142..GT,GTT 厚さ=1.3,T=1.26-1.34 |
2 | ||
| 41361-22061 |
RT141,TT142..GT,GTT 厚さ=1.85,ﾏｰｸ 2,T=1.835-1.865,W/LSD |
2 | ||
| 41361-30060 |
RT141,TT142..GT,GTT 厚さ=1.2,T=1.16-1.24 |
2 | ||
| 41361-30040 |
RT141,TT142..GT,GTT 厚さ=1.0,T=0.96-1.04 |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,W/LSD |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-22101 |
RT141,TT142..GT,GTT 厚さ=2.00,ﾏｰｸ 5,W/LSD |
2 | ||
| 41363 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.3 | ||||
| 41361-22091 |
RT141,TT142..GT,GTT 厚さ=2.50,T=2.485-2.515,W/LSD |
2 | ||
| 41363 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.3 | ||||
| 41361-22091 |
RT141,TT142..GT,GTT 厚さ=2.50,T=2.485-2.515,W/LSD |
2 | ||
| 41383 - WASHER, CLUTCH MEMBER THRUST | ||||
| 41383-22011 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41383 - WASHER, CLUTCH MEMBER THRUST | ||||
| 41383-22011 |
RT141,TT142..GT,GTT W/LSD |
2 | ||
| 41383A - PIN (FOR CLUTCH MEMBER THRUST WASHER STOP) | ||||
| 90250-05202 |
RT141,TT142..GT,GTT 外径=4.45−4.55,OD=4.45-4.55 |
4 | ||
| 90250-05218 |
RT141,TT142..GT,GTT 外径=4.525−4.625,OD=4.525-4.625 |
4 | ||
| 41383A - PIN (FOR CLUTCH MEMBER THRUST WASHER STOP) | ||||
| 90250-05202 |
RT141,TT142..GT,GTT 外径=4.45−4.55,OD=4.45-4.55 |
4 | ||
| 90250-05218 |
RT141,TT142..GT,GTT 外径=4.525−4.625,OD=4.525-4.625 |
4 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-22010 |
RT141,TT142..GT,GTT |
1 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94531-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
