TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8201-8310)5F..SX ; (8201-9111)AT140,CT14#,KT147,RT141,ST140,TT147..MTM ; (8209-861

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165140816 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-24010

TT142..5F..GTT

 1
31301-24030

AT141,TT142..5F..(GT,GTT)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-20005

AT141,TT142..5F..(GT,GTT)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07010

AT141,TT142..5F..(GT,GTT)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10105

AT141,TT142..5F..(GT,GTT)

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-24020

TT142..5F..GTT

 1
55107-14100

AT141,TT142..5F..(GT,GTT)

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

AT140,CT14#,RT141,ST140,TT14#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT140,RT141,ST140,TT14#..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
Common parts
90206-08001
90468-16142
91651-40816
94110-51000
94120-41000
94512-01000

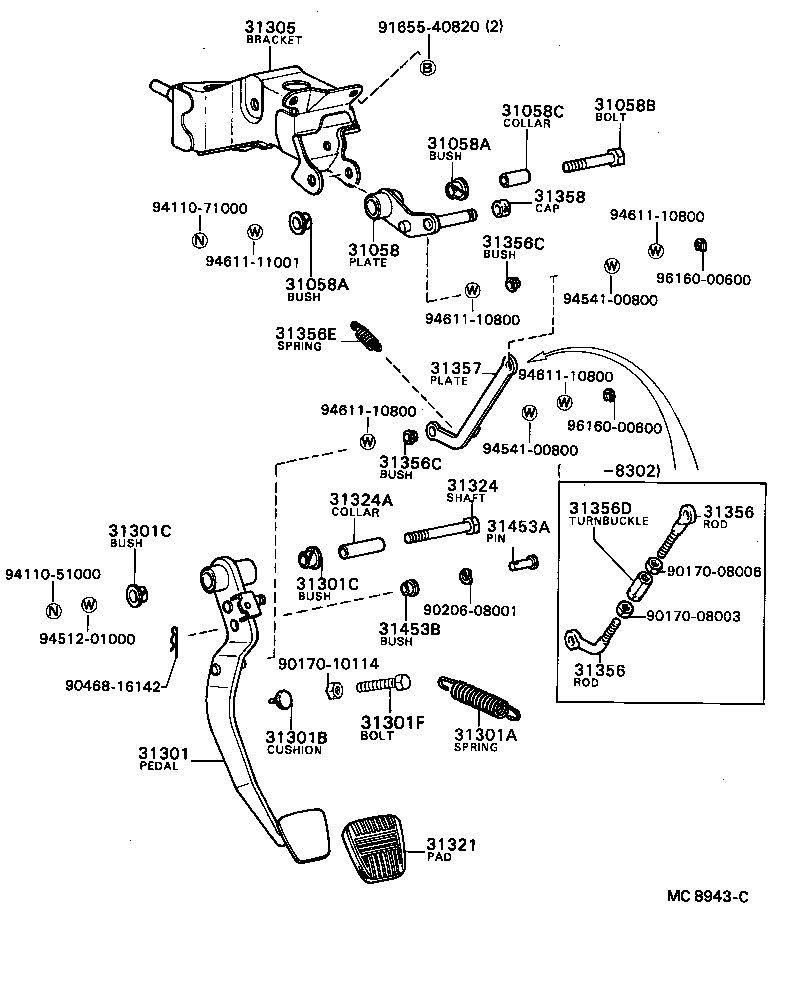

ILLUST NO. 1 OF 2(8210-8508)5F..GT,GTT

Click highlighted areas on diagram

diagram 31058 31058A 31058A 31058B 31058C 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31356 31356 31356C 31356C 31356D 31356E 31357 31358 31453A 31453B 9017008003 9017008006 9017010114 9020608001 9046816142 9165540820 9411051000 9411071000 9451201000 9454100800 9454100800 9461110800 9461110800 9461110800 9461110800 9461111001 9616000600 9616000600
Part # Description Qty Price
31058 - PLATE SUB-ASSY, OVER CENTER
31058-24010

AT141,TT142..5F..(GT,GTT)

 1
31058A - BUSH(FOR OVER CENTER PLATE)
90386-13192

AT141,TT142..5F..(GT,GTT)

 2
31058A - BUSH(FOR OVER CENTER PLATE)
90386-13192

AT141,TT142..5F..(GT,GTT)

 2
31058B - BOLT(FOR OVER CENTER PLATE)
90101-10072

AT141,TT142..5F..(GT,GTT)

 1
31058C - COLLAR(FOR OVER CENTER PLATE)
90387-10038

AT141,TT142..5F..(GT,GTT)

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-24010

TT142..5F..GTT

 1
31301-24030

AT141,TT142..5F..(GT,GTT)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-20005

AT141,TT142..5F..(GT,GTT)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07010

AT141,TT142..5F..(GT,GTT)

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10105

AT141,TT142..5F..(GT,GTT)

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-24020

TT142..5F..GTT

 1
55107-14100

AT141,TT142..5F..(GT,GTT)

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

AT140,CT14#,RT141,ST140,TT14#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31356 - ROD, OVER CENTER ADJUSTING
31357-24020

TT142..5F..GTT

UPR

 1
31357-24010

TT142..5F..GTT

LWR

 1
31356 - ROD, OVER CENTER ADJUSTING
31357-24020

TT142..5F..GTT

UPR

 1
31357-24010

TT142..5F..GTT

LWR

 1
31356C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-08014

AT141,TT142..5F..(GT,GTT)

 2
31356C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-08014

AT141,TT142..5F..(GT,GTT)

 2
31356D - TURNBUCKLE(FOR OVER CENTER ADJUSTING ROD)
90587-08001

TT142..5F..GTT

 1
31356E - SPRING(FOR OVER CENTER ADJUSTING ROD)
90506-09024

AT141,TT142..5F..(GT,GTT)

 1
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-24030

AT141,TT142..5F..(GT,GTT)

 1
31358 - CAP, OVER CENTER SPRING
31358-14010

AT141,TT142..5F..(GT,GTT)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT140,RT141,ST140,TT14#..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
Common parts
90170-08003
90170-08006
90170-10114
90206-08001
90468-16142
91655-40820
94110-51000
94110-71000
94512-01000
94541-00800
94611-10800
94611-11001
96160-00600
