TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)RT141,TT142,YT140..MTM ; (8612- )YT140..MTM

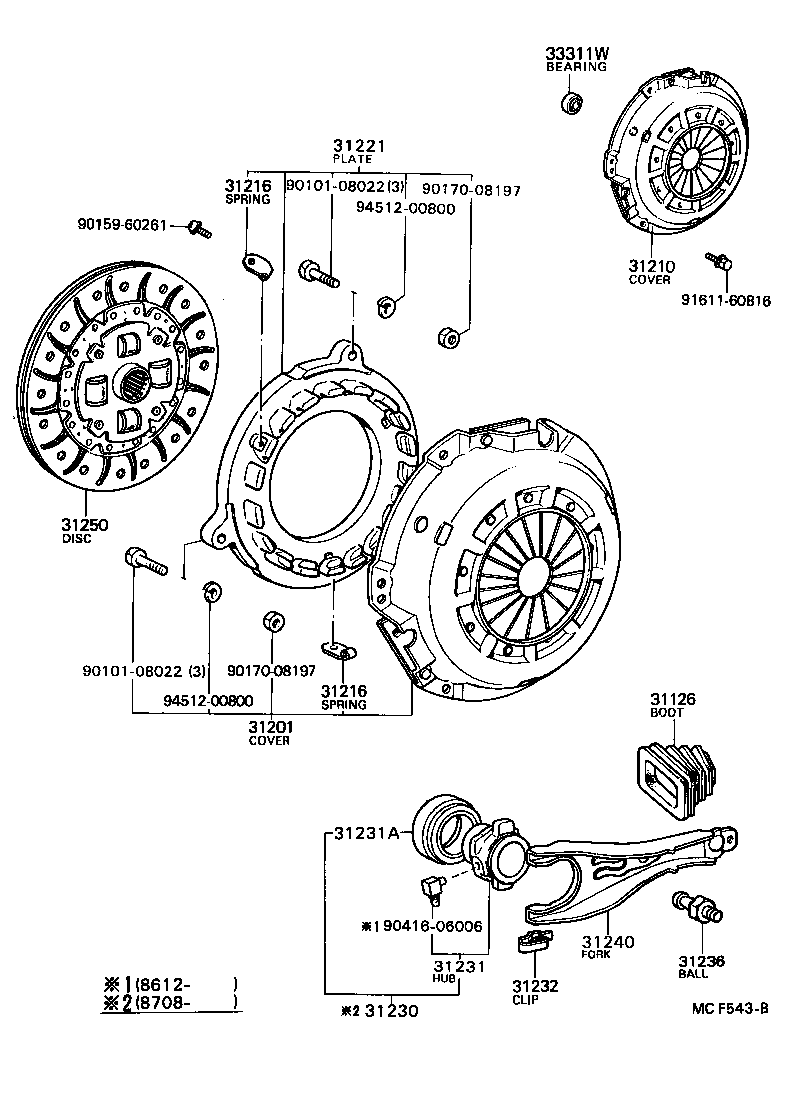

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31230 31231 31231A 31232 31236 31240 31250 33311W 9010108022 9010108022 9015960261 9017008197 9017008197 9041606006 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

AT14#,CT14#,KT147,ST140,TT14#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29115

TT142..5F..GTT

 1
31210 - COVER ASSY, CLUTCH
31210-24010

TT142..5F..GTT

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CT14#,RT141,ST140,TT142..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

CT14#,RT141,ST140,TT142..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39115

TT142..5F..GTT

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20090

RT141,TT142..GT,GTT

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20090

CT14#,ST140,TT142..MTM..(DLX,EXS,GTT,GX,GXA,STD)

 1
31204-20080

AT14#,KT147,TT14#..MTM..(DLX,GT,GX,STD,SX)

 1
31250 - DISC ASSY, CLUTCH
31250-14150

TT142..5F..GTT

 1
31250-30200

TT142..5F..GTT

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

AT14#,KT147,TT14#..MTM

 1
Common parts
90101-08022
90159-60261
90170-08197
90416-06006
91611-60816
94512-00800
