TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)3TGTEU

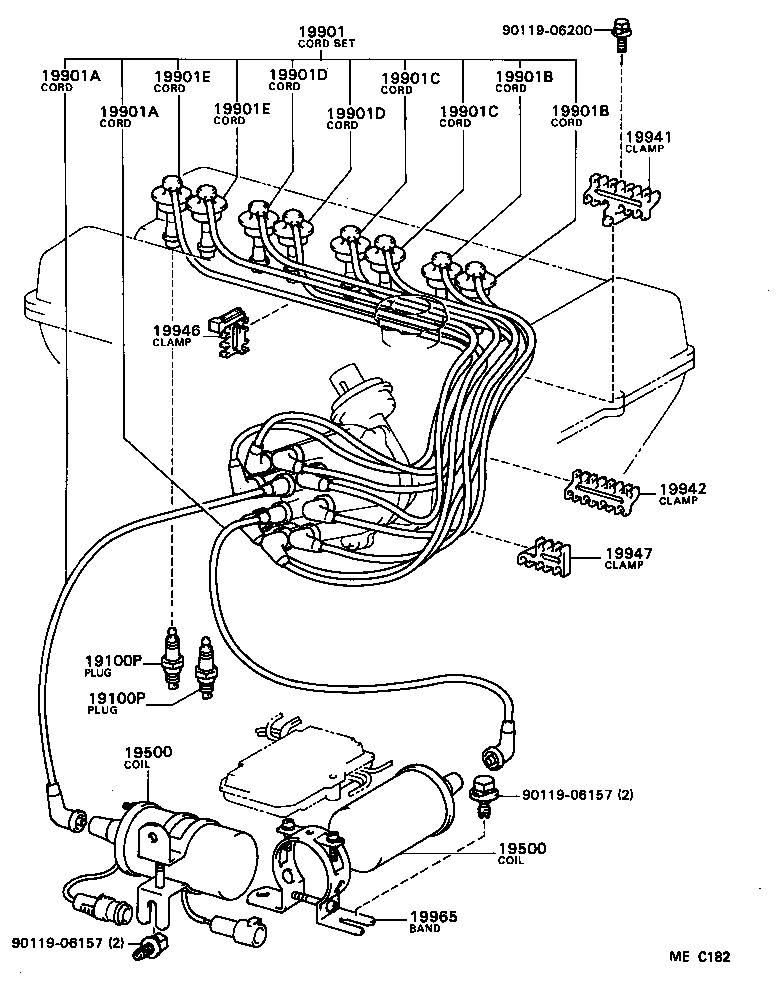

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19500 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19942 19946 19947 19965 9011906157 9011906157 9011906200
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01125

3TGTEU..TT142

W20EXR−U11,W20EXR-U11(NIPPONDENSO)

 8
90919-01126

3TGTEU..TT142

BPR6EY11,BPR6EY11(NGK)

 8
19100P - PLUG, SPARK
90919-01125

3TGTEU..TT142

W20EXR−U11,W20EXR-U11(NIPPONDENSO)

 8
90919-01126

3TGTEU..TT142

BPR6EY11,BPR6EY11(NGK)

 8
19500 - COIL ASSY, IGNITION
90919-02136

3TGTEU..TT142

 1
90919-02113

3TGTEU..TT142

W/IGNITER

 1
90919-02158

3TGTEU..TT142

 1
90919-02117

12TJ,3TGTEU..TT14#

W/IGNITER

 1
19500 - COIL ASSY, IGNITION
90919-02136

3TGTEU..TT142

 1
90919-02113

3TGTEU..TT142

W/IGNITER

 1
90919-02158

3TGTEU..TT142

 1
90919-02117

12TJ,3TGTEU..TT14#

W/IGNITER

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21336

3TGTEU..TT142

 1
90919-21313

3TGTEU..TT142

 1
19901A - CORD, COIL RESISTIVE
90919-13208

3TGTEU..TT142

L=300

 1
90919-13209

3TGTEU..TT142

L=230

 1
90919-13225

3TGTEU..TT142

L=300

 1
19901A - CORD, COIL RESISTIVE
90919-13208

3TGTEU..TT142

L=300

 1
90919-13209

3TGTEU..TT142

L=230

 1
90919-13225

3TGTEU..TT142

L=300

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12435

3TGTEU..TT142

FR

 1
90919-12436

3TGTEU..TT142

RR

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12435

3TGTEU..TT142

FR

 1
90919-12436

3TGTEU..TT142

RR

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12437

3TGTEU..TT142

FR

 1
90919-12438

3TGTEU..TT142

RR

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12437

3TGTEU..TT142

FR

 1
90919-12438

3TGTEU..TT142

RR

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12440

3TGTEU..TT142

 1
90919-12439

3TGTEU..TT142

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12440

3TGTEU..TT142

 1
90919-12439

3TGTEU..TT142

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12441

3TGTEU..TT142

 1
90919-12442

3TGTEU..TT142

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12441

3TGTEU..TT142

 1
90919-12442

3TGTEU..TT142

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01020

3TGTEU..TT142

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01021

3TGTEU..TT142

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90929-01022

3TGTEU..TT142

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90929-01025

3TGTEU..TT142

 1
90929-01044

3TGTEU..TT142

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03086

3TGTEU..TT142

 1
Common parts
90119-06157
90119-06200
