TT142-TEMQZ (1982)
Toyota Corona
ILLUST NO. 3 OF 3(8201-8811)12TJ,3T#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-28070 |
3TGTEU..TT142..5F W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28070 |
3TGTEU..TT142..5F W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
12TJ,3T#..TT14# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
12TJ,3T#..TT14# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
12TJ,3T#..TT14# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
12TJ,3T#..TT14# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
12TJ,3T#..TT14# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-35070 |
3TGTEU..TT142 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
3T#..TT142 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35070 |
3T#..TT142 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
3T#..TT142 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
3T#..TT142 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
3T#..TT142 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35070 |
3T#..TT142 |
2 | ||

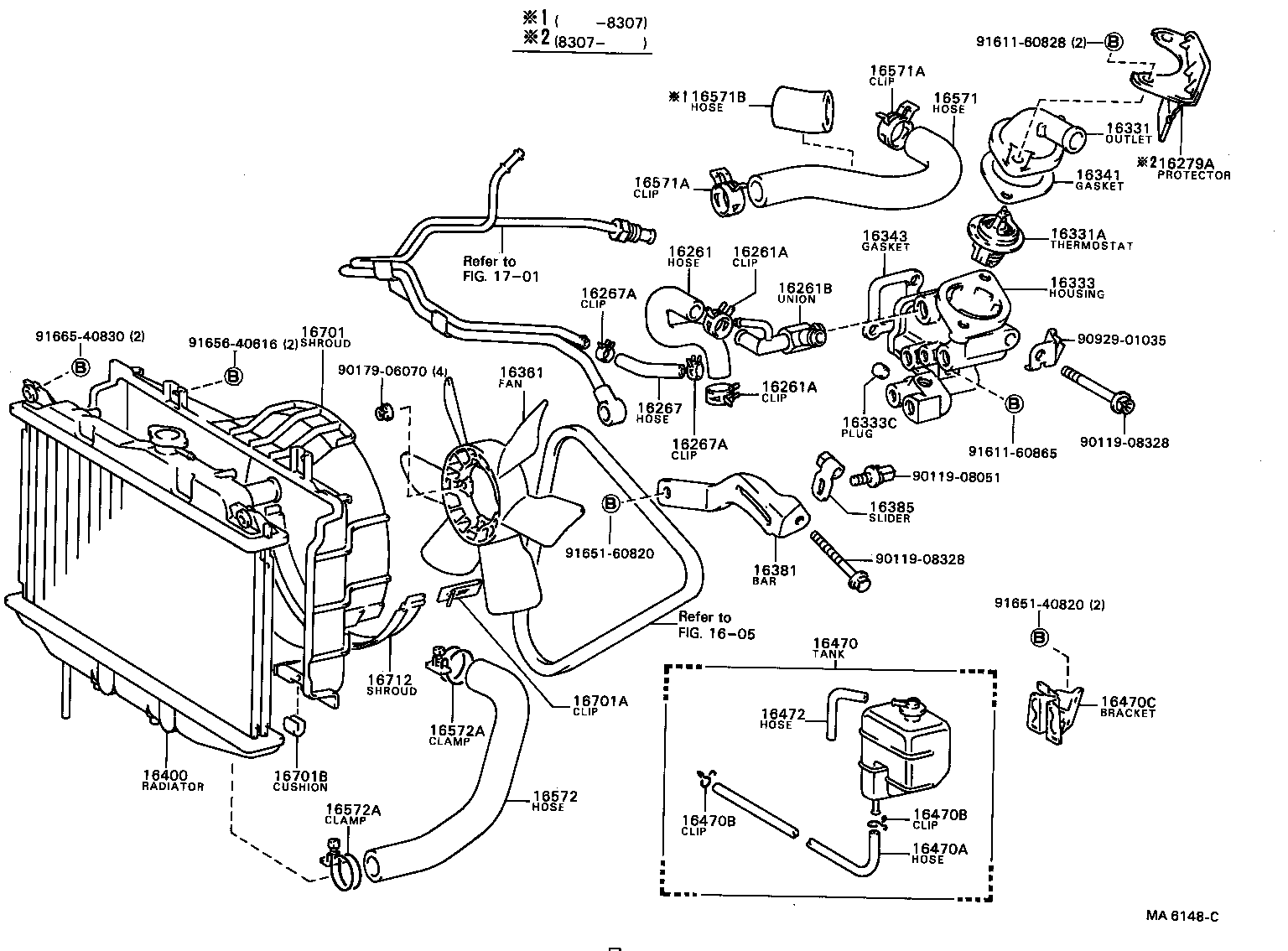

(8210-8310)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88280 |
3TGTEU..TT142 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
3TGTEU..TT142 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
3TGTEU..TT142 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53047 |
3TGTEU..TT142 |
1 | ||
| 90404-53052 |
3TGTEU..TT142 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88280 |
3TGTEU..TT142 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU..TT142 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU..TT142 |
2 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-88280 |
3TGTEU..TT142 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88280 |
3TGTEU..TT142 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
12TJ,3TGTEU..TT14# *WAX 88-100,*(F) |
1 | ||
| 90916-03036 |
3TGTEU..TT142 *WAX 88-100 |
1 | ||
| 90916-03055 |
3TGTEU..TT142 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-88280 |
3TGTEU..TT142..5F |
1 | ||
| 16333-88284 |
3TGTEU..TT142..5F |
1 | ||
| 16303-88282 |
3TGTEU..TT142..5F |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90336-10002 |
3TGTEU..TT142 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88280 |
3TGTEU..TT142 |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16361-16010 |
3TGTEU..TT142 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88280 |
3TGTEU..TT142 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70011 |
3TGTEU..TT142 |
1 | ||
| 16385-70010 |
3TGTEU..TT142 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28070 |
3TGTEU..TT142..5F W/CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26080 |
3T#..TT142 |
1 | ||
| 16470-28040 |
3TGTEU..TT142 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
3T#..TT142 *H,L=700 |
1 | ||
| 90445-12521 |
3TGTEU..TT142 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3T#..TT142 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3T#..TT142 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-26010 |
3T#..TT142 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
3T#..TT142 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-28010 |
3TGTEU..TT142 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12TJ,3T#..TT14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12TJ,3T#..TT14# |
2 | ||
| 16571B - HOSE, SLIT(FOR RADIATOR HOSE) | ||||
| 90449-44001 |
3TGTEU..TT142 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
12TJ,3T#..TT14# |
1 | ||
| 16571-28040 |
3TGTEU..TT142 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12TJ,3T#..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
12TJ,3T#..TT14# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12TJ,3T#..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
12TJ,3T#..TT14# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28091 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16711-28090 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
12TJ,3T#..TT14# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
12TJ,3T#..TT14# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
12TJ,3T#..TT14# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90119-08328 | ||||
| 90179-06070 | ||||
| 90929-01035 | ||||
| 91611-60828 | ||||
| 91611-60865 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1701 | ||||

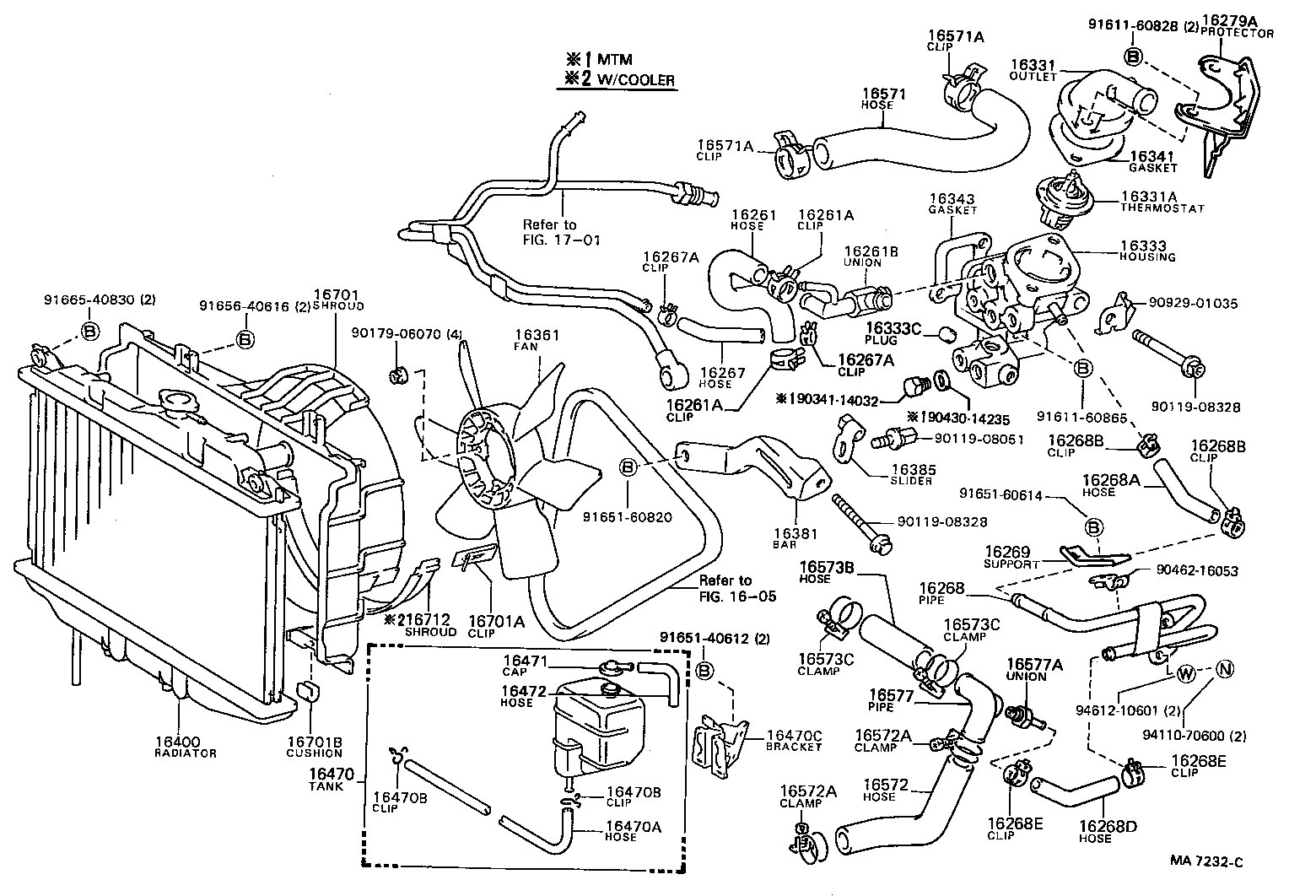

(8310-8508)3TGTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88280 |
3TGTEU..TT142 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
3TGTEU..TT142 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23001 |
3TGTEU..TT142 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53047 |
3TGTEU..TT142 |
1 | ||
| 90404-53052 |
3TGTEU..TT142 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16281-88280 |
3TGTEU..TT142 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU..TT142 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3TGTEU..TT142 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88280 |
3TGTEU..TT142 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16282-88280 |
3TGTEU..TT142 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TT142 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TT142 |
2 | ||
| 16268D - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16283-88280 |
3TGTEU..TT142 |
1 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TT142 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-15004 |
3TGTEU..TT142 |
2 | ||
| 16269 - SUPPORT, WATER BY-PASS PIPE | ||||
| 16269-88280 |
3TGTEU..TT142 |
1 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-88280 |
3TGTEU..TT142 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-88280 |
3TGTEU..TT142 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
12TJ,3TGTEU..TT14# *WAX 88-100,*(F) |
1 | ||
| 90916-03036 |
3TGTEU..TT142 *WAX 88-100 |
1 | ||
| 90916-03055 |
3TGTEU..TT142 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-88280 |
3TGTEU..TT142..5F |
1 | ||
| 16333-88284 |
3TGTEU..TT142..5F |
1 | ||
| 16303-88282 |
3TGTEU..TT142..5F |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90336-10002 |
3TGTEU..TT142 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88280 |
3TGTEU..TT142 |
1 | ||
| 16361 - FAN | ||||
| 16361-18010 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16361-16010 |
3TGTEU..TT142 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-88280 |
3TGTEU..TT142 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70011 |
3TGTEU..TT142 |
1 | ||
| 16385-70010 |
3TGTEU..TT142 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28070 |
3TGTEU..TT142..5F W/CAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26080 |
3T#..TT142 |
1 | ||
| 16470-28040 |
3TGTEU..TT142 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12013 |
3T#..TT142 *H,L=700 |
1 | ||
| 90445-12521 |
3TGTEU..TT142 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3T#..TT142 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3T#..TT142 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-26010 |
3T#..TT142 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-28010 |
3TGTEU..TT142 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-30010 |
3T#..TT142 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-28010 |
3TGTEU..TT142 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12TJ,3T#..TT14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
12TJ,3T#..TT14# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
12TJ,3T#..TT14# |
1 | ||
| 16571-28040 |
3TGTEU..TT142 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12TJ,3T#..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
12TJ,3T#..TT14# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12TJ,3T#..TT14# RADIATOR SIDE |
1 | ||
| 96111-10490 |
12TJ,3T#..TT14# WATER PUMP SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 90445-48001 |
3TGTEU..TT142 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
3TGTEU..TT142 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10490 |
3TGTEU..TT142 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 90413-52004 |
3TGTEU..TT142 |
1 | ||
| 16577A - UNION(FOR RADIATOR PIPE) | ||||
| 90404-52004 |
3TGTEU..TT142 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-28091 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16711-28090 |
12TJ,3T#..TT14#..3FC,4FC,5F |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
12TJ,3T#..TT14# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
12TJ,3T#..TT14# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
12TJ,3T#..TT14# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 90119-08328 | ||||
| 90179-06070 | ||||
| 90341-14032 | ||||
| 90430-14235 | ||||
| 90462-16053 | ||||
| 90929-01035 | ||||
| 91611-60828 | ||||
| 91611-60865 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| 94110-70600 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
