TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)3TGTEU

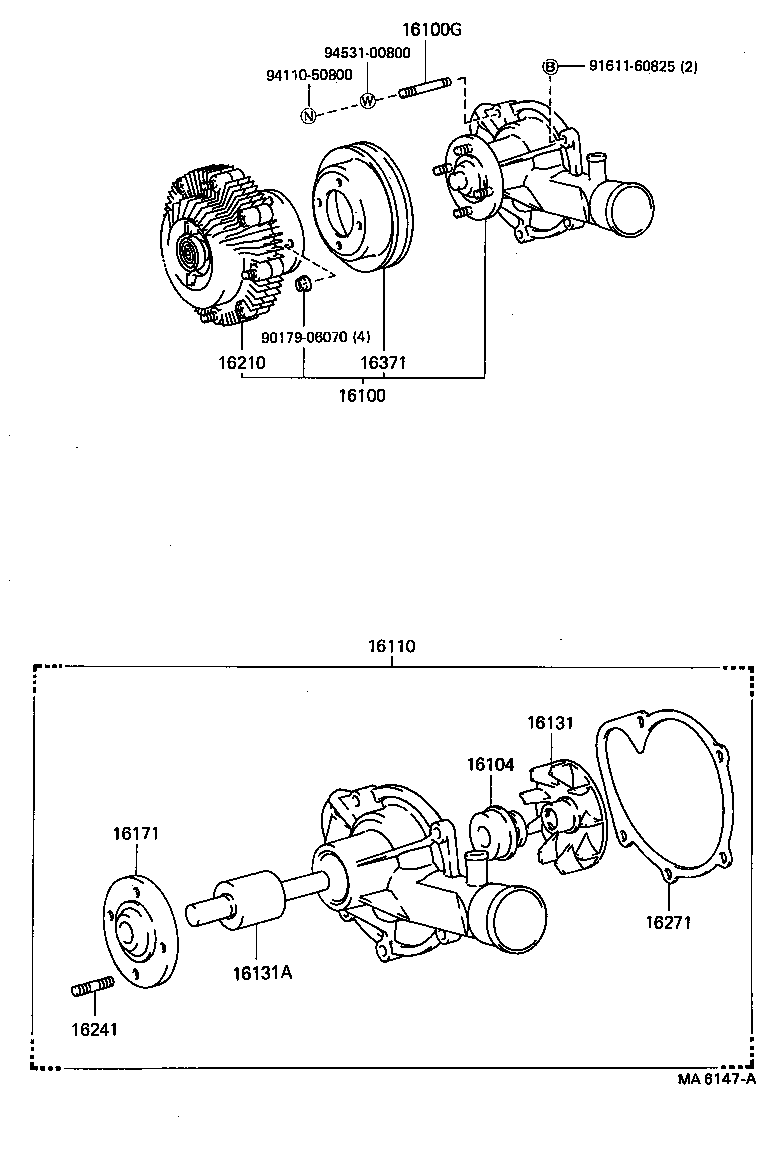

Click highlighted areas on diagram

diagram 16100 16100G 16104 16110 16131 16131A 16171 16210 16241 16271 16371 9017906070 9161160825 9411050800 9453100800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16030-88280

3TGTEU..TT142

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90072-11622

3TGTEU..TT142

L=59,S=9&11

 1
16104 - SEAL SET, WATER PUMP
16104-88300

3TGTEU..TT142

 1
16104-71010

3TGTEU..TT142

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16100-88280

3TGTEU..TT142

 1
16131 - ROTOR, WATER PUMP
16131-88280

3TGTEU..TT142

 1
16131A - BEARING, WATER PUMP
90369-30049

3TGTEU..TT142

 1
16171 - SEAT, WATER PUMP PULLEY
16171-88280

3TGTEU..TT142

 1
16210 - COUPLING ASSY, FLUID
16210-28020

12TJ,3T#..TT14#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-15020

3TGTEU..TT142

 4
16271 - GASKET, WATER PUMP
16129-25012

12TJ,3T#..TT14#

 1
Common parts
90179-06070
91611-60825
94110-50800
94531-00800
