TT142-TEMQZ (1982)
Toyota Corona
(8210-8508)3TGTEU

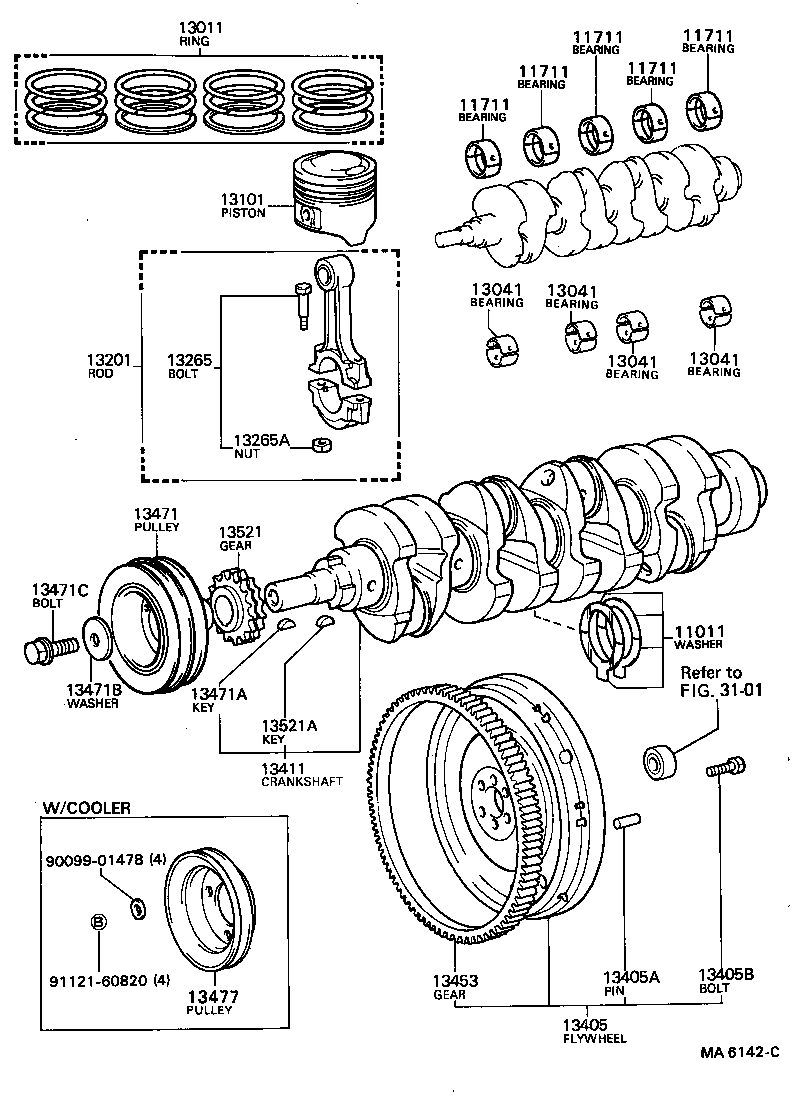

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
12TJ,3T#..TT14# STD,STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8828003 |
3TGTEU..TT142 MARK"3",MARK 3 |
5 | ||
| 11701-8828002 |
3TGTEU..TT142 MARK"2",MARK 2 |
5 | ||
| 11701-8828005 |
3TGTEU..TT142 MARK"5",MARK 5 |
5 | ||
| 11701-8828006 |
3TGTEU..TT142 MARK"6",MARK 6 |
5 | ||
| 11701-8828004 |
3TGTEU..TT142 MARK"4",MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8828003 |
3TGTEU..TT142 MARK"3",MARK 3 |
5 | ||
| 11701-8828002 |
3TGTEU..TT142 MARK"2",MARK 2 |
5 | ||
| 11701-8828005 |
3TGTEU..TT142 MARK"5",MARK 5 |
5 | ||
| 11701-8828006 |
3TGTEU..TT142 MARK"6",MARK 6 |
5 | ||
| 11701-8828004 |
3TGTEU..TT142 MARK"4",MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8828003 |
3TGTEU..TT142 MARK"3",MARK 3 |
5 | ||
| 11701-8828002 |
3TGTEU..TT142 MARK"2",MARK 2 |
5 | ||
| 11701-8828005 |
3TGTEU..TT142 MARK"5",MARK 5 |
5 | ||
| 11701-8828006 |
3TGTEU..TT142 MARK"6",MARK 6 |
5 | ||
| 11701-8828004 |
3TGTEU..TT142 MARK"4",MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8828003 |
3TGTEU..TT142 MARK"3",MARK 3 |
5 | ||
| 11701-8828002 |
3TGTEU..TT142 MARK"2",MARK 2 |
5 | ||
| 11701-8828005 |
3TGTEU..TT142 MARK"5",MARK 5 |
5 | ||
| 11701-8828006 |
3TGTEU..TT142 MARK"6",MARK 6 |
5 | ||
| 11701-8828004 |
3TGTEU..TT142 MARK"4",MARK 4 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-8828003 |
3TGTEU..TT142 MARK"3",MARK 3 |
5 | ||
| 11701-8828002 |
3TGTEU..TT142 MARK"2",MARK 2 |
5 | ||
| 11701-8828005 |
3TGTEU..TT142 MARK"5",MARK 5 |
5 | ||
| 11701-8828006 |
3TGTEU..TT142 MARK"6",MARK 6 |
5 | ||
| 11701-8828004 |
3TGTEU..TT142 MARK"4",MARK 4 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-88280 |
3TGTEU..TT142 STD |
1 | ||
| 13013-88280 |
3TGTEU..TT142 O/S 0.50 |
1 | ||
| 13011-88283 |
3TGTEU..TT142 O/S 0.50 |
1 | ||
| 13011-88282 |
3TGTEU..TT142 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8828103 |
3TGTEU..TT142 MARK"3",MARK 3 |
4 | ||
| 13041-8828106 |
3TGTEU..TT142 MARK"6",MARK 6 |
4 | ||
| 13041-8828107 |
3TGTEU..TT142 MARK"7",MARK 7 |
4 | ||
| 13041-8828104 |
3TGTEU..TT142 MARK"4",MARK 4 |
4 | ||
| 13041-8828105 |
3TGTEU..TT142 MARK"5",MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8828103 |
3TGTEU..TT142 MARK"3",MARK 3 |
4 | ||
| 13041-8828106 |
3TGTEU..TT142 MARK"6",MARK 6 |
4 | ||
| 13041-8828107 |
3TGTEU..TT142 MARK"7",MARK 7 |
4 | ||
| 13041-8828104 |
3TGTEU..TT142 MARK"4",MARK 4 |
4 | ||
| 13041-8828105 |
3TGTEU..TT142 MARK"5",MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8828103 |
3TGTEU..TT142 MARK"3",MARK 3 |
4 | ||
| 13041-8828106 |
3TGTEU..TT142 MARK"6",MARK 6 |
4 | ||
| 13041-8828107 |
3TGTEU..TT142 MARK"7",MARK 7 |
4 | ||
| 13041-8828104 |
3TGTEU..TT142 MARK"4",MARK 4 |
4 | ||
| 13041-8828105 |
3TGTEU..TT142 MARK"5",MARK 5 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-8828103 |
3TGTEU..TT142 MARK"3",MARK 3 |
4 | ||
| 13041-8828106 |
3TGTEU..TT142 MARK"6",MARK 6 |
4 | ||
| 13041-8828107 |
3TGTEU..TT142 MARK"7",MARK 7 |
4 | ||
| 13041-8828104 |
3TGTEU..TT142 MARK"4",MARK 4 |
4 | ||
| 13041-8828105 |
3TGTEU..TT142 MARK"5",MARK 5 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-88280 |
3TGTEU..TT142 STD |
4 | ||
| 13101-88281 |
3TGTEU..TT142 O/S 0.50 |
4 | ||
| 13101-88282 |
3TGTEU..TT142 STD |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-71011 |
3TGTEU..TT142 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
12TJ,3T#..TT14# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
12TJ,3T#..TT14# |
8 | ||
| 90170-09195 |
12TJ,3T#..TT14# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-79035 |
3TGTEU..TT142..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
12TJ,3T#..TT14#..MTM 長さ=23,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10030 |
3TGTEU..TT142..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-28901 |
3TGTEU..TT142 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
12TJ,3T#..TT14#..MTM |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-88280 |
3TGTEU..TT142 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
12TJ,3T#..TT14# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
12TJ,3T#..TT14# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
12TJ,3T#..TT14# *12-1.25PX 24-18 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-14030 |
3TGTEU..TT142 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
12TJ,3T#..TT14# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
12TJ,3T#..TT14# |
1 | ||
| Common parts | ||||
| 90099-01478 | ||||
| 91121-60820 | ||||
| Linked diagrams | ||||
| 3101 | ||||
