TT142-TEMQZ (1982)

Toyota Corona

Production Oct 1982 - Aug 1985
Engine 3TGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)3T#

Click highlighted areas on diagram

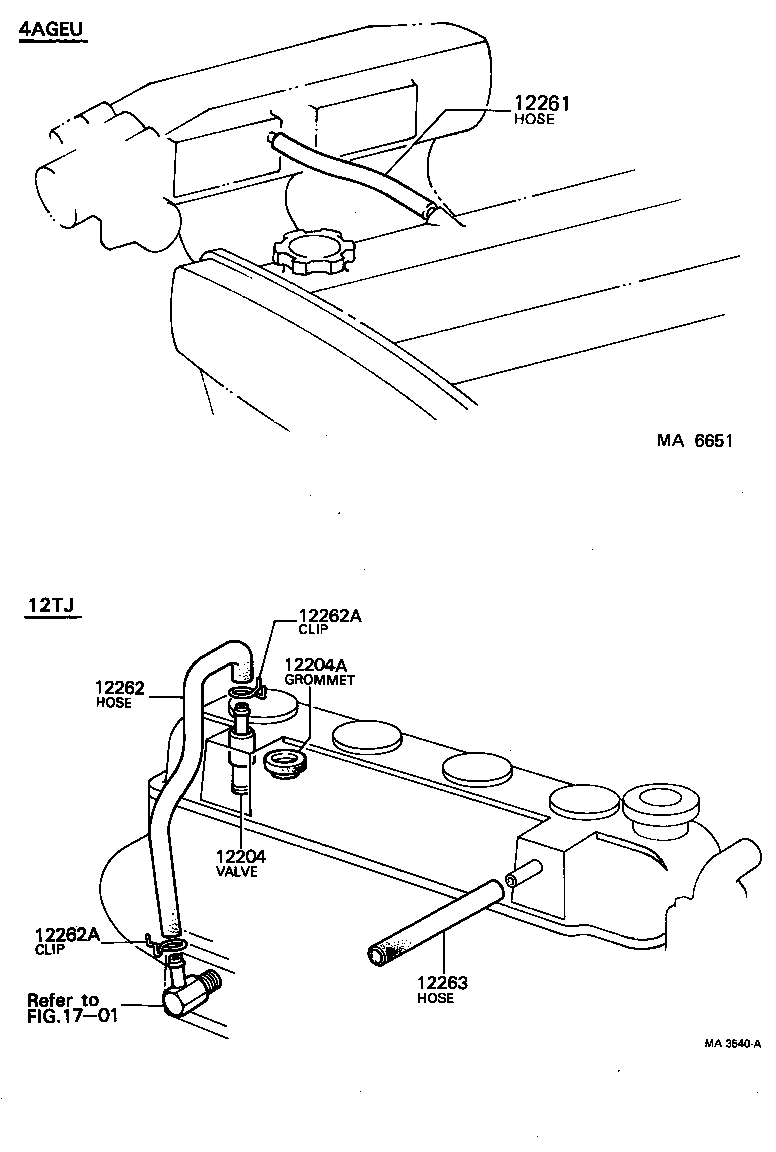

MA6651,MA3540A

diagram 12204 12204A 12261 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-88280

3TGTEU..TT142

 1
12204-88281

3TGTEU..TT142

 1
12261 - HOSE, VENTILATION
12262-88280

3TGTEU..TT142

 1
12262 - HOSE, VENTILATION, NO.2
12263-88280

3TGTEU..TT142

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15004

3TGTEU..TT142

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15004

3TGTEU..TT142

 2
12263 - HOSE, VENTILATION, NO.3
90445-17049

3TGTEU..TT142

 1
Linked diagrams
1701

(8201-8508)3T#

Click highlighted areas on diagram

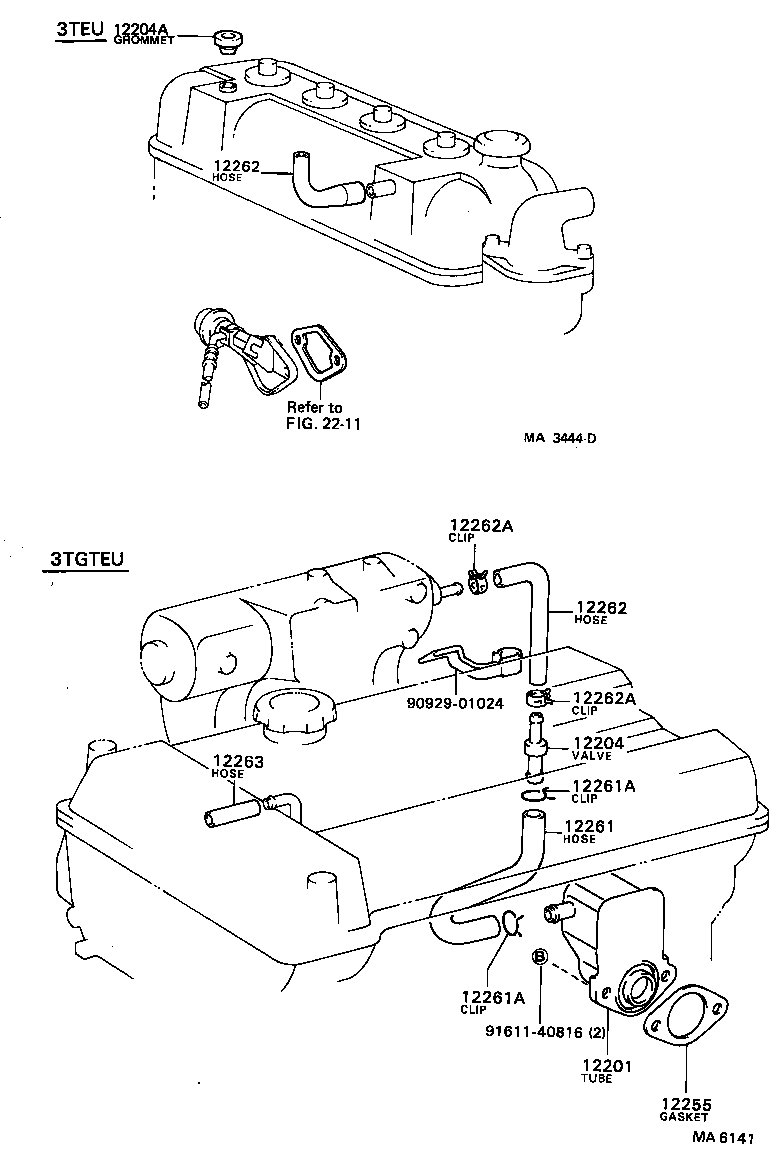

MA3444D,MA6141

diagram 12201 12204 12204A 12255 12261 12261A 12261A 12262 12262 12262A 12262A 12263 2211 9092901024 9161140816
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-25010

3TGTEU..TT142

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-88280

3TGTEU..TT142

 1
12204-88281

3TGTEU..TT142

 1
12255 - GASKET, VENTILATION
12255-25010

3TGTEU..TT142

 1
12261 - HOSE, VENTILATION
12262-88280

3TGTEU..TT142

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

3TGTEU..TT142

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

3TGTEU..TT142

 2
12262 - HOSE, VENTILATION, NO.2
12263-88280

3TGTEU..TT142

 1
12262 - HOSE, VENTILATION, NO.2
12263-88280

3TGTEU..TT142

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15004

3TGTEU..TT142

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15004

3TGTEU..TT142

 2
12263 - HOSE, VENTILATION, NO.3
90445-17049

3TGTEU..TT142

 1
Common parts
90929-01024
91611-40816
Linked diagrams
2211
