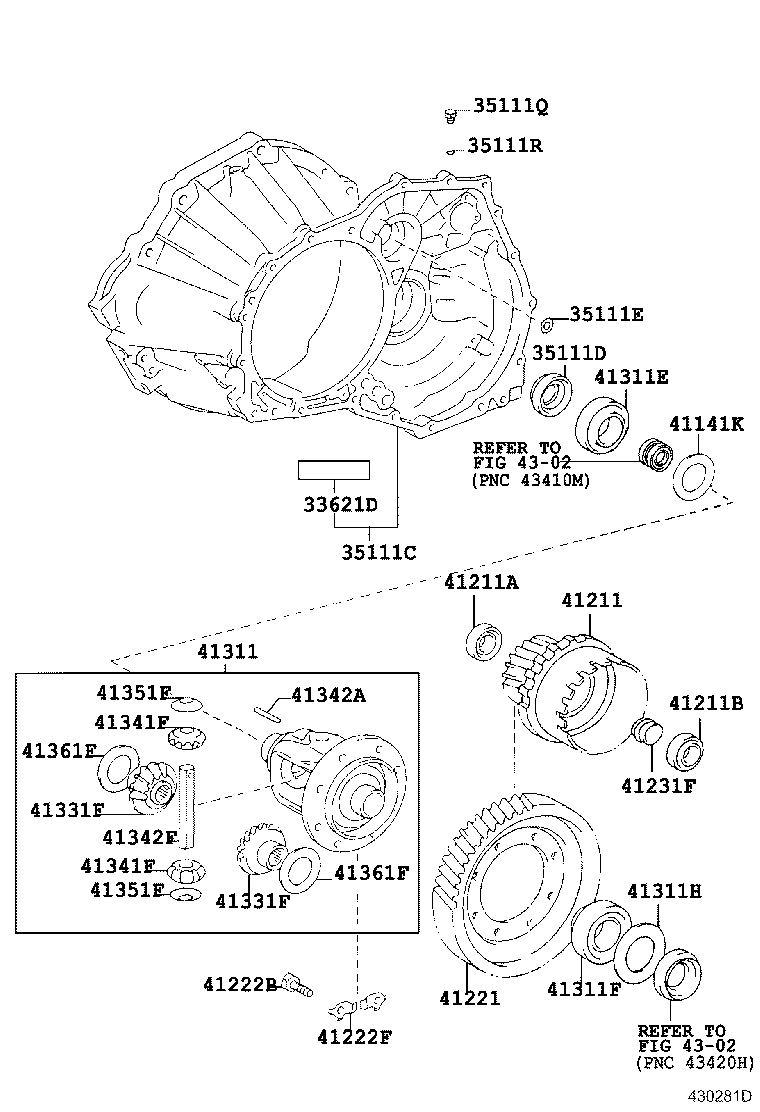

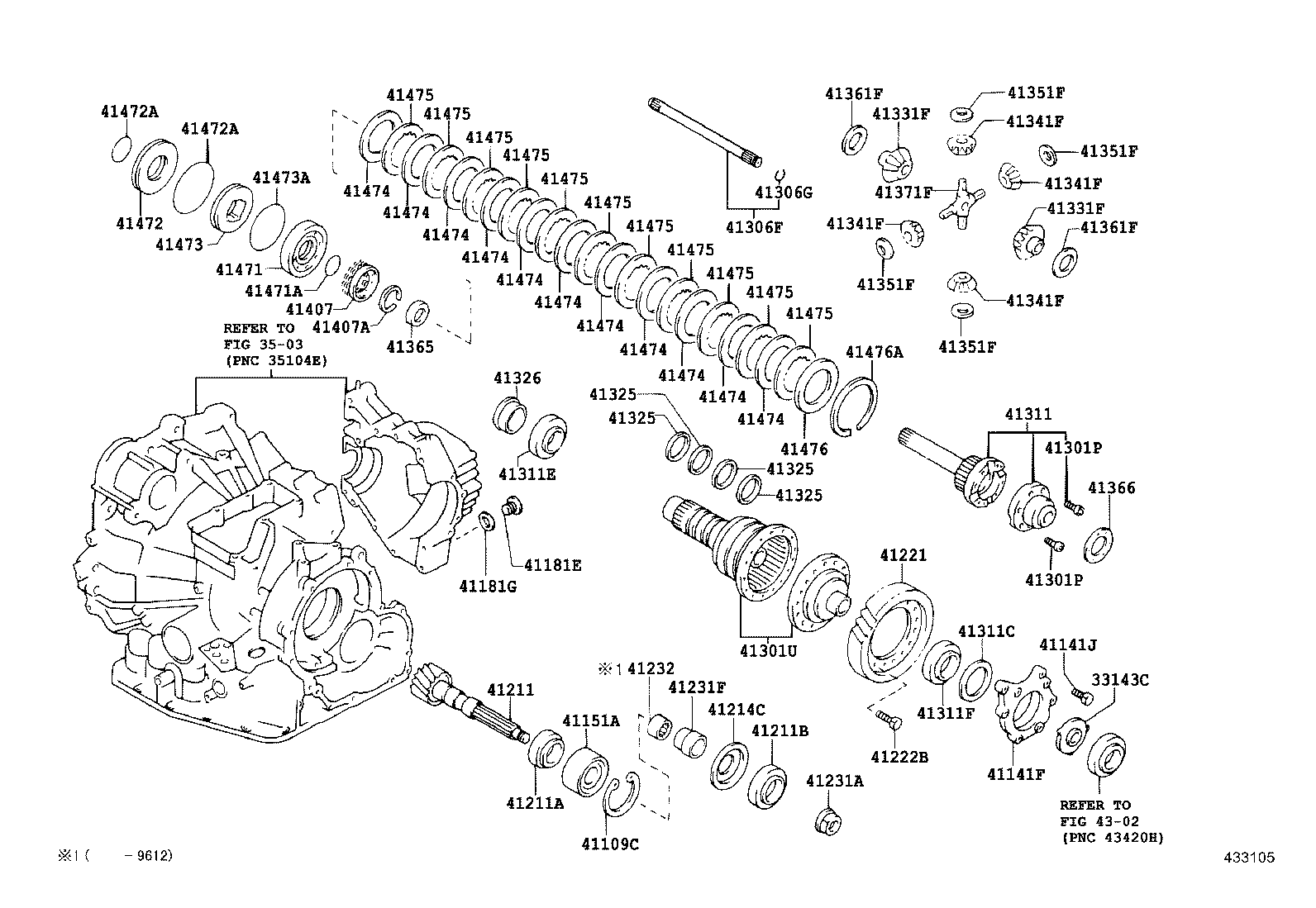

ST215-AEPEK (1996)
Toyota Corona
(9601-9712)ST215..ATM
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-12010 |
CT215,ST215 |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-79008 |
ST215..ATM |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41101-32030 |
ST215..ATM |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-08331 |
ST215..ATM *8−1.25PX36−23 |
6 | ||
| 41151A - CAGE, DIFF DRIVE PINION TAPER BEARING | ||||
| 41151-32031 |
ST215..ATM |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
ST215..ATM |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
ST215..ATM |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32072 |
ST215..ATM |
1 | ||
| 41206-20050 |
CT216,ST215..ATM |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-36003 |
ST215..ATM |
1 | ||
| 90366-30054 |
CT21#,ST215..ATM |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40051 |
ST215..ATM |
1 | ||
| 90366-30053 |
CT21#,ST215..ATM |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-32020 |
ST215..ATM |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32070 |
ST215..ATM |
1 | ||
| 41221-21090 |
CT216,ST215..ATM |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
ST215..ATM |
12 | ||
| 90101-11353 |
CT216,ST215..ATM |
10 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-24006 |
ST215..ATM |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-45010 |
ST215..ATM |
1 | ||
| 41231-32020 |
ST215..ATM |
1 | ||
| 41231-17010 |
CT21#,ST21#..ATM |
1 | ||
| 41232 - SPACER, DRIVE PINION BEARING, NO.2 | ||||
| 41232-32011 |
ST215..ATM |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90149-80017 |
ST215..ATM |
16 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90149-80017 |
ST215..ATM |
16 | ||
| 41301U - CASE SUB-ASSY, FRONT DIFFERENTIAL RING GEAR MOUNTING | ||||
| 41301-32040 |
ST215..ATM |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-32010 |
CT215,ST215 |
1 | ||
| 41306G - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT | ||||
| 90521-26004 |
CT215,ST215 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41302-32030 |
ST215..ATM |
1 | ||
| 41301-21050 |
CT216,ST215..ATM |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76005 |
CT215,ST215 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76006 |
CT215,ST215 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76009 |
CT215,ST215 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-76001 |
CT215,ST215 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76007 |
CT215,ST215 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76004 |
CT215,ST215 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-76010 |
CT215,ST215 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76011 |
CT215,ST215 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76008 |
CT215,ST215 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-76012 |
CT215,ST215 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76015 |
CT215,ST215 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76003 |
CT215,ST215 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-76017 |
CT215,ST215 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-76013 |
CT215,ST215 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76002 |
CT215,ST215 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76016 |
CT215,ST215 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-76014 |
CT215,ST215 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-76018 |
CT215,ST215 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-67004 |
ST215..ATM |
1 | ||
| 90366-50045 |
CT216,ST215 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55034 |
ST215..ATM |
1 | ||
| 90366-44001 |
CT21#,ST21#..ATM |
1 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41326 - SLEEVE, RING GEAR MOUNTING CASE | ||||
| 41326-32010 |
ST215..ATM |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| 41365 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.1 | ||||
| 41365-12010 |
ST215..ATM |
1 | ||
| 41366 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.2 | ||||
| 41366-12010 |
ST215..ATM |
1 | ||
| 41371F - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-32020 |
ST215..ATM |
1 | ||
| 41407 - SPRING SUB-ASSY, DIFFERENTIAL LOCK PISTON RETURN | ||||
| 41407-32010 |
ST215..ATM |
1 | ||
| 41407A - RING, SHAFT SNAP (FOR DIFF LOCK PISTON RETURN SPRING) | ||||
| 90520-43008 |
ST215..ATM |
1 | ||
| 41471 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1 | ||||
| 41471-32010 |
ST215..ATM |
1 | ||
| 41471A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1) | ||||
| 90301-46002 |
ST215..ATM |
1 | ||
| 41472 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.2 | ||||
| 41472-32010 |
ST215..ATM |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-99055 |
ST215..ATM 外側 |
1 | ||
| 90301-59004 |
ST215..ATM 内側 |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-99055 |
ST215..ATM 外側 |
1 | ||
| 90301-59004 |
ST215..ATM 内側 |
1 | ||
| 41473 - SLEEVE, DIFFERENTIAL LOCK CLUTCH PISTON REACTION | ||||
| 41473-32010 |
ST215..ATM |
1 | ||
| 41473A - RING, O (FOR PISTON REACTION SLEEVE) | ||||
| 90301-96001 |
ST215..ATM |
1 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41476 - FLANGE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41476-32011 |
ST215..ATM |
1 | ||
| 41476A - RING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE) | ||||
| 90521-99061 |
ST215..ATM |
1 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
(9712- )CT216,ST215..ATM
A241F,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621D - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-16060 |
CT216,ST215 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-21020 |
ST215..ATM |
1 | ||
| 35111D - SEAL, OIL (FOR TRANSAXLE HOUSING) | ||||
| 90311-49002 |
CT216,ST215..ATM |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 41141K - SPACER | ||||
| 90560-54001 |
CT216,ST215 |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32072 |
ST215..ATM |
1 | ||
| 41206-20050 |
CT216,ST215..ATM |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-36003 |
ST215..ATM |
1 | ||
| 90366-30054 |
CT21#,ST215..ATM |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40051 |
ST215..ATM |
1 | ||
| 90366-30053 |
CT21#,ST215..ATM |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32070 |
ST215..ATM |
1 | ||
| 41221-21090 |
CT216,ST215..ATM |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
ST215..ATM |
12 | ||
| 90101-11353 |
CT216,ST215..ATM |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-21010 |
CT216,ST215..ATM |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-45010 |
ST215..ATM |
1 | ||
| 41231-32020 |
ST215..ATM |
1 | ||
| 41231-17010 |
CT21#,ST21#..ATM |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41302-32030 |
ST215..ATM |
1 | ||
| 41301-21050 |
CT216,ST215..ATM |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-67004 |
ST215..ATM |
1 | ||
| 90366-50045 |
CT216,ST215 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55034 |
ST215..ATM |
1 | ||
| 90366-44001 |
CT21#,ST21#..ATM |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-45006 |
CT21#,ST215..ATM 厚さ=2.10,ﾏｰｸ 03 |
1 | ||
| 90201-45010 |
CT21#,ST215..ATM 厚さ=2.30,ﾏｰｸ 07 |
1 | ||
| 90201-45004 |
CT21#,ST21#..ATM 厚さ=2.00,ﾏｰｸ 01 |
1 | ||
| 90201-45009 |
CT21#,ST215..ATM 厚さ=2.25,ﾏｰｸ 06 |
1 | ||
| 90201-45007 |
CT21#,ST215..ATM 厚さ=2.15,ﾏｰｸ 04 |
1 | ||
| 90201-45008 |
CT21#,ST215..ATM 厚さ=2.20,ﾏｰｸ 05 |
1 | ||
| 90201-45011 |
CT21#,ST215..ATM 厚さ=2.35,ﾏｰｸ 08 |
1 | ||
| 90201-45018 |
CT21#,ST215..ATM 厚さ=2.70,ﾏｰｸ 15 |
1 | ||
| 90201-45014 |
CT21#,ST215..ATM 厚さ=2.50,ﾏｰｸ 11 |
1 | ||
| 90201-45012 |
CT21#,ST215..ATM 厚さ=2.40,ﾏｰｸ 09 |
1 | ||
| 90201-45005 |
CT21#,ST215..ATM 厚さ=2.05,ﾏｰｸ 02 |
1 | ||
| 90201-45013 |
CT21#,ST215..ATM 厚さ=2.45,ﾏｰｸ 10 |
1 | ||
| 90201-45017 |
CT21#,ST215..ATM 厚さ=2.65,ﾏｰｸ 14 |
1 | ||
| 90201-45020 |
CT21#,ST215..ATM 厚さ=2.80,ﾏｰｸ 17 |
1 | ||
| 90201-45016 |
CT21#,ST215..ATM 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-45019 |
CT21#,ST215..ATM 厚さ=2.75,ﾏｰｸ 16 |
1 | ||
| 90201-45022 |
CT21#,ST215..ATM 厚さ=2.90,ﾏｰｸ 19 |
1 | ||
| 90201-45021 |
CT21#,ST215..ATM 厚さ=2.85,ﾏｰｸ 18 |
1 | ||
| 90201-45015 |
CT21#,ST215..ATM 厚さ=2.55,ﾏｰｸ 12 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AT21#,CT21#,ST21# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-21020 |
CT216,ST215..ATM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
(9601-9712)ST215..ATM
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-12010 |
CT215,ST215 |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-79008 |
ST215..ATM |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41101-32030 |
ST215..ATM |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90105-08331 |
ST215..ATM *8−1.25PX36−23 |
6 | ||
| 41151A - CAGE, DIFF DRIVE PINION TAPER BEARING | ||||
| 41151-32031 |
ST215..ATM |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
ST215..ATM |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
ST215..ATM |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32072 |
ST215..ATM |
1 | ||
| 41206-20050 |
CT216,ST215..ATM |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-36003 |
ST215..ATM |
1 | ||
| 90366-30054 |
CT21#,ST215..ATM |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40051 |
ST215..ATM |
1 | ||
| 90366-30053 |
CT21#,ST215..ATM |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-32020 |
ST215..ATM |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32070 |
ST215..ATM |
1 | ||
| 41221-21090 |
CT216,ST215..ATM |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
ST215..ATM |
12 | ||
| 90101-11353 |
CT216,ST215..ATM |
10 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-24006 |
ST215..ATM |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-45010 |
ST215..ATM |
1 | ||
| 41231-32020 |
ST215..ATM |
1 | ||
| 41231-17010 |
CT21#,ST21#..ATM |
1 | ||
| 41232 - SPACER, DRIVE PINION BEARING, NO.2 | ||||
| 41232-32011 |
ST215..ATM |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90149-80017 |
ST215..ATM |
16 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90149-80017 |
ST215..ATM |
16 | ||
| 41301U - CASE SUB-ASSY, FRONT DIFFERENTIAL RING GEAR MOUNTING | ||||
| 41301-32040 |
ST215..ATM |
1 | ||
| 41306F - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER | ||||
| 41306-32010 |
CT215,ST215 |
1 | ||
| 41306G - RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT | ||||
| 90521-26004 |
CT215,ST215 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41302-32030 |
ST215..ATM |
1 | ||
| 41301-21050 |
CT216,ST215..ATM |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76005 |
CT215,ST215 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76006 |
CT215,ST215 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76009 |
CT215,ST215 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-76001 |
CT215,ST215 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76007 |
CT215,ST215 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76004 |
CT215,ST215 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-76010 |
CT215,ST215 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76011 |
CT215,ST215 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76008 |
CT215,ST215 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-76012 |
CT215,ST215 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76015 |
CT215,ST215 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76003 |
CT215,ST215 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-76017 |
CT215,ST215 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-76013 |
CT215,ST215 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76002 |
CT215,ST215 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76016 |
CT215,ST215 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-76014 |
CT215,ST215 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-76018 |
CT215,ST215 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-67004 |
ST215..ATM |
1 | ||
| 90366-50045 |
CT216,ST215 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55034 |
ST215..ATM |
1 | ||
| 90366-44001 |
CT21#,ST21#..ATM |
1 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41325 - RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SE | ||||
| 41325-12010 |
ST215..ATM |
4 | ||
| 41326 - SLEEVE, RING GEAR MOUNTING CASE | ||||
| 41326-32010 |
ST215..ATM |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12030 |
CT215,ST215 |
2 | ||
| 41331-32010 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
CT215,ST215 |
4 | ||
| 41341-30011 |
CT21#,ST21# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CT21#,ST21# |
2 | ||
| 41351-32030 |
ST215..ATM |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12340 |
ST215..ATM 厚さ=1.00,ﾏｰｸ B |
2 | ||
| 41361-12350 |
ST215..ATM 厚さ=1.05,ﾏｰｸ C |
2 | ||
| 41361-12370 |
ST215..ATM 厚さ=1.15,ﾏｰｸ E |
2 | ||
| 41361-12380 |
ST215..ATM 厚さ=1.20,ﾏｰｸ F |
2 | ||
| 41361-12390 |
ST215..ATM 厚さ=1.25,ﾏｰｸ G |
2 | ||
| 41361-12360 |
ST215..ATM 厚さ=1.10,ﾏｰｸ D |
2 | ||
| 41361-17010 |
AT21#,CT21#,ST21#..ATM 厚さ=0.95 |
2 | ||
| 41361-12400 |
ST215..ATM 厚さ=1.30,ﾏｰｸ H |
2 | ||
| 41361-17020 |
AT21#,CT21#,ST21#..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AT21#,CT21#,ST21#..ATM 厚さ=1.10 |
2 | ||
| 41361-17030 |
AT21#,CT21#,ST21#..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AT21#,CT21#,ST21#..ATM 厚さ=1.15 |
2 | ||
| 41361-17060 |
AT21#,CT21#,ST21#..ATM 厚さ=1.20 |
2 | ||
| 41365 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.1 | ||||
| 41365-12010 |
ST215..ATM |
1 | ||
| 41366 - WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.2 | ||||
| 41366-12010 |
ST215..ATM |
1 | ||
| 41371F - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-32020 |
ST215..ATM |
1 | ||
| 41407A - RING, SHAFT SNAP (FOR DIFF LOCK PISTON RETURN SPRING) | ||||
| 90520-43008 |
ST215..ATM |
1 | ||
| 41471 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1 | ||||
| 41471-32010 |
ST215..ATM |
1 | ||
| 41471A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1) | ||||
| 90301-46002 |
ST215..ATM |
1 | ||
| 41472 - PISTON, DIFFERENTIAL LOCK CLUTCH, NO.2 | ||||
| 41472-32010 |
ST215..ATM |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-99055 |
ST215..ATM 外側 |
1 | ||
| 90301-59004 |
ST215..ATM 内側 |
1 | ||
| 41472A - RING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2) | ||||
| 90301-99055 |
ST215..ATM 外側 |
1 | ||
| 90301-59004 |
ST215..ATM 内側 |
1 | ||
| 41473 - SLEEVE, DIFFERENTIAL LOCK CLUTCH PISTON REACTION | ||||
| 41473-32010 |
ST215..ATM |
1 | ||
| 41473A - RING, O (FOR PISTON REACTION SLEEVE) | ||||
| 90301-96001 |
ST215..ATM |
1 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41474 - PLATE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41474-32011 |
ST215..ATM |
11 | ||
| 41474-32020 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41475 - DISC, DIFFERENTIAL LOCK CLUTCH | ||||
| 41475-32020 |
ST215..ATM |
11 | ||
| 41475-32030 |
ST215..ATM |
11 | ||
| 41476 - FLANGE, DIFFERENTIAL LOCK CLUTCH | ||||
| 41476-32011 |
ST215..ATM |
1 | ||
| 41476A - RING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE) | ||||
| 90521-99061 |
ST215..ATM |
1 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
