ST215-AEPEK (1996)
Toyota Corona

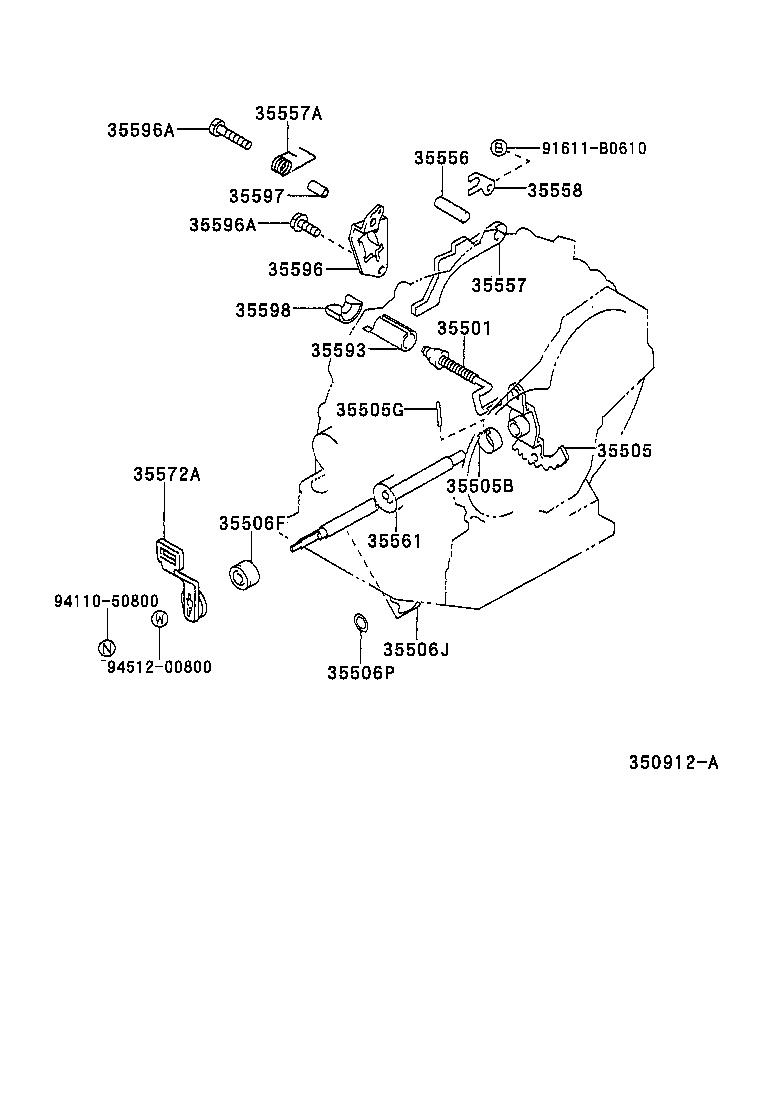

ILLUST NO. 1 OF 2(9601-9712)AT21#,CT210,ST210..ATM ; (9712- )ATM
A241E,A241L,A245E,A247E,A241F,A243F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35501-32040 |
ST215..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-32040 |
ST215..ATM |
1 | ||
| 35505-12040 |
CT21#,ST215..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
ST215..ATM |
1 | ||
| 90524-11001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32020 |
ST215..ATM |
1 | ||
| 35556-12020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32031 |
ST215..ATM |
1 | ||
| 35557-12020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90949-03043 |
ST215..ATM |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
CT21#,ST215..ATM |
1 | ||
| 35561-32010 |
ST215..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-32030 |
ST215..ATM |
1 | ||
| 35572-20210 |
CT21#,ST215..ATM |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT21#,CT21#,ST21#..ATM *8−1.25PX17−13.5 |
1 | ||
| 90105-08068 |
AT21#,CT21#,ST21#..ATM *8−1.25PX35−30 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
AT21#,CT21#,ST21#..ATM *8−1.25PX17−13.5 |
1 | ||
| 90105-08068 |
AT21#,CT21#,ST21#..ATM *8−1.25PX35−30 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(9712- )ST215..ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-44020 |
ST215..ATM |
1 | ||
| 35520-20520 |
ST215..ATM |
1 | ||
| 35520-44040 |
ST215..ATM |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
ST215..ATM |
1 | ||
| 35523-12080 |
CT21#,ST215..ATM |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 35523-20311 |
ST21#..ATM..EFI |
1 | ||
| 35523-20310 |
ST21#..ATM |
1 | ||
| 35523D - CLAMP, THROTTLE CABLE, NO.5 | ||||
| 35523-20420 |
ST215..ATM |
1 | ||
| 35524A - CLAMP, THROTTLE CABLE, NO.6 | ||||
| 35523-20350 |
ST215..ATM |
1 | ||
| 90464-00535 |
ST215..ATM |
1 | ||
| Common parts | ||||
| 90119-10156 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91621-B0612 | ||||

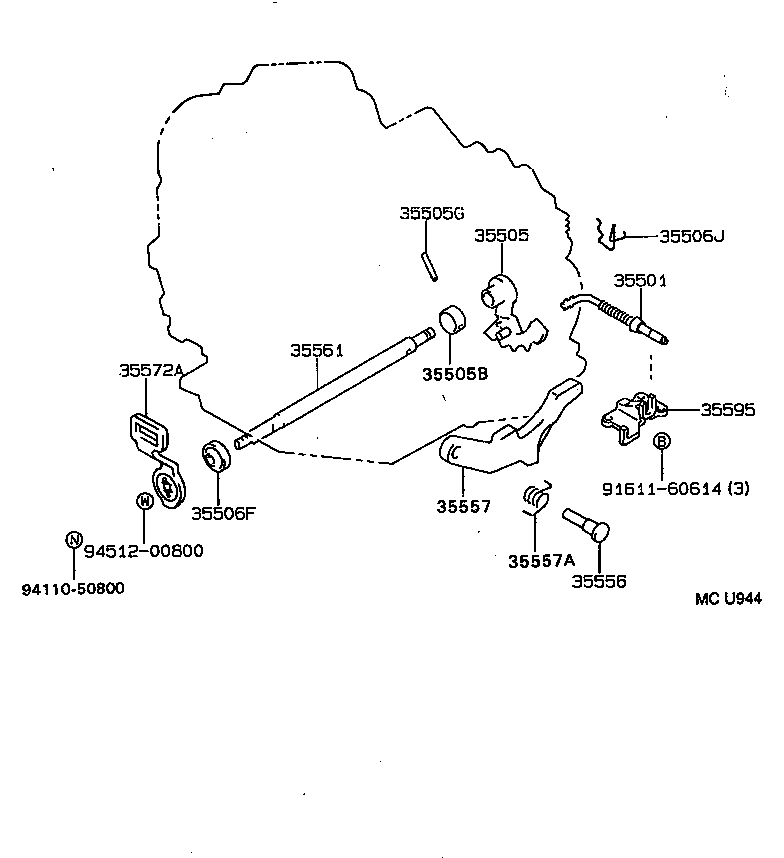

ILLUST NO. 1 OF 2(9601-9712)ST215..ATM
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-12010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35501-32040 |
ST215..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-32040 |
ST215..ATM |
1 | ||
| 35505-12040 |
CT21#,ST215..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-09001 |
ST215..ATM |
1 | ||
| 90524-11001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-32020 |
ST215..ATM |
1 | ||
| 35556-12020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-32031 |
ST215..ATM |
1 | ||
| 35557-12020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21003 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90949-03043 |
ST215..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-12020 |
CT21#,ST215..ATM |
1 | ||
| 35561-32010 |
ST215..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-32030 |
ST215..ATM |
1 | ||
| 35572-20210 |
CT21#,ST215..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-32020 |
ST215..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

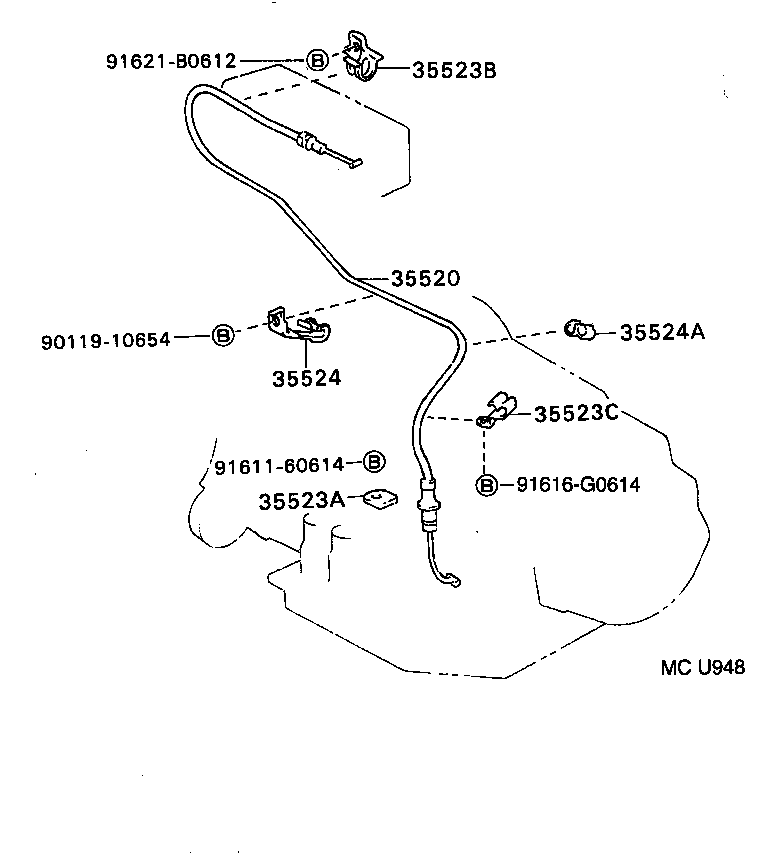

ILLUST NO. 2 OF 2(9601-9712)ST215..ATM
A540H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-44020 |
ST215..ATM |
1 | ||
| 35520-20520 |
ST215..ATM |
1 | ||
| 35520-44040 |
ST215..ATM |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-32010 |
ST215..ATM |
1 | ||
| 35523-12080 |
CT21#,ST215..ATM |
1 | ||
| 35523B - CLAMP, THROTTLE CABLE, NO.3 | ||||
| 35523-20311 |
ST21#..ATM..EFI |
1 | ||
| 35523-20310 |
ST21#..ATM |
1 | ||
| 35523C - CLAMP, THROTTLE CABLE, NO.4 | ||||
| 35523-20370 |
ST215..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-20380 |
ST215..ATM |
1 | ||
| 35524A - CLAMP, THROTTLE CABLE, NO.6 | ||||
| 35523-20350 |
ST215..ATM |
1 | ||
| 90464-00535 |
ST215..ATM |
1 | ||
| Common parts | ||||
| 90119-10654 | ||||
| 91611-60614 | ||||
| 91616-G0614 | ||||
| 91621-B0612 | ||||
