ST215-AEPEK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)CT210,ST210..ATM..EFI,TD ; (9712-)CT21#,ST215..ATM

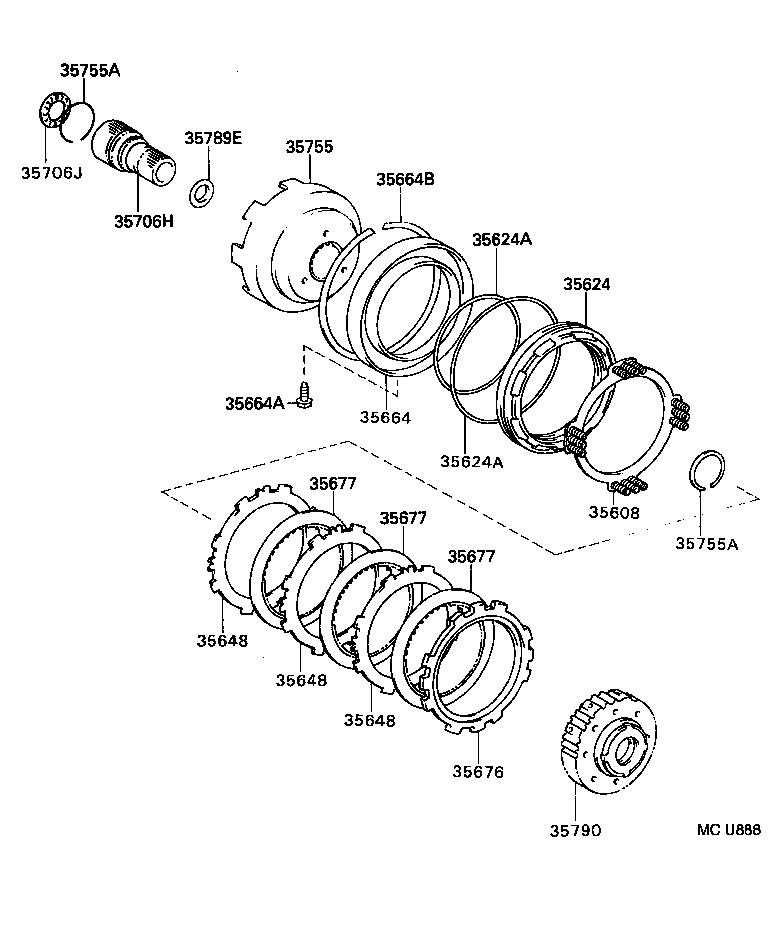

Click highlighted areas on diagram

A241E,A241L,A241F,A243F

diagram 35608 35624 35624A 35624A 35648 35648 35648 35664 35664A 35664B 35676 35677 35677 35677 35706H 35706J 35755 35755A 35755A 35789E 35790
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35624 - PISTON, 2ND BRAKE
35624-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99021

CT21#,ST215..ATM

内側

 1
90301-99021

AT21#,CT210,211,216,ST21#..ATM

内側

 1
90301-99023

AT21#,CT210,211,216,ST21#..ATM

外側

 1
90301-99023

CT21#,ST215..ATM

外側

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99021

CT21#,ST215..ATM

内側

 1
90301-99021

AT21#,CT210,211,216,ST21#..ATM

内側

 1
90301-99023

AT21#,CT210,211,216,ST21#..ATM

外側

 1
90301-99023

CT21#,ST215..ATM

外側

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35664 - CYLINDER, 2ND BRAKE
35664-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35664A - BOLT (FOR 2ND BRAKE CYLINDER)
90109-06060

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

 1
35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
90521-99013

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

 1
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-12030

AT21#,CT21#,ST21#..ATM

厚さ=3.5

 1
35676-32010

CT210,ST21#..ATM..(EFI,TD)

厚さ=3.5

 1
35676-32010

AT21#,CT21#,ST21#..ATM

厚さ=3.5

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-12010

AT21#,CT210,ST21#..ATM

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-30006

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

 1
35755 - DRUM, SUN GEAR INPUT
35755-32020

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-47003

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=2.3,内径=47.1

 1
90520-47003

AT21#,CT210,ST21#..ATM

厚さ=2.3,内径=47.1

 1
90520-44002

AT21#,CT210,211,ST21#..ATM

厚さ=1.2,内径=44.0

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-47003

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=2.3,内径=47.1

 1
90520-47003

AT21#,CT210,ST21#..ATM

厚さ=2.3,内径=47.1

 1
90520-44002

AT21#,CT210,211,ST21#..ATM

厚さ=1.2,内径=44.0

 1
35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35789-22010

AT21#,CT210,211,216,ST21#..ATM

 1
35790 - CLUTCH ASSY, 1 WAY
35790-32050

AT21#,CT210,ST21#..ATM

 1
35790-44010

AT21#,ST21#..ATM

 1

(9601-9712)ST215..ATM

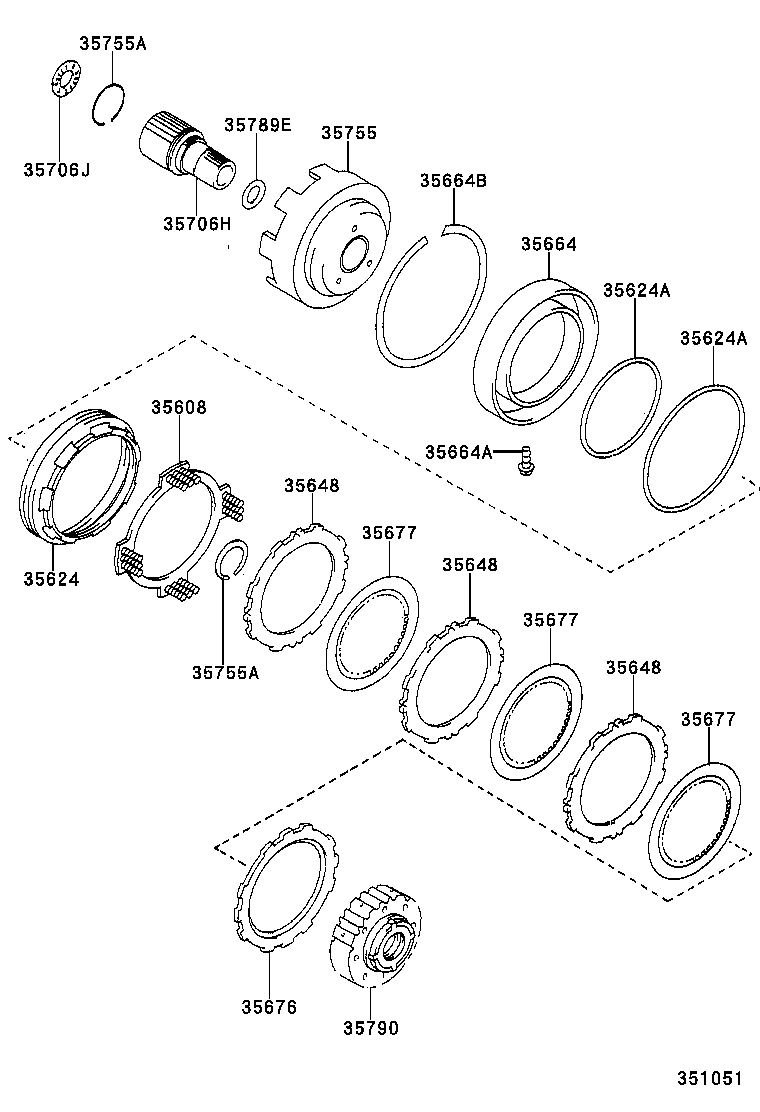

Click highlighted areas on diagram

A540H

diagram 35608 35624 35624A 35624A 35648 35648 35648 35664 35664A 35664B 35676 35677 35677 35677 35706H 35706J 35755 35755A 35755A 35789E 35790
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35624 - PISTON, 2ND BRAKE
35624-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99021

CT21#,ST215..ATM

内側

 1
90301-99021

AT21#,CT210,211,216,ST21#..ATM

内側

 1
90301-99023

AT21#,CT210,211,216,ST21#..ATM

外側

 1
90301-99023

CT21#,ST215..ATM

外側

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99021

CT21#,ST215..ATM

内側

 1
90301-99021

AT21#,CT210,211,216,ST21#..ATM

内側

 1
90301-99023

AT21#,CT210,211,216,ST21#..ATM

外側

 1
90301-99023

CT21#,ST215..ATM

外側

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35648-32010

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=1.8

 3
35664 - CYLINDER, 2ND BRAKE
35664-32010

AT21#,CT210,211,216,ST21#..ATM

 1
35664A - BOLT (FOR 2ND BRAKE CYLINDER)
90109-06060

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

 1
35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
90521-99013

CT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)

 1
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-12030

AT21#,CT21#,ST21#..ATM

厚さ=3.5

 1
35676-32010

CT210,ST21#..ATM..(EFI,TD)

厚さ=3.5

 1
35676-32010

AT21#,CT21#,ST21#..ATM

厚さ=3.5

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35677-33021

ST215..ATM

 3
35677-21020

CT21#,ST215..ATM

 3
35706H - GEAR SUB-ASSY, PLANETARY SUN
35706-12010

AT21#,CT210,ST21#..ATM

 1
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-30006

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

 1
35755 - DRUM, SUN GEAR INPUT
35755-32020

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-47003

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=2.3,内径=47.1

 1
90520-47003

AT21#,CT210,ST21#..ATM

厚さ=2.3,内径=47.1

 1
90520-44002

AT21#,CT210,211,ST21#..ATM

厚さ=1.2,内径=44.0

 1
35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
90520-47003

CT210,211,ST21#..ATM..(EFI,TD,TDEFI)

厚さ=2.3,内径=47.1

 1
90520-47003

AT21#,CT210,ST21#..ATM

厚さ=2.3,内径=47.1

 1
90520-44002

AT21#,CT210,211,ST21#..ATM

厚さ=1.2,内径=44.0

 1
35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35789-22010

AT21#,CT210,211,216,ST21#..ATM

 1
35790 - CLUTCH ASSY, 1 WAY
35790-32050

AT21#,CT210,ST21#..ATM

 1
35790-44010

AT21#,ST21#..ATM

 1
