ST215-AEMEK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

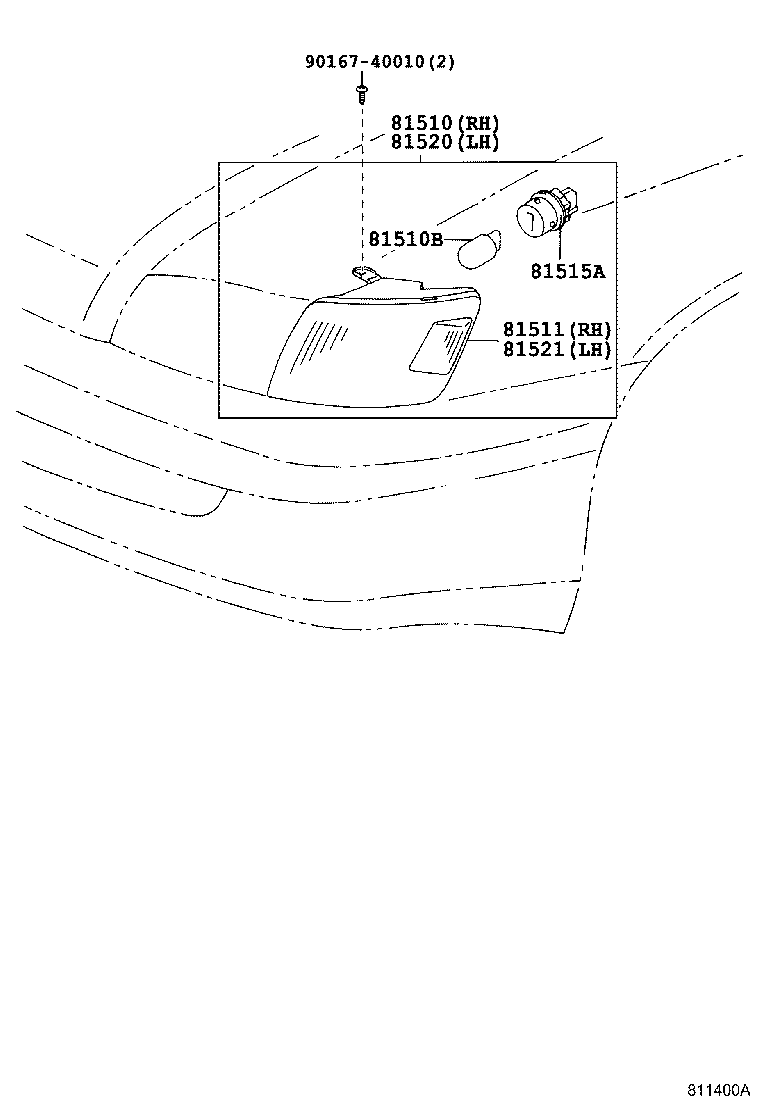

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515A 81520 81521 9016740010
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20800

AT21#,CT21#,ST21#

 1
81510-20830

AT21#,CT21#,ST21#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
90981-15009

AT21#,CT21#,ST21#

12V 21W,ｱﾝﾊﾞｰ

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20800

AT21#,CT21#,ST21#

 1
81511-20830

AT21#,CT21#,ST21#

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99080

AT21#,CT21#,ST21#

 2
90075-60006

AT21#,CT21#,ST21#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20790

AT21#,CT21#,ST21#

 1
81520-20820

AT21#,CT21#,ST21#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20820

AT21#,CT21#,ST21#

 1
81521-20790

AT21#,CT21#,ST21#

 1
Common parts
90167-40010
