ST215-AEMEK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 67603 67603A 67603E 67604 67772F 68173B 68174A
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2G160E4

AT211,ST215

ANTELOPE,TRIM4#

 1
67630-2G160B4

AT211,ST215

SHADOW GRAY,TRIM1#

 1
67630-2G160B4

ST210..D4;AT211,ST215

SHADOW GRAY,TRIM1#

 1
67630-2G160E4

ST210..D4;AT211,ST215

ANTELOPE,TRIM4#

 1
67630-2G160B9

AT211,ST21#

Eﾘﾐﾃﾂﾄﾞ,Gﾘﾐﾃﾂﾄﾞ *(A),DK.CHARCOAL,TRIM17

 1
67630-2G160B1

AT211,ST215

SHADOW GRAY,TRIM11

 1
67630-2G160B7

AT211,ST215

DK. CHARCOAL,TRIM17

 1
67630-2G160E7

AT211,ST21#

ｴｸｾﾚﾝﾄｶﾗ-ﾊﾟﾂｹ-ｼﾞ*(E),ANTELOPE,TRIM4#

 1
67010-20030B0

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK.CHARCOAL,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-32140

AT21#,CT21#,ST21#

 8
67771-28020

AT21#,CT21#,ST21#

 8
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07170E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 4
90467-07170B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 4
90467-07170B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 4
90467-07170B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 4
90467-07170B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2G150B1

AT211,ST215

SHADOW GRAY,TRIM11

 1
67640-2G150E4

AT211,ST215

ANTELOPE,TRIM4#

 1
67640-2G150B4

AT211,ST215

SHADOW GRAY,TRIM1#

 1
67640-2G150E4

ST210..D4;AT211,ST215

ANTELOPE,TRIM4#

 1
67020-20030B0

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK.CHARCOAL,TRIM1#

 1
67640-2G150E7

AT211,ST21#

ｴｸｾﾚﾝﾄｶﾗ-ﾊﾟﾂｹ-ｼﾞ*(E),ANTELOPE,TRIM4#

 1
67640-2G150B9

AT211,ST21#

Eﾘﾐﾃﾂﾄﾞ,Gﾘﾐﾃﾂﾄﾞ *(A),DK.CHARCOAL,TRIM17

 1
67640-2G150B7

AT211,ST215

DK. CHARCOAL,TRIM17

 1
67640-2G150B4

ST210..D4;AT211,ST215

SHADOW GRAY,TRIM1#

 1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-32020

AT21#,CT21#,ST21#

 4
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-20110

AT21#,CT21#,ST21#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-20060

AT21#,CT21#,ST21#

 1

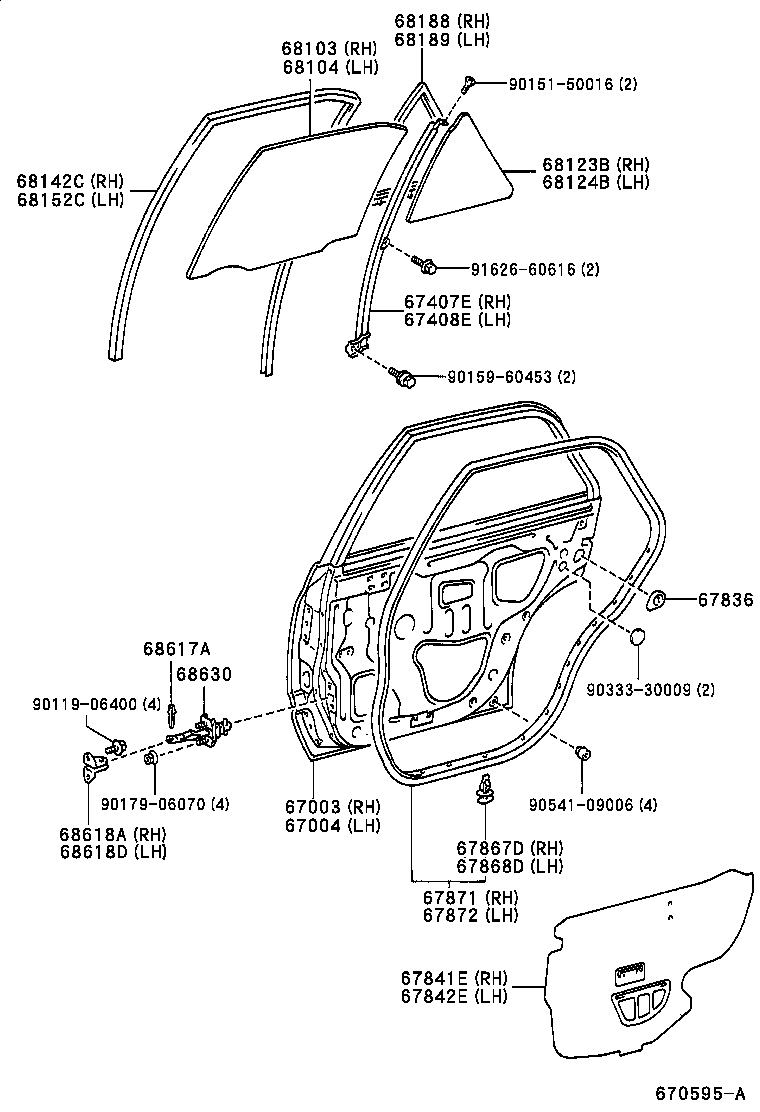

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 67003 67004 67407E 67408E 67836 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68617A 68618A 68618D 68630 9011906400 9015150016 9015960453 9017906070 9033330009 9054109006 9162660616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-20730

AT21#,CT21#,ST21#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-20730

AT21#,CT21#,ST21#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-20260

AT21#,CT21#,ST21#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-20250

AT21#,CT21#,ST21#

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-20120

AT21#,CT21#,ST21#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-20350

AT21#,CT21#,ST21#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-20240

AT21#,CT21#,ST21#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

AT21#,CT21#,ST21#

 18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

AT21#,CT21#,ST21#

 24
67867-12150

AT21#,CT21#,ST21#

 18
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-20330

AT21#,CT21#,ST21#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-20330

AT21#,CT21#,ST21#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-20840

AT21#,CT21#,ST21#

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-20760

AT21#,CT21#,ST21#

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-20630

AT21#,CT21#,ST21#

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-20550

AT21#,CT21#,ST21#

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-20190

AT21#,CT21#,ST21#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-20130

AT21#,CT21#,ST21#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-20180

AT21#,CT21#,ST21#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-20180

AT21#,CT21#,ST21#

 1
68617A - PIN, REAR DOOR CHECK
68617-20040

AT21#,CT21#,ST21#

 2
68617-20050

AT21#,CT21#,ST21#

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
68618-26010

AT21#,CT21#,ST21#

 1
68618-20030

AT21#,CT21#,ST21#

 1
68618D - BRACKET, REAR DOOR CHECK ARM, RH
68618-26010

AT21#,CT21#,ST21#

 1
68618-20030

AT21#,CT21#,ST21#

 1
68630 - CHECK ASSY, REAR DOOR
68630-20140

AT21#,CT21#,ST21#

 2
Common parts
90119-06400
90151-50016
90159-60453
90179-06070
90333-30009
90541-09006
91626-60616
