ST215-AEMEK (1996)
Toyota Corona
Production
Jan 1996
-
Dec 2001
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )CT215,ST215..MTM

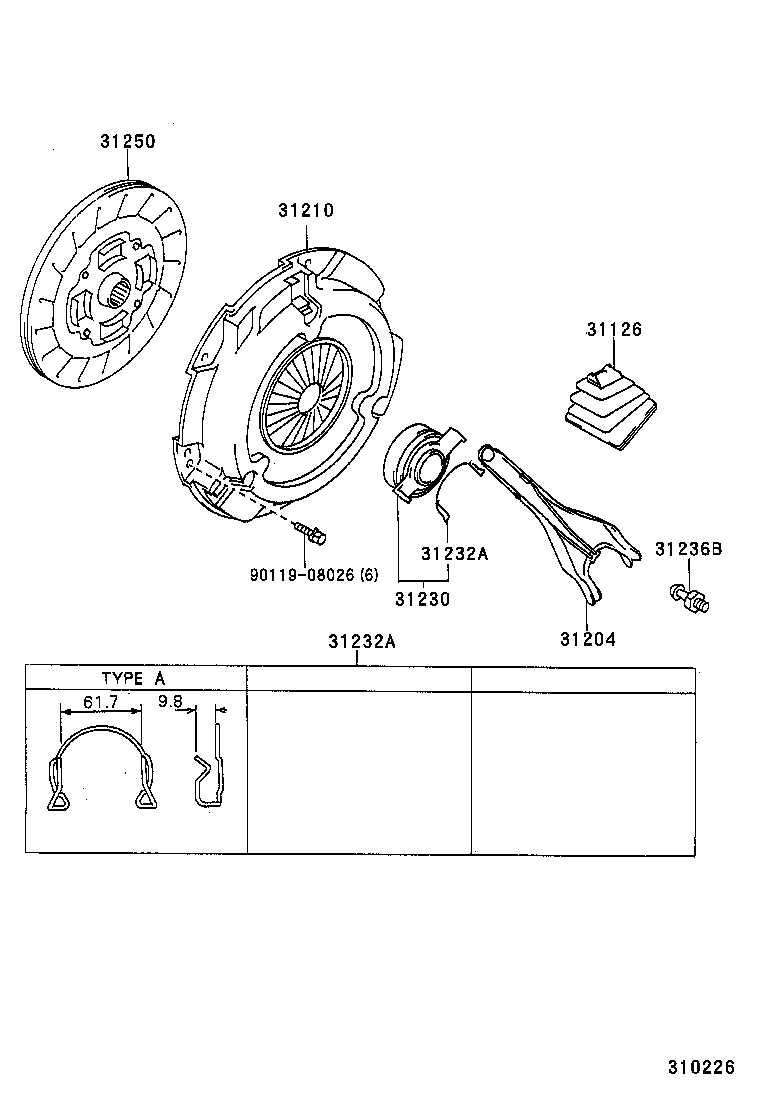

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-32010 |
CT210,211,215,ST215..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20100 |
CT210,211,215,ST215..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-20331 |
ST215..MTM |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-20170 |
CT215,ST215..MTM |
1 | ||
| 31230-32060 |
CT211,ST215..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-20020 |
CT210,211,215,ST215..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-32050 |
CT211,ST215..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-20020 |
CT210,211,215,ST215..MTM TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31232-32050 |
CT211,ST215..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-32010 |
CT211,ST215..MTM |
1 | ||
| 31236-20060 |
CT215,ST215..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-20141 |
ST215..MTM |
1 | ||
| 31250-20271 |
ST215..MTM |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
