ST210-AEPGK (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

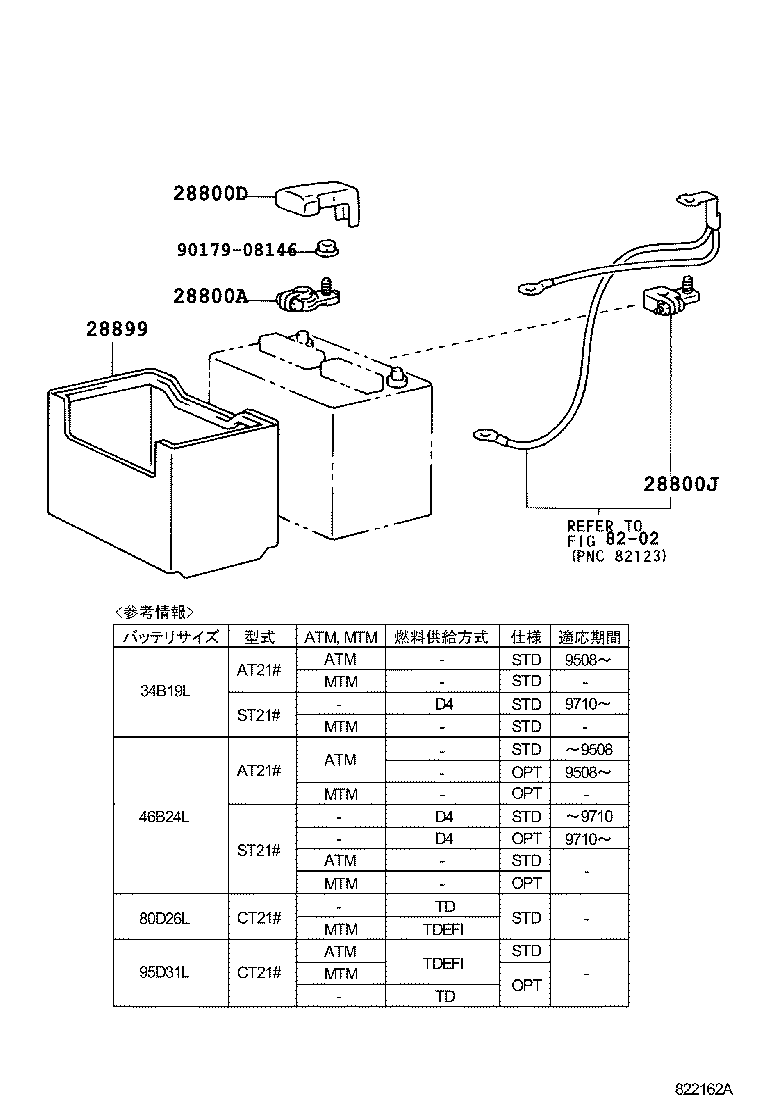

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 28899 8202 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

4AFE,7AFE,3SF#..AT21#,ST21#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20350

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21#

 1
28899 - INSULATOR, BATTERY
28899-46020

3SF#..ST21#

ﾊﾞﾂﾃﾘ=46B24L

 1
Common parts
90179-08146
Linked diagrams
8202
