ST210-AEPGK (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9712)ST210..EFI

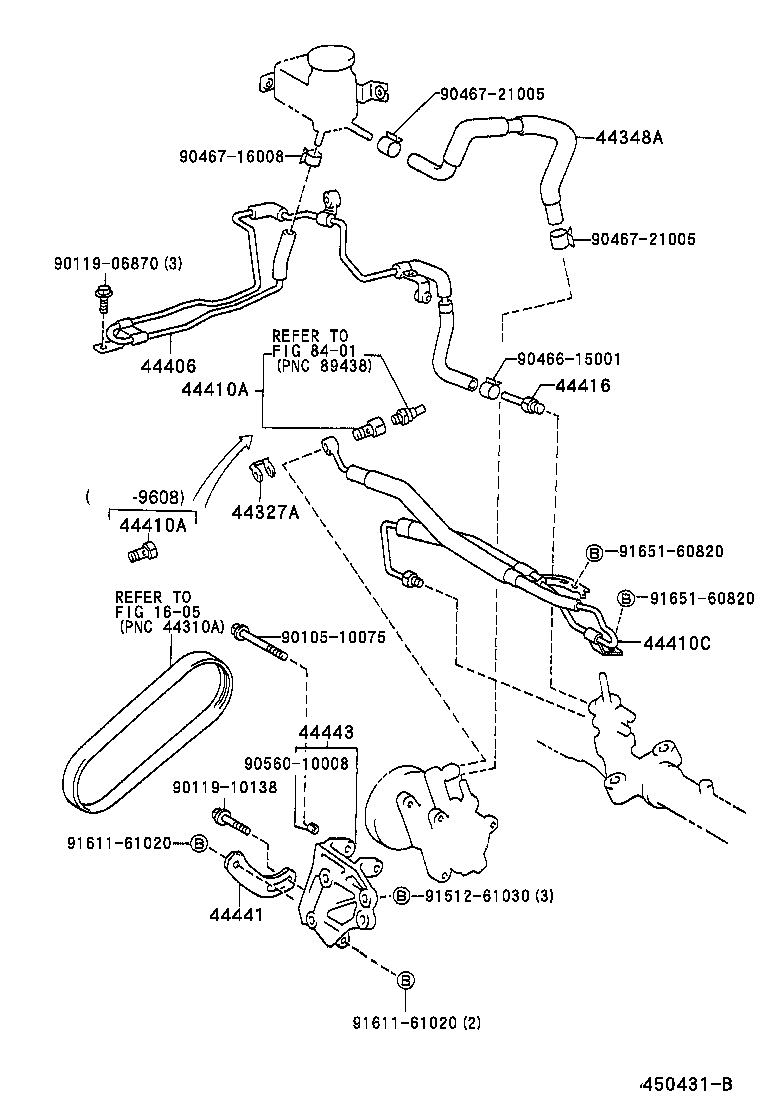

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410A 44410A 44410C 44416 44441 44443 8401 9010510075 9011906870 9011910138 9046615001 9046716008 9046721005 9046721005 9056010008 9151261030 9161161020 9161161020 9165160820 9165160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT21#,CT21#,ST21#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20470

ST210..EFI

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20700

ST210

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

ST21#

 1
90401-16008

AT21#,CT21#,ST21#

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
44338-33090

ST21#

 1
90401-16008

AT21#,CT21#,ST21#

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-2B170

ST210..EFI

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT21#,CT21#,ST21#

 1
44441 - BRACKET, PUMP, FRONT
44441-32010

ST210

 1
44443 - BRACKET, PUMP
44443-32070

ST210

 1
Common parts
90105-10075
90119-06870
90119-10138
90466-15001
90467-16008
90467-21005
90560-10008
91512-61030
91611-61020
91651-60820
Linked diagrams
1605
8401
