ST210-AEPGK (1996)

Toyota Corona

Production Jan 1996 - Dec 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )3SFE

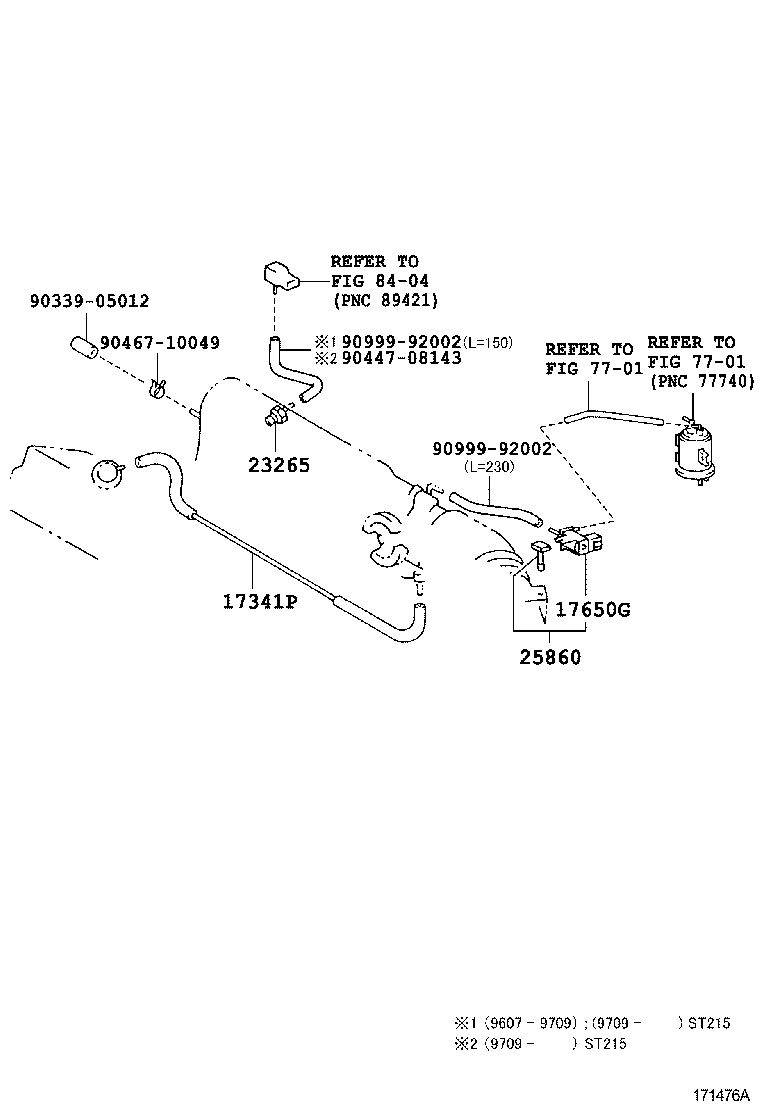

Click highlighted areas on diagram

diagram 17341P 17650G 23265 25860 7701 7701 8404 9033905012 9044708143 9046710049 9099992002 9099992002
Part # Description Qty Price
17341P - HOSE, AIR
17341-74730

3SFE..ST21#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170

3SFE..ST21#

 1
23265 - FILTER, GAS, NO.1
90917-11022

3SFE..ST21#

 1
90917-11037

3SFE..ST21#

 1
90917-11037

3SF#..ST21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200

3SFE..ST21#

 1
Common parts
90339-05012
90447-08143
90467-10049
90999-92002
Linked diagrams
7701
8404

(9601-9607)3SFE

Click highlighted areas on diagram

diagram 17341D 17342B 17343B 17361G 17630 17650G 23265 25860 7701 7701 8404 9046710049 9046710049 9046710106 9046710106 9099992002 9099992002 9099992002 9162160612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

3SFE..ST21#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74160

3SFE..ST21#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74100

3SFE..ST21#

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74180

3SFE..ST21#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE..ST21#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170

3SFE..ST21#

 1
23265 - FILTER, GAS, NO.1
90917-11022

3SFE..ST21#

 1
90917-11037

3SFE..ST21#

 1
90917-11037

3SF#..ST21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200

3SFE..ST21#

 1
Common parts
90467-10049
90467-10106
90999-92002
91621-60612
Linked diagrams
7701
8404
