ST210-AEPGH (1996)

Toyota Corona

Production Dec 1996 - Dec 2001
Engine 3SFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )3SFSE

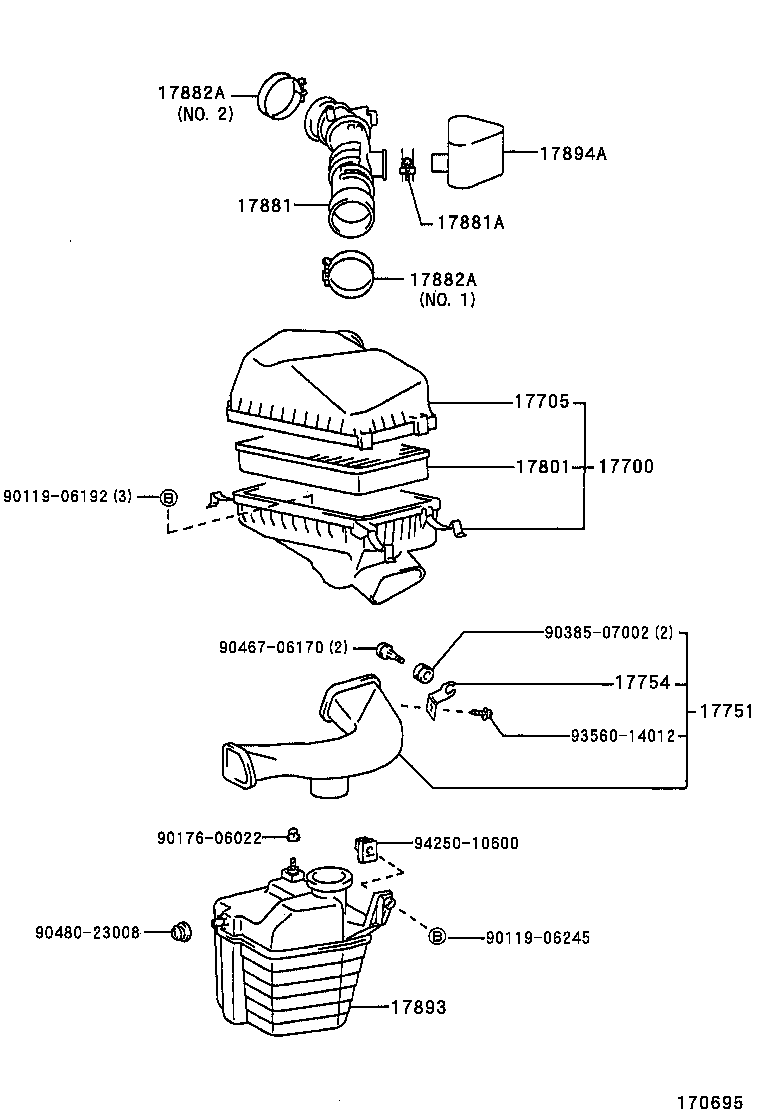

Click highlighted areas on diagram

diagram 17700 17705 17751 17754 17801 17881 17881A 17882A 17882A 17893 17894A 9011906192 9011906245 9017606022 9038507002 9046706170 9048023008 9356014012 9425010600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-1A010

3SF#..ST21#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-16500

3SF#..ST21#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-74060

3SFSE..ST210

 1
17754 - STAY, AIR CLEANER INLET
17754-16010

3SF#..ST21#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SF#..ST21#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74850

3SFSE..ST210

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10530

3SF#..ST21#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

3SFSE..ST210

NO.2

 1
96111-10710

3SFSE..ST210

NO.1

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

3SFSE..ST210

NO.2

 1
96111-10710

3SFSE..ST210

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-74430

3SFSE..ST210

 1
17893-74430

3SF#..ST21#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-74120

3SFSE..ST210

 1
Common parts
90119-06192
90119-06245
90176-06022
90385-07002
90467-06170
90480-23008
93560-14012
94250-10600
