Toyota Corona ST210 MANIFOLD - JDM Part Detective

ST210-AEPGH (1996)

Toyota Corona

Production Dec 1996 - Dec 2001

Engine 3SFSE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

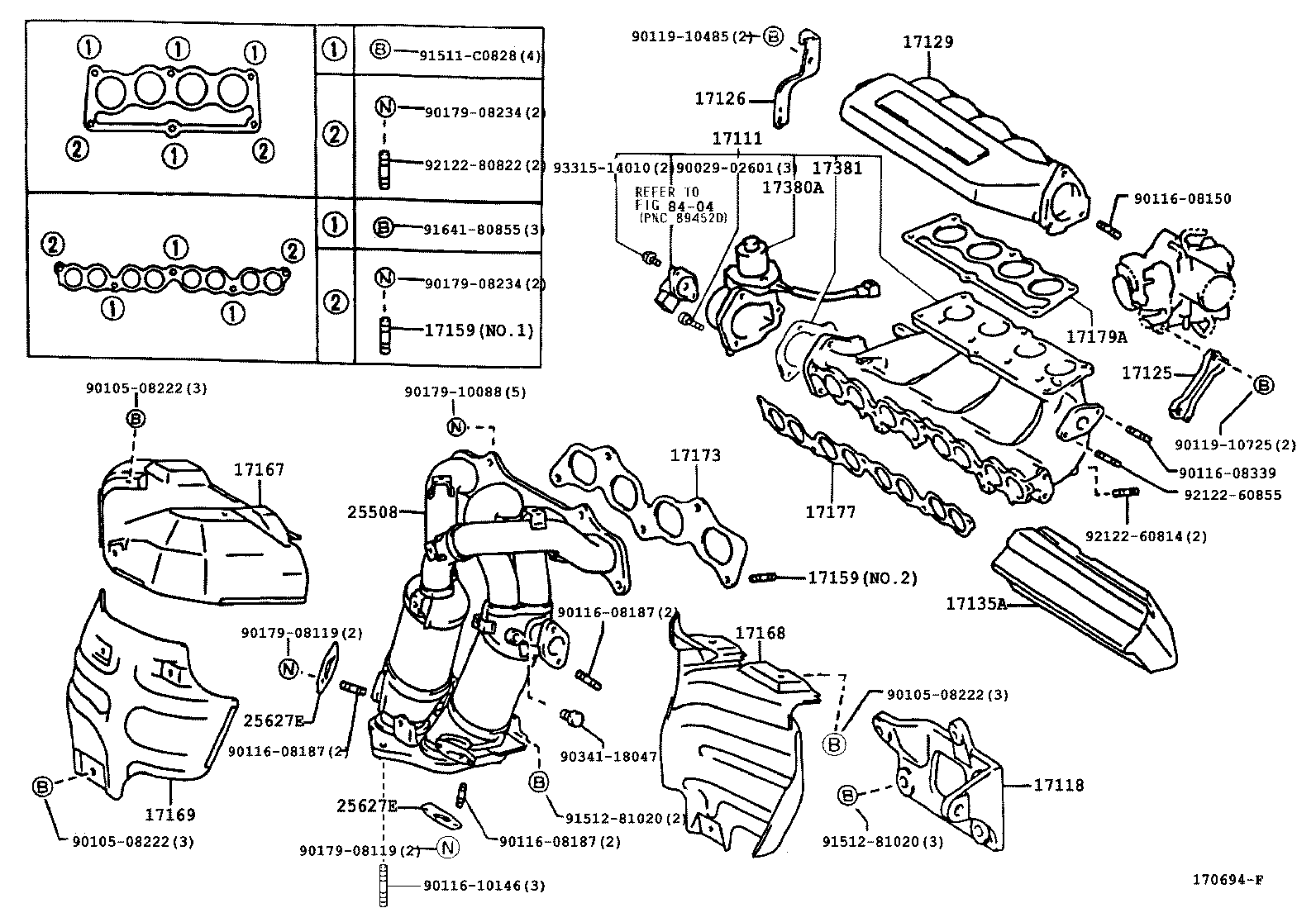

(9612-9808)3SFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-74380	3SFSE..ST210	08/1998 - 12/2999	1
17101-74361	3SFSE..ST210	12/1997 - 08/1998	1
17101-74360	3SFSE..ST210	12/1996 - 12/1997	1
17118 - STAY, MANIFOLD
17118-74400	3SFSE..ST210	12/1996 - 08/1998	1
17125 - STAY, SURGE TANK, NO.1
17125-74150	3SFSE..ST210	12/1996 - 12/2999	1
17126 - STAY, SURGE TANK, NO.2
17126-74090	3SFSE..ST210	12/1996 - 12/2999	1
17129 - TANK, INTAKE AIR SURGE
17109-74051	3SFSE..ST210	08/1997 - 12/2999	1
17109-74050	3SFSE..ST210	12/1996 - 08/1997	1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-74010	3SFSE..ST210	12/1996 - 08/1998	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-80850	3SFSE..ST210 NO.1	12/1996 - 07/1998	2
90116-10063	3SFSE..ST210 NO.2	12/1996 - 12/2999	5
90126-08025	3SFSE..ST210 NO.1	07/1998 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-80850	3SFSE..ST210 NO.1	12/1996 - 07/1998	2
90116-10063	3SFSE..ST210 NO.2	12/1996 - 12/2999	5
90126-08025	3SFSE..ST210 NO.1	07/1998 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74270	3SFSE..ST210	12/1996 - 08/1998	1
17167-74280	3SFSE..ST210	08/1998 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74160	3SFSE..ST210	12/1996 - 08/1998	1
17168-74170	3SFSE..ST210	08/1998 - 12/2999	1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-74060	3SFSE..ST210	08/1998 - 12/2999	1
17169-74050	3SFSE..ST210	12/1996 - 08/1998	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74050	3SFSE..ST210	12/1996 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74080	3SFSE..ST210	12/1996 - 12/2999	1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-74010	3SFSE..ST210	12/1996 - 12/2999	1
17380A - ACTUATOR ASSY, SWIRL CONTROL
17380-74011	3SFSE..ST210	08/1997 - 08/1998	1
17380-74010	3SFSE..ST210	12/1996 - 08/1997	1
17380-74020	3SFSE..ST210	08/1998 - 12/2999	1
17381 - GASKET, SWIRL CONTROL ACTUATOR
17381-74380	3SFSE..ST210	12/1996 - 12/2999	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25051-74050	3SFSE..ST210	12/1996 - 12/1997	1
25051-74070	3SFSE..ST210	12/1997 - 08/1998	1
25051-74080	3SFSE..ST210	08/1998 - 12/2999	1
25627E - GASKET, EGR VALVE
25627-74080	3SFSE..ST210	12/1996 - 12/1997	2
25627E - GASKET, EGR VALVE
25627-74080	3SFSE..ST210	12/1996 - 12/1997	2
Common parts
90029-02601
90105-08222
90116-08150
90116-08187
90116-08339
90116-10146
90119-10485
90119-10725
90179-08119
90179-08234
90179-10088
90341-18047
91511-C0828
91512-81020
91641-80855
92122-60814
92122-60855
92122-80822
93315-14010
Linked diagrams
8404

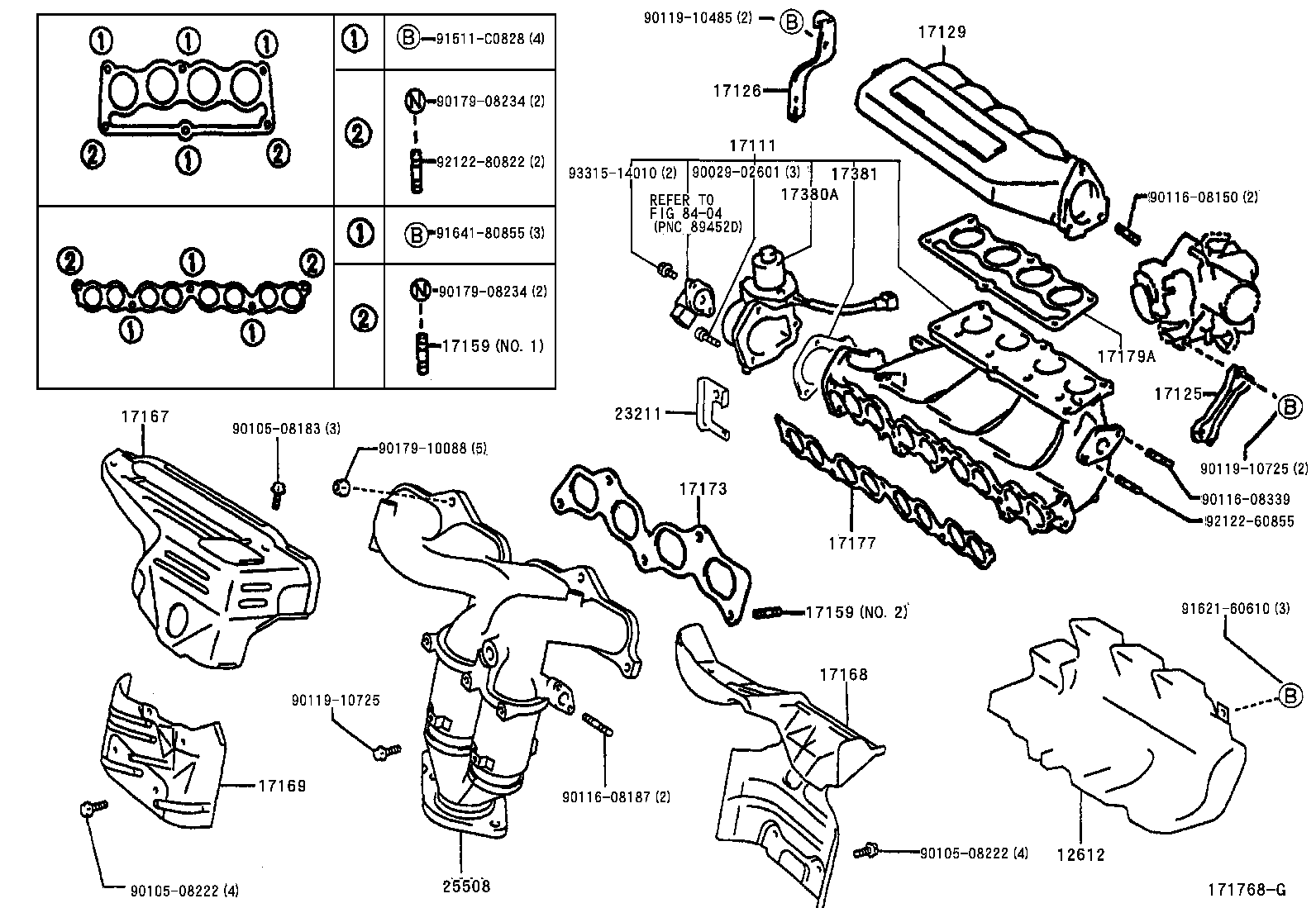

(9808- )3SFSE

Click highlighted areas on diagram

Part #	Description	Period	Qty
12612 - COVER, ENGINE, NO.2
12612-74010	3SFSE..ST210	08/1998 - 12/2999	1
17111 - MANIFOLD, INTAKE
17101-74380	3SFSE..ST210	08/1998 - 12/2999	1
17101-74361	3SFSE..ST210	12/1997 - 08/1998	1
17101-74360	3SFSE..ST210	12/1996 - 12/1997	1
17125 - STAY, SURGE TANK, NO.1
17125-74150	3SFSE..ST210	12/1996 - 12/2999	1
17126 - STAY, SURGE TANK, NO.2
17126-74090	3SFSE..ST210	12/1996 - 12/2999	1
17129 - TANK, INTAKE AIR SURGE
17109-74051	3SFSE..ST210	08/1997 - 12/2999	1
17109-74050	3SFSE..ST210	12/1996 - 08/1997	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-80850	3SFSE..ST210 NO.1	12/1996 - 07/1998	2
90116-10063	3SFSE..ST210 NO.2	12/1996 - 12/2999	5
90126-08025	3SFSE..ST210 NO.1	07/1998 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-80850	3SFSE..ST210 NO.1	12/1996 - 07/1998	2
90116-10063	3SFSE..ST210 NO.2	12/1996 - 12/2999	5
90126-08025	3SFSE..ST210 NO.1	07/1998 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74270	3SFSE..ST210	12/1996 - 08/1998	1
17167-74280	3SFSE..ST210	08/1998 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74160	3SFSE..ST210	12/1996 - 08/1998	1
17168-74170	3SFSE..ST210	08/1998 - 12/2999	1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-74060	3SFSE..ST210	08/1998 - 12/2999	1
17169-74050	3SFSE..ST210	12/1996 - 08/1998	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74050	3SFSE..ST210	12/1996 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74080	3SFSE..ST210	12/1996 - 12/2999	1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-74010	3SFSE..ST210	12/1996 - 12/2999	1
17380A - ACTUATOR ASSY, SWIRL CONTROL
17380-74011	3SFSE..ST210	08/1997 - 08/1998	1
17380-74010	3SFSE..ST210	12/1996 - 08/1997	1
17380-74020	3SFSE..ST210	08/1998 - 12/2999	1
17381 - GASKET, SWIRL CONTROL ACTUATOR
17381-74380	3SFSE..ST210	12/1996 - 12/2999	1
23211 - BRACKET, WIRE
23211-74020	3SFSE..ST210	08/1998 - 12/2999	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25051-74050	3SFSE..ST210	12/1996 - 12/1997	1
25051-74070	3SFSE..ST210	12/1997 - 08/1998	1
25051-74080	3SFSE..ST210	08/1998 - 12/2999	1
Common parts
90029-02601
90105-08183
90105-08222
90116-08150
90116-08187
90116-08339
90119-10485
90119-10725
90179-08234
90179-10088
91511-C0828
91621-60610
91641-80855
92122-60855
92122-80822
93315-14010
Linked diagrams
8404

ST210-AEPGH (1996)

(9612-9808)3SFSE

(9808- )3SFSE
