ST195-AEMEK (1992)
Toyota Corona
Production
Feb 1992
-
Jan 1996
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202-9402)CT195,ST195..MTM

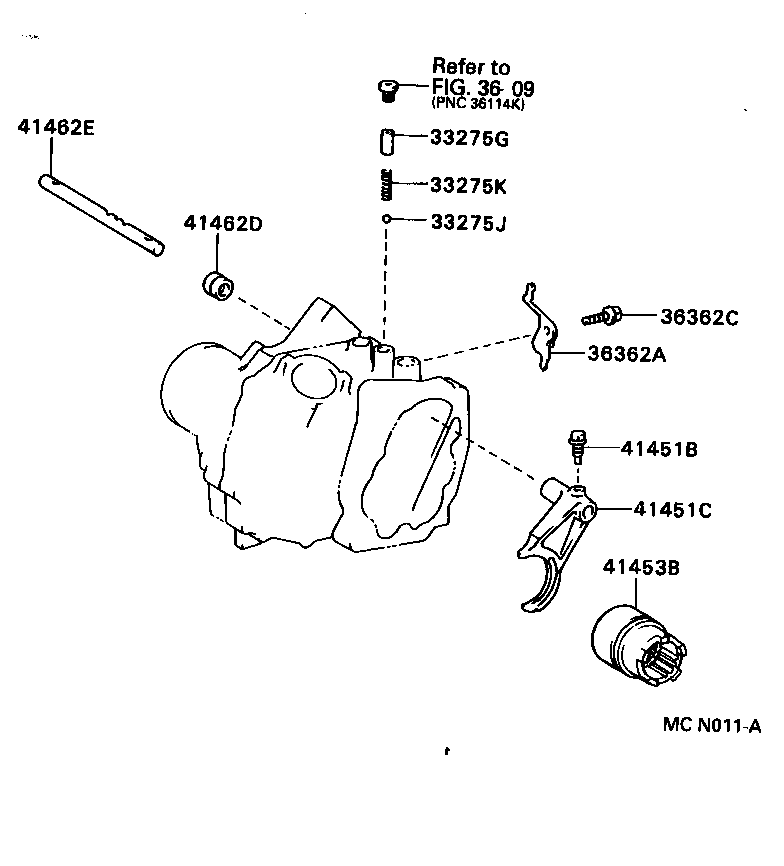

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275G - SEAT, TRANSFER SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
CT195,ST195..MTM |
1 | ||
| 33275J - BALL (FOR TRANSFER SHIFT DETENT) | ||||
| 90360-08009 |
CT195,ST195..MTM |
1 | ||
| 33275K - SPRING, COMPRESSION (FOR TRANSFER SHIFT DETENT BALL) | ||||
| 90501-14110 |
CT195,ST195..MTM |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-12010 |
CT195,ST195..MTM |
1 | ||
| 36362C - BOLT (FOR TRANSFER SHIFT OUTER LEVER) | ||||
| 90105-08202 |
CT195,ST195..MTM |
1 | ||
| 41451B - BOLT (FOR DIFFERENTIAL LOCK SHIFT FORK) | ||||
| 90105-06094 |
CT195,ST195..MTM |
1 | ||
| 41451C - FORK, DIFFERENTIAL LOCK SHIFT | ||||
| 41451-12020 |
CT195,ST195..MTM |
1 | ||
| 41453B - SLEEVE, DIFFERENTIAL LOCK | ||||
| 41453-12020 |
CT195,ST195..MTM |
1 | ||
| 41462D - SEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT) | ||||
| 90311-14010 |
CT195,ST195..MTM |
1 | ||
| 41462E - SHAFT, DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-12020 |
CT195,ST195..MTM |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
