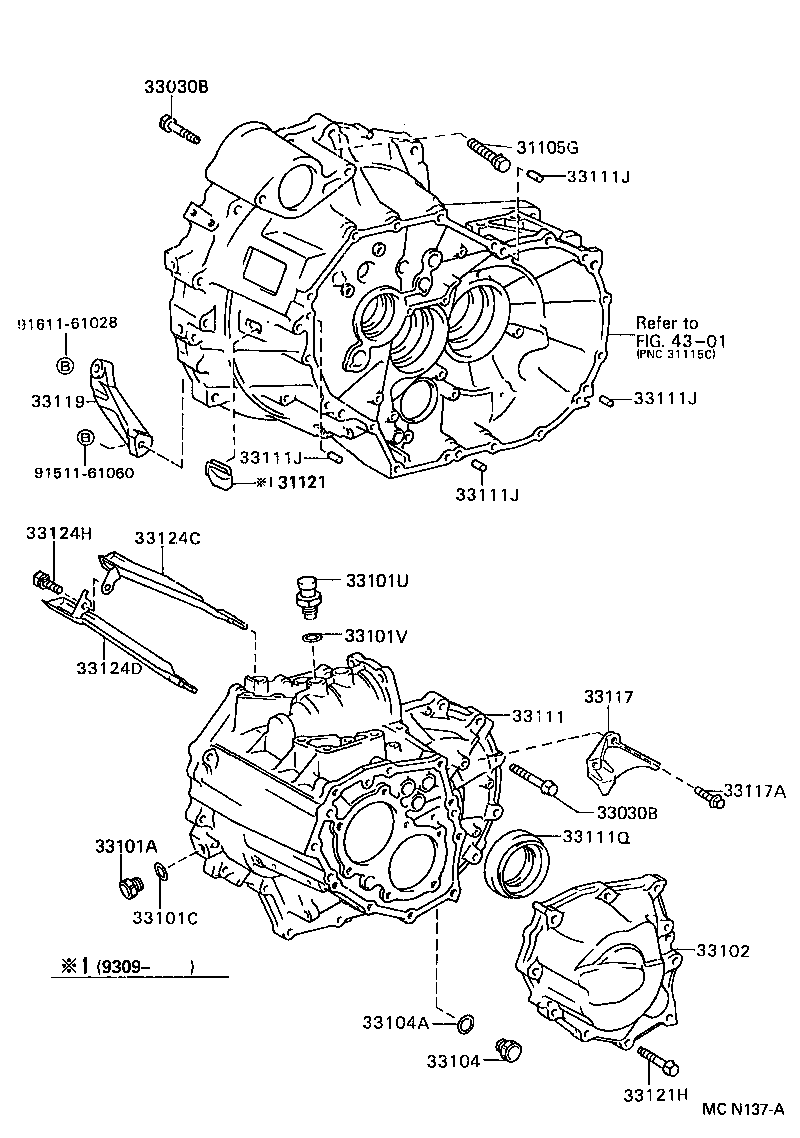

ST195-AEMEK (1992)
Toyota Corona
(9202- )CT195,ST195..MTM
E56F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 91651-41022 |
CT195,ST190,195..MTM *10−1.25PX22−22 |
1 | ||
| 90105-08040 |
CT19#,ST195..MTM *8−1.25PX18−15 |
1 | ||
| 91652-61022 |
CT195,ST190,195..MTM *10−1.25PX22−22 |
1 | ||
| 90105-08040 |
CT19#,ST190,195..MTM *8−1.25PX18−15 |
1 | ||
| 90105-10077 |
AT190,CT19#,ST190,195..MTM *10−1.25PX43−26 |
1 | ||
| 91651-41022 |
CT195,ST190,195..MTM *10−1.25PX22−22 |
1 | ||
| 90119-12168 |
CT19#,ST190,195..MTM *12−1.25PX55−30 |
3 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-20010 |
CT195,ST195..MTM |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
CT195,ST195..MTM *8−1.25PX45−27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
CT195,ST195..MTM *8−1.25PX45−27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
CT19#,ST190,195..MTM |
1 | ||
| 90341-18033 |
CT195,ST195..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03111 |
CT195,ST195..MTM |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
CT195,ST195..MTM |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12040 |
ST195..MTM |
1 | ||
| 33102-12041 |
CT195,ST195..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-12170 |
CT195,ST195..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AT190,CT195,ST195..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AT190,CT195,ST195..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AT190,CT195,ST195..MTM 長さ=23,外径=8 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
AT190,CT195,ST195..MTM 長さ=23,外径=8 |
4 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-44003 |
CT195,ST195..MTM |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
CT195,ST195..MTM |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
CT19#,ST190,195..MTM |
2 | ||
| 90105-08040 |
AT190,CT19#,ST190,195..MTM |
2 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-20090 |
ST195..MTM |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08630 |
CT195,ST195..MTM |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-12030 |
CT195,ST195..MTM |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12041 |
CT195,ST195..MTM |
1 | ||
| 33124-12040 |
ST195..MTM |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
CT195,ST195..MTM |
1 | ||
| Common parts | ||||
| 91511-61060 | ||||
| 91611-61028 | ||||
| Linked diagrams | ||||
| 4301 | ||||
