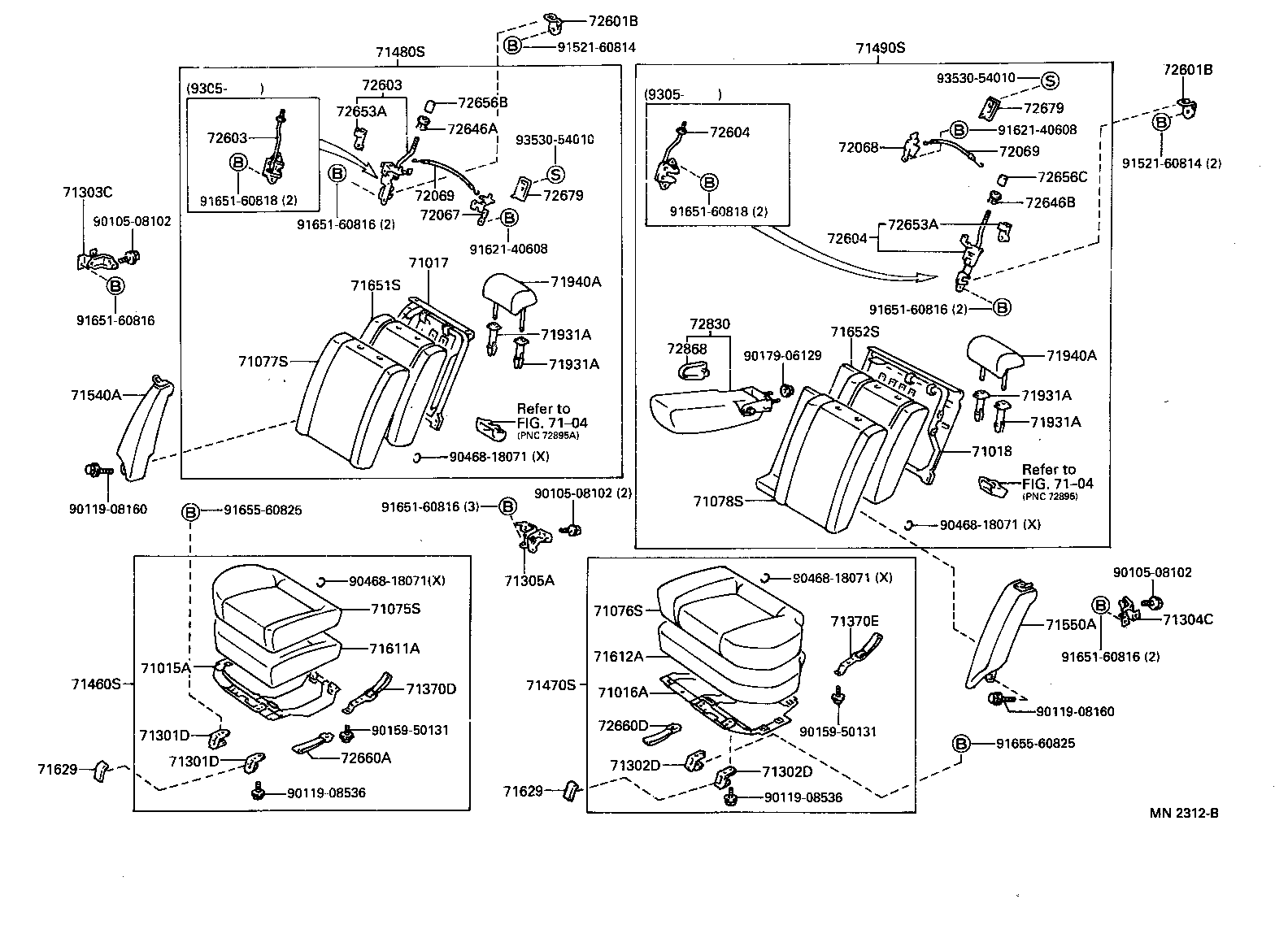

ST191-ALPGK (1992)
Toyota Corona
(9202- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-20380 |
ST190,191..LB |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-20050 |
ST190,191..LB |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20490 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71017-20490 |
ST190,191..EXG,TYPE1,TYPE2 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20190 |
ST190,191..EXG,TYPE1,TYPE2 |
1 | ||
| 71018-20190 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-2B030C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71065-2B030C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71065-2B030C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-20050C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71076-20050C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71076-20050C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2D800C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71077-2D800C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71077-2D800C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2B080C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71078-2B080C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71078-2B080C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-20060 |
ST190,191..LB 右側 |
1 | ||
| 71302-20010 |
ST190,191..LB 左側 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-20060 |
ST190,191..LB 右側 |
1 | ||
| 71302-20010 |
ST190,191..LB 左側 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-20060 |
ST190,191..LB 右側 |
1 | ||
| 71302-20010 |
ST190,191..LB 左側 |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71301-20060 |
ST190,191..LB 右側 |
1 | ||
| 71302-20010 |
ST190,191..LB 左側 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20100 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20150 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71370D - HOLDER ASSY, REAR SEAT CUSHION, RH | ||||
| 71370-20040C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71370-20050C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71370-20050C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-20050C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71370-20050C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71370-20040C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-2B190C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71560-2B190B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B191B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2B190C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-20010C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71470-20010B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71470-20010C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71470-20011B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2G391C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71480-2G390C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71480-2G392B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2B291C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71490-2B730B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2B290C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-20180C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71540-20180C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71540-20180B1 |
ST190,191..LB DK. GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-20180C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71550-20180C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71550-20180B1 |
ST190,191..LB DK. GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-20560 |
ST190,191..LB |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-20200 |
ST190,191..LB |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010C0 |
ST190,191..LB BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
ST190,191..LB SHADOW GRAY,TRIM1# |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-20010C0 |
ST190,191..LB BLACK,TRIM2# |
4 | ||
| 71629-20010B0 |
ST190,191..LB SHADOW GRAY,TRIM1# |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20690 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20440 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20300C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71940-21031B6 |
ST190,191..LB SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031C1 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71940-21030C1 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-20300C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71940-21031B6 |
ST190,191..LB SHADOW GRAY,TRIM1# |
2 | ||
| 71940-21031C1 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71940-21030C1 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20060 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72067-20010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72068-20060 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20020 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72601-16060 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-20080 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72601-16060 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-21010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72603-20090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-21010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72603-20090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72640-21010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72640-21010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 72646-20070C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20070C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72646-20070B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 右側 |
1 | ||
| 69759-24020 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 左側 |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24010 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 右側 |
1 | ||
| 69759-24020 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 左側 |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72661-20020B2 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-20020B2 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 72661-20020C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 72660-20030C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-20030C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 72660-20030C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-16010C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 72679-20020C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-16010C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 72679-20020C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-20470C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 72830-20580B0 |
ST190,191..LB DK. GRAY,TRIM1# |
1 | ||
| 72830-20450C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-20020C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72868-20020B0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-08160 | ||||
| 90119-08536 | ||||
| 90159-50131 | ||||
| 90179-06129 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91621-40608 | ||||
| 91651-60816 | ||||
| 91651-60818 | ||||
| 91655-60825 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
