Toyota Corona ST191 BACK DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
CORONA
ST191-ALPGK (1992)
6708 - BACK DOOR PANEL & GLASS

ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996

Engine 3SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

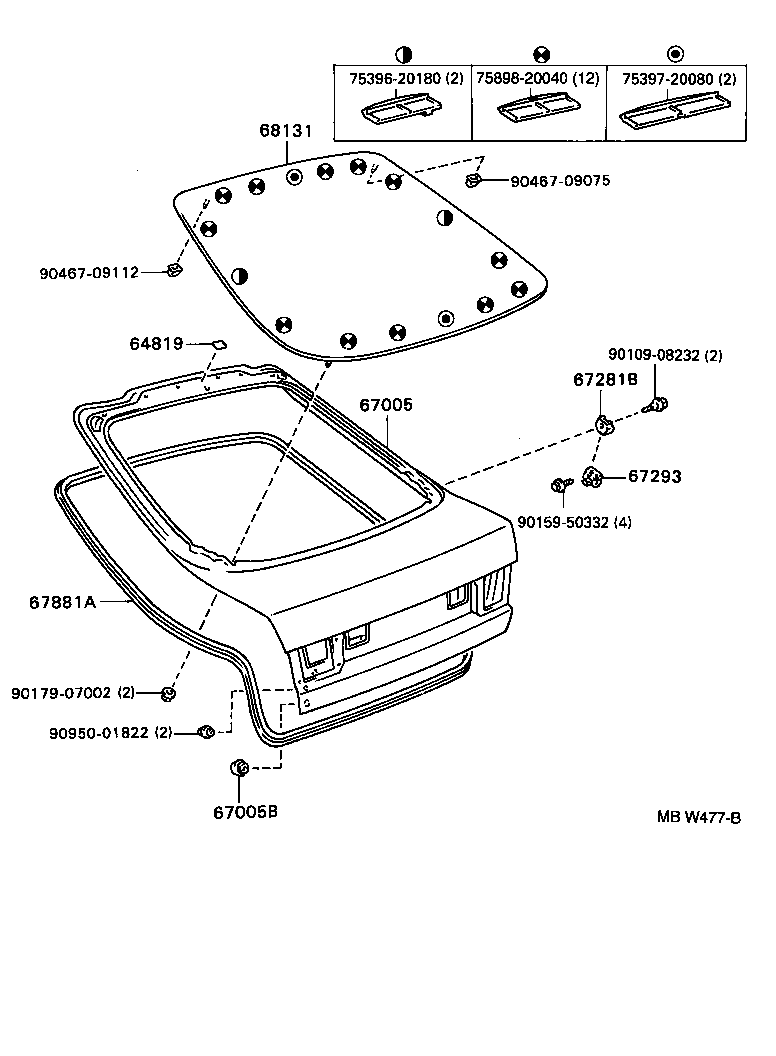

ILLUST NO. 1 OF 2(9202- )LB

Click highlighted areas on diagram

Part #	Description	Period	Qty
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-20040	ST190,191..LB 厚さ=4.8	02/1992 - 09/1992	1
64819-20030	ST190,191..LB	09/1992 - 01/1996	1
64819-20030	ST190,191..LB 厚さ=3.8	02/1992 - 09/1992	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-2B410	ST191..TYPE2	02/1992 - 02/1994	1
67005-2B420	ST191..TYPE2 ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1992 - 02/1994	1
67005-2B471	ST190,191..LB	02/1994 - 01/1996	1
67005-2B481	ST190,191..LB ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1994 - 01/1996	1
67005B - CUSHION(FOR BACK DOOR PANEL)
64459-20020	ST190,191..LB	02/1992 - 01/1996	2
67281B - STOPPER, BACK DOOR, LOWER
67281-20040	ST190,191..LB	02/1992 - 01/1996	2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20030	ST190,191..LB	02/1992 - 01/1996	2
67881A - WEATHERSTRIP, BACK DOOR
67881-20110	ST190,191..LB	02/1992 - 01/1996	1
68131 - GLASS, BACK DOOR
68131-20520	ST190,191..LB *EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ	02/1992 - 02/1994	1
68131-20560	ST190,191..LB *EHT,厚さ=3.5,ﾌﾞﾙｰ	02/1993 - 01/1996	1
68131-20580	ST190,191..LB *EHT,厚さ=3.5,ｸﾞﾚｰ	02/1992 - 02/1993	1
Common parts
75396-20180
75397-20080
75898-20040
90109-08232
90159-50332
90179-07002
90467-09075
90467-09112
90950-01822

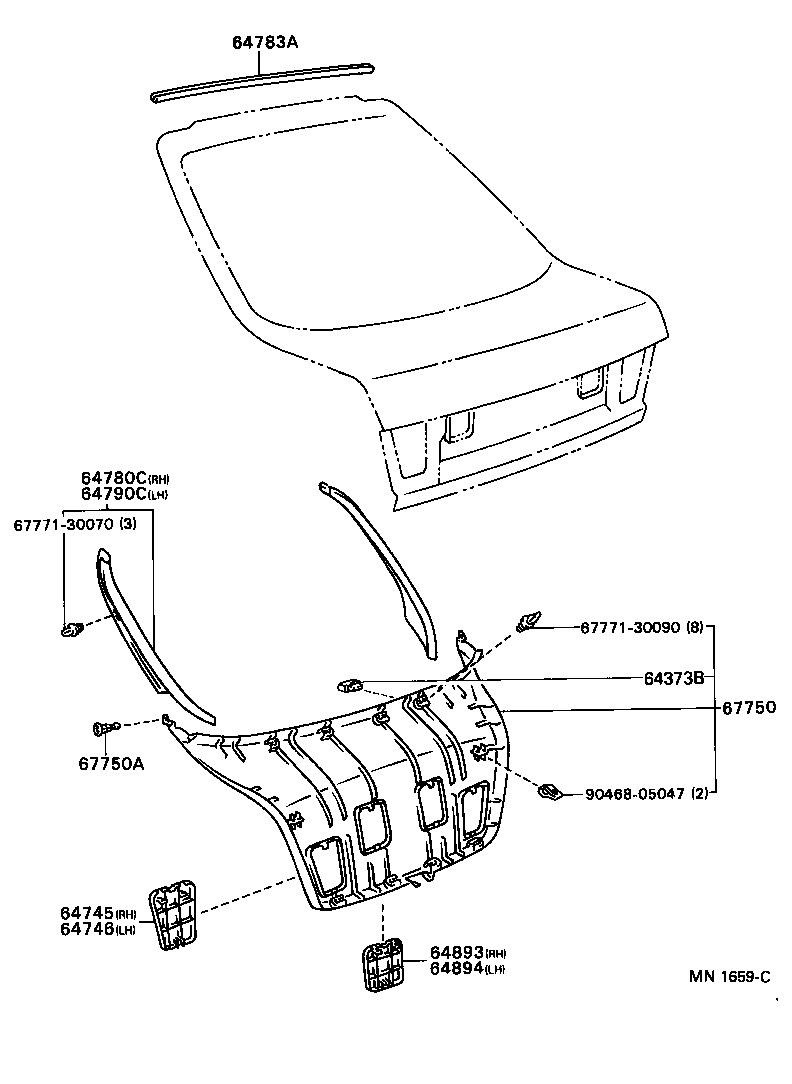

ILLUST NO. 2 OF 2(9202- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
64373B - STOPPER, PACKAGE TRAY TRIM
64373-20080	ST190,191..LB	02/1992 - 02/1994	1
64373-20080	ST190,191..LB	02/1994 - 01/1996	2
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-20060C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64745-20060B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-20060C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64746-20060B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-20030C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64780-20030B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
64783A - TRIM, BACK WINDOW PANEL, UPPER
64783-20060	ST190,191..LB	02/1992 - 01/1996	1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-20030B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
64790-20030C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64893 - COVER, BACK DOOR TRIM, UPPER, RH
64893-20010C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64893-20010B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
64894 - COVER, BACK DOOR TRIM, UPPER, LH
64894-20010C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
64894-20010B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-20020B0	ST190,191..LB SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
67750-20010B0	ST190,191..LB ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
67750-20010C0	ST190,191..LB ｱﾘ(ﾘﾔｽﾎﾟｲﾗ),BLACK,TRIM2#	02/1992 - 02/1994	1
67750-20020C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-07041C0	ST190,191..LB BLACK,TRIM2#	02/1992 - 02/1994	2
90467-07041C0	ST190,191..LB BLACK,TRIM1#	02/1994 - 01/1996	2
Common parts
67771-30070
67771-30090
90468-05047

ST191-ALPGK (1992)

ILLUST NO. 1 OF 2(9202- )LB

ILLUST NO. 2 OF 2(9202- )
