ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

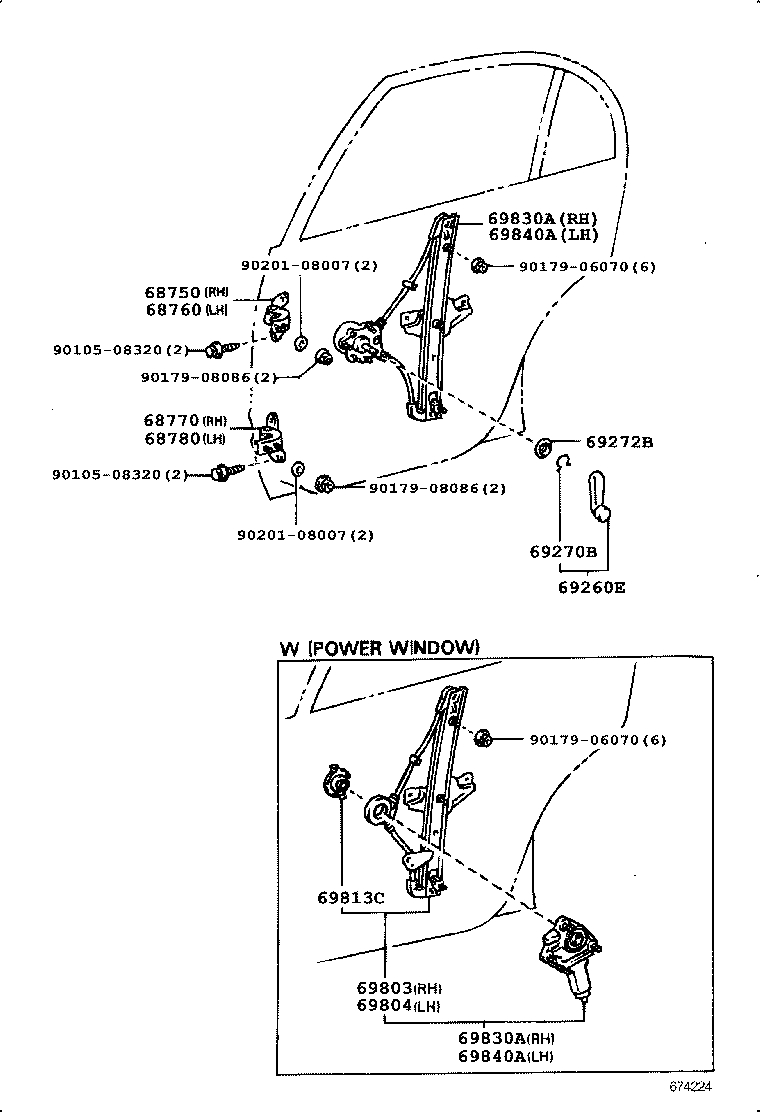

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69270B 69272B 69803 69804 69813C 69830A 69830A 69840A 69840A 9010508320 9010508320 9017906070 9017906070 9017908086 9017908086 9020108007 9020108007
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20100

AT190,CT19#,ST19#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20100

AT190,CT19#,ST19#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20080

AT190,CT19#,ST19#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20090

AT190,CT19#,ST19#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20230

ST190,191..LB

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20230

ST190,191..LB

ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69813-32040

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

右側

 1
69813-32010

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

 2
69814-32010

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

左側

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-20300

ST190,191..LB

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-20300

ST190,191..LB

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-20280

ST190,191..LB

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-20280

ST190,191..LB

 1
Common parts
90105-08320
90179-06070
90179-08086
90201-08007
