ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

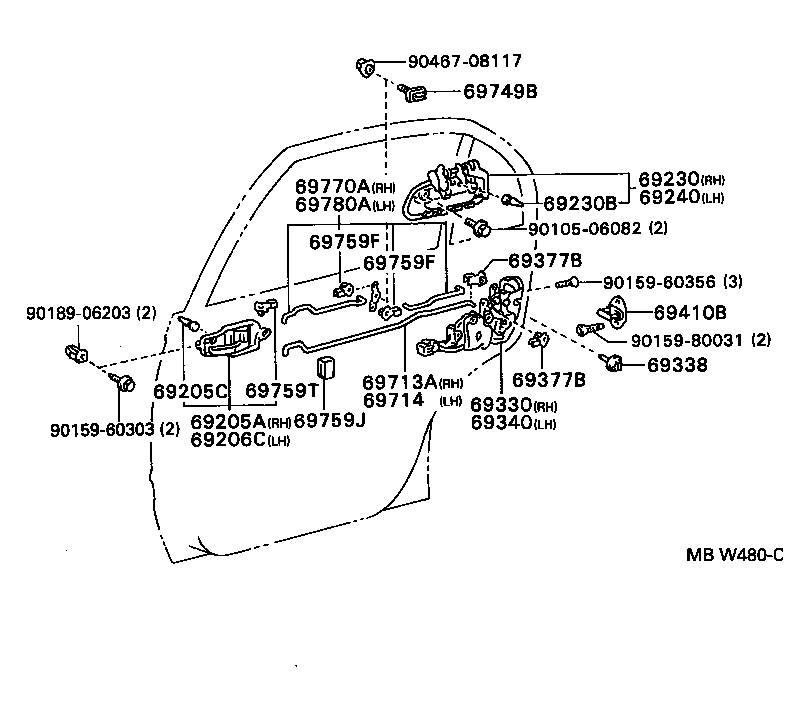

Click highlighted areas on diagram

diagram 69205A 69205C 69206C 69230 69230B 69240 69330 69338 69340 69377B 69377B 69410B 69713A 69714 69749B 69759F 69759F 69759J 69759T 69770A 69780A 9010506082 9015960303 9015960356 9015980031 9018906203 9046708117
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20110C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
69205-20110B0

AT190,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AT190,CT19#,ST19#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20110B0

AT190,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
69206-20110C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
69206-20110C0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

BLACK,TRIM2#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20220A0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

SUPER WHITE 2,040

 1
69230-20220B0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK BLUEISH GRAY ME,183

 1
69230-20220G0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DK.GRAYISH OLIVE ME,6M7

 1
69230-20220H0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK TORQUOISE MICA,742

 1
69230-20220D1

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK WINE MICA M,3K1

 1
69230-20220C0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

BLACK ME,205

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04018

AT190,CT19#,ST19#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20220D1

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK WINE MICA M,3K1

 1
69240-20220G0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DK.GRAYISH OLIVE ME,6M7

 1
69240-20220B0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK BLUEISH GRAY ME,183

 1
69240-20220H0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

DARK TORQUOISE MICA,742

 1
69240-20220A0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

SUPER WHITE 2,040

 1
69240-20220C0

AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2

BLACK ME,205

 1
69330 - LOCK ASSY, REAR DOOR, RH
69305-20030

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-32010

AT190,CT19#,ST19#

 2
69340 - LOCK ASSY, REAR DOOR, LH
69306-20030

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT19#,ST19#

右側

 2
69759-24050

AT190,CT19#,ST19#

左側

 2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT19#,ST19#

右側

 2
69759-24050

AT190,CT19#,ST19#

左側

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

AT190,CT19#,ST19#

 2
69410-20070

AT190,CT19#,ST19#

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-20140

AT190,CT19#,ST19#

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-20140

AT190,CT19#,ST19#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

AT190,CT19#,ST19#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT19#,ST19#

ﾚｯﾄﾞ

 2
69759-20380

AT190,CT19#,ST19#

ﾌﾞﾗｯｸ

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT19#,ST19#

ﾚｯﾄﾞ

 2
69759-20380

AT190,CT19#,ST19#

ﾌﾞﾗｯｸ

 2
69759J - SILENCER, DOOR LOCK LINK
69759-20390

AT190,CT19#,ST19#

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

AT190,CT19#,ST19#

左側

 2
69759-14050

AT190,CT19#,ST19#

右側

 2
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-20090

AT190,CT19#,ST19#

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-20090

AT190,CT19#,ST19#

 1
Common parts
90105-06082
90159-60303
90159-60356
90159-80031
90189-06203
90467-08117
