ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

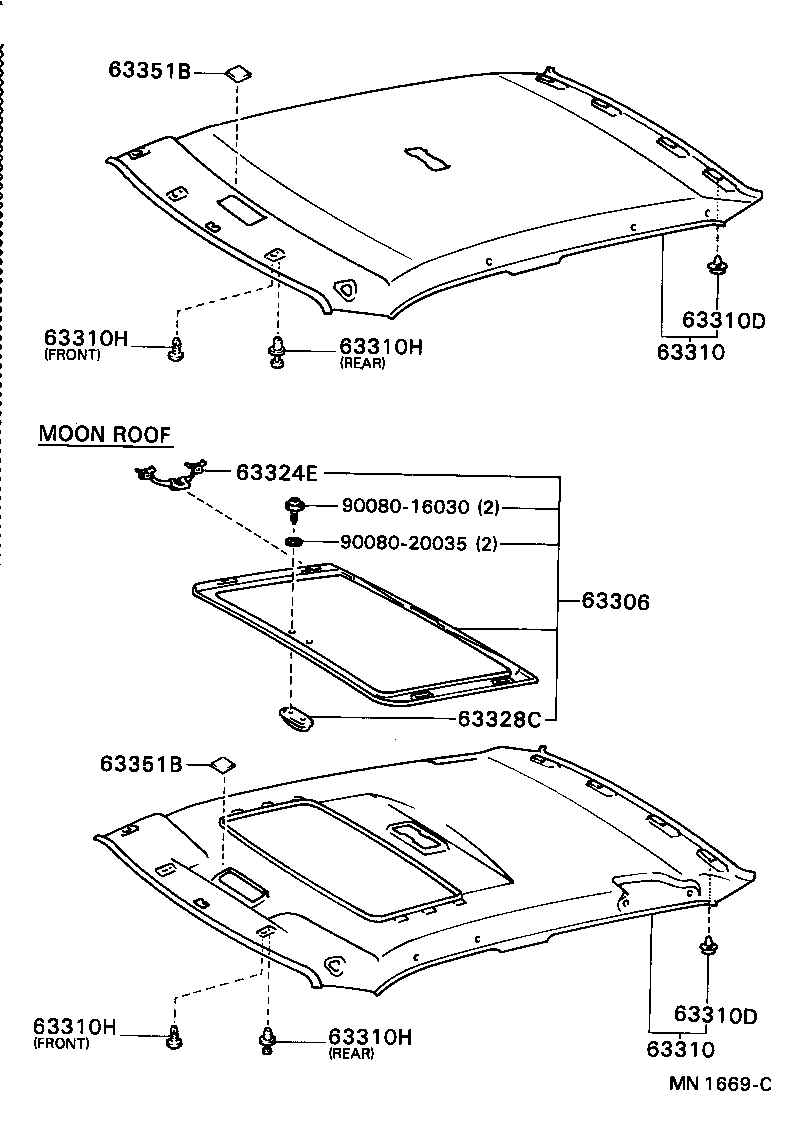

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63310H 63310H 63310H 63310H 63324E 63328C 63351B 63351B 9008016030 9008020035
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0W010B0

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

GRAY,TRIM1#

 1
63306-0W010B0

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

GRAY,TRIM2#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B340B0

ST190,191..LB

GRAY,TRIM2#

 1
63310-2B360B0

ST190,191..LB

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#

 1
63310-2B370B0

ST190,191..LB

ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),GRAY,TRIM2#

 1
63310-2B360B0

ST190,191..LB

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#

 1
63310-2B340B0

ST190,191..LB

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B340B0

ST190,191..LB

GRAY,TRIM2#

 1
63310-2B360B0

ST190,191..LB

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2#

 1
63310-2B370B0

ST190,191..LB

ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ),GRAY,TRIM2#

 1
63310-2B360B0

ST190,191..LB

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#

 1
63310-2B340B0

ST190,191..LB

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-08174

ST190,191..LB

 4
63310D - CLIP, ROOF HEADLINING
90467-08174

ST190,191..LB

 4
63324E - SPRING, SUNSHADE LOCK
63324-05010

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

 4
63328C - KNOB, SUNSHADE TRIM
63328-0W010B0

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

GRAY,TRIM2#

 1
63328-0W010B0

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

GRAY,TRIM1#

 1
63351B - PAD, ROOF HEADLINING
63351-20040

AT190,CT19#,ST19#

 1
63351B - PAD, ROOF HEADLINING
63351-20040

AT190,CT19#,ST19#

 1
Common parts
90080-16030
90080-20035
