ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

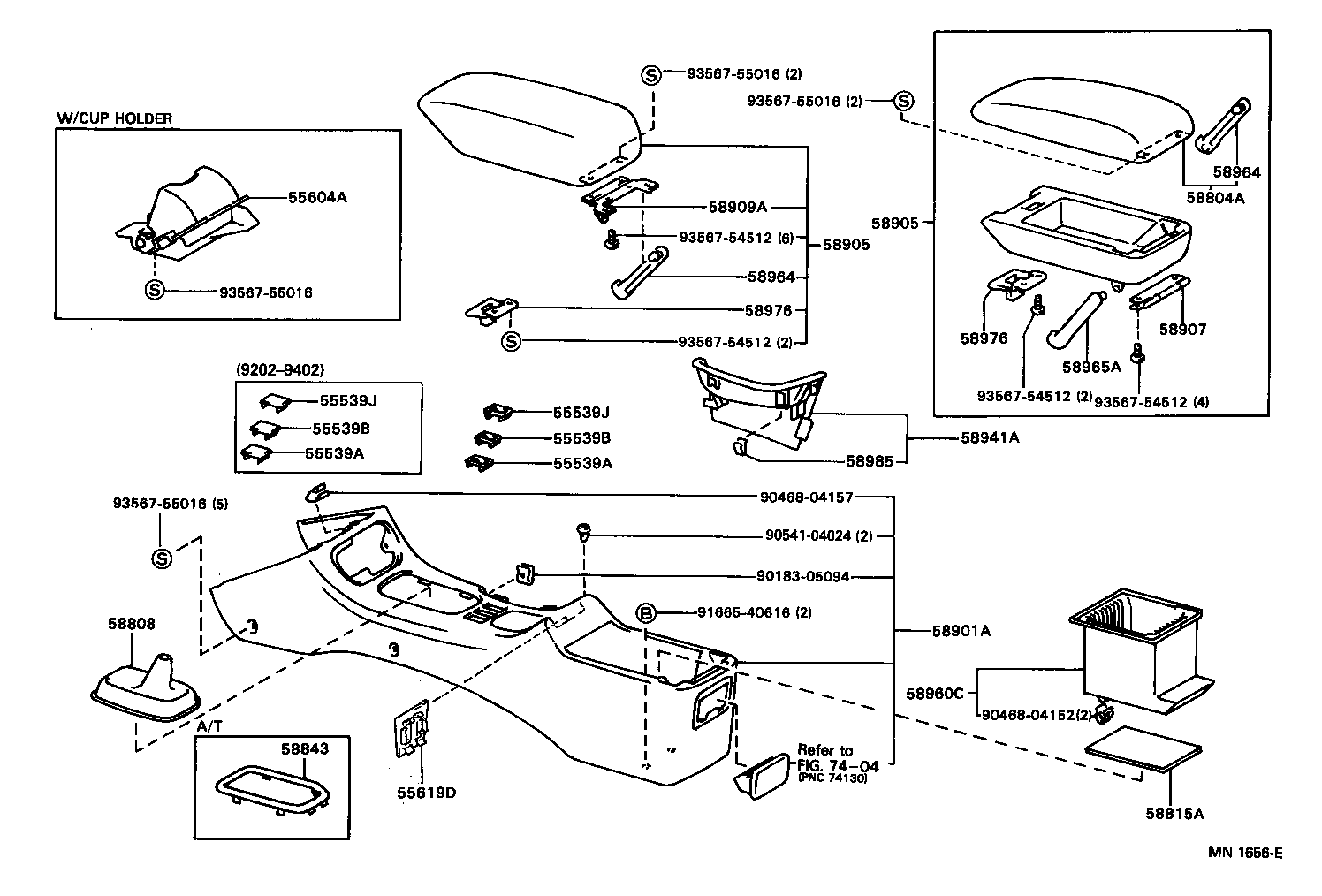

Click highlighted areas on diagram

diagram 55539A 55539A 55539B 55539B 55539J 55539J 55604A 55619D 58804A 58808 58815A 58843 58901A 58905 58905 58907 58909A 58941A 58960C 58964 58964 58965A 58976 58976 58985 7404 9018305094 9046804152 9046804157 9054104024 9166540616 9356754512 9356754512 9356754512 9356754512 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-12120C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
55539-20020P0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

SHADOW GRAY,TRIM1#

 1
55539-12120C0

AT190,CT190,ST19#

BLACK,TRIM2#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-12120C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
55539-20020P0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

SHADOW GRAY,TRIM1#

 1
55539-12120C0

AT190,CT190,ST19#

BLACK,TRIM2#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-12120C0

AT190,CT190,ST19#

BLACK,TRIM2#

 1
55539-12120C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
55539-20020P0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

SHADOW GRAY,TRIM1#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-12120C0

AT190,CT190,ST19#

BLACK,TRIM2#

 1
55539-12120C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
55539-20020P0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

SHADOW GRAY,TRIM1#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-20050C0

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

BLACK,TRIM2#

 1
55604-20050B1

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

SHADOW GRAY,TRIM1#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-20130C1

ST191..TYPE2

BLACK,TRIM2#

 1
58804-20130B1

ST191..TYPE2

SHADOW GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-20030C0

ST190,191..LB

BLACK,TRIM1#

 1
58815-20030C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-20060

AT190,CT190,ST19#..ATM

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-20120C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
58901-20120B2

AT190,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
58901-20120C1

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20200C3

ST191..TYPE2

BLACK,TRIM2#

 1
58905-20200B1

ST191..TYPE2

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-20200C3

ST191..TYPE2

BLACK,TRIM2#

 1
58905-20200B1

ST191..TYPE2

SHADOW GRAY,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-20020

AT190,CT19#,ST19#..EXG,EXS,TYPE2

 1
58941A - COVER, PARKING BRAKE HOLE
58904-20030C0

AT190,CT19#,ST19#

BLACK,TRIM2#

 1
58904-20030B1

AT190,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
58960C - HOLDER ASSY, CASSETTE CASE
58960-20050

AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040

AT190,CT19#,ST19#

右側

 1
58964-12040

AT190,CT19#,ST19#..EXG,EXS,TYPE2

 2
58965-12040

AT190,CT19#,ST19#

左側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040

AT190,CT19#,ST19#

右側

 1
58964-12040

AT190,CT19#,ST19#..EXG,EXS,TYPE2

 2
58965-12040

AT190,CT19#,ST19#

左側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12040

AT190,CT19#,ST19#..EXG,EXS,TYPE2

左側

 1
58965-12040

AT190,CT19#,ST19#..EXG,EXS,TYPE2

 2
58964-12040

AT190,CT19#,ST19#..EXG,EXS,TYPE2

右側

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT190,CT19#,ST19#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20020

AT190,CT19#,ST19#

 1
58985 - RETAINER, CONSOLE BOX
58985-20050

AT190,CT19#,ST19#

 1
58985-20050

AT190,CT19#,ST19#

 2
Common parts
90183-05094
90468-04152
90468-04157
90541-04024
91665-40616
93567-54512
93567-55016
Linked diagrams
7404
