ST191-ALPGK (1992)
Toyota Corona
ILLUST NO. 1 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-20030C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55300-20070C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ｱﾘ(8 ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 55300-20070B0 |
ST190,191..EXG,TYPE2 ｱﾘ(8 ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 55300-20030B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-20050 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 55304-20050 |
ST190,191..EXG,TYPE2 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-20200 |
AT190,CT19#,ST19# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-20180 |
AT190,CT19#,ST19# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-20070 |
AT190,CT19#,ST19# |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-20150 |
AT190,CT19#,ST19# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-20650C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 ｱﾘ(8ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 55401-20650B0 |
ST190,191..EXG,TYPE2 ｱﾘ(8ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-20610B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55401-20610C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-20130 |
AT190,CT19#,ST19# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-20630 |
AT190,CT19#,ST19# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-20010C0 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 55420-20010B0 |
ST190,191..EXG,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20260C0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 55432-20260B0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20200 |
AT190,CT19#,ST19# |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55458-20040B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-20040B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55459-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55462A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, RH | ||||
| 55462-20200 |
AT190,CT19#,ST19# |
1 | ||
| 55463A - EXTENSION, INSTRUMENT SAFETY PAD INSERT, LH | ||||
| 55463-20130 |
AT190,CT19#,ST19# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-20080C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55479-20080B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-20060B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55534-20060C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 55345-20040 | ||||
| 90105-06109 | ||||
| 90105-08120 | ||||
| 90119-06715 | ||||
| 90167-50021 | ||||
| 90179-06026 | ||||
| 90179-06129 | ||||
| 90183-05103 | ||||
| 90467-08165 | ||||
| 90467-08166 | ||||
| 90467-08167 | ||||
| 90467-08171 | ||||
| 90467-08172 | ||||
| 90467-08173 | ||||
| 90468-04087 | ||||
| 90468-04157 | ||||
| 90468-04163 | ||||
| 90468-05096 | ||||
| 93560-14008 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8121 | ||||

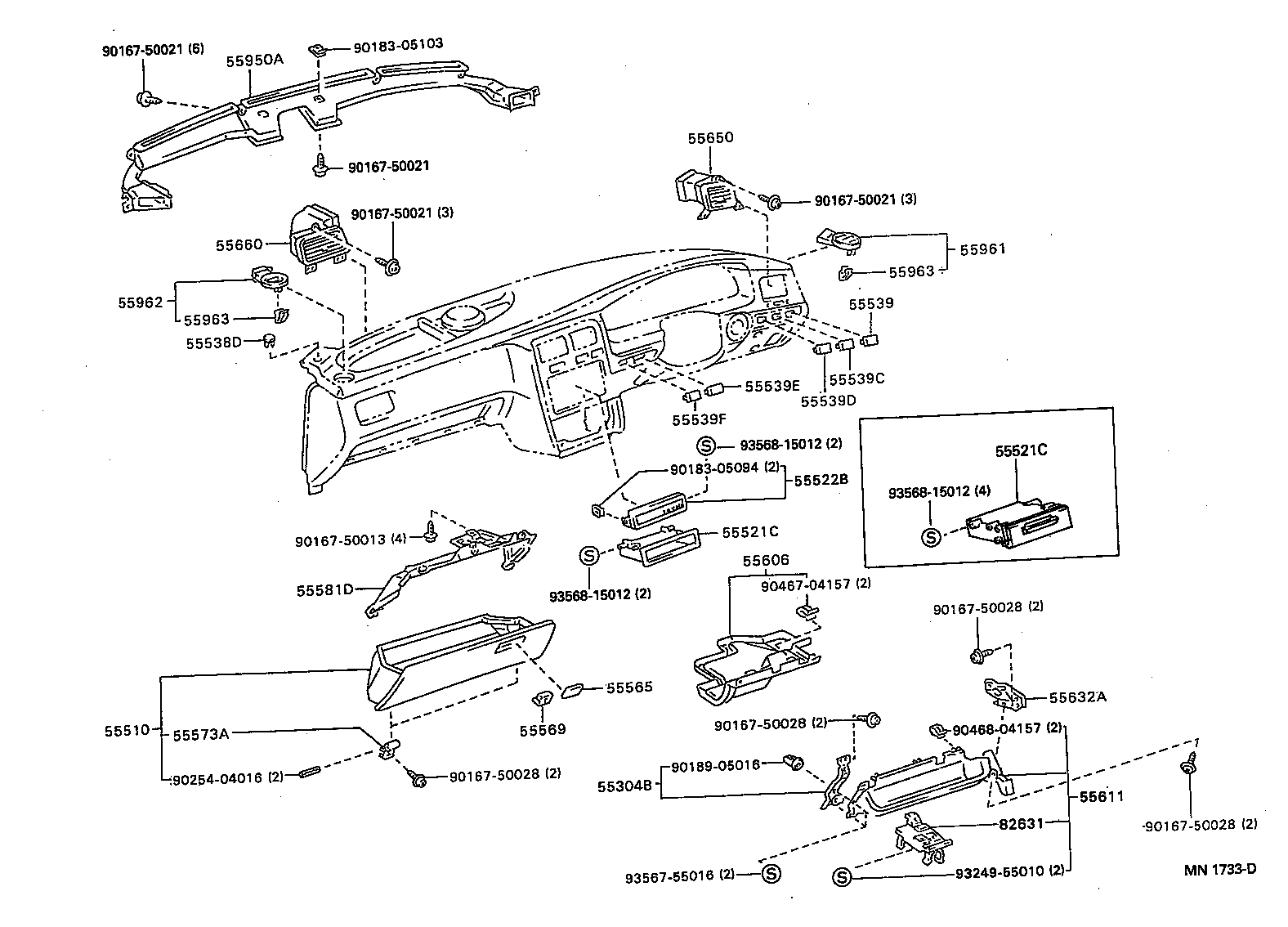

ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-20060 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 55304-20060 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-20140C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55550-20140B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AT190,CT19#,ST19# |
1 | ||
| 55520-20070 |
AT190,CT19#,ST19#..EXG,EXS,TYPE2 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
AT190,CT19#,ST19# |
1 | ||
| 55520-20070 |
AT190,CT19#,ST19#..EXG,EXS,TYPE2 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55539-12120B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
ST195..MTM;AT190,CT19#,ST190,191 SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120C0 |
ST195..MTM;AT190,CT19#,ST190,191 BLACK,TRIM2# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55565-22020B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55569-22030B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-20050 |
AT190,CT19#,ST19# |
2 | ||
| 55581D - BOX, SHELL, UPPER | ||||
| 55581-20080B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55581-20080C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-20090 |
ST190,191..EXG,TYPE2 |
1 | ||
| 55606-20090 |
ST195..EXS;ST190,191..EXG,TYPE2 |
1 | ||
| 55606-20090 |
ST190,195..EXG,EXS,TYPE1;CT19#,ST191..EXG,EXS,SELS,TYPE2 |
1 | ||
| 55611 - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-20130C0 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 55611-20130B0 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 55632A - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-20070 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 55632-20070 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-20220B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-20220C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-20190B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55660-20190C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20110 |
AT190,CT19#,ST19# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-20200C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55961-20200B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-20200B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 55962-20200C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
AT190,CT19#,ST19# |
2 | ||
| 55963 - RETAINER, SIDE DEFROSTER | ||||
| 55963-20030 |
AT190,CT19#,ST19# |
2 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-20050 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 82631-20050 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 |
1 | ||
| Common parts | ||||
| 90167-50013 | ||||
| 90167-50021 | ||||
| 90167-50028 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05016 | ||||
| 90254-04016 | ||||
| 90467-04157 | ||||
| 90468-04157 | ||||
| 93249-55010 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
