ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190,CT190,ST190,191

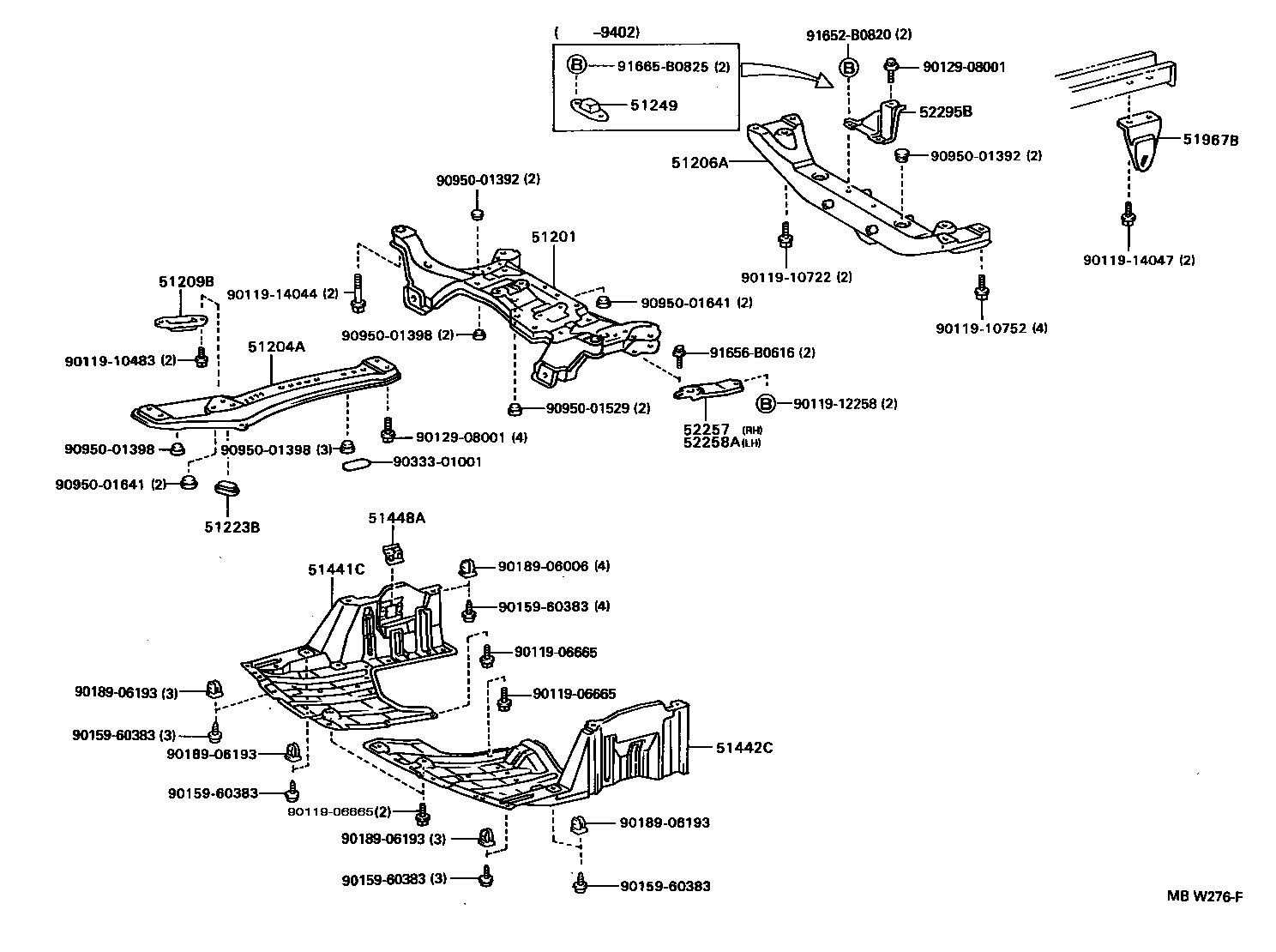

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223B 51249 51441C 51442C 51448A 51967B 52257 52258A 52295B 9011906665 9011906665 9011906665 9011910483 9011910722 9011910752 9011912258 9011914044 9011914047 9012908001 9012908001 9015960383 9015960383 9015960383 9015960383 9015960383 9018906006 9018906193 9018906193 9018906193 9018906193 9033301001 9095001392 9095001392 9095001398 9095001398 9095001398 9095001529 9095001641 9095001641 91652B0820 91656B0616 91665B0825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20252

AT190,CT190,ST190,191

 1
51201-20251

AT190,CT190,ST190,191

 1
51201-20250

AT190,CT190,ST190,191

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20110

AT190,CT190,ST190,191

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20050

AT190,CT190,ST190,191

 1
51209B - PROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51209-12010

ST190..ATM;CT19#,ST191,195

 1
51209-12010

CT19#,ST195;AT190,ST190,191..ATM

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

AT190,CT19#,ST19#

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-20020

AT190,CT190,ST190,191

 1
51441C - COVER, ENGINE UNDER, RH
51441-20310

AT190,CT190,ST19#

 1
51441-20313

AT190,CT190,ST19#

 1
51441-20312

AT190,CT190,ST19#

 1
51441-20311

AT190,CT190,ST19#

 1
51442C - COVER, ENGINE UNDER, LH
51442-20380

AT190,CT190,ST190,191..ATM

 1
51442-20381

AT190,CT190,ST190,191..ATM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT190,CT19#,ST19#

 1
51967B - HOOK, TRANSPORT, REAR RH
51968-20100

AT190,CT19#,ST19#

 1
51967-20170

AT190,CT19#,ST19#

 1
51967-20160

AT190,CT19#,ST19#

 1
51967-20160

AT190,CT19#,ST19#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20010

AT190,CT190,ST190,191

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20010

AT190,CT190,ST190,191

 1
52295B - BRACE, REAR SUSPENSION MEMBER, RH
52295-20020

AT190,CT190,ST190,191

 1
Common parts
90119-06665
90119-10483
90119-10722
90119-10752
90119-12258
90119-14044
90119-14047
90129-08001
90159-60383
90189-06006
90189-06193
90333-01001
90950-01392
90950-01398
90950-01529
90950-01641
91652-B0820
91656-B0616
91665-B0825
