ST191-ALPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )3SFE,4SFE

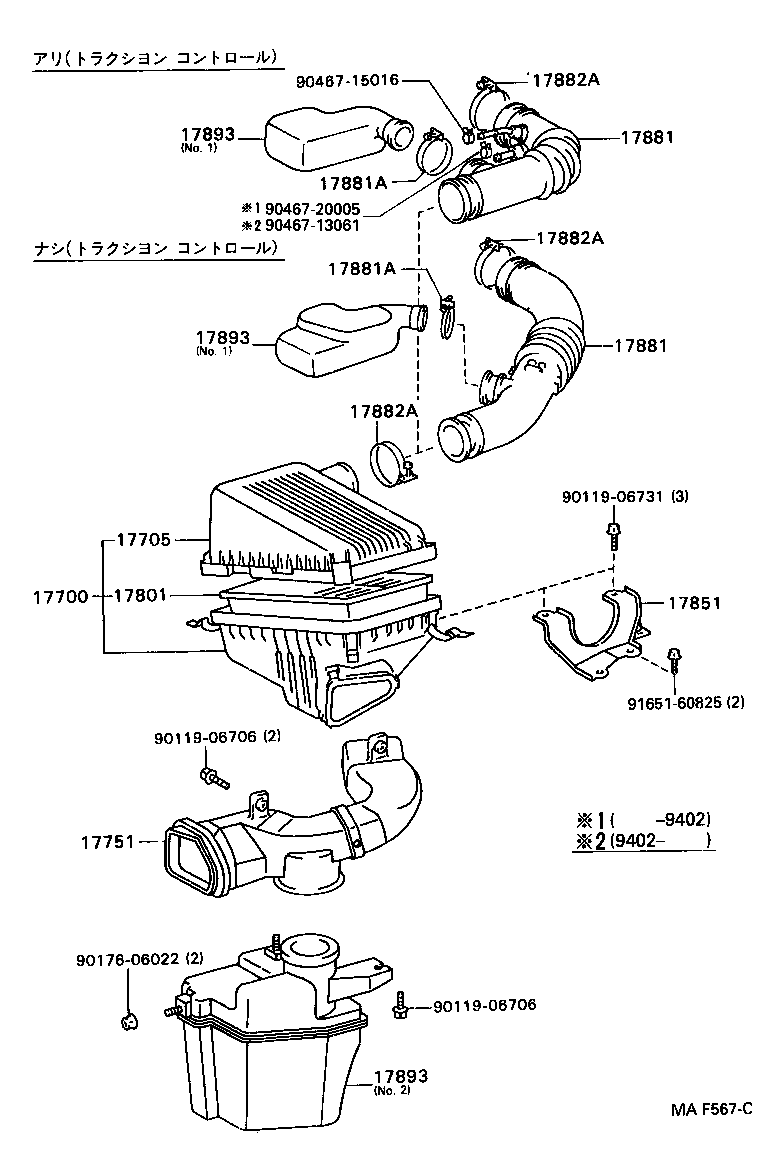

Click highlighted areas on diagram

diagram 17700 17705 17751 17801 17851 17881 17881 17881A 17881A 17882A 17882A 17882A 17893 17893 17893 9011906706 9011906706 9011906731 9017606022 9046713061 9046715016 9046720005 9165160825
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74410

3SFE,4SFE..ST19#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74290

3SFE,4SFE..ST19#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-16070

3SFE,4SFE..ST19#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE,4SFE..ST19#

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74040

3SFE,4SFE..ST19#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74460

3SFE..ST191..EXG,TYPE2

 1
17881-74570

3SFE..ST191..EXG,TYPE2

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74460

3SFE..ST191..EXG,TYPE2

 1
17881-74570

3SFE..ST191..EXG,TYPE2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10590

3SFE,4SFE..ST19#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10590

3SFE,4SFE..ST19#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE..ST191..EXG,TYPE2

AIR CLEANER SIDE

 1
90460-73001

3SFE..ST191..EXG,TYPE2

ｴﾝｼﾞﾝ側

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE..ST191..EXG,TYPE2

AIR CLEANER SIDE

 1
90460-73001

3SFE..ST191..EXG,TYPE2

ｴﾝｼﾞﾝ側

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

3SFE..ST191..EXG,TYPE2

AIR CLEANER SIDE

 1
90460-73001

3SFE..ST191..EXG,TYPE2

ｴﾝｼﾞﾝ側

 1
17893 - RESONATOR, INTAKE AIR
17893-16100

3SFE,4SFE..ST19#

NO.2

 1
17893-74250

3SFE..ST191..EXG,TYPE2

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-16100

3SFE,4SFE..ST19#

NO.2

 1
17893-74250

3SFE..ST191..EXG,TYPE2

NO.1

 1
17893 - RESONATOR, INTAKE AIR
17893-16100

3SFE,4SFE..ST19#

NO.2

 1
17893-74250

3SFE..ST191..EXG,TYPE2

NO.1

 1
Common parts
90119-06706
90119-06731
90176-06022
90467-13061
90467-15016
90467-20005
91651-60825
