ST191-ALPGK (1992)
Toyota Corona
Production
Feb 1992
-
Jan 1996
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )3SFE..ST191

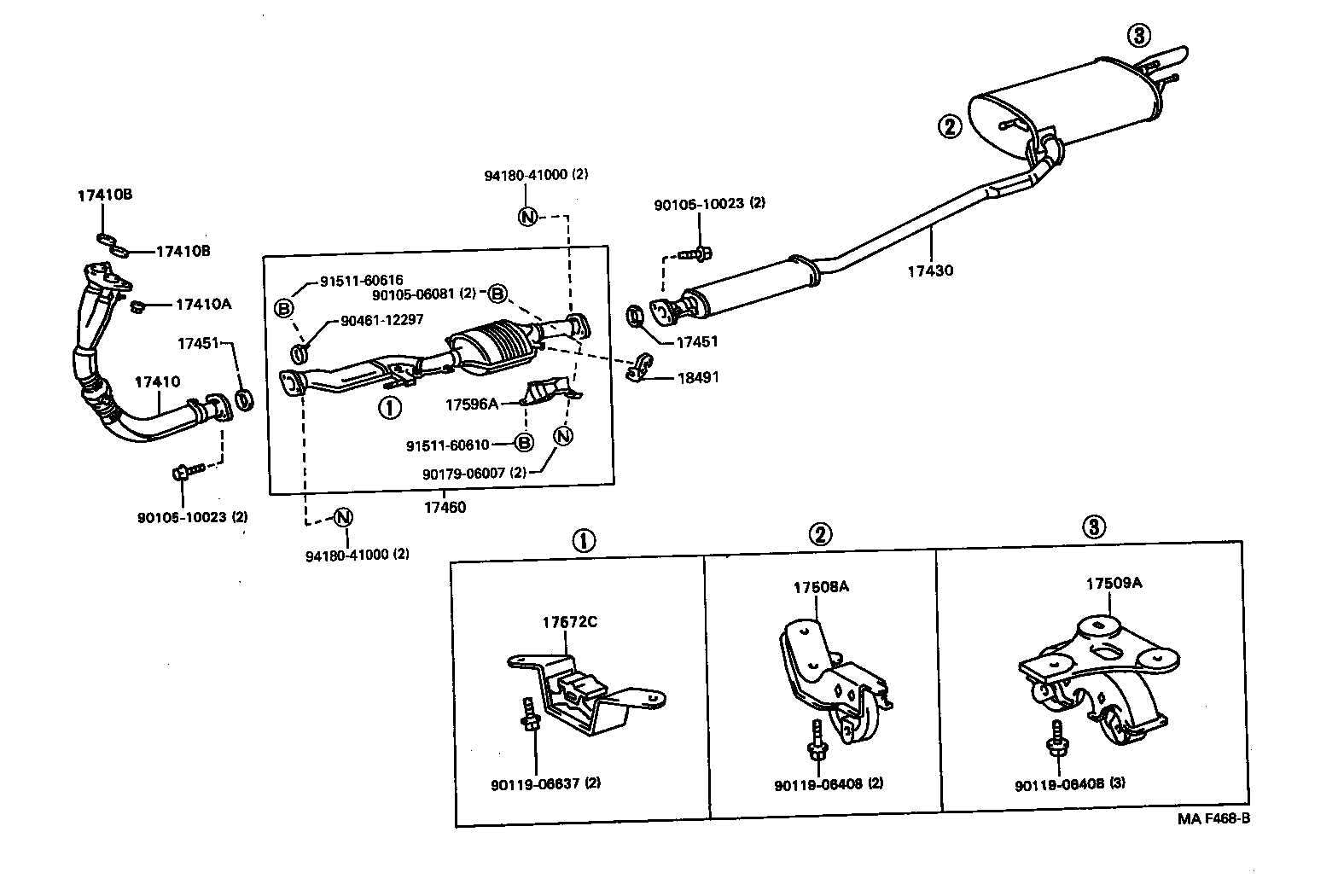

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-7A090 |
3SFE..ST191 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE,3SFE,4SFE..AT190,ST19# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
3SFE..ST191 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
3SFE..ST191 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-7A180 |
3SFE..ST191 |
1 | ||
| 17430-1A440 |
4AFE,3SFE..AT190,ST191 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
3SFE..ST191 |
2 | ||
| 90917-06046 |
3SFE..ST191 ﾘﾔ |
1 | ||
| 90917-06078 |
3SFE..ST191 |
2 | ||
| 90917-06078 |
3SFE..ST191 ﾌﾛﾝﾄ |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
3SFE..ST191 |
2 | ||
| 90917-06046 |
3SFE..ST191 ﾘﾔ |
1 | ||
| 90917-06078 |
3SFE..ST191 |
2 | ||
| 90917-06078 |
3SFE..ST191 ﾌﾛﾝﾄ |
1 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-74070 |
3SFE..ST191 |
1 | ||
| 17460-74010 |
3SFE..ST191 |
1 | ||
| 17460-74071 |
3SFE..ST191 |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-74030 |
4AFE,2C,3SFE,4SFE..AT190,CT190,ST190,191 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-74110 |
4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19# |
1 | ||
| 17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-74332 |
4AFE,3SFE,4SFE..AT190,ST190,191 |
1 | ||
| 17571-74330 |
4AFE,3SFE,4SFE..AT190,ST190,191 |
1 | ||
| 17571-74333 |
4AFE,3SFE,4SFE..AT190,ST190,191 |
1 | ||
| 17571-74331 |
4AFE,3SFE,4SFE..AT190,ST190,191 |
1 | ||
| 17571-74430 |
4AFE,3SFE,4SFE..AT190,ST190,191 |
1 | ||
| 17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4 | ||||
| 17596-74060 |
3SFE..ST191 |
1 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-74020 |
4AFE,3SFE..AT190,ST191 |
1 | ||
| 18491-28010 |
4AFE,3SFE..AT190,ST191 |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-10023 | ||||
| 90119-06408 | ||||
| 90119-06637 | ||||
| 90179-06007 | ||||
| 90461-12297 | ||||
| 91511-60610 | ||||
| 91511-60616 | ||||
| 94180-41000 | ||||
