ST191-AEPGK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

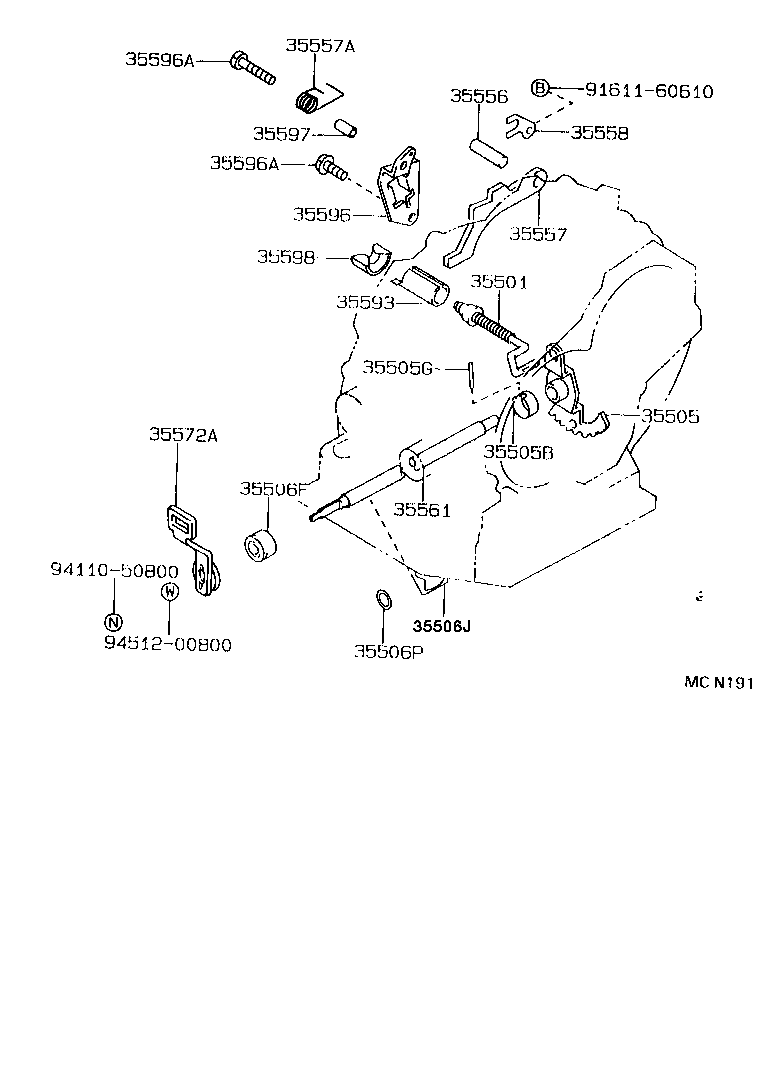

ILLUST NO. 1 OF 2(9202- )AT190,CT190,ST190,191..ATM

Click highlighted areas on diagram

A240E,A241E,A241L,A245E

diagram 35501 35505 35505B 35505G 35506F 35506J 35506P 35556 35557 35557A 35558 35561 35572A 35593 35596 35596A 35596A 35597 35598 9161160610 9411050800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-12010

AT190,CT190,ST190,191..ATM

 1
35501-12010

CT190,ST190,191..ATM

 1
35501-12010

AT190,CT190,ST190,191..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-12040

AT190,CT190,ST190,191..ATM

 1
35505-12040

CT190,ST190,191..ATM

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

AT190,CT190,ST19#..ATM

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

AT190,CT190,ST19#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

AT190,CT190,ST19#..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-11001

AT190,CT190,ST190,191..ATM

 1
35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
90201-12028

AT190,CT190,ST190,191..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-12020

AT190,CT190,ST190,191..ATM

 1
35557 - PAWL, PARKING LOCK
35557-12020

AT190,CT190,ST190,191..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21003

AT190,CT190,ST190,191..ATM

 1
35558 - CLAMP, PAWL SHAFT
35558-12010

AT190,CT190,ST190,191..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-12020

AT190,CT190,ST190,191..ATM

 1
35561-12020

CT190,ST190,191..ATM

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-20190

CT190,ST190,191..ATM

 1
35593 - SLEEVE, CAM GUIDE
35593-12010

AT190,CT190,ST190,191..ATM

 1
35596 - PLATE, PAWL STOPPER
35596-12010

AT190,CT190,ST190,191..ATM

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068

AT190,CT190,ST190,191..ATM

*8−1.25PX35−30

 1
90105-08070

AT190,CT190,ST190,191..ATM

*8−1.25PX17−13.5

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068

AT190,CT190,ST190,191..ATM

*8−1.25PX35−30

 1
90105-08070

AT190,CT190,ST190,191..ATM

*8−1.25PX17−13.5

 1
35597 - SLEEVE, SPRING GUIDE
35597-12010

AT190,CT190,ST190,191..ATM

 1
35598 - SLEEVE, PARKING LOCK
35598-12010

AT190,CT190,ST190,191..ATM

 1
Common parts
91611-60610
94110-50800
94512-00800

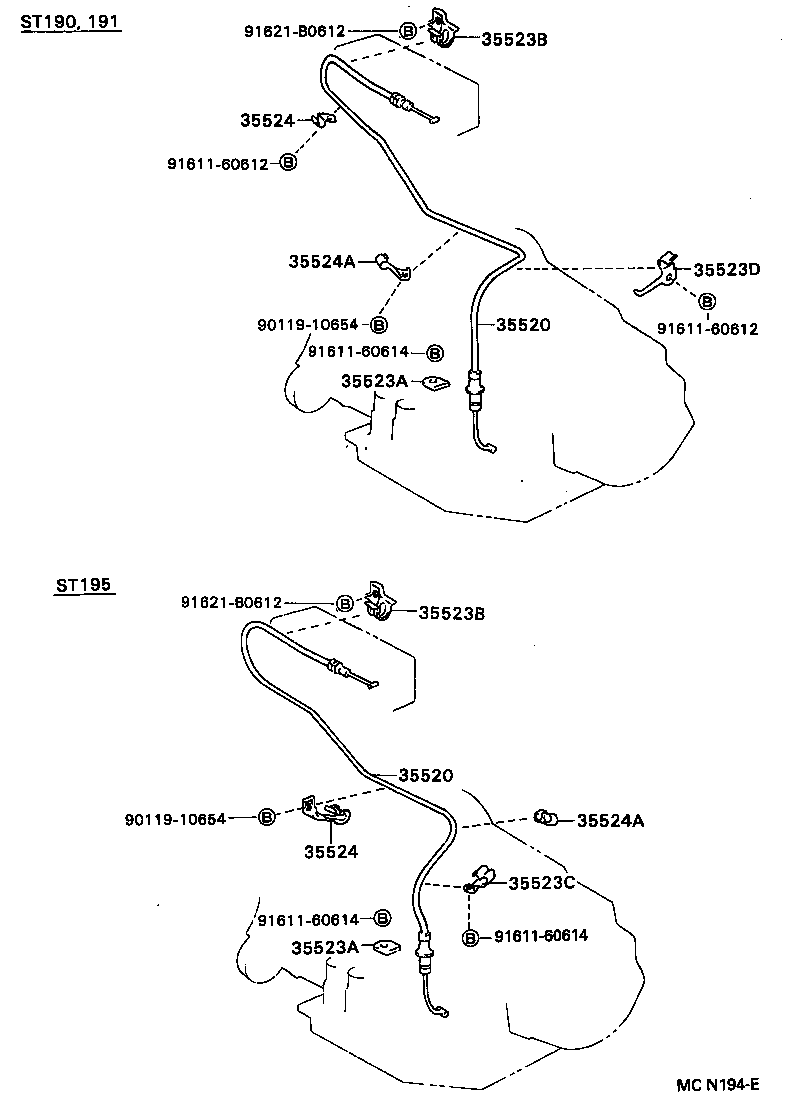

ILLUST NO. 2 OF 2(9202- )ST19#..ATM

Click highlighted areas on diagram

A241E,A540H

diagram 35520 35520 35523A 35523A 35523B 35523B 35523C 35523D 35524 35524 35524A 35524A 9011910654 9011910654 9161160612 9161160612 9161160614 9161160614 9161160614 91621B0612 91621B0612
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-20410

ST190,191..ATM

 1
35520 - CABLE ASSY, THROTTLE
35520-20410

ST190,191..ATM

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CT190,ST190,191..ATM

 1
35523-12080

AT190,CT190,ST190,191..ATM

 1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-12080

CT190,ST190,191..ATM

 1
35523-12080

AT190,CT190,ST190,191..ATM

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
35523-20440

ST19#..ATM

 1
35523B - CLAMP, THROTTLE CABLE, NO.3
35523-20440

ST19#..ATM

 1
35523D - CLAMP, THROTTLE CABLE, NO.5
35523-20420

ST190,191..ATM

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35523-20360

ST190,191..ATM

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35523-20360

ST190,191..ATM

 1
35524A - CLAMP, THROTTLE CABLE, NO.6
35523-20350

ST190,191..ATM

 1
35524A - CLAMP, THROTTLE CABLE, NO.6
35523-20350

ST190,191..ATM

 1
Common parts
90119-10654
91611-60612
91611-60614
91621-B0612
