ST191-AEPEK (1992)
Toyota Corona

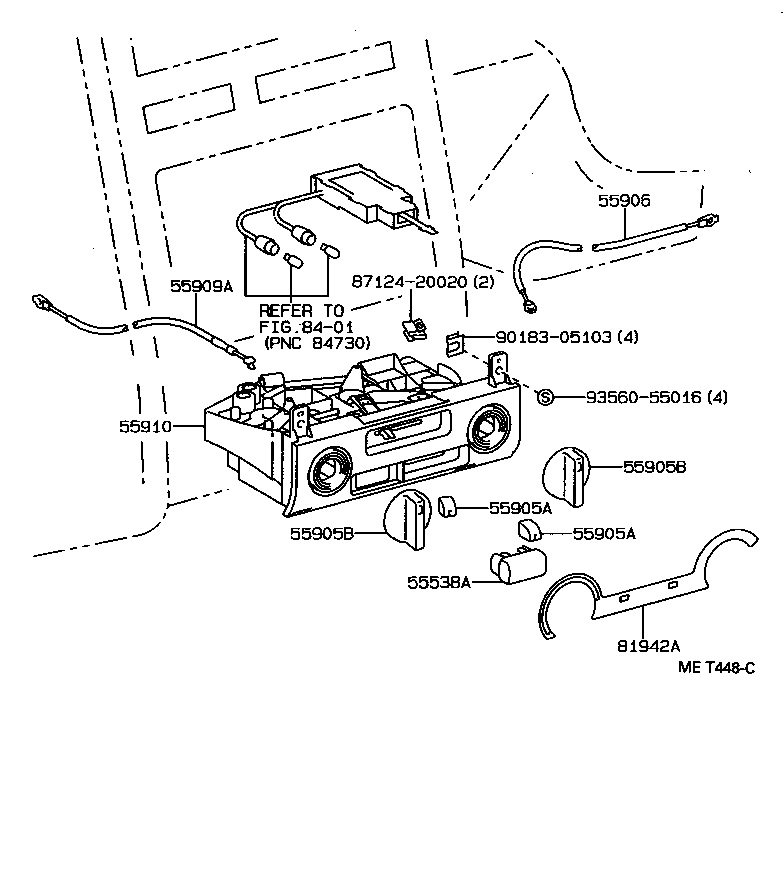

ILLUST NO. 1 OF 3(9202- )
ﾚﾊﾞ- ｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20440 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

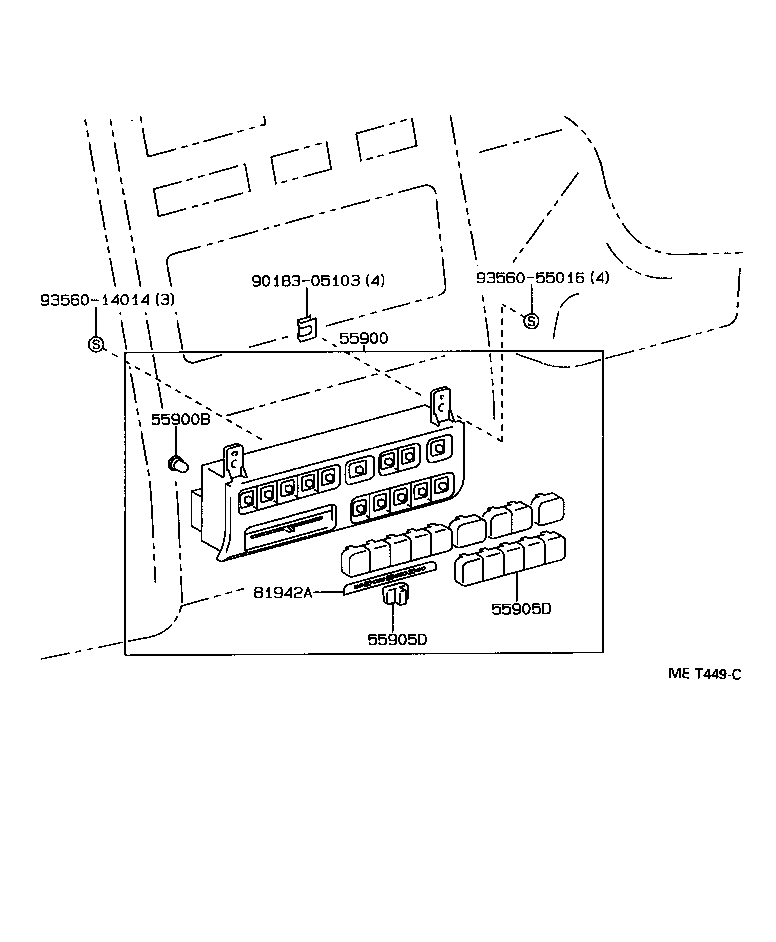

ILLUST NO. 1 OF 3(9202- )
ﾌﾟﾂｼﾕ ｼｷ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-2B070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 55900-2B260 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 55900-2B070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70006 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 14V 1.4W |
4 | ||
| 84999-70006 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 14V 1.4W |
1 | ||
| 84999-70006 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 14V 1.4W |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2B200 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 F/D |
1 | ||
| 55905-2B100 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｵｰﾄ |
1 | ||
| 55905-2B210 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DEF |
1 | ||
| 55905-2B180 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 B/L |
1 | ||
| 55905-2B230 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 OFF |
1 | ||
| 55905-2B190 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 FOOT |
1 | ||
| 55905-2B280 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 COOL-WARM |
1 | ||
| 55905-2B110 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ECON |
1 | ||
| 55905-2B050 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 A/C |
1 | ||
| 55905-2B220 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 REC/FRS |
1 | ||
| 55905-2B100 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 ｵｰﾄ |
1 | ||
| 55905-2B050 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 A/C |
1 | ||
| 55905-2B240 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 LO |
1 | ||
| 55905-2B170 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 FACE |
1 | ||
| 55905-2B200 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 F/D |
1 | ||
| 55905-2B230 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 OFF |
1 | ||
| 55905-2B250 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 MID |
2 | ||
| 55905-2B190 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 FOOT |
1 | ||
| 55905-2B250 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 MID |
2 | ||
| 55905-2B260 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 HI |
1 | ||
| 55905-2B180 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 B/L |
1 | ||
| 55905-2B170 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 FACE |
1 | ||
| 55905-2B240 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 LO |
1 | ||
| 55905-2B110 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 ECON |
1 | ||
| 55905-2B210 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DEF |
1 | ||
| 55905-2B280 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 COOL-WARM |
1 | ||
| 55905-2B220 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 REC/FRS |
1 | ||
| 55905-2B260 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 HI |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2B200 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 F/D |
1 | ||
| 55905-2B100 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｵｰﾄ |
1 | ||
| 55905-2B210 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DEF |
1 | ||
| 55905-2B180 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 B/L |
1 | ||
| 55905-2B230 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 OFF |
1 | ||
| 55905-2B190 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 FOOT |
1 | ||
| 55905-2B280 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 COOL-WARM |
1 | ||
| 55905-2B110 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ECON |
1 | ||
| 55905-2B050 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 A/C |
1 | ||
| 55905-2B220 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 REC/FRS |
1 | ||
| 55905-2B100 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 ｵｰﾄ |
1 | ||
| 55905-2B050 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 A/C |
1 | ||
| 55905-2B240 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 LO |
1 | ||
| 55905-2B170 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 FACE |
1 | ||
| 55905-2B200 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 F/D |
1 | ||
| 55905-2B230 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 OFF |
1 | ||
| 55905-2B250 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 MID |
2 | ||
| 55905-2B190 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 FOOT |
1 | ||
| 55905-2B250 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 MID |
2 | ||
| 55905-2B260 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 HI |
1 | ||
| 55905-2B180 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 B/L |
1 | ||
| 55905-2B170 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 FACE |
1 | ||
| 55905-2B240 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 LO |
1 | ||
| 55905-2B110 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 ECON |
1 | ||
| 55905-2B210 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 DEF |
1 | ||
| 55905-2B280 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 COOL-WARM |
1 | ||
| 55905-2B220 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 REC/FRS |
1 | ||
| 55905-2B260 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 HI |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20440 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93560-14014 | ||||
| 93560-55016 | ||||

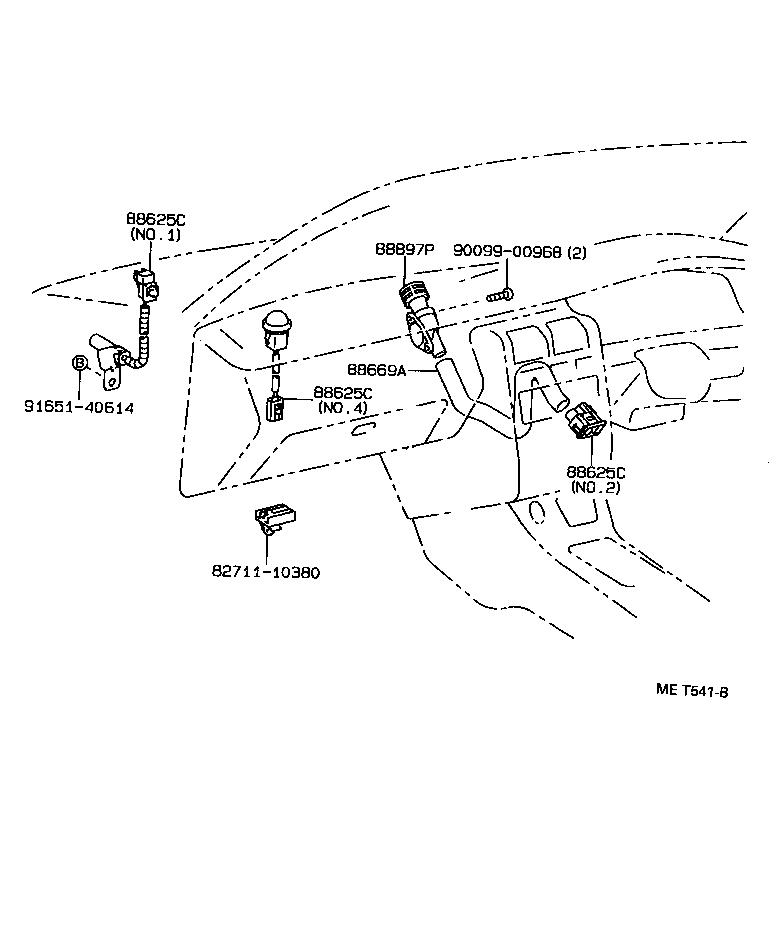

ILLUST NO. 3 OF 3(9202- )
ｵ-ﾄ ｴｱｺﾝ ｾﾝｻ(ｸ-ﾗ ｻ-ﾐｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20380 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88625-33010 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88625-33010 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88790-20030 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88790-20030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88625-20380 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20380 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88625-33010 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88625-33010 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88790-20030 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88790-20030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88625-20380 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20380 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88625-33010 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88625-33010 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.2 |
1 | ||
| 88790-20030 |
CT190..MTM..(EXS,GX,SELS);ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88790-20030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.4 |
1 | ||
| 88625-20380 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-20130 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-00968 | ||||
| 91651-40614 | ||||

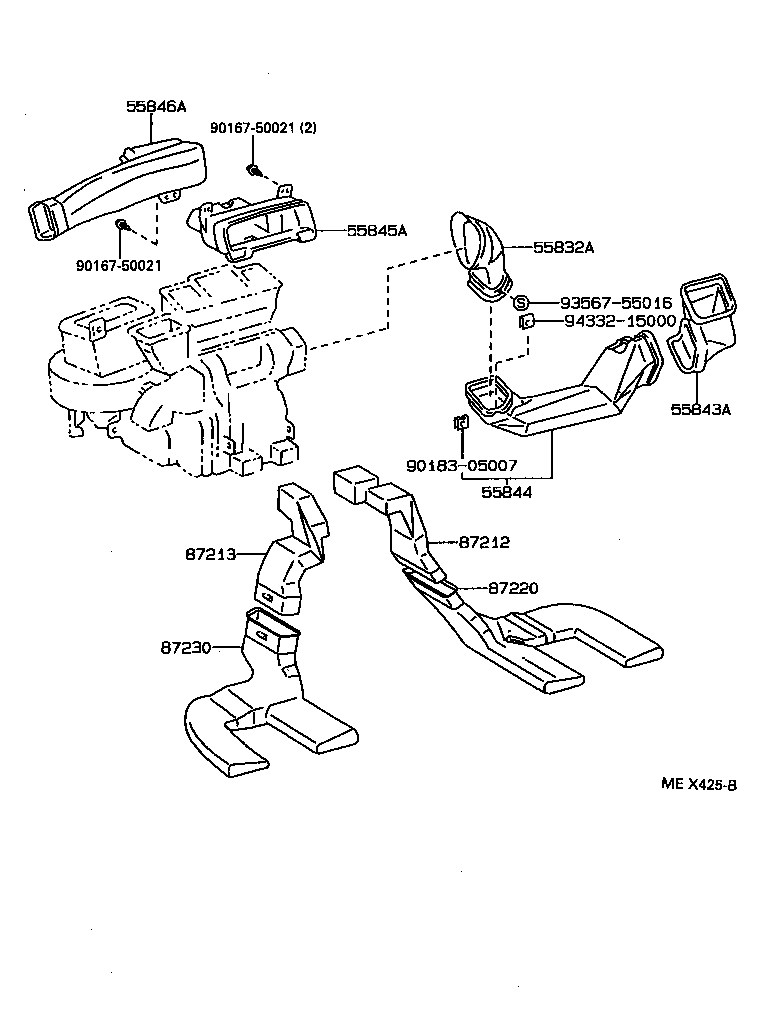

ILLUST NO. 2 OF 3(9202- )
ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55832-20090 |
AT190,CT19#,ST19# |
1 | ||
| 55832-20070 |
AT190,CT190,ST19# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-20260 |
AT190,CT19#,ST19# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20240 |
AT190,CT190,ST19# |
1 | ||
| 55844-20290 |
AT190,CT19#,ST19# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-20200 |
AT190,CT19#,ST19# |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-20120 |
AT190,CT19#,ST19# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20100 |
AT190,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87212-20100 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-20070 |
AT190,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87213-20070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20100 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220-20100 |
AT190,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87230 - DUCT ASSY, AIR, HEATER | ||||
| 87230-20070 |
AT190,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87230-20070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90167-50021 | ||||
| 90183-05007 | ||||
| 93567-55016 | ||||
| 94332-15000 | ||||
