ST190Y-AEMNK (1992)

Toyota Corona

Production Nov 1992 - Jan 1996
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )KYO

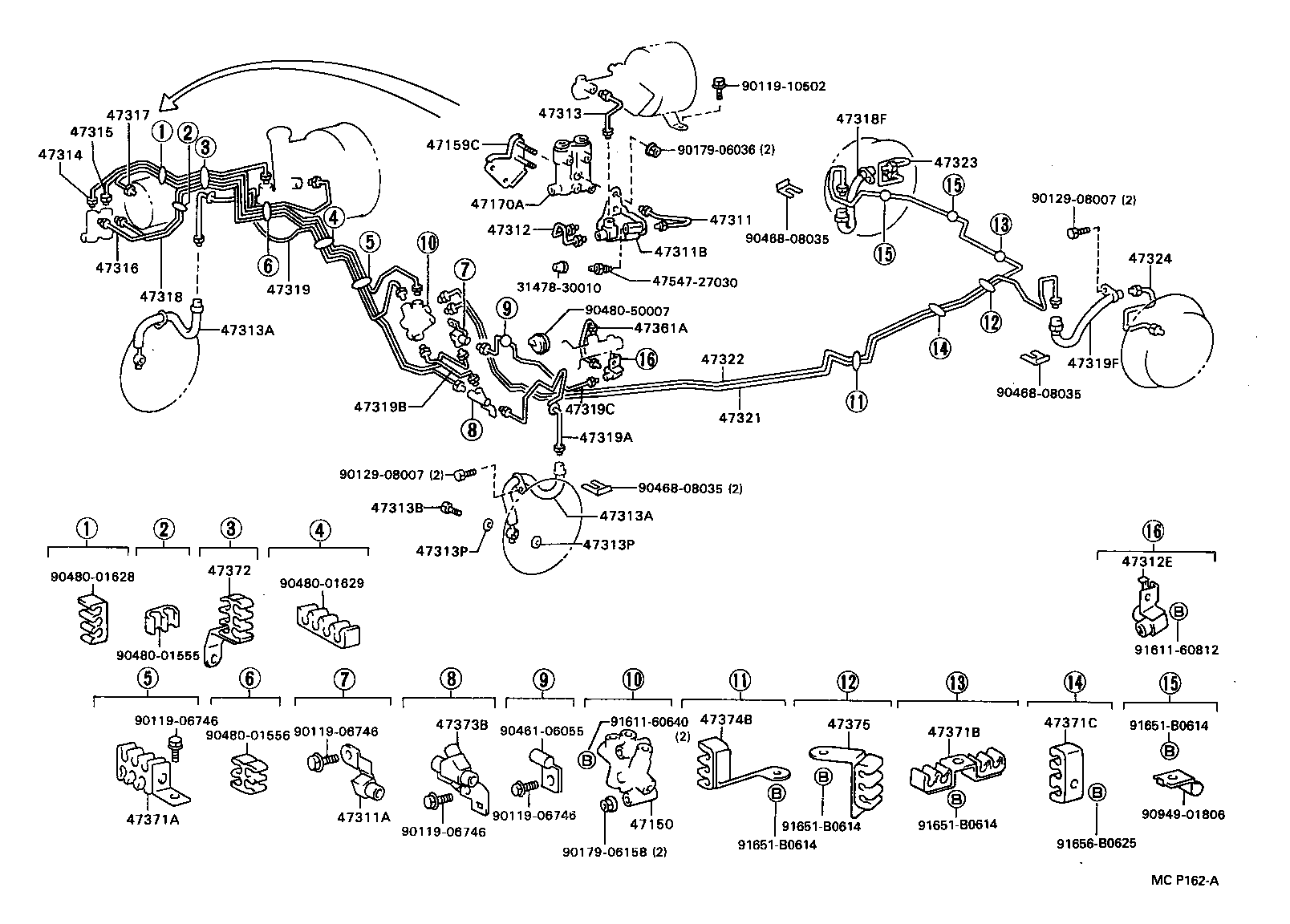

Click highlighted areas on diagram

diagram 3147830010 47150 47159C 47170A 47311 47311A 47311B 47312 47312E 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316 47317 47318 47318F 47319 47319A 47319B 47319C 47319F 47321 47322 47323 47324 47361A 47371A 47371B 47371C 47372 47373B 47374B 47375 4754727030 9011906746 9011906746 9011906746 9011906746 9011910502 9012908007 9012908007 9017906036 9017906158 9046106055 9046808035 9046808035 9046808035 9048001555 9048001556 9048001628 9048001629 9048050007 9094901806 9161160640 9161160812 91651B0614 91651B0614 91651B0614 91651B0614 91656B0625
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12050

CT190,ST190..KYO

 1
47159C - BRACKET, CHANGE VALVE
47159-20130

CT190,ST190..KYO

 1
47170A - VALVE ASSY, BRAKE CHANGE
47170-20030

CT190,ST190..KYO

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B030

CT190,ST190..KYO

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10219

CT190,ST190..KYO

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10218

CT190,ST190..KYO

*42

 1
47312 - TUBE, FRONT BRAKE, NO.2
47311-2B040

CT190,ST190..KYO

*42

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10217

CT190,ST190..KYO

 1
47313 - TUBE, FRONT BRAKE, NO.3
47311-2B050

CT190,ST190..KYO

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02743

AT190,CT19#,ST19#

左側

 1
90947-02696

AT190,CT19#,ST19#

左側

 1
90947-02695

AT190,CT19#,ST19#

右側

 1
90947-02742

AT190,CT19#,ST19#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02743

AT190,CT19#,ST19#

左側

 1
90947-02696

AT190,CT19#,ST19#

左側

 1
90947-02695

AT190,CT19#,ST19#

右側

 1
90947-02742

AT190,CT19#,ST19#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

CT190,ST190..KYO

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

AT190,CT19#,ST19#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

AT190,CT19#,ST19#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47311-2B060

CT190,ST190..KYO

 1
47315 - TUBE, FRONT BRAKE, NO.5
47312-20330

CT190,ST190..KYO

 1
47316 - TUBE, FRONT BRAKE, NO.6
47313-20670

CT190,ST190..KYO

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-20190

CT190,ST190..KYO

 1
47318 - TUBE, FRONT BRAKE, NO.8
47319-20160

CT190,ST190..KYO

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02634

AT190,CT190,ST190

 1
47319 - TUBE, FRONT BRAKE, NO.9
47314-20480

CT190,ST190..KYO

 1
47319A - TUBE, FRONT BRAKE, NO.10
47315-20580

CT190,ST190..KYO

 1
47319B - TUBE, FRONT BRAKE, NO.11
47316-20540

CT190,ST190..KYO

 1
47319C - TUBE, FRONT BRAKE, NO.12
47318-20320

CT190,ST190..KYO

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02694

AT190,CT190,ST190

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20340

AT190,CT190,ST190,191

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20460

AT190,CT19#,ST19#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-20130

AT190,CT190,ST190

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-20130

AT190,CT190,ST190

 1
47361A - TUBE, FRONT BRAKE, NO.10
47361-20030

CT190,ST190..KYO

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20200

CT190,ST190..KYO

 1
47371-20370

CT190,ST190..KYO

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20500

AT190,CT19#,ST19#

 1
47371-20410

AT190,CT190,ST19#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-20380

AT190,CT19#,ST19#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20460

CT190,ST190..KYO

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-20470

CT190,ST190..KYO

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20290

AT190,CT190,ST19#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20350

AT190,CT190,ST19#

 1
Common parts
31478-30010
47547-27030
90119-06746
90119-10502
90129-08007
90179-06036
90179-06158
90461-06055
90468-08035
90480-01555
90480-01556
90480-01628
90480-01629
90480-50007
90949-01806
91611-60640
91611-60812
91651-B0614
91656-B0625
