ST190-ALPEK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

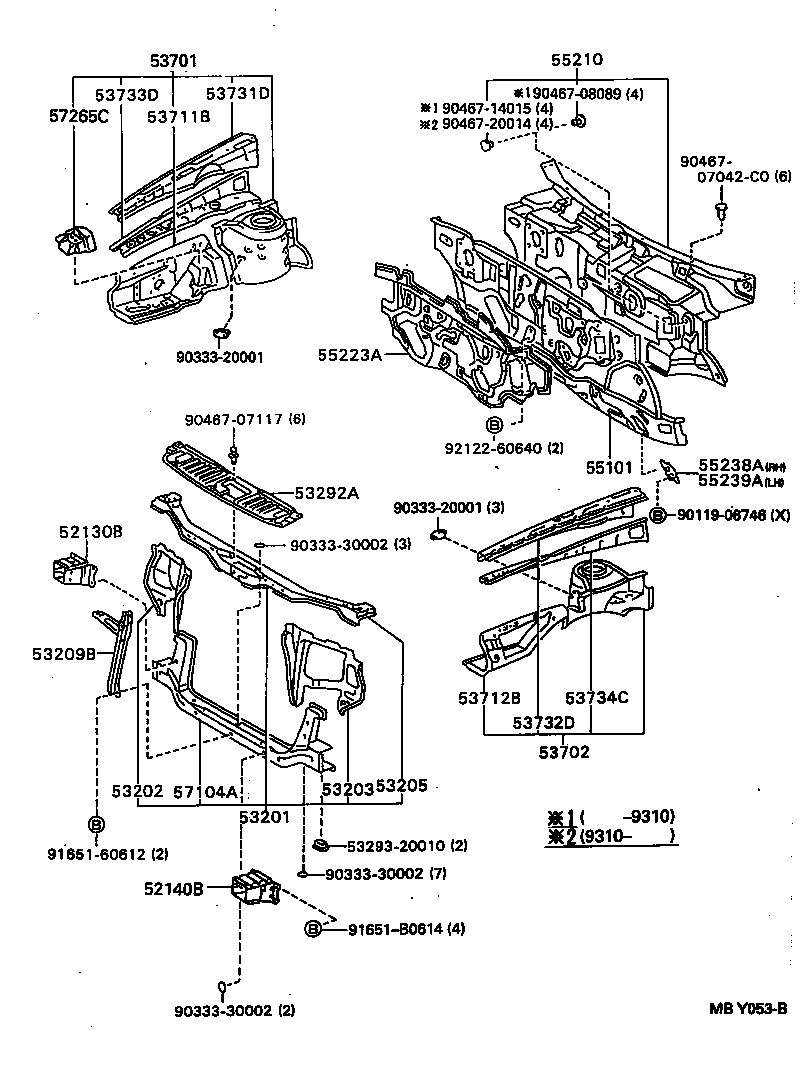

Click highlighted areas on diagram

diagram 52130B 52140B 53201 53202 53203 53205 53209B 53292A 5329320010 53701 53702 53711B 53712B 53731D 53732D 53733D 53734C 55101 55210 55223A 55238A 55239A 57104A 57265C 9011906746 9033320001 9033320001 9033330002 9033330002 9033330002 9046707042C0 9046707117 9046708089 9046714015 9046720014 9165160612 91651B0614 9212260640
Part # Description Qty Price
52130B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52130-20030

AT190,CT19#,ST19#

 1
52140B - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52140-20030

AT190,CT19#,ST19#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-20640

AT190,CT19#,ST19#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-20120

AT190,CT19#,ST19#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-20200

AT190,CT19#,ST19#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-20050

AT190,CT19#,ST19#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20300

AT190,CT19#,ST19#

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53292-20100

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20740

AT190,CT19#,ST19#

 1
53701-20780

AT190,CT19#,ST19#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20750

AT190,CT19#,ST19#

 1
53702-20720

AT190,CT19#,ST19#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20291

AT190,CT19#,ST19#

 1
53711-20290

AT190,CT19#,ST19#

 1
53711-20320

AT190,CT19#,ST19#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20340

AT190,CT19#,ST19#

 1
53712-20300

AT190,CT19#,ST19#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20130

AT190,CT19#,ST19#

 1
53731-20100

AT190,CT19#,ST19#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20100

AT190,CT19#,ST19#

 1
53732-20130

AT190,CT19#,ST19#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-20080

AT190,CT19#,ST19#

 1
53733-20070

AT190,CT19#,ST19#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-20090

AT190,CT19#,ST19#

 1
53734-20080

AT190,CT19#,ST19#

 1
55101 - PANEL SUB-ASSY, DASH
55101-2B931

AT190,ST19#..ATM..(EXG,EXS,GX,SELS,TYPE1,TYPE2)

 1
55101-2B946

AT190,ST19#..ATM..(EXG,EXS,GX,SELS,TYPE1,TYPE2)

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20240

AT190,CT19#,ST19#

 1
55238A - PLATE, DASH PANEL INSULATOR, NO.2
55238-20030

AT190,CT19#,ST19#

 1
55239A - PLATE, DASH PANEL INSULATOR, NO.3
55239-20040

AT190,CT19#,ST19#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-20110

AT190,CT19#,ST19#

 1
57265C - BRACKET, ENGINE MOUNTING, RH
57265-20110

AT190,CT19#,ST19#

 1
Common parts
53293-20010
90119-06746
90333-20001
90333-30002
90467-07042C0
90467-07117
90467-08089
90467-14015
90467-20014
91651-60612
91651-B0614
92122-60640
