8103 - FRONT TURN SIGNAL LAMP

ST190-ALMEK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996

Engine 4SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9202-9402)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT19#,ST19# 12V 21W	02/1992 - 01/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20650	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81211-20380	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
81511-20720	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078	AT190,CT19#,ST19#	02/1992 - 02/1994	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20640	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81521-20700	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81221-20370	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
Common parts
90075-02721
90189-04156

(9402- )

Click highlighted areas on diagram

ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)

diagram

Part #	Description	Period	Qty	Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT19#,ST19# 12V 21W	02/1992 - 01/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20650	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81211-20380	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
81511-20720	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81215-20380	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	2
81515-20720	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20640	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81521-20700	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81221-20370	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
Common parts
90189-04216

(9402- )

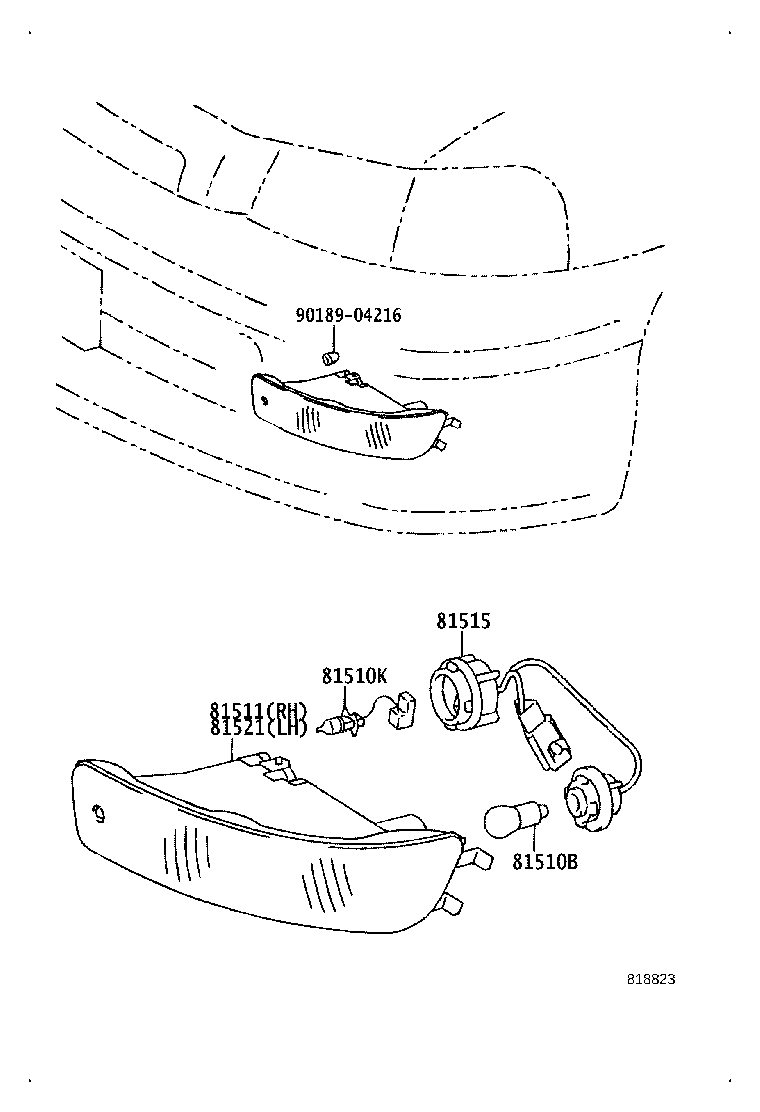

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)

diagram

Part #	Description	Period	Qty	Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210	AT190,CT19#,ST19# 12V 21W	02/1992 - 01/1996	2
81510K - BULB, FOG LAMP
90981-13071	AT190,CT19#,ST19# 12V 55W,ﾊﾛｹﾞﾝ	02/1994 - 01/1996	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-20650	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81211-20380	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
81511-20720	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81215-20380	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	2
81515-20720	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-20640	AT190,CT19#,ST19#	02/1992 - 02/1994	1
81521-20700	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1	02/1994 - 01/1996	1
81221-20370	AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 ﾌｵｸﾞﾗﾝﾌﾟｲﾂﾀｲｼｷ	02/1994 - 01/1996	1
Common parts
90189-04216
