ST190-ALMEK (1992)
Toyota Corona

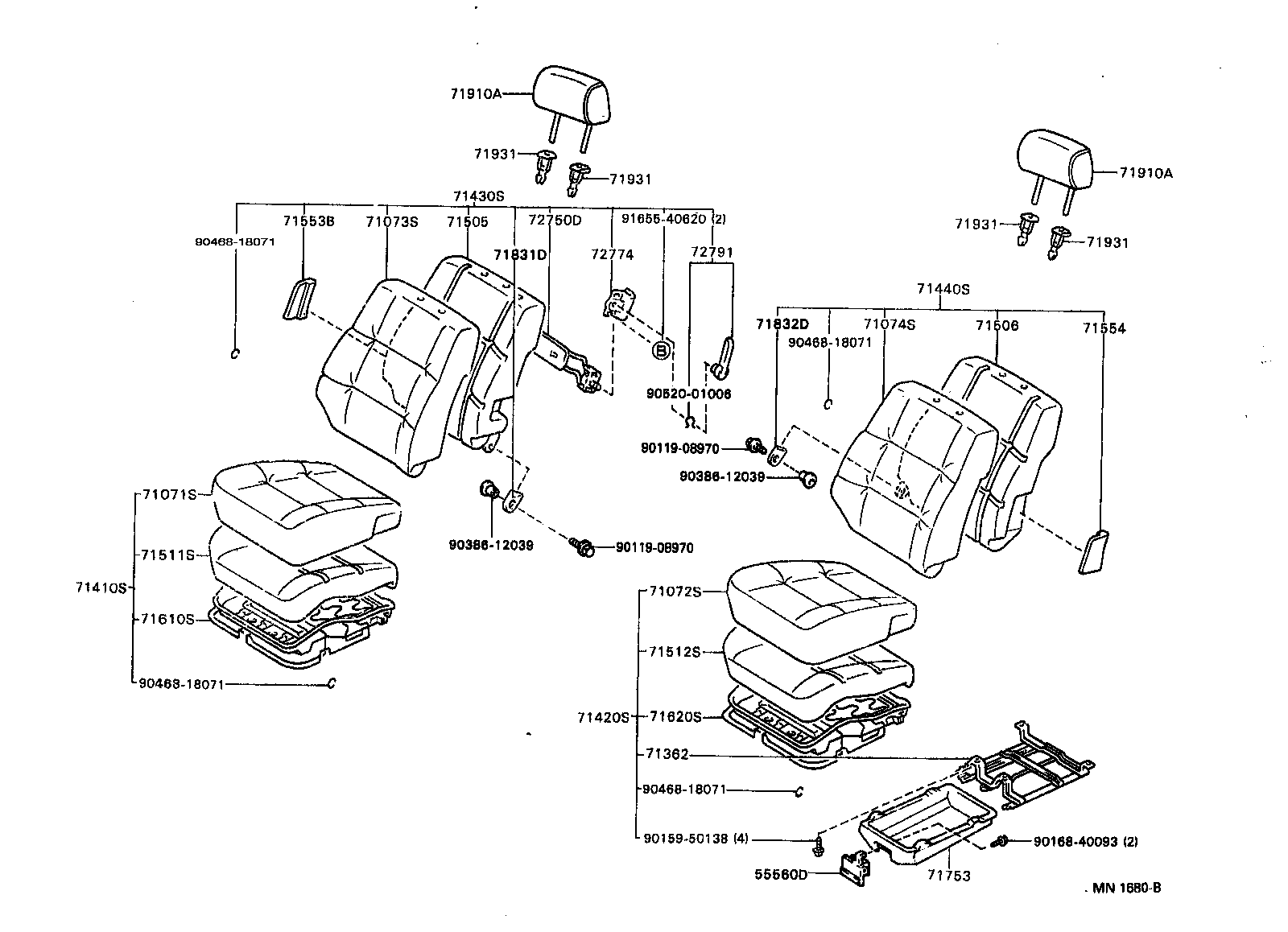

ILLUST NO. 1 OF 2(9202- )EXG,EXS,TYPE1,TYPE2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 55560-95J00C0 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G270C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71071-2G270C3 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71071-2G280C2 |
ST190,191..LB ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71071-2G271C4 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71071-2G280C3 |
ST190,191..LB ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D660C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71072-2D660C3 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71072-2D661C4 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G140C1 |
ST190,191..LB ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71073-2G130C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71073-2G130C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71073-2G140C2 |
ST190,191..LB ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71073-2G131C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D630C1 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71074-2D630C2 |
ST190,191..LB BLACK,TRIM2# |
1 | ||
| 71074-2D631C3 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20130 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 71362-20130 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G810C0 |
ST190,191..LB ***,ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-2G800C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71410-2G810C1 |
ST190,191..LB ***,ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71410-2G800C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71410-2G801B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G480C0 |
ST190,191..LB ***,ｱﾘ(DSP),BLACK,TRIM2# |
1 | ||
| 71420-2G410C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71420-2G410C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71420-2G480C1 |
ST190,191..LB ***,ｱﾘ(DSP),BLACK,TRIM2# |
1 | ||
| 71420-2G411B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G690C0 |
ST190,191..LB ***,ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71430-2G680C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71430-2G680C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71430-2G690C1 |
ST190,191..LB ***,ｱﾘ(ｼ-ﾄ ﾋ-ﾀ),BLACK,TRIM2# |
1 | ||
| 71430-2G681B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G310C0 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71440-2G310C1 |
ST190,191..LB ***,BLACK,TRIM2# |
1 | ||
| 71440-2G311B0 |
ST190,191..LB ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20190 |
ST190,191..LB |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20150 |
ST190,191..LB |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20630 |
ST190,191..LB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20630 |
ST190,191..LB |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20220 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71553-20220 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 右側 |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20190 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 左側 |
1 | ||
| 71554-20190 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20490 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20290 |
AT190,CT19#,ST19# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 71753-20080 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AT190,CT19#,ST19# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AT190,CT19#,ST19# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B550C2 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B550C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B551C2 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B551B1 |
ST190,191..LB SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B550C2 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B550C0 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B551C2 |
ST190,191..LB BLACK,TRIM2# |
2 | ||
| 71910-2B551B1 |
ST190,191..LB SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-12090 |
AT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2 |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-20040 |
ST190,191..LB |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050B2 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050C0 |
AT190,CT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91655-40620 | ||||
ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 71811-20230B2 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 71811-20230B2 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20281 |
AT190,CT19#,ST19#..EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 72010-20280 |
AT190,CT19#,ST19#..EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20320 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72130-20321 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20060C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20060C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72157-20020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72157-20020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010B3 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010B3 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72525-12100P0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71812-20200B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 71862-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-21040 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190,CT190,ST19# |
1 | ||
| 72020-20221 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72138-20030C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72138-20030C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72138-20030B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-20030C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20271 |
AT190,CT19#,ST19# |
1 | ||
| 72140-20270 |
AT190,CT19#,ST19# |
1 | ||
| 72140-20270 |
AT190,CT190,ST19# |
1 | ||
| 72140-20270 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
ST190,191..LB BLACK,TRIM1# |
1 | ||
| 72158-20010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72158-20010B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT190,CT19#,ST19# |
1 | ||
| 72301-12160 |
AT190,CT190,ST19# |
1 | ||
| 72301-12160 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72526-12040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72526-12040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72526-12040P0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90386-12039 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
