ST190-AEPNK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202-9305)AT190,CT190,ST190,191..ATM ; (9305-)CT190,ST190,191..ATM

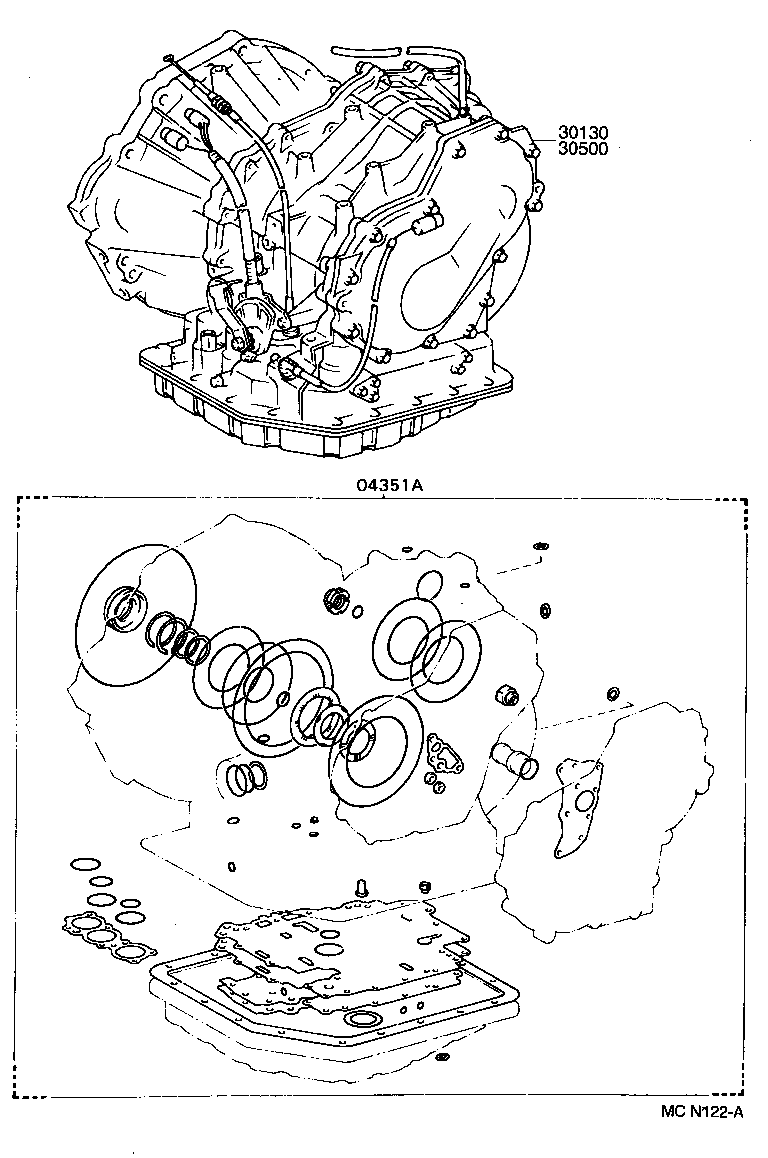

Click highlighted areas on diagram

A240E,A241E,A241L

diagram 04351A 30130 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-12060

AT190,CT190,ST190,191..ATM

 1
04351-16090

ST190,191..ATM

 1
04351-12060

ST190,191..ATM

 1
04351-12060

CT190,ST190,191..ATM

 1
30130 - TRANSAXLE ASSY, REBUILT
30130-2B301

ST190..ATM

 1
30130-2B460

ST190..ATM

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-2B301

ST190..ATM

 1
30500-2B460

ST190..ATM

 1
