ST190-AEPMK (1992)
Toyota Corona

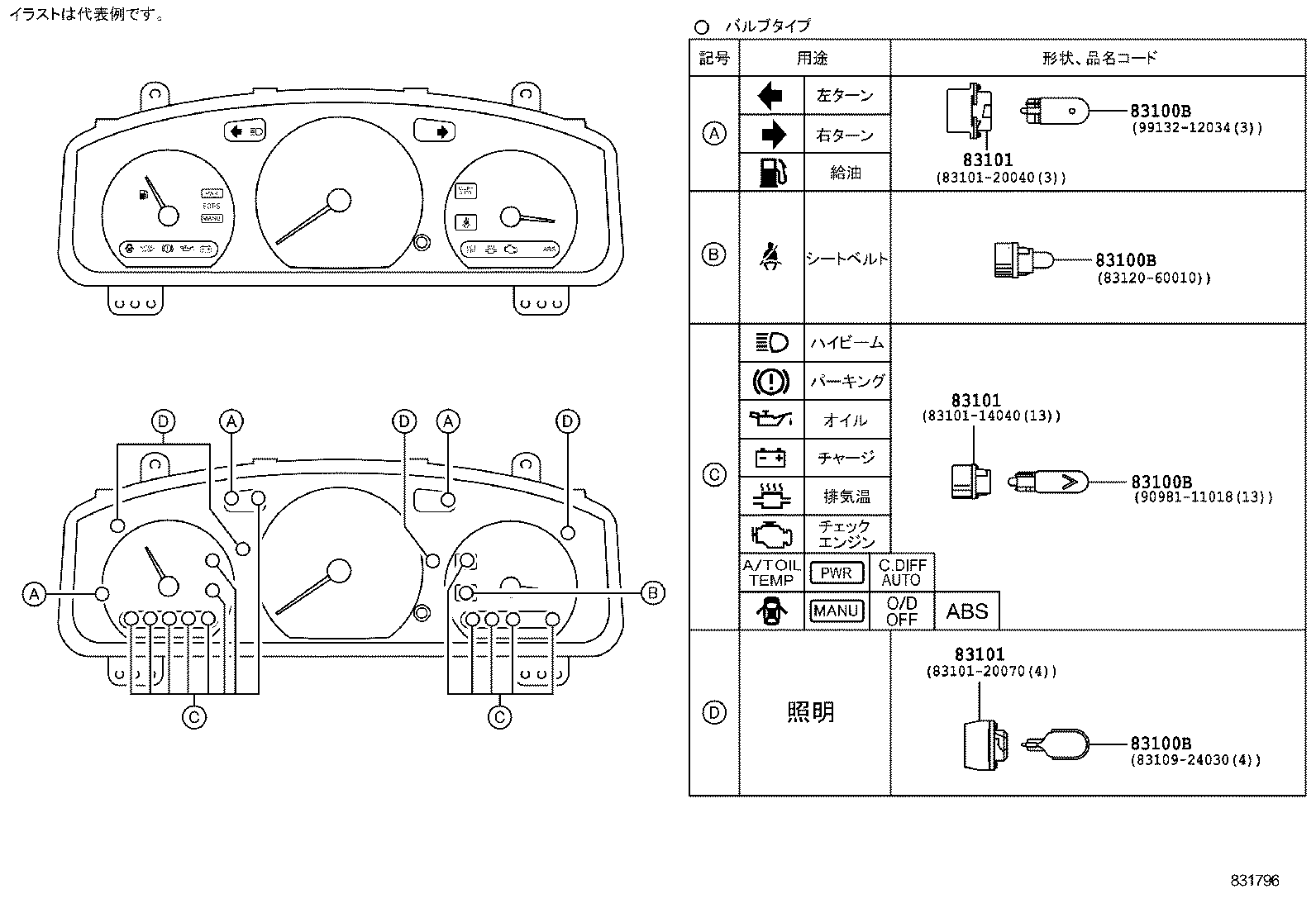

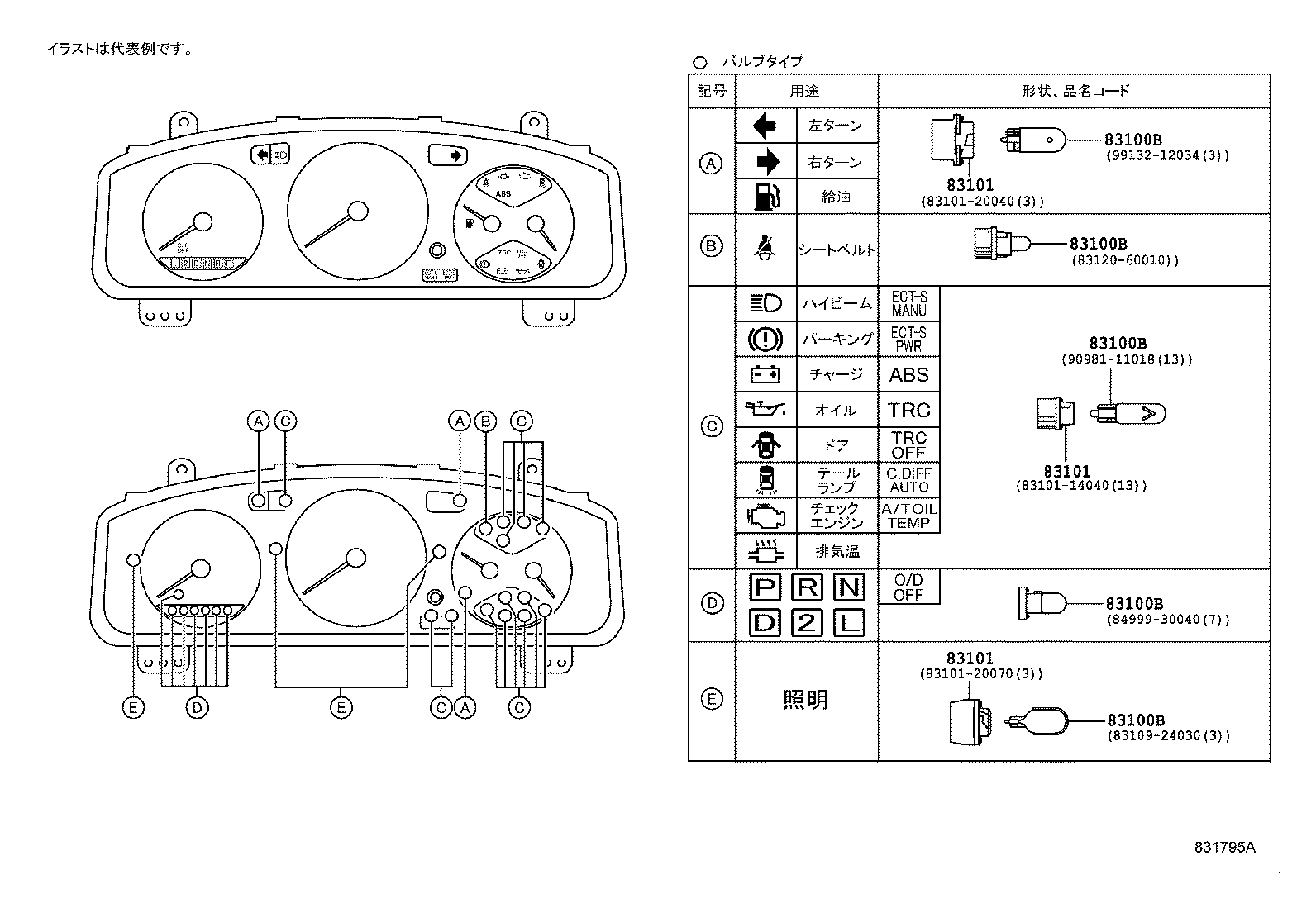

ILLUST NO. 2 OF 4(9202-9402)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||

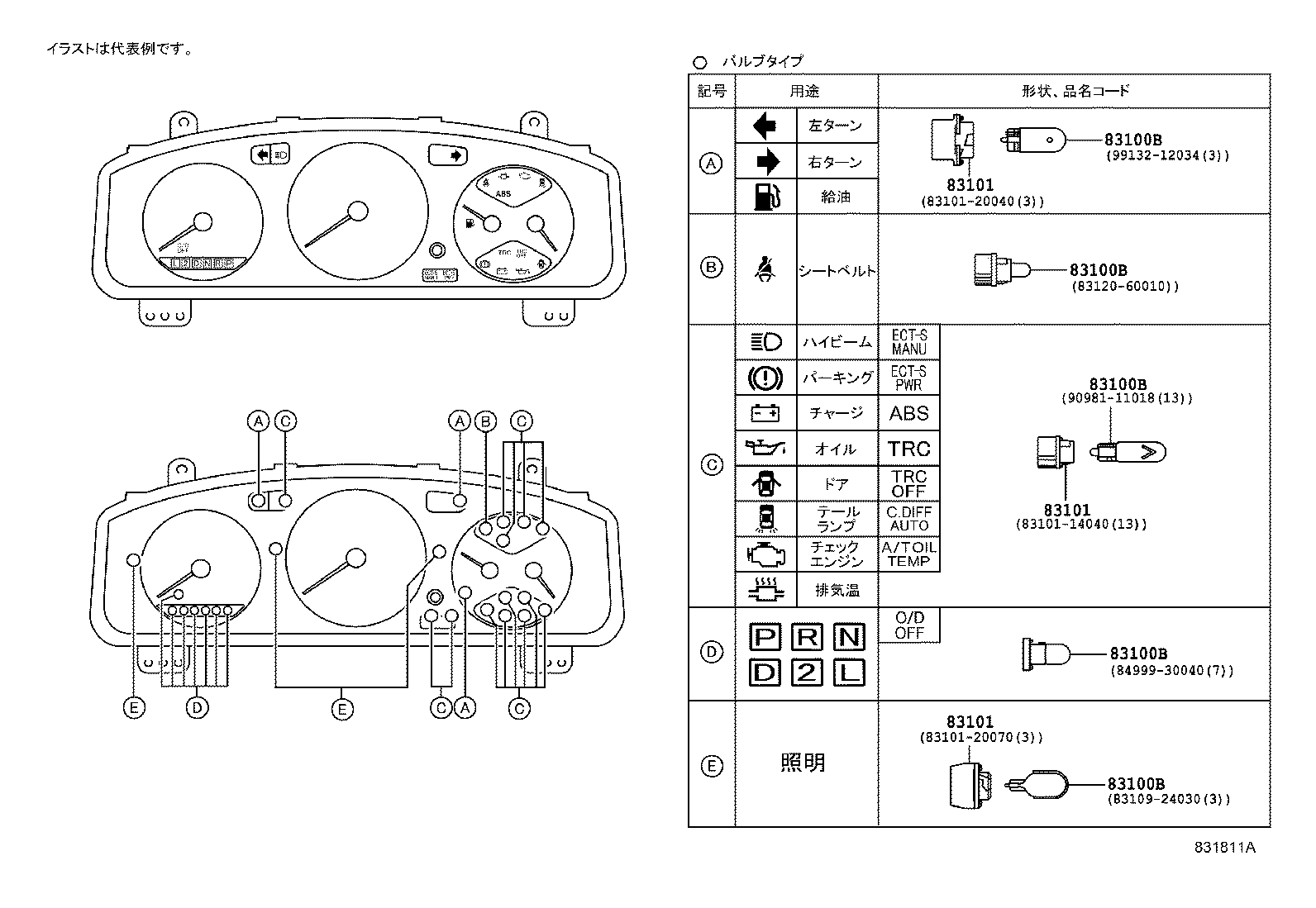

ILLUST NO. 2 OF 4(9202- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||

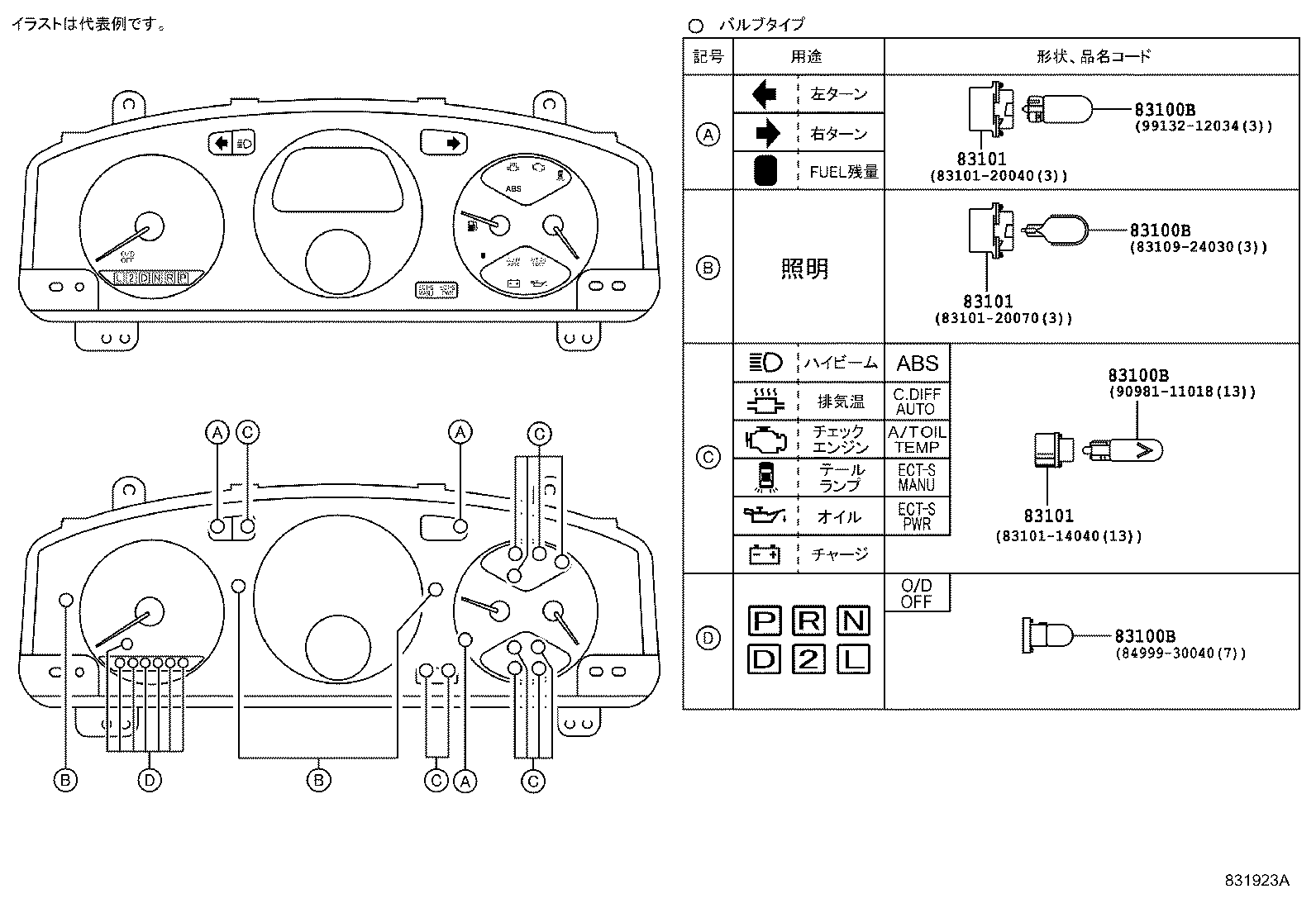

ILLUST NO. 2 OF 4(9402- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||

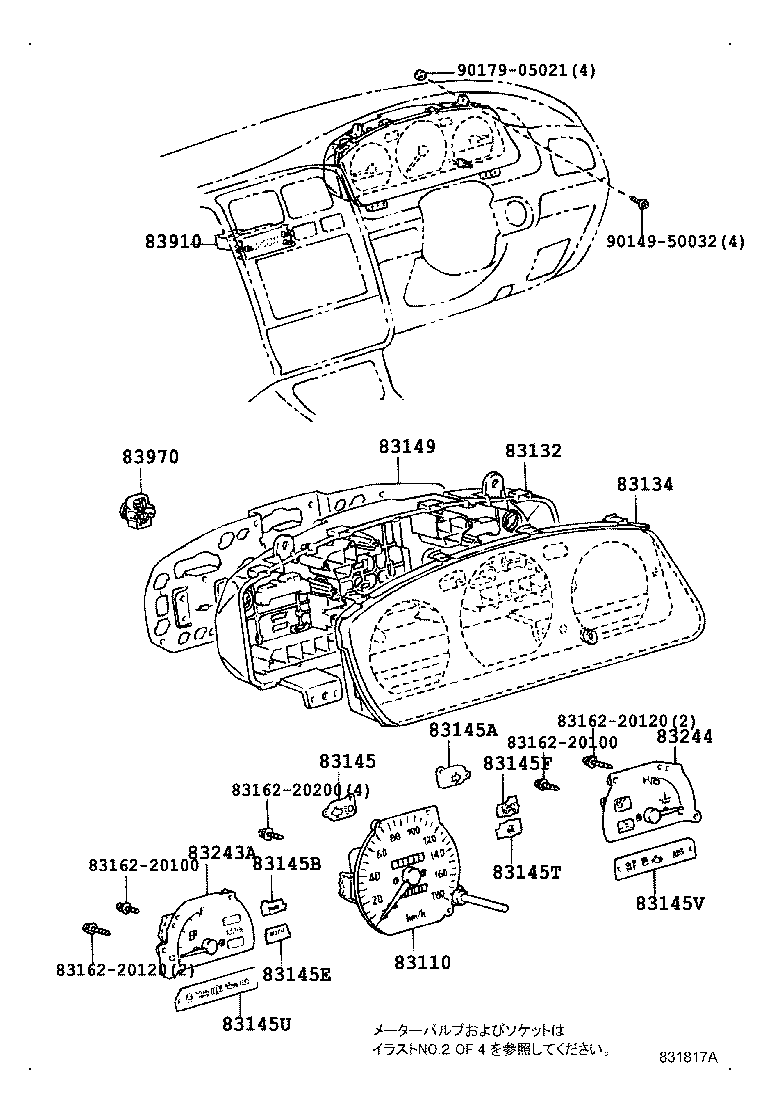

ILLUST NO. 1 OF 4(9202- )
ﾅｼ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D310 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83110-2D590 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20640 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132-2D060 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20220 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83134-20260 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D640 |
ST195..GX;AT190,CT19#,ST190,191;ST195..MTM..(EXS,SELS) |
1 | ||
| 83145-2D640 |
AT190,CT19#,ST19# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D620 |
AT190,CT19#,ST19# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-20580 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145-2D660 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-2D680 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20280 |
AT190,ST190,191..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83149-2D200 |
AT190,ST190..ATM..SELS |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20660 |
ST191..EXS;ST195..MTM..(EXS,SELS);AT190,ST190..EXG,EXS,SELS,TYPE1 |
1 | ||
| 83243-2D040 |
ST195..MTM..(EXS,SELS);AT190,ST190,191..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT19#,ST19# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CT190..MTM..(GX,KYO);AT190,CT190,ST19#..ATM |
1 | ||
| 83970-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| Common parts | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 83162-20200 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||

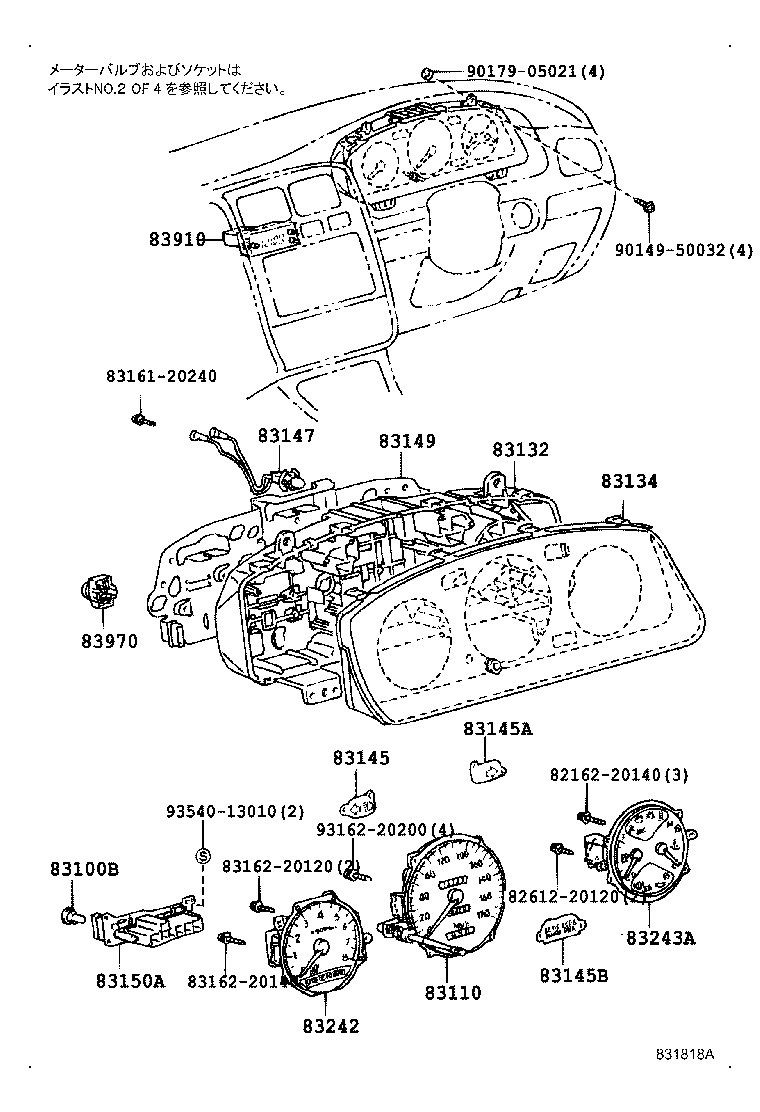

ILLUST NO. 1 OF 4(9202-9402)
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D310 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83110-2D590 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20640 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132-2D060 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20220 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83134-20260 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D640 |
ST195..GX;AT190,CT19#,ST190,191;ST195..MTM..(EXS,SELS) |
1 | ||
| 83145-2D640 |
AT190,CT19#,ST19# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D620 |
AT190,CT19#,ST19# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-20580 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145-2D660 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20280 |
AT190,ST190,191..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83149-2D200 |
AT190,ST190..ATM..SELS |
1 | ||
| 83150A - INDICATOR ASSY | ||||
| 83150-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2D160 |
AT190,ST190..ATM..SELS |
1 | ||
| 83242-20760 |
AT190,ST191..ATM..(EXS,SELS);ST190..ATM..(EXG,EXS,KYO,SELS,TYPE1) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20660 |
ST191..EXS;ST195..MTM..(EXS,SELS);AT190,ST190..EXG,EXS,SELS,TYPE1 |
1 | ||
| 83243-2D040 |
ST195..MTM..(EXS,SELS);AT190,ST190,191..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT19#,ST19# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CT190..MTM..(GX,KYO);AT190,CT190,ST19#..ATM |
1 | ||
| 83970-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| Common parts | ||||
| 82162-20140 | ||||
| 82612-20120 | ||||
| 83161-20240 | ||||
| 83162-20120 | ||||
| 83162-20140 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
| 93162-20200 | ||||
| 93540-13010 | ||||

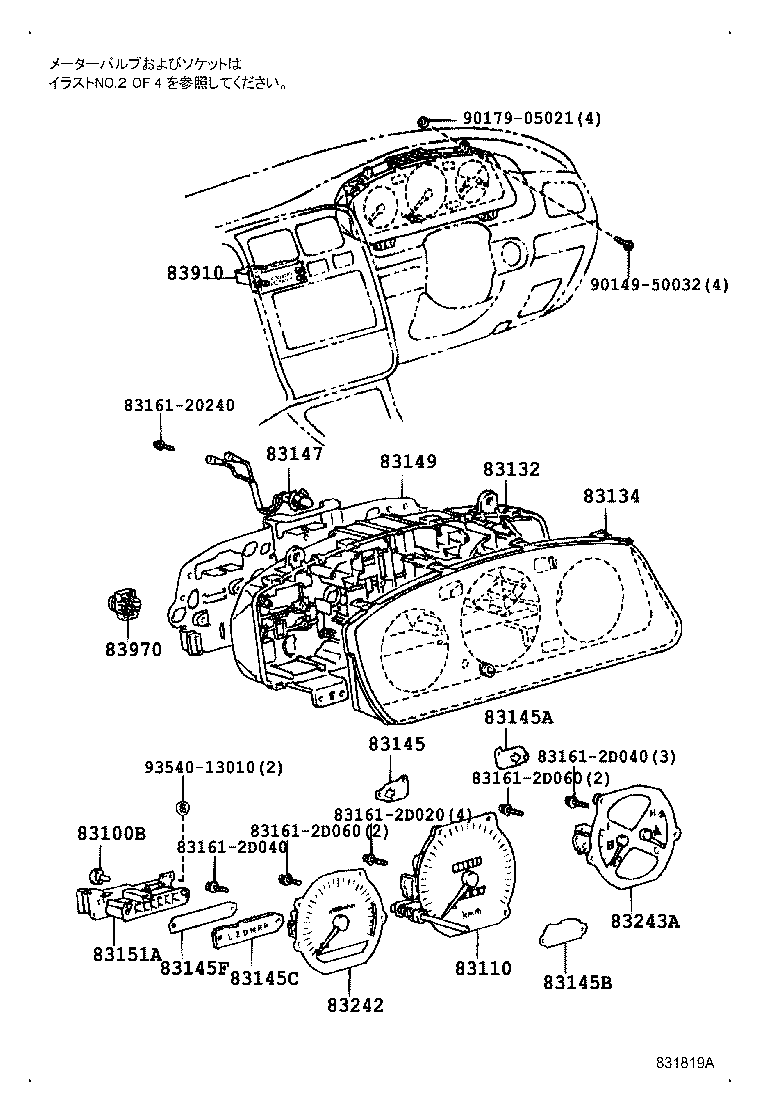

ILLUST NO. 1 OF 4(9402- )
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D310 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83110-2D590 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20640 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132-2D060 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20220 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83134-20260 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D640 |
ST195..GX;AT190,CT19#,ST190,191;ST195..MTM..(EXS,SELS) |
1 | ||
| 83145-2D640 |
AT190,CT19#,ST19# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D620 |
AT190,CT19#,ST19# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-20580 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145-2D660 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83134-2D040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-2D680 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20280 |
AT190,ST190,191..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83149-2D200 |
AT190,ST190..ATM..SELS |
1 | ||
| 83151A - LAMP ASSY, INDICATOR | ||||
| 83151-2D020 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2D160 |
AT190,ST190..ATM..SELS |
1 | ||
| 83242-20760 |
AT190,ST191..ATM..(EXS,SELS);ST190..ATM..(EXG,EXS,KYO,SELS,TYPE1) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20660 |
ST191..EXS;ST195..MTM..(EXS,SELS);AT190,ST190..EXG,EXS,SELS,TYPE1 |
1 | ||
| 83243-2D040 |
ST195..MTM..(EXS,SELS);AT190,ST190,191..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT19#,ST19# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CT190..MTM..(GX,KYO);AT190,CT190,ST19#..ATM |
1 | ||
| 83970-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-2D020 | ||||
| 83161-2D040 | ||||
| 83161-2D060 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
| 93540-13010 | ||||
ILLUST NO. 2 OF 4(9202-9402)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｱﾘ(ﾀｺﾒｰﾀ & ﾃﾞｼﾞﾀﾙｽﾋﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BULB:12V 3.4W,G.CAP |
3 | ||
| 83101-14040 |
ST191..EXS;AT190,ST190..ATM BULB:12V 1.4W |
12 | ||
| 83101-14040 |
AT190,ST190..ATM..SELS BULB:12V 1.4W |
11 | ||
| 83101-20040 |
AT190,CT19#,ST19# BULB:12V 3.4W |
3 | ||

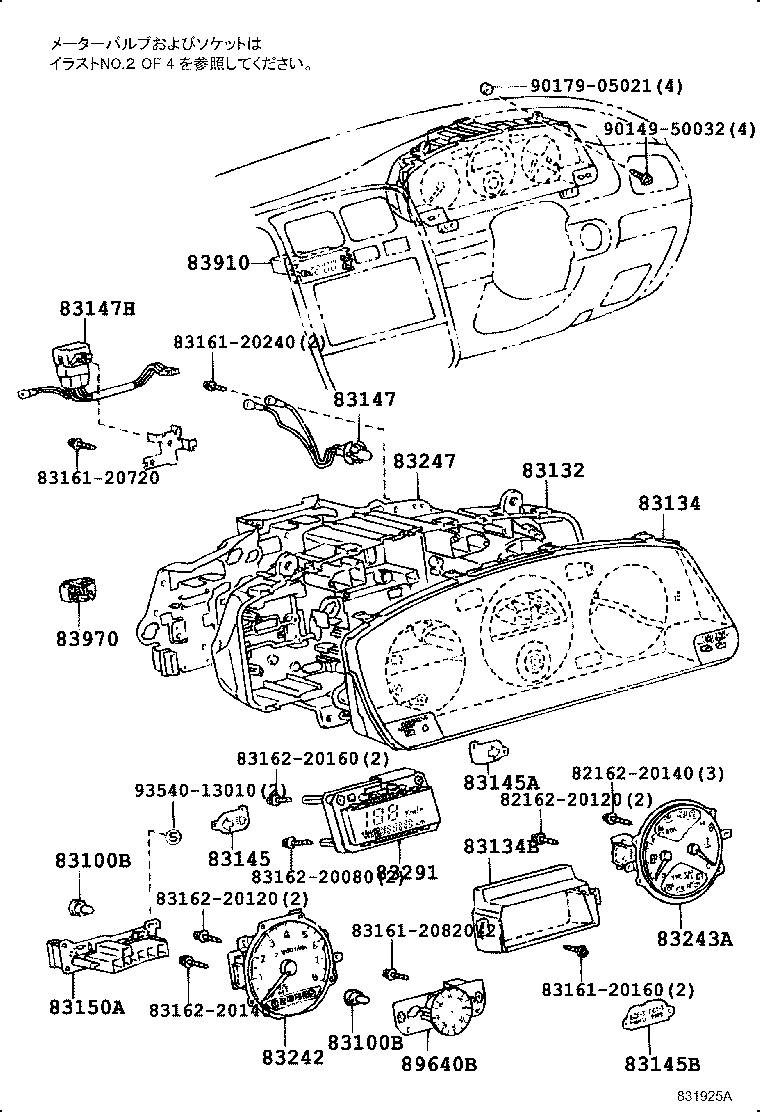

ILLUST NO. 1 OF 4(9202-9402)
ｱﾘ(ﾀｺﾒ-ﾀ & ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-30040 |
ST190..ATM..(EXG,EXS,SELS,TYPE1);AT190,CT190,ST191..ATM..(EXS,SELS) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 83109-24030 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
ST191..EXS;AT190,ST190..ATM 12V 1.2W ｿｹｯﾄ無し |
12 | ||
| 99132-12034 |
AT190,CT19#,ST19# 12V 3.4W |
3 | ||
| 83120-60010 |
ST190..ATM..SELS;AT190,ST190..MTM..(EXG,EXS,KYO,TYPE1) 14V 2.0W,ｼｰﾄﾍﾞﾙﾄ |
1 | ||
| 84999-30040 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) 14V 1.4W,ｿｹｯﾄ付き |
7 | ||
| 90981-11018 |
AT190,ST190..ATM..SELS 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20640 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83132-2D060 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20220 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83134-20260 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D640 |
ST195..GX;AT190,CT19#,ST190,191;ST195..MTM..(EXS,SELS) |
1 | ||
| 83145-2D640 |
AT190,CT19#,ST19# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20500 |
AT190,CT19#,ST19# |
1 | ||
| 83145-2D620 |
AT190,CT19#,ST19# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-20580 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83145-2D660 |
AT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT190,CT19#,ST19#..EXG,EXS,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 83150A - INDICATOR ASSY | ||||
| 83150-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,KYO,SELS,TYPE1,TYPE2) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2D160 |
AT190,ST190..ATM..SELS |
1 | ||
| 83242-20760 |
AT190,ST191..ATM..(EXS,SELS);ST190..ATM..(EXG,EXS,KYO,SELS,TYPE1) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20660 |
ST191..EXS;ST195..MTM..(EXS,SELS);AT190,ST190..EXG,EXS,SELS,TYPE1 |
1 | ||
| 83243-2D040 |
ST195..MTM..(EXS,SELS);AT190,ST190,191..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,CT19#,ST19# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
CT190..MTM..(GX,KYO);AT190,CT190,ST19#..ATM |
1 | ||
| 83970-20010 |
AT190,CT190,ST19#..ATM..(EXG,EXS,SELS,TYPE1,TYPE2) |
1 | ||
| Common parts | ||||
| 82162-20120 | ||||
| 82162-20140 | ||||
| 83161-20160 | ||||
| 83161-20240 | ||||
| 83161-20720 | ||||
| 83161-20820 | ||||
| 83162-20080 | ||||
| 83162-20120 | ||||
| 83162-20140 | ||||
| 83162-20160 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
| 93540-13010 | ||||

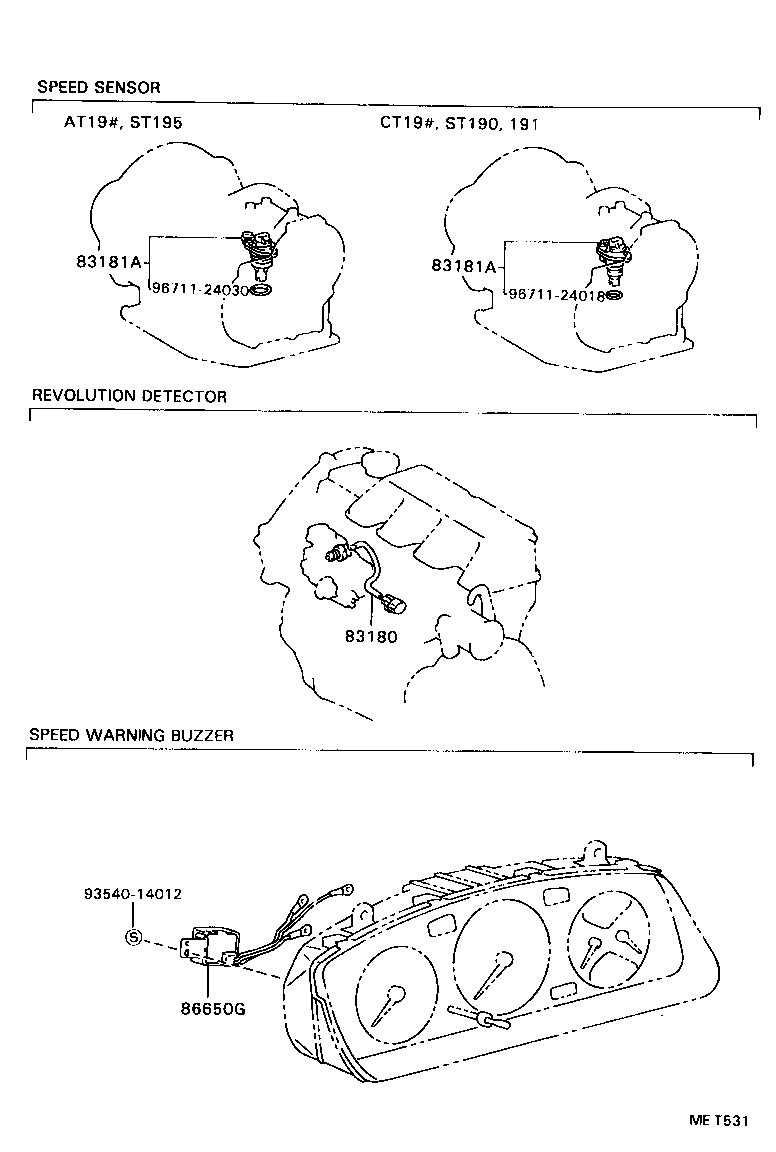

ILLUST NO. 3 OF 4(9202- )
ｽﾋﾟ-ﾄﾞｾﾝｻ,ﾚﾎﾞﾘﾕ-ｼﾖﾝ ﾃﾞｲﾃｸﾀ & ﾌﾞｻﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST190,191..ATM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CT190,ST190,191..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
ST195..ATM;AT190,CT19#,ST191;ST190..GX,KYO,SELS;ST195..MTM..(GX,SELS);ST190..ATM..(EXG,EXS,TYPE1) |
1 | ||
| 86650-12030 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
