ST190-AEPMK (1992)
Toyota Corona

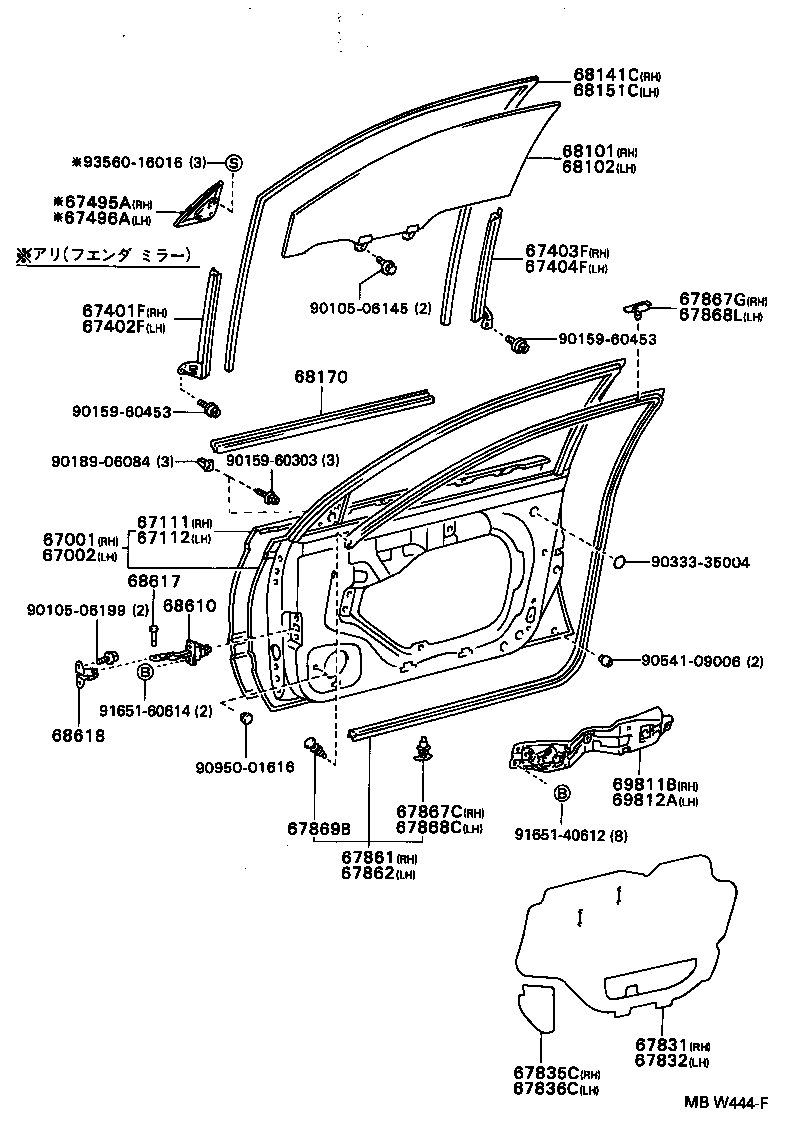

ILLUST NO. 1 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20880 |
AT190,CT19#,ST19# |
1 | ||
| 67001-20882 |
AT190,CT19#,ST19# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20840 |
AT190,CT19#,ST19# |
1 | ||
| 67002-20842 |
AT190,CT19#,ST19# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20320 |
AT190,CT19#,ST19# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20340 |
AT190,CT19#,ST19# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-20220 |
AT190,CT19#,ST19# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-20210 |
AT190,CT19#,ST19# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20110 |
AT190,CT19#,ST19# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20090 |
AT190,CT19#,ST19# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20110 |
AT190,CT19#,ST19# |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-20080 |
AT190,CT19#,ST19# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-20040 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾄﾞｱ ｽﾋﾟ-ｶ) |
1 | ||
| 67801-20050 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
1 | ||
| 67801-20050 |
AT190,CT19#,ST19# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-20030 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾄﾞｱ ｽﾋﾟ-ｶ) |
1 | ||
| 67802-20040 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
1 | ||
| 67802-20040 |
AT190,CT19#,ST19# |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20070 |
AT190,CT19#,ST19# |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-20100 |
AT190,CT19#,ST19# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20350 |
AT190,CT19#,ST19# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20350 |
AT190,CT19#,ST19# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT190,CT19#,ST19# |
11 | ||
| 67868-20040 |
AT190,CT19#,ST19# |
11 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67877-20030 |
AT190,CT19#,ST19# |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20040 |
AT190,CT19#,ST19# |
11 | ||
| 67867-12150 |
AT190,CT19#,ST19# |
11 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67877-20030 |
AT190,CT19#,ST19# |
1 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT19#,ST19# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-20160 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68101-20100 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-20150 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68101-20150 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-20150 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68102-20160 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68102-20100 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-20150 |
AT190,CT19#,ST19#..EXG,EXS,SELS *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20240 |
AT190,CT19#,ST19# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20070 |
AT190,CT19#,ST19# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-20060 |
AT190,CT19#,ST19# 右側 |
1 | ||
| 68172-20050 |
AT190,CT19#,ST19# 左側 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-20110 |
AT190,CT19#,ST19# |
2 | ||
| 68610-20150 |
AT190,CT19#,ST19# |
2 | ||
| 68610-20151 |
AT190,CT19#,ST19# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20030 |
AT190,CT19#,ST19# |
2 | ||
| 68617-20011 |
AT190,CT19#,ST19# |
2 | ||
| 68617-20011 |
AT190,CT19#,ST19# |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-20010 |
AT190,CT19#,ST19# |
2 | ||
| 69811B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH | ||||
| 69811-20090 |
AT190,CT19#,ST19# |
1 | ||
| 69812A - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH | ||||
| 69812-20060 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90105-06145 | ||||
| 90105-06199 | ||||
| 90159-60303 | ||||
| 90159-60453 | ||||
| 90189-06084 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01616 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 93560-16016 | ||||

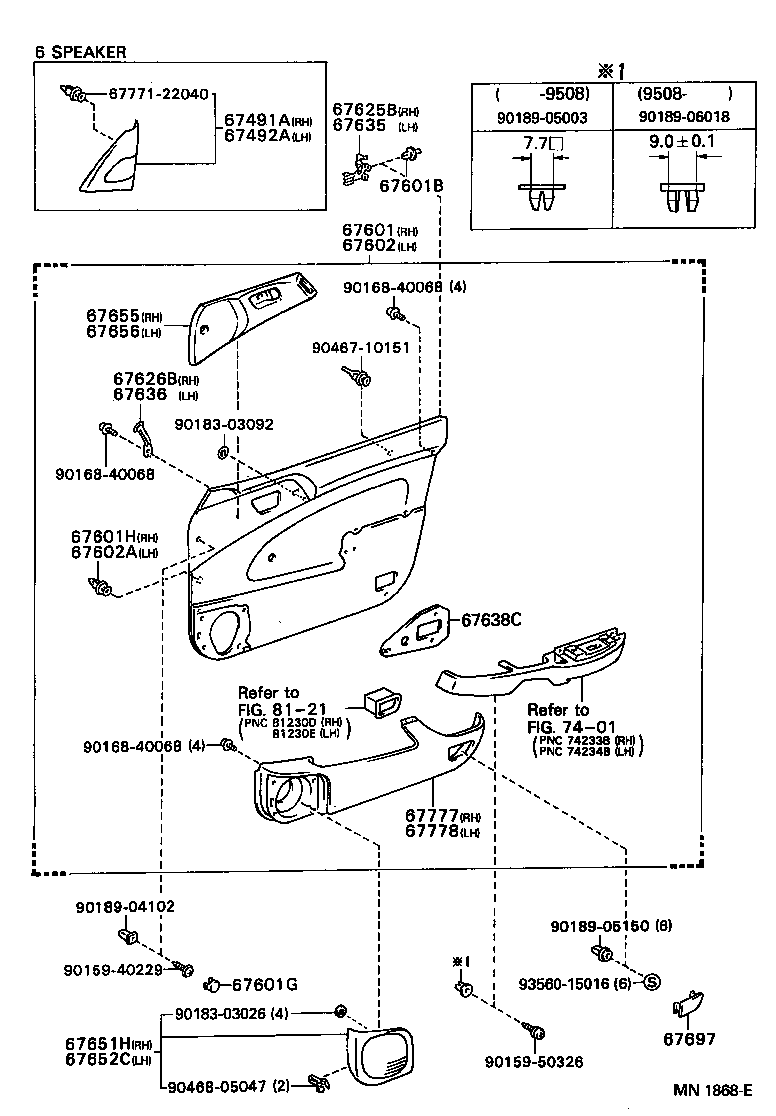

ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20250 |
AT190,CT19#,ST19# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20270 |
AT190,CT19#,ST19# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2D350E1 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67650-2D350C1 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67650-2D750C0 |
AT190,CT190,ST190..SELS ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2# |
1 | ||
| 67610-2G390C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67650-2D35122 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67650-2D351E6 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67610-2G410E0 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67610-2G390C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67610-2G560B0 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG(QY11),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2G410B0 |
AT190,CT19#,ST190,195..SELS SHADOW GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0707122 |
AT190,CT19#,ST19# BLACK,TRIM2# |
4 | ||
| 90467-0707122 |
AT190,CT19#,ST19# BLACK,TRIM1# |
4 | ||
| 90467-07071E2 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01503P0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
2 | ||
| 90950-01503C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
2 | ||
| 90950-01503E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT19#,ST19# |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2H500C1 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67620-2L010C0 |
AT190,CT190,ST190..SELS ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2# |
1 | ||
| 67620-2L350C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67620-2H501E6 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2H500E1 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2H50122 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67620-2L380E0 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2L380B0 |
AT190,CT19#,ST190,195..SELS SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2L350C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67050-20050B0 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG(QY11),SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT19#,ST19# |
5 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-20100 |
AT190,CT19#,ST19# |
1 | ||
| 67626B - BRACKET, DOOR TRIM, NO.2 RH | ||||
| 67626-20070 |
AT190,CT19#,ST19# |
1 | ||
| 67635 - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-20040 |
AT190,CT19#,ST19# |
1 | ||
| 67636 - BRACKET, DOOR TRIM, NO.2 LH | ||||
| 67636-20020 |
AT190,CT19#,ST19# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),BLACK,TRIM2# |
1 | ||
| 67651-21010E1 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67651-21010C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67651-20060E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67651-21010E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67651-21010B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67651-20050E0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),ANTELOPE,TRIM4# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-20050C1 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67652-20040E0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),ANTELOPE,TRIM4# |
1 | ||
| 67652-20040C0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),BLACK,TRIM2# |
1 | ||
| 67652-21020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67652-21020E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67652-20050E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67652-21020C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67652-21020E1 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67697-20080C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS BLACK,TRIM2#,右側 |
1 | ||
| 67698-20040E0 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4#,左側 |
1 | ||
| 67697-20080B1 |
AT190,CT19#,ST190,195..GX,KYO,SELS SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 67698-20040C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS BLACK,TRIM2#,左側 |
1 | ||
| 67697-20080E0 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4#,右側 |
1 | ||
| 67698-20040B1 |
AT190,CT19#,ST190,195..GX,KYO,SELS SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-20190C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 67777-20190E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67777-20190B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-20120B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67778-20120C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 67778-20120E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40229 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03092 | ||||
| 90189-04102 | ||||
| 90189-05003 | ||||
| 90189-05150 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 7401 | ||||

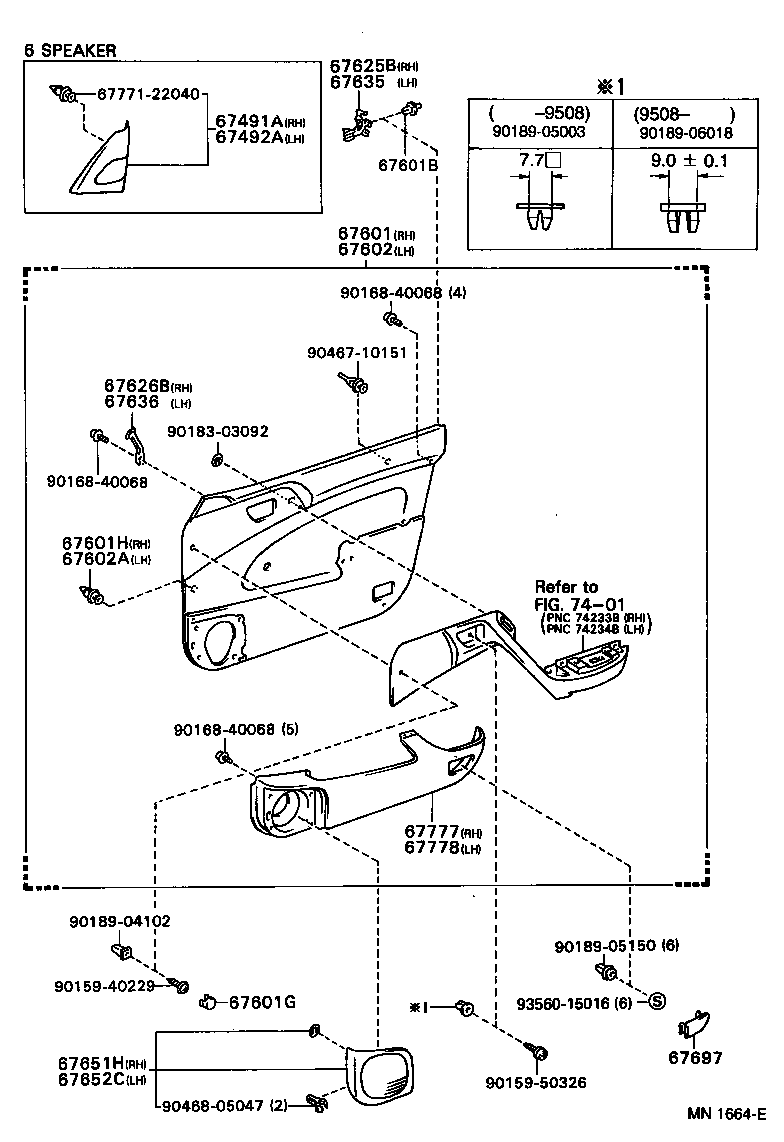

ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20250 |
AT190,CT19#,ST19# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20270 |
AT190,CT19#,ST19# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2D350E1 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67650-2D350C1 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67650-2D750C0 |
AT190,CT190,ST190..SELS ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2# |
1 | ||
| 67610-2G390C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67650-2D35122 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67650-2D351E6 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67610-2G410E0 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67610-2G390C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67610-2G560B0 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG(QY11),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-2G410B0 |
AT190,CT19#,ST190,195..SELS SHADOW GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0707122 |
AT190,CT19#,ST19# BLACK,TRIM2# |
4 | ||
| 90467-0707122 |
AT190,CT19#,ST19# BLACK,TRIM1# |
4 | ||
| 90467-07071E2 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01503P0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
2 | ||
| 90950-01503C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
2 | ||
| 90950-01503E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT19#,ST19# |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2H500C1 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67620-2L010C0 |
AT190,CT190,ST190..SELS ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM2# |
1 | ||
| 67620-2L350C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67620-2H501E6 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2H500E1 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2H50122 |
AT190,CT19#,ST190,195..SELS BLACK,TRIM2# |
1 | ||
| 67620-2L380E0 |
AT190,CT19#,ST190,195..SELS ANTELOPE,TRIM4# |
1 | ||
| 67620-2L380B0 |
AT190,CT19#,ST190,195..SELS SHADOW GRAY,TRIM1# |
1 | ||
| 67620-2L350C1 |
AT190,CT190,ST190..SELS ｾﾚｸﾄ ｻﾙ-ﾝ G,BLACK,TRIM2# |
1 | ||
| 67050-20050B0 |
AT190,CT190,ST190,195..SELS ｾﾚｸﾄｻﾙ-ﾝG(QY11),SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT19#,ST19# |
5 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-20100 |
AT190,CT19#,ST19# |
1 | ||
| 67626B - BRACKET, DOOR TRIM, NO.2 RH | ||||
| 67626-20070 |
AT190,CT19#,ST19# |
1 | ||
| 67635 - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-20040 |
AT190,CT19#,ST19# |
1 | ||
| 67636 - BRACKET, DOOR TRIM, NO.2 LH | ||||
| 67636-20020 |
AT190,CT19#,ST19# |
1 | ||
| 67638C - PLATE, FRONT DOOR TRIM, NO.2 RH | ||||
| 67638-20060 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67651-20050C0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),BLACK,TRIM2# |
1 | ||
| 67651-21010E1 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67651-21010C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67651-20060E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67651-21010E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67651-21010B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67651-20050E0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),ANTELOPE,TRIM4# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-20050C1 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67652-20040E0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),ANTELOPE,TRIM4# |
1 | ||
| 67652-20040C0 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｽﾋﾟ-ｶ ｸﾞﾘﾙ),BLACK,TRIM2# |
1 | ||
| 67652-21020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67652-21020E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67652-20050E1 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 67652-21020C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 BLACK,TRIM2# |
1 | ||
| 67652-21020E1 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67655-20040C0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 67655-20040E0 |
AT190,CT19#,ST19#..EXG,EXS,SELS ANTELOPE,TRIM4# |
1 | ||
| 67655-20040B0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67656-20030C0 |
AT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 67656-20030E0 |
AT190,CT19#,ST19#..EXG,EXS,SELS ANTELOPE,TRIM4# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67697-20080C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS BLACK,TRIM2#,右側 |
1 | ||
| 67698-20040E0 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4#,左側 |
1 | ||
| 67697-20080B1 |
AT190,CT19#,ST190,195..GX,KYO,SELS SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 67698-20040C0 |
AT190,CT19#,ST190,195..GX,KYO,SELS BLACK,TRIM2#,左側 |
1 | ||
| 67697-20080E0 |
AT190,CT19#,ST190,195..GX,KYO,SELS ANTELOPE,TRIM4#,右側 |
1 | ||
| 67698-20040B1 |
AT190,CT19#,ST190,195..GX,KYO,SELS SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-20190C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 67777-20190E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 67777-20190B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-20120B1 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 67778-20120C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 67778-20120E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40229 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90189-04102 | ||||
| 90189-05003 | ||||
| 90189-05150 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
