ST190-AEPGK (1992)
Toyota Corona
(9202-9601)EXG,TYPE2
ｱﾘ(ﾕﾏｸﾄﾘ ｳｵﾂｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85375-30240 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 右側 |
1 | ||
| 85382-20020 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 左側 |
1 | ||
| 85381-20020 |
AT190,CT19#,ST19# 右側 |
1 | ||
| 85382-20020 |
AT190,CT19#,ST19# 左側 |
1 | ||
| 85381-12050 |
AT190,CT19#,ST19# 右側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 右側 |
1 | ||
| 85382-20020 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 左側 |
1 | ||
| 85381-20020 |
AT190,CT19#,ST19# 右側 |
1 | ||
| 85382-20020 |
AT190,CT19#,ST19# 左側 |
1 | ||
| 85381-12050 |
AT190,CT19#,ST19# 右側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
ST190,191..EXG,TYPE1,TYPE2 |
1 | ||
| 85310-20170 |
ST190,191..EXG,TYPE1,TYPE2 |
1 | ||
| 85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-50020 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20350 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85315-20330 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 85315-20470 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ST190,191..EXG,TYPE2 |
2 | ||
| 90099-32089 |
AT190,CT19#,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ST190,191..EXG,TYPE2 |
2 | ||
| 90099-32089 |
AT190,CT19#,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85316-20300 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85316-20350 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85334-22470 |
CT190,ST190,191..EXG,KYO,TYPE2 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85334-22470 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE2 |
1 | ||
| 85375-10260 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT190,CT19#,ST19# |
1 | ||
| 85355-14481 |
CT195;CT190,ST190,191..EXG,KYO,TYPE1,TYPE2 |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20840 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85361-20830 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ST190,191..EXG,TYPE2 |
1 | ||
| 90446-07001 |
AT190,CT190,ST19#..EXG,EXS,SELS,TYPE1,TYPE2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85317-20350 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 L=1450 |
1 | ||
| 90099-33080 |
ST190,191..EXG,TYPE2 L=1450 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ST190,191..EXG,TYPE2 L=1450 |
1 | ||
| 90446-07001 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
ST190,191..EXG,TYPE2 L=1450 |
1 | ||
| 90446-07001 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 90099-33080 |
CT195;ST190,191..EXG,TYPE2 L=1450 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-59027 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90446-07001 |
ST190,191..EXG,TYPE1,TYPE2 *H,L=360,ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
1 | ||
| 90099-33080 |
ST190,191..EXG,TYPE1,TYPE2 L=1450,左側 |
1 | ||
| 90099-33080 |
AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE2 L=1450 |
1 | ||
| 85375B - HOSE, WINDSHIELD WASHER (OIL REMOVING NO.1) | ||||
| 85317-20350 |
ST190,191..EXG,TYPE2 |
1 | ||
| 85375C - HOSE, WINDSHIELD WASHER (OIL REMOVING NO.2) | ||||
| 90099-33080 |
ST190,191..EXG,TYPE2 |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06279 | ||||
| 90119-06442 | ||||

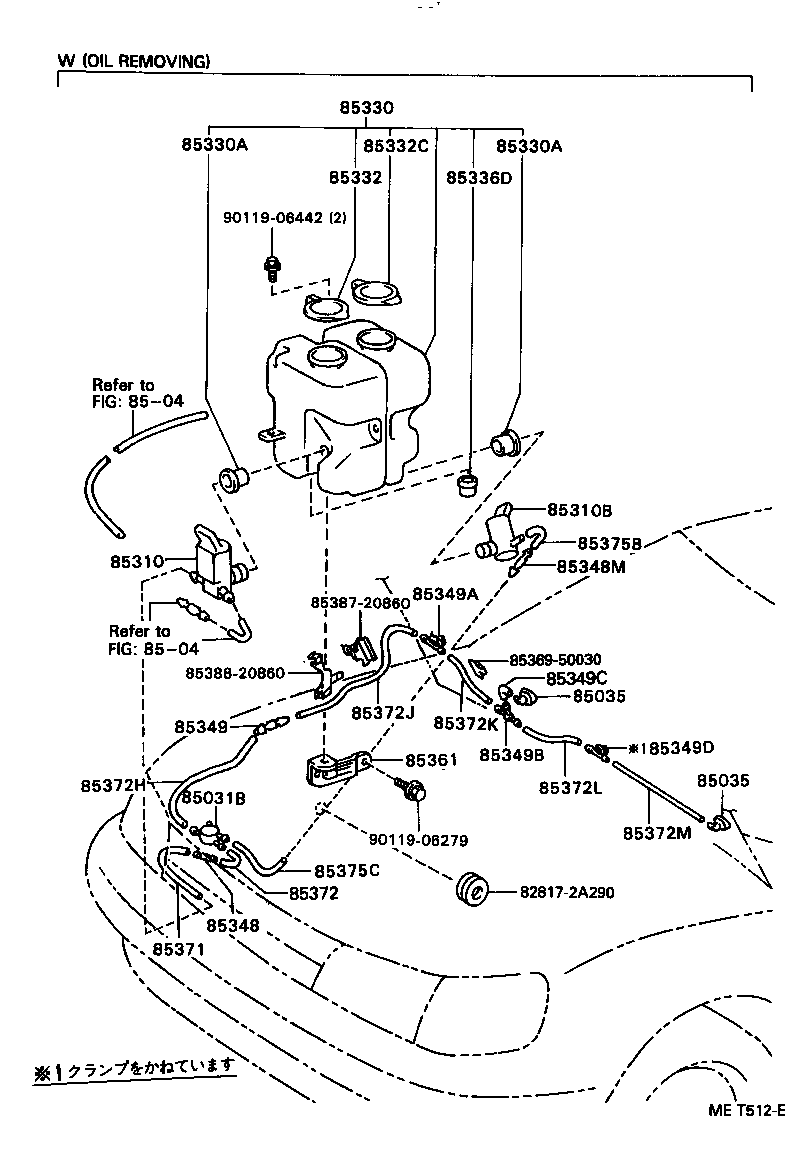

| Linked diagrams | ||||
| 8504 | ||||
