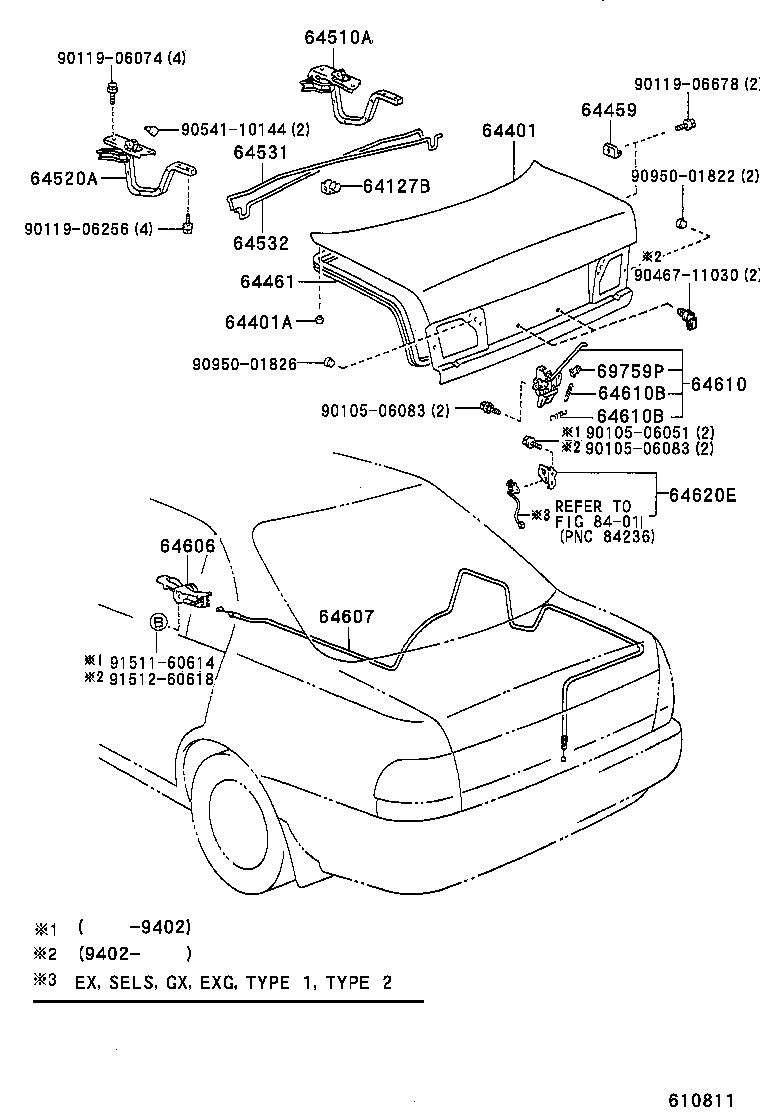

Toyota Corona ST190 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-20120	AT190,CT19#,ST19#..SED	07/1993 - 01/1996	1
64127-20120	AT190,CT190,ST19#..SED	02/1992 - 06/1992	1
64127-20121	AT190,CT19#,ST19#..SED	06/1992 - 07/1993	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B610	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1992 - 02/1994	1
64401-2B630	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	02/1992 - 02/1994	1
64401-2B750	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1994 - 01/1996	1
64401-2B620	AT190,CT19#,ST19#..SED	02/1992 - 02/1994	1
64401-2B640	CT195;AT190,CT190,ST19#..EXG,GX,SELS ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	02/1992 - 02/1994	1
64401-2B740	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076	AT190,CT190,ST19#..SED	02/1992 - 04/1992	2
90541-06054	AT190,CT19#,ST19#..SED	04/1992 - 01/1996	2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
64459-20010	AT190,CT19#,ST19#..SED	02/1992 - 01/1996	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20360	AT190,CT19#,ST19#..SED	02/1992 - 01/1996	1
64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20170	AT190,CT19#,ST19#..SED	01/1993 - 01/1996	1
64510-20150	AT190,CT19#,ST19#..SED	02/1992 - 01/1993	1
64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20140	AT190,CT19#,ST19#..SED	02/1992 - 01/1993	1
64520-20160	AT190,CT19#,ST19#..SED	01/1993 - 01/1996	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20440	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1992 - 02/1994	1
64531-20430	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1994 - 01/1996	1
64531-20430	AT190,CT190,ST19#..EXG,EXS	02/1992 - 08/1992	1
64531-20420	AT190,CT19#,ST19#..SED	08/1992 - 02/1994	1
64531-20410	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20420	AT190,CT19#,ST19#..SED	08/1992 - 02/1994	1
64532-20410	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
64532-20440	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1992 - 02/1994	1
64532-20430	AT190,CT190,ST19#..EXG,EXS	02/1992 - 08/1992	1
64532-20430	ST190,191..EXG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	02/1994 - 01/1996	1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20080	AT190,CT19#,ST19#..SED	02/1992 - 08/1995	1
64606-20081	AT190,CT19#,ST19#..SED	08/1995 - 01/1996	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20750	AT190,CT19#,ST19#..SED	02/1992 - 01/1996	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20270	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
64610-20220	AT190,CT19#,ST19#..SED	02/1992 - 02/1994	1
64610B - SPRING, TENSION(FOR LOCK)
90506-06009	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
90506-06009	AT190,CT19#,ST19#..SED WD=0.55,CW=15.5	02/1992 - 02/1994	1
90506-05002	AT190,CT19#,ST19#..SED 線径=0.55,ｺｲﾙ巻数=17.25,WD=0.55,CW=17.25	02/1992 - 02/1994	1
64610B - SPRING, TENSION(FOR LOCK)
90506-06009	AT190,CT19#,ST19#..SED	02/1994 - 01/1996	1
90506-06009	AT190,CT19#,ST19#..SED WD=0.55,CW=15.5	02/1992 - 02/1994	1
90506-05002	AT190,CT19#,ST19#..SED 線径=0.55,ｺｲﾙ巻数=17.25,WD=0.55,CW=17.25	02/1992 - 02/1994	1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-20140	AT190,CT19#,ST19#..EXG,EXS,GX,SELS	02/1992 - 01/1996	1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20110	AT190,CT19#,ST19#..SED	02/1992 - 01/1996	1
Common parts
90105-06051
90105-06083
90119-06074
90119-06256
90119-06678
90467-11030
90541-10144
90950-01822
90950-01826
91511-60614
91512-60618
Linked diagrams
8401

ST190-AEPGK (1992)

(9202- )SED
