ST190-AEPEK (1992)
Toyota Corona

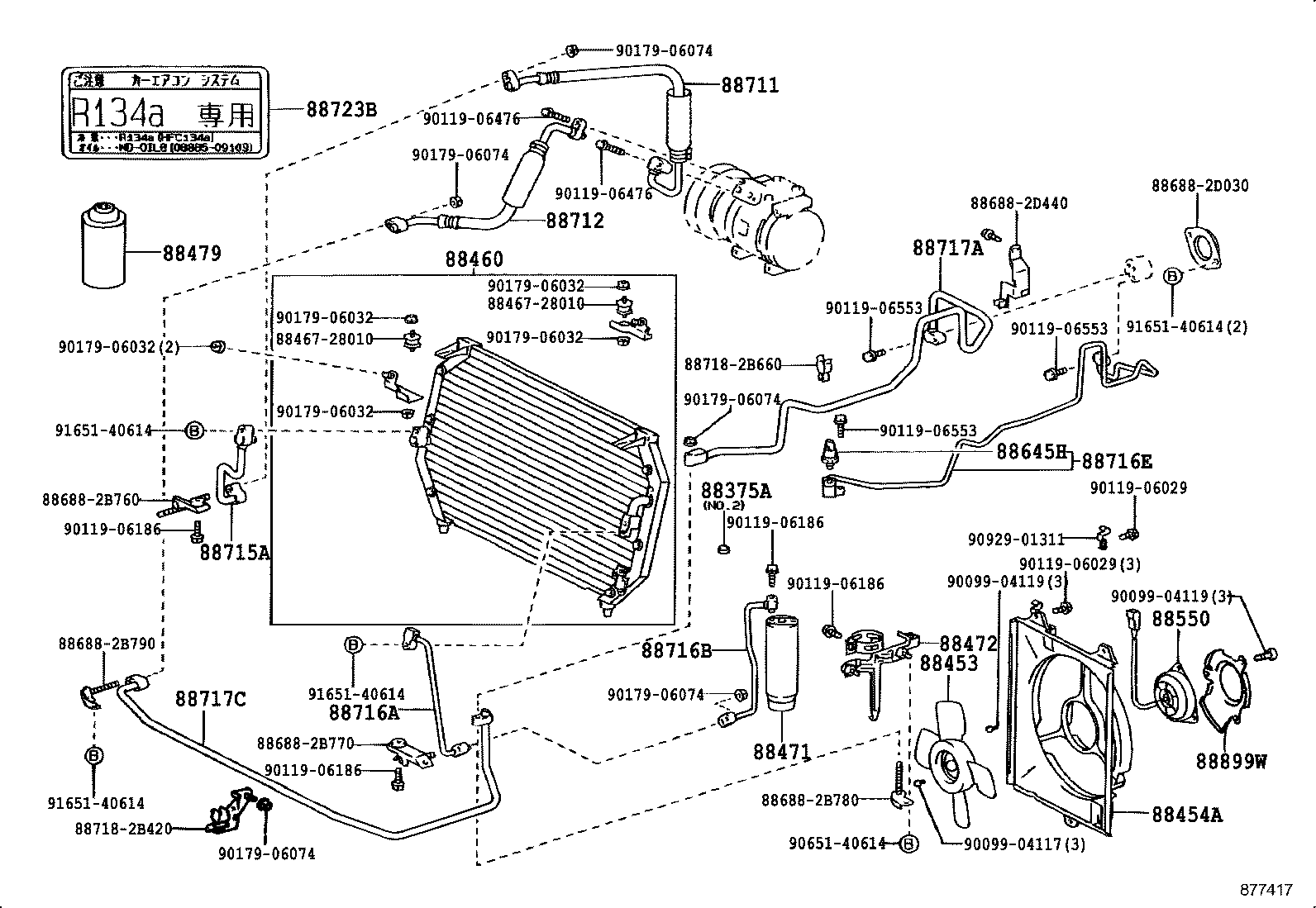

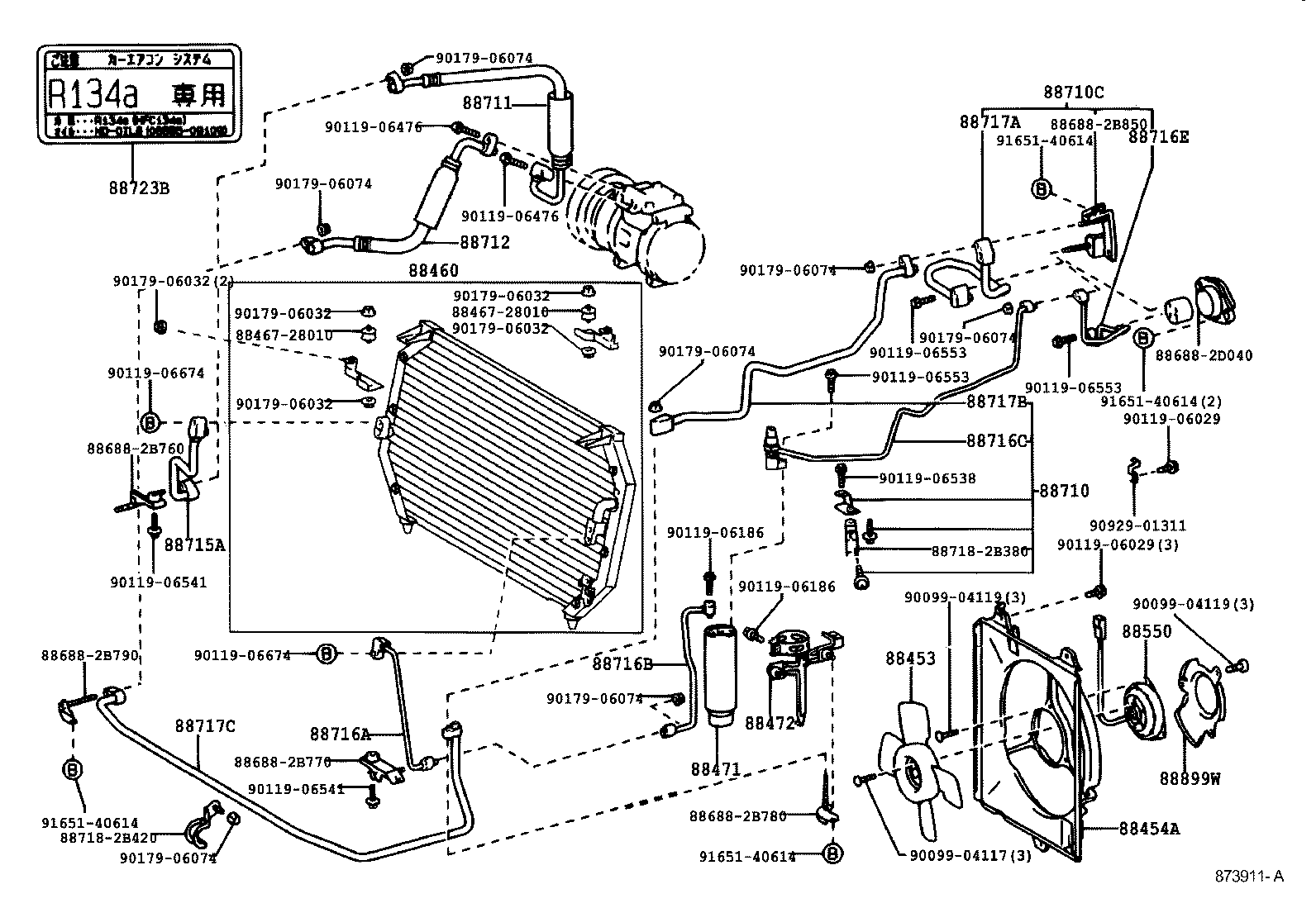

(9202-9307)AT190,ST19#
ﾒ-ｶ- ｿｳﾁﾔｸ,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20230 |
AT190,ST19# |
1 | ||
| 88710-20230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20250 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-20370 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88710-20370 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B160 |
AT190,ST19# |
1 | ||
| 88717-2B160 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B221 |
AT190,ST19# |
1 | ||
| 88717-2B221 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B220 |
AT190,ST19# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B770 | ||||
| 88688-2B780 | ||||
| 88688-2B790 | ||||
| 88688-2B850 | ||||
| 88688-2D040 | ||||
| 88718-2B380 | ||||
| 88718-2B420 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06476 | ||||
| 90119-06538 | ||||
| 90119-06541 | ||||
| 90119-06553 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 90929-01311 | ||||
| 91651-40614 | ||||

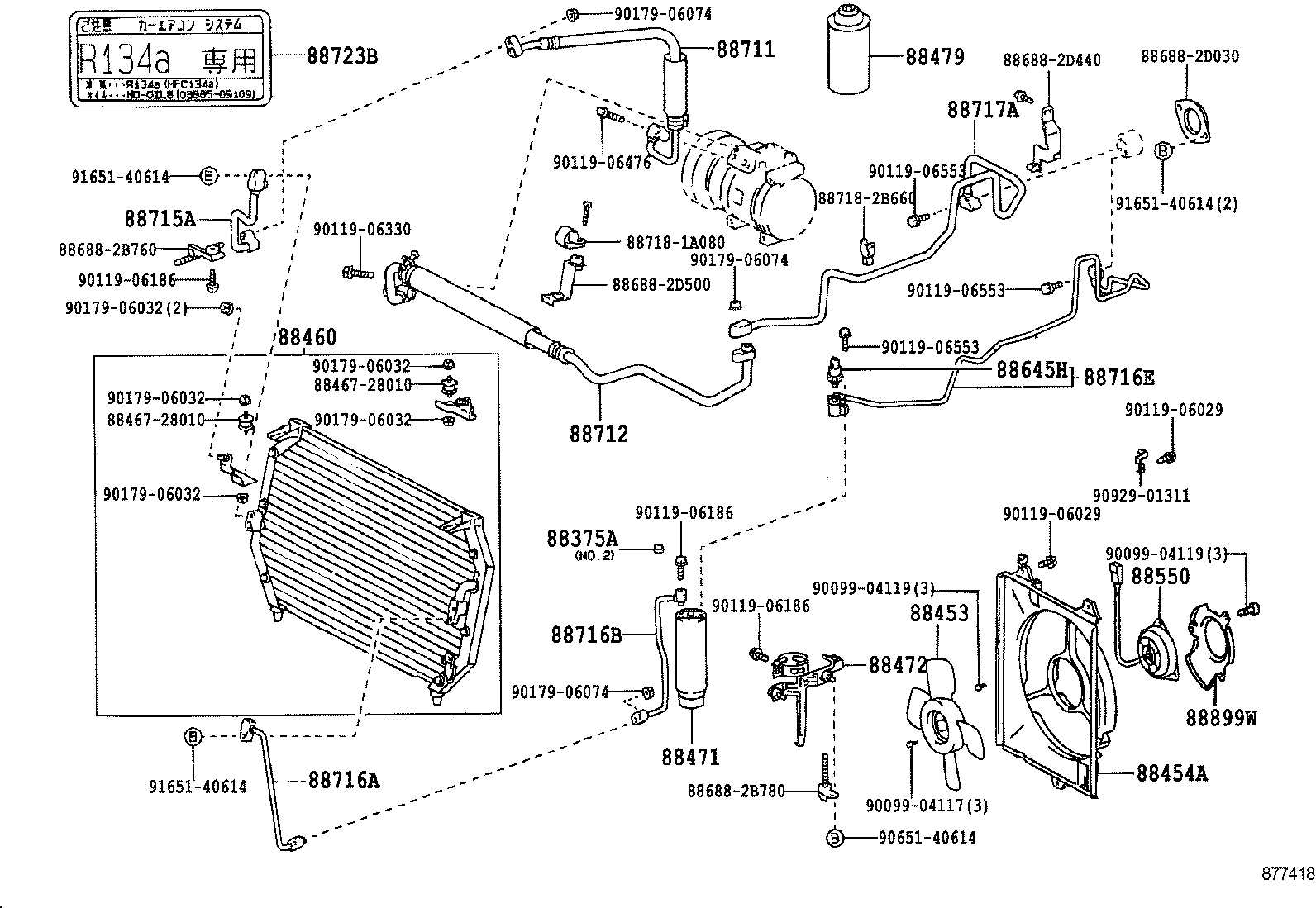

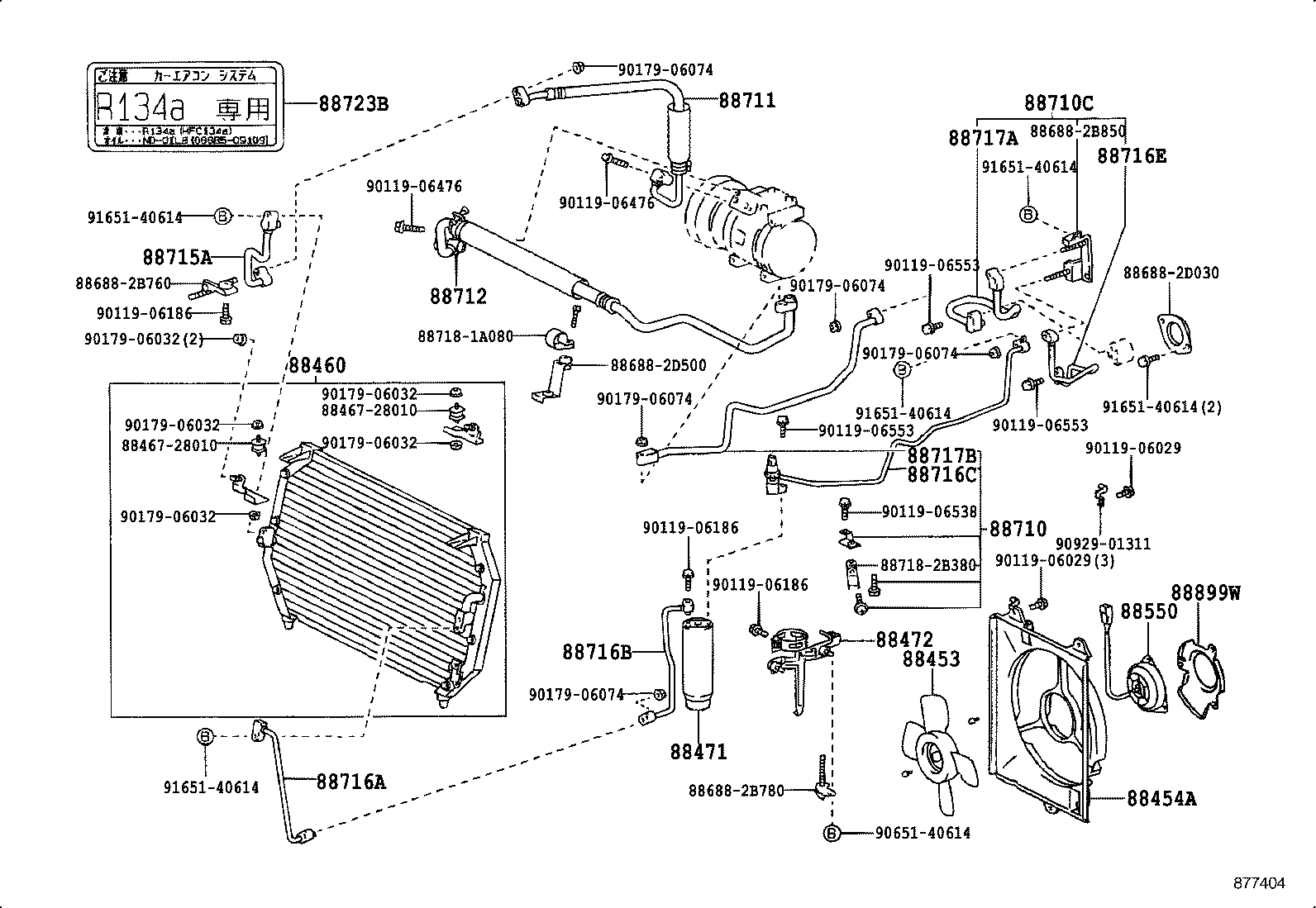

(9402- )AT190,ST19#
ﾒ-ｶ- ｿｳﾁﾔｸ,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20230 |
AT190,ST19# |
1 | ||
| 88710-20230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20250 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-20370 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88710-20370 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B160 |
AT190,ST19# |
1 | ||
| 88717-2B160 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B780 | ||||
| 88688-2B850 | ||||
| 88688-2D030 | ||||
| 88688-2D500 | ||||
| 88718-1A080 | ||||
| 88718-2B380 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06476 | ||||
| 90119-06538 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 90651-40614 | ||||
| 90929-01311 | ||||
| 91651-40614 | ||||

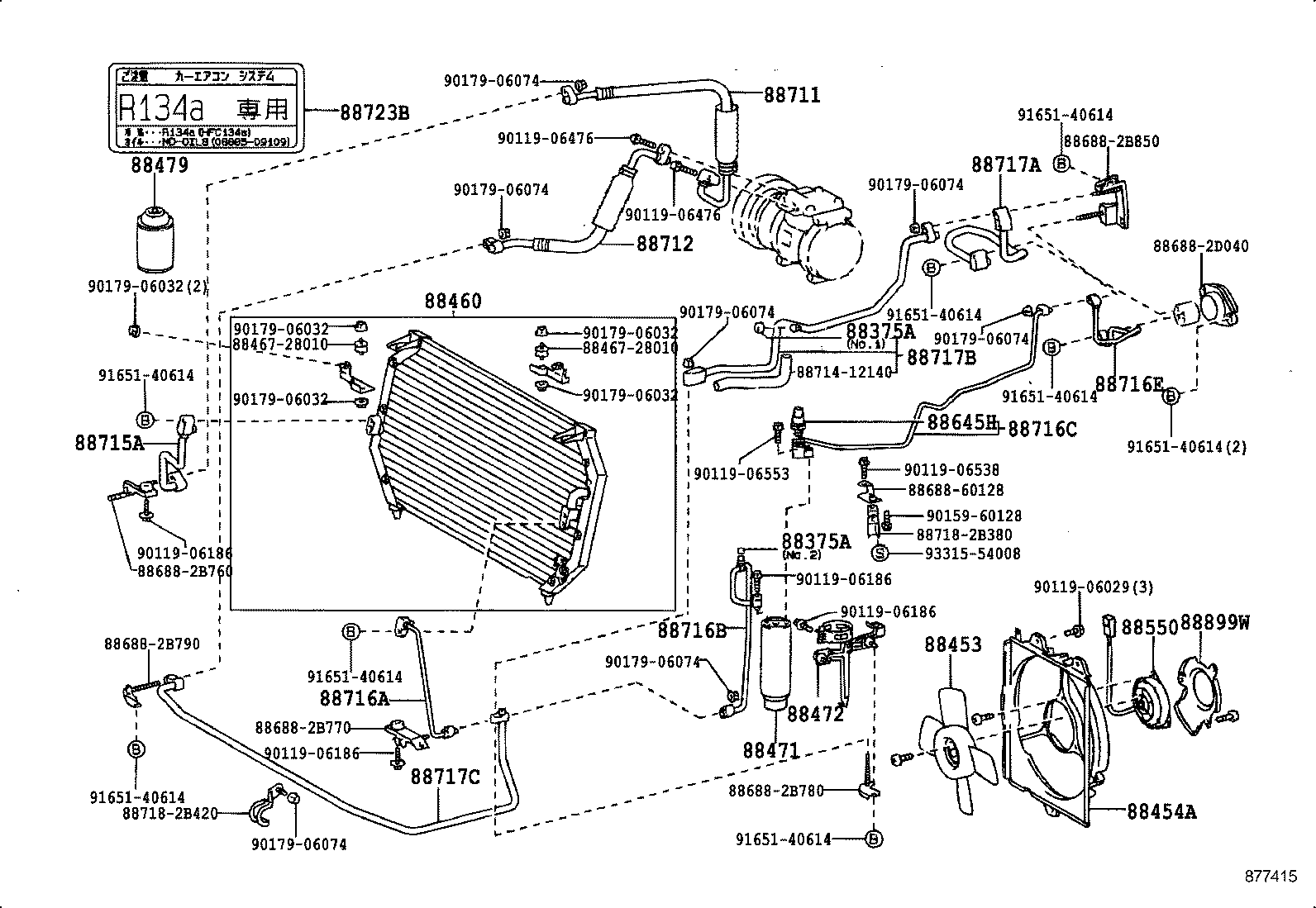

(9202-9307)AT190,ST19# ; (9307-9402)AT190,ST19#
DEALER OPTION,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AT190,CT190,ST19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-20370 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88710-20370 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B160 |
AT190,ST19# |
1 | ||
| 88717-2B160 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B221 |
AT190,ST19# |
1 | ||
| 88717-2B221 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B220 |
AT190,ST19# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B770 | ||||
| 88688-2B780 | ||||
| 88688-2B790 | ||||
| 88688-2B850 | ||||
| 88688-2D040 | ||||
| 88688-60128 | ||||
| 88714-12140 | ||||
| 88718-2B380 | ||||
| 88718-2B420 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06476 | ||||
| 90119-06538 | ||||
| 90119-06553 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 91651-40614 | ||||
| 93315-54008 | ||||

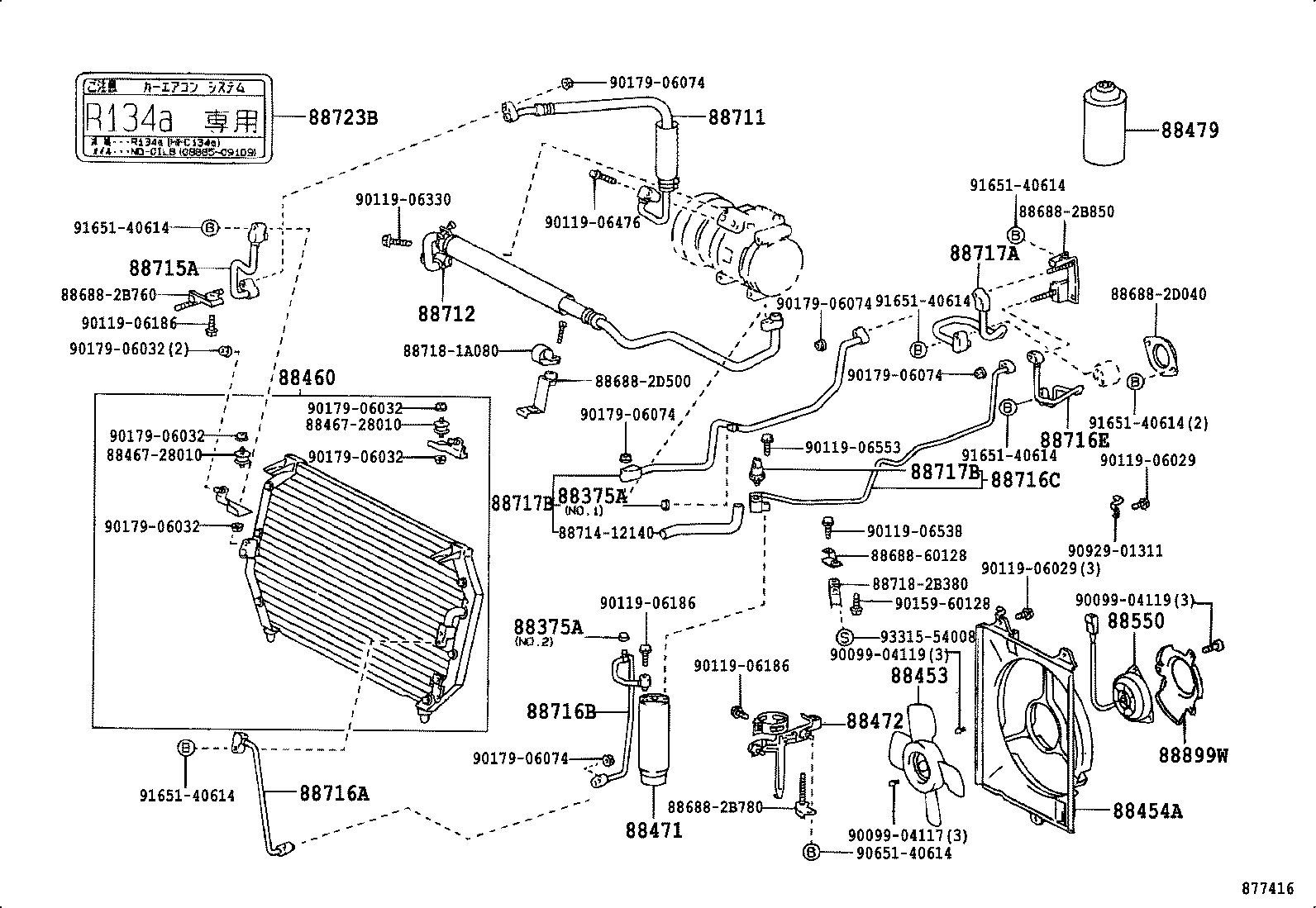

(9402- )AT190,ST19#
DEALER OPTION,ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-20370 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88710-20370 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B160 |
AT190,ST19# |
1 | ||
| 88717-2B160 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B160 |
AT190,ST19# |
1 | ||
| 88717-2B160 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B780 | ||||
| 88688-2B850 | ||||
| 88688-2D040 | ||||
| 88688-2D500 | ||||
| 88688-60128 | ||||
| 88714-12140 | ||||
| 88718-1A080 | ||||
| 88718-2B380 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06330 | ||||
| 90119-06476 | ||||
| 90119-06538 | ||||
| 90119-06553 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 90651-40614 | ||||
| 90929-01311 | ||||
| 91651-40614 | ||||
| 93315-54008 | ||||
(9307-9402)AT190,ST19#
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AT190,CT190,ST19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B221 |
AT190,ST19# |
1 | ||
| 88717-2B221 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B220 |
AT190,ST19# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B770 | ||||
| 88688-2B780 | ||||
| 88688-2B790 | ||||
| 88688-2D030 | ||||
| 88688-2D440 | ||||
| 88718-2B420 | ||||
| 88718-2B660 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06476 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 90651-40614 | ||||
| 90929-01311 | ||||
| 91651-40614 | ||||
(9402- )AT190,ST19#
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST19# NO.1 |
1 | ||
| 88375-30290 |
AT190,ST19# |
1 | ||
| 88375-30290 |
ST19# NO.2 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
CT190..MTM;AT190,ST19# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190,ST19# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST19# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST19#;CT195..SELS |
1 | ||
| 88471-20050 |
AT190,CT19#,ST19# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20140 |
CT19#,ST19# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-46030 |
AT190,ST19# |
1 | ||
| 88550-12130 |
AT190,ST19# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
AT190,CT190,ST19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20870 |
ST19# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B220 |
ST19# |
1 | ||
| 88712-2B790 |
ST19# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
AT190,CT19#,ST19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190,CT19#,ST19# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D150 |
CT19#,ST19# |
1 | ||
| 88716-2D151 |
CT19#,ST19# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D220 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,CT19#,ST19# |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88716-2D220 |
AT190,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 88716-2D170 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B230 |
AT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88717-2B450 |
AT190,ST19#..EXS,GX,SELS,TYPE1 |
1 | ||
| 88717-2B230 |
AT190,ST19#..EXS,GX,SELS,TYPE1 ｱﾘ(*66) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
AT190,CT19#,ST19# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST19# |
1 | ||
| 88899-20270 |
AT190,ST19# |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2B760 | ||||
| 88688-2B780 | ||||
| 88688-2D030 | ||||
| 88688-2D440 | ||||
| 88688-2D500 | ||||
| 88718-1A080 | ||||
| 88718-2B660 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06330 | ||||
| 90119-06476 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 90651-40614 | ||||
| 90929-01311 | ||||
| 91651-40614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
