ST190-AEMNK (1992)
Toyota Corona
(9202- )ST19#

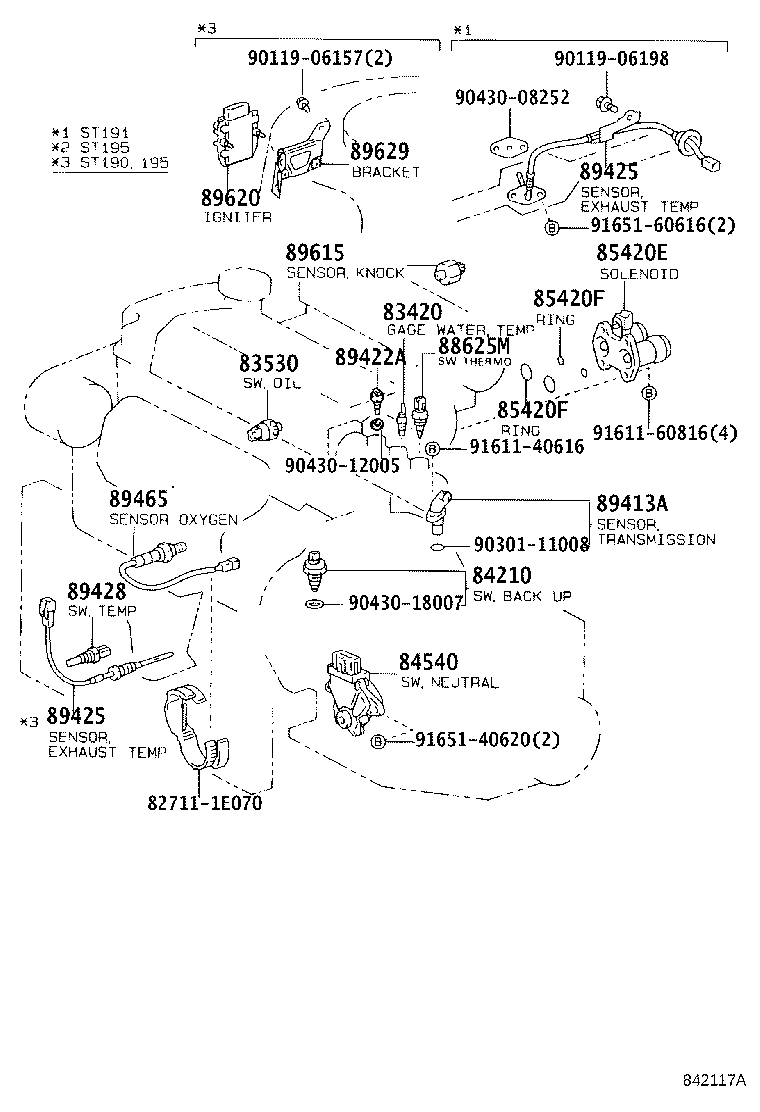

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CT190,ST19# |
1 | ||
| 83420-20030 |
ST19# YAZAKI |
1 | ||
| 83420-16040 |
ST19# NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
ST19# |
1 | ||
| 83530-30090 |
AT190,ST19# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AT190,CT19#,ST190,195..MTM |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-20410 |
CT190..ATM;CT190..MTM..(EXS,GX,SELS);AT190,CT195,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
ST19# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-20210 |
ST190,195 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-20210 |
ST190,195 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
CT19#,ST19# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20270 |
ST190,195 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
ST19# TOYOTA |
1 | ||
| 89615-33020 |
ST19# NIPPONDENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-16020 |
ST19# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20140 |
ST19# |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 90119-06157 | ||||
| 90119-06198 | ||||
| 90301-11008 | ||||
| 90430-08252 | ||||
| 90430-12005 | ||||
| 90430-18007 | ||||
| 91611-40616 | ||||
| 91611-60816 | ||||
| 91651-40620 | ||||
| 91651-60616 | ||||
(9202- )

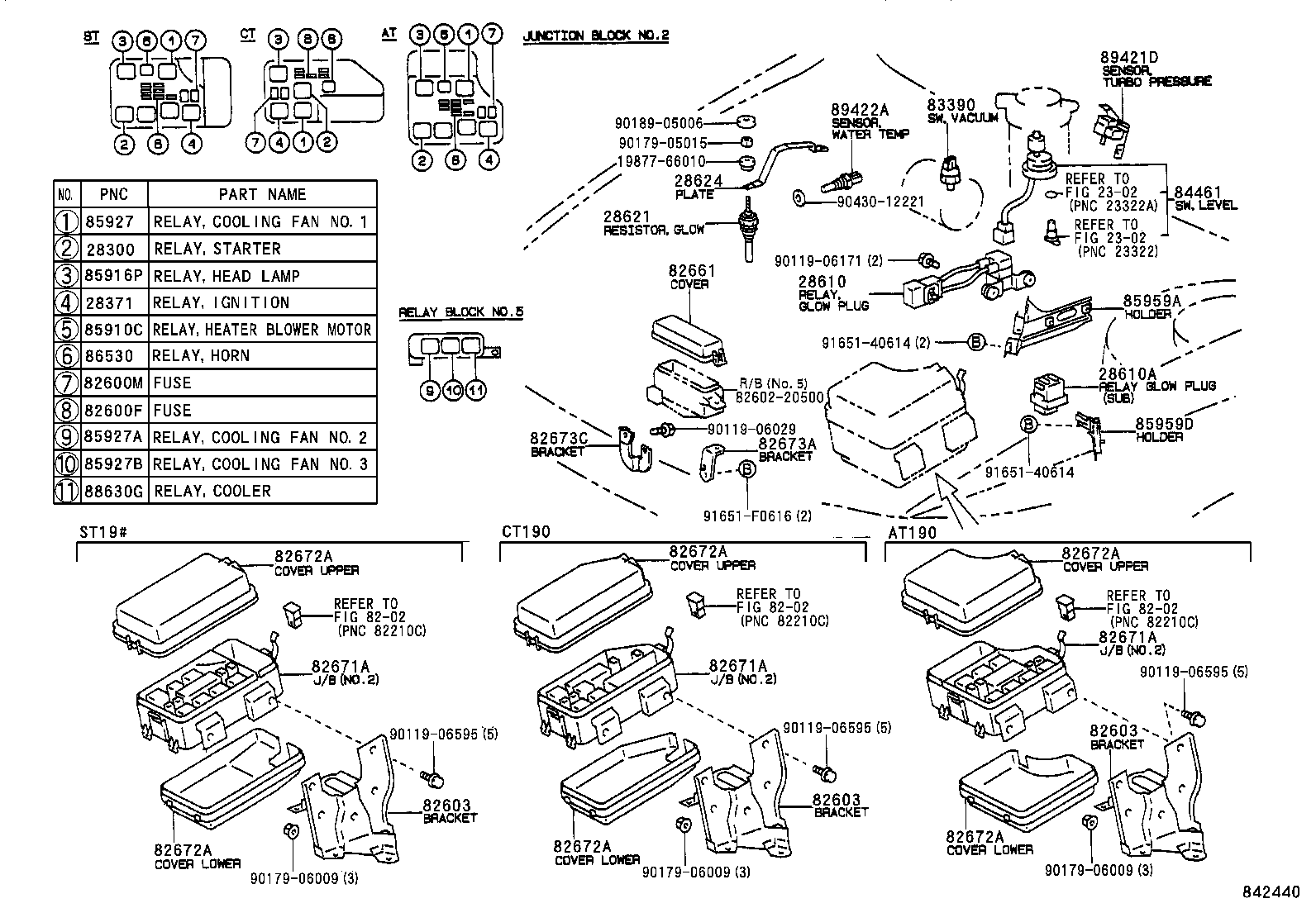

ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
4AFE,2C,3SFE,4SFE..AT190,CT190,ST19# |
1 | ||
| 28300-10020 |
4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4AFE,2C,3SFE,4SFE..AT190,CT19#,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT190,ST19# 15A,NO.2 J/B |
3 | ||
| 90982-09002 |
AT190,CT19#,ST19# 10A,NO.1 J/B |
2 | ||
| 90982-07011 |
AT190,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
AT190,ST19# 15A,NO.2 J/B |
5 | ||
| 90982-09003 |
ST190..MTM..GX 15A |
1 | ||
| 90982-09003 |
AT190,CT19#,ST19# 15A,NO.1 J/B |
4 | ||
| 90982-09005 |
AT190,CT19#,ST19# 7.5A,NO.1 J/B |
4 | ||
| 90982-09003 |
ST19# 15A,NO.2 J/B |
5 | ||
| 90982-09004 |
AT190,CT19#,ST19# 20A,黄,NO.2 J/B |
1 | ||
| 90982-09005 |
AT190,CT19#,ST19# 7.5A,NO.2 J/B |
1 | ||
| 90982-09002 |
AT190,CT19#,ST19# 10A,NO.2 J/B |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
CT190,ST19# 30A,ﾋﾟﾝｸ,NO.2 J/B |
2 | ||
| 90982-10001 |
AT190,CT19#,ST19# 30A,ﾋﾟﾝｸ,NO.1 J/B |
1 | ||
| 90982-10002 |
AT190,CT19#,ST19# 40A,緑 |
2 | ||
| 90982-10001 |
AT190,CT19#,ST19# 30A,ﾋﾟﾝｸ,NO.2 J/B |
2 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82603-20010 |
ST19# |
1 | ||
| 82603-20060 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82603-20010 |
ST19# |
1 | ||
| 82603-20060 |
ST19# |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20011 |
ST19# |
1 | ||
| 82603-20010 |
ST19# |
1 | ||
| 82603-20060 |
ST19# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
AT190,CT19#,ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20300 |
ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20300 |
ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20300 |
ST19# |
1 | ||
| 82671-20301 |
ST19# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*AAC---MAKER OPT);ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),UPPER |
1 | ||
| 82672-20830 |
ST190..MTM..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) OR ｱﾘ(*RFL) OR ｱﾘ(4 ｽﾋﾟ-ｶ) OR ｱﾘ(*AAC---MAKER OPT),UPPER |
1 | ||
| 82672-2B050 |
ST190..MTM..GX UPPER |
1 | ||
| 82672-20830 |
ST190,195;ST191..EXS UPPER |
1 | ||
| 82674-20010 |
ST19# LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-20070 |
AT190,ST19# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-20160 |
AT190,ST190,195..GX,KYO,SELS |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT190,CT19#,ST19# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT190,CT19#,ST19# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT190,CT19#,ST19# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04003 |
AT190,CT19#,ST19# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT190,CT19#,ST19# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
CT190..MTM..GX;AT190,ST190,195..GX ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
2 | ||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 90987-02009 |
AT190,CT190,ST190,195..GX ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
2 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
ST19# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82602-20500 | ||||
| 90119-06029 | ||||
| 90119-06171 | ||||
| 90119-06595 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 91651-40614 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
(9202- )

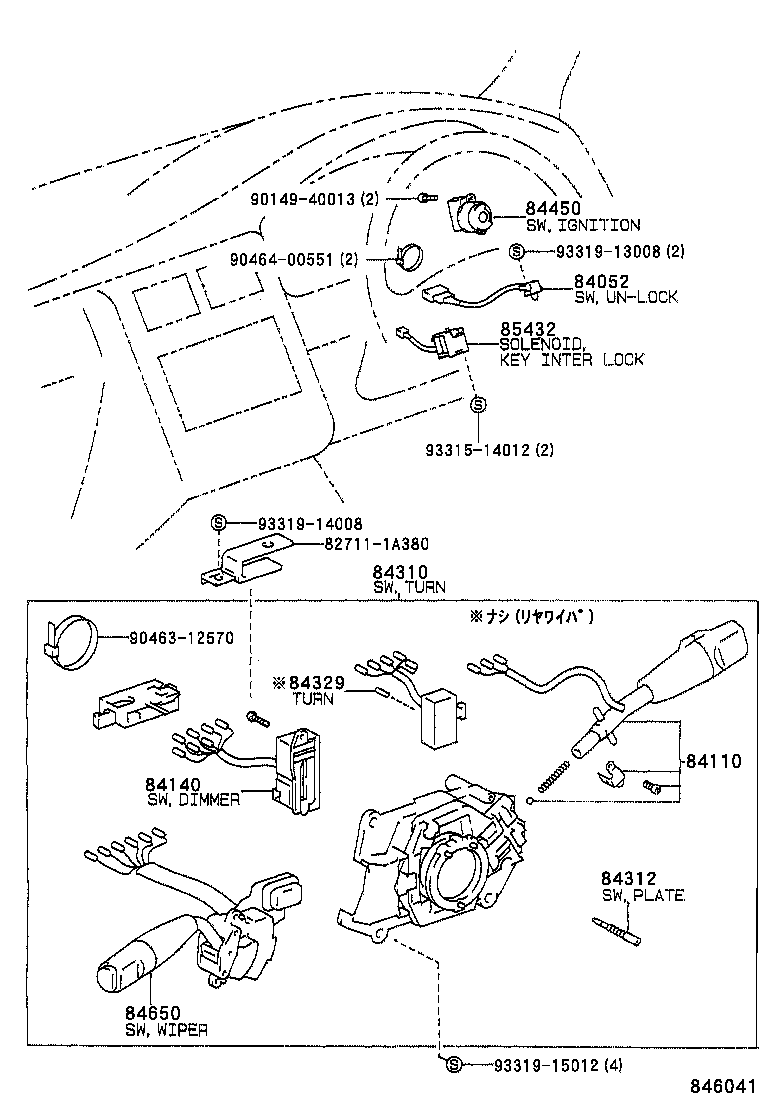

ｺﾝﾋﾞﾈｰｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AT190,CT19#,ST19# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80111 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12320 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H660 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AT190,CT19#,ST19# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G040 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
(9202- )

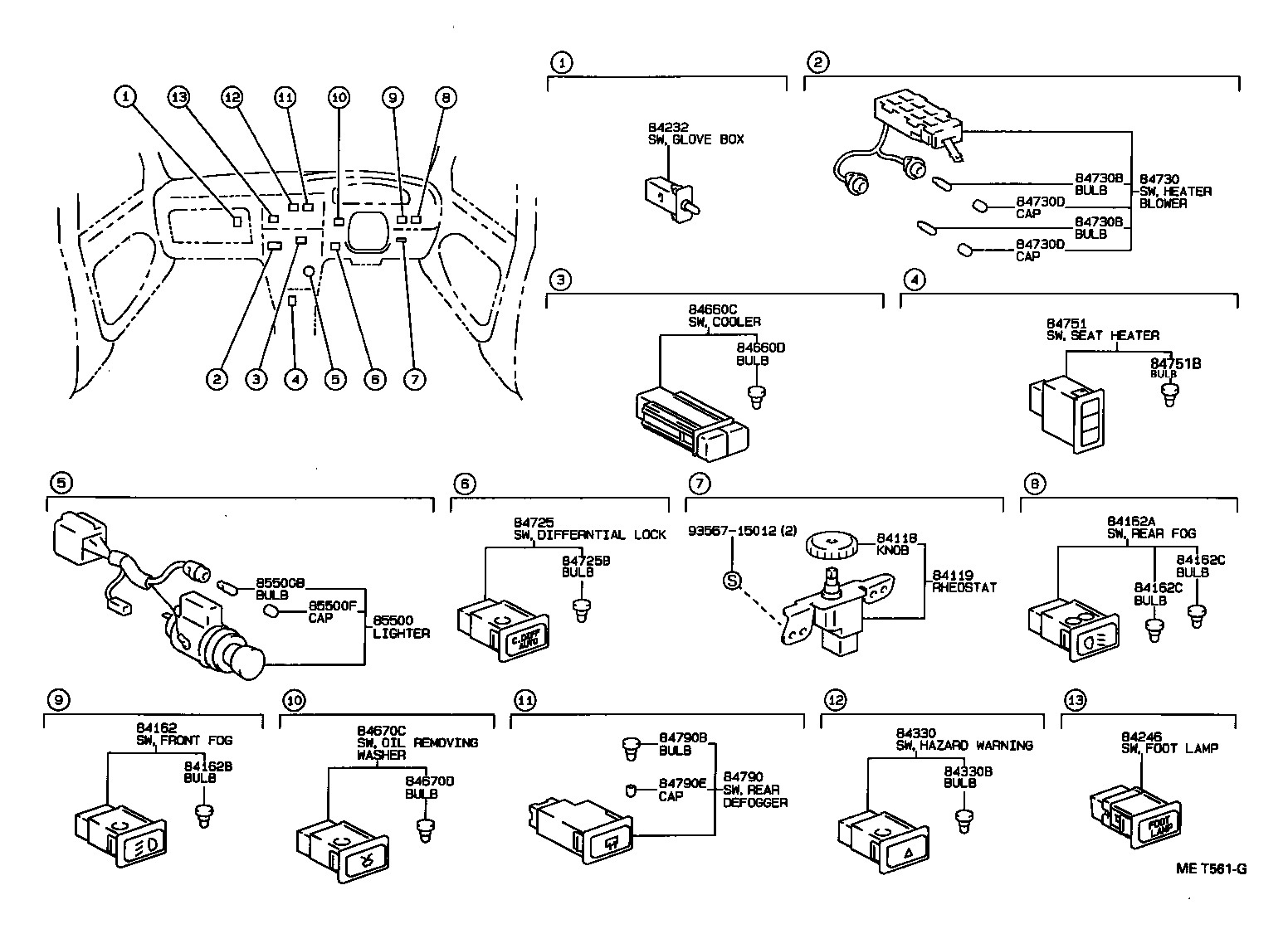

ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20150 |
AT190,CT19#,ST19#..EXG,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 84160-20150 |
AT190,CT19#,ST19# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 84165-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1 |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
AT190,CT19#,ST19#..EXG,GX,KYO,SELS,TYPE1,TYPE2 14V 0.84W |
1 | ||
| 84999-10320 |
AT190,CT19#,ST19# 14V 0.84W |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10320 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1 14V 0.84W |
2 | ||
| 84999-10320 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 14V 0.84W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10320 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1 14V 0.84W |
2 | ||
| 84999-10320 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 14V 0.84W |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20290 |
AT190,CT19#,ST19# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT190,CT19#,ST19# 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20190 |
AT190,CT190,ST190,195..GX,KYO |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AT190,CT190,ST190,195..GX,KYO 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20310 |
AT190,CT190,ST190,195..GX,KYO |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT190,CT190,ST190,195..GX 14V 1.4W |
2 | ||
| 90981-11014 |
AT190,CT190,ST190,195..GX,KYO 14V 1.4W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT190,CT190,ST190,195..GX 14V 1.4W |
2 | ||
| 90981-11014 |
AT190,CT190,ST190,195..GX,KYO 14V 1.4W |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 90339-04023 |
AT190,CT190,ST190,195..GX,KYO |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 90339-04023 |
AT190,CT190,ST190,195..GX,KYO |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20390 |
AT190,CT19#,ST19# |
1 | ||
| 84790-20400 |
AT190,CT19#,ST19# ｱﾘ(ﾌﾛﾝﾄ ｳｲﾝﾄﾞ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT190,CT19#,ST19# 12V 0.7W,ｱﾘ(*FWD & *RWD) |
1 | ||
| 84999-10510 |
AT190,CT19#,ST19# 12V 0.56W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10010 |
AT190,CT19#,ST19# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
AT190,CT19#,ST19# |
1 | ||
| 85500-20270 |
AT190,CT19#,ST19# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
AT190,CT19#,ST19# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 93567-15012 | ||||

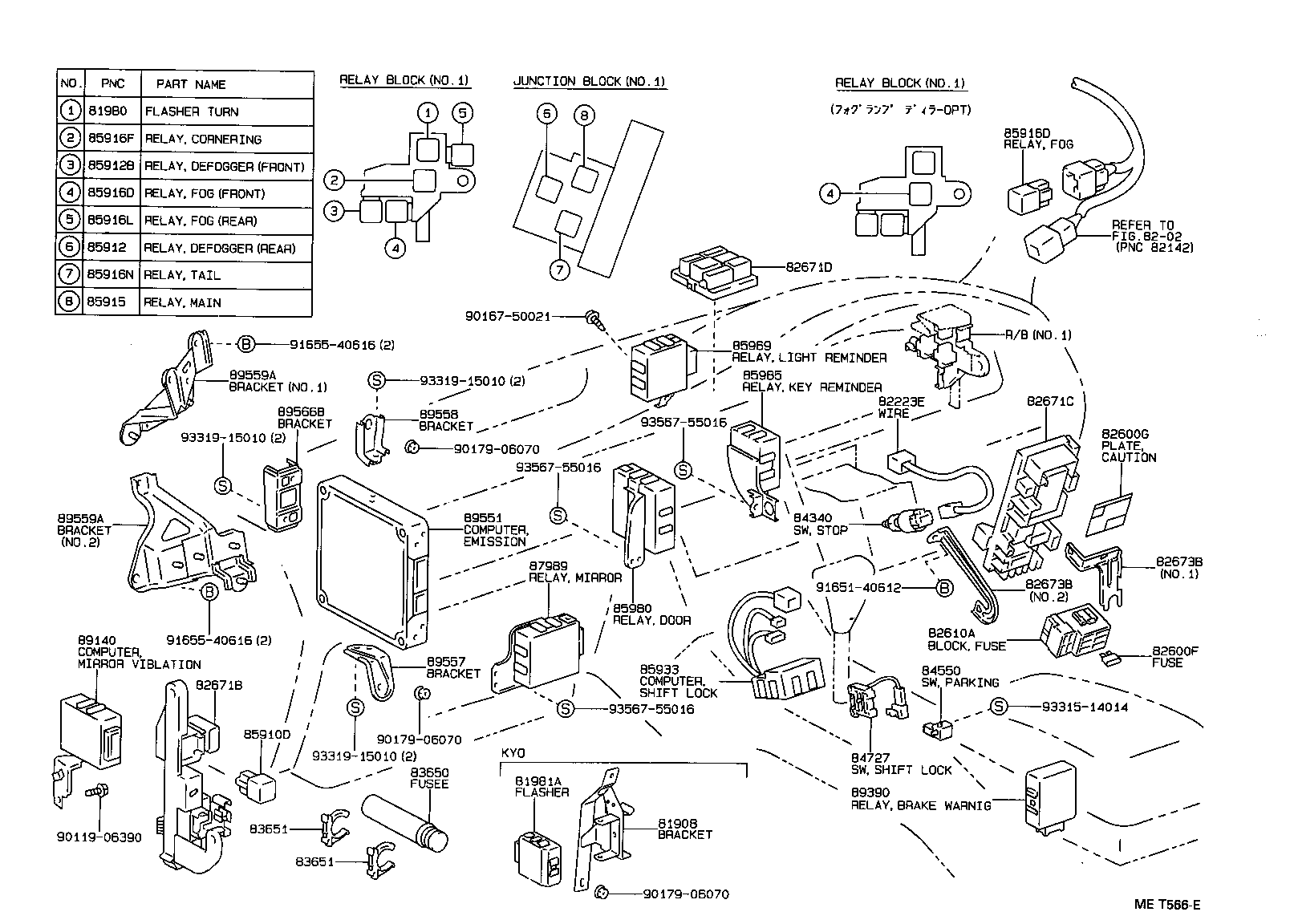

(9202- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-20130 |
AT190,CT19#,ST19# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT190,ST19# 15A,NO.2 J/B |
3 | ||
| 90982-09002 |
AT190,CT19#,ST19# 10A,NO.1 J/B |
2 | ||
| 90982-07011 |
AT190,CT19#,ST19# 30A,緑 |
1 | ||
| 90982-09003 |
AT190,ST19# 15A,NO.2 J/B |
5 | ||
| 90982-09003 |
ST190..MTM..GX 15A |
1 | ||
| 90982-09003 |
AT190,CT19#,ST19# 15A,NO.1 J/B |
4 | ||
| 90982-09005 |
AT190,CT19#,ST19# 7.5A,NO.1 J/B |
4 | ||
| 90982-09003 |
ST19# 15A,NO.2 J/B |
5 | ||
| 90982-09004 |
AT190,CT19#,ST19# 20A,黄,NO.2 J/B |
1 | ||
| 90982-09005 |
AT190,CT19#,ST19# 7.5A,NO.2 J/B |
1 | ||
| 90982-09002 |
AT190,CT19#,ST19# 10A,NO.2 J/B |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20050 |
AT190,CT19#,ST19# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
AT190,CT19#,ST19# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-20250 |
ST190..MTM..GX;CT190,ST190,191..KYO,TYPE1,TYPE2 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-20290 |
AT190,CT19#,ST19# |
1 | ||
| 82671-20290 |
AT190,CT19#,ST19# NO.1 J/B |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-20270 |
AT190,CT19#,ST19# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
AT190,CT19#,ST19# NO.1 |
1 | ||
| 82673-20110 |
AT190,CT19#,ST19# NO.2 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
AT190,CT19#,ST19# NO.1 |
1 | ||
| 82673-20110 |
AT190,CT19#,ST19# NO.2 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AT190,CT19#,ST19# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT190,CT190,ST190,195..GX |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
AT190,CT190,ST190,195..GX |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
2 | ||
| 84340-32050 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT190,CT19#,ST19# |
1 | ||
| 84550-33010 |
AT190,CT19#,ST19# MATSUSHITA |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02010 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 90987-02009 |
AT190,CT190,ST19# |
1 | ||
| 90987-02009 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 90987-02009 |
AT190,CT190,ST19# |
1 | ||
| 90987-02009 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 90987-02009 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AT190,CT19#,ST19# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20311 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-20010 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 80590-20010 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90167-50021 | ||||
| 90179-06070 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||

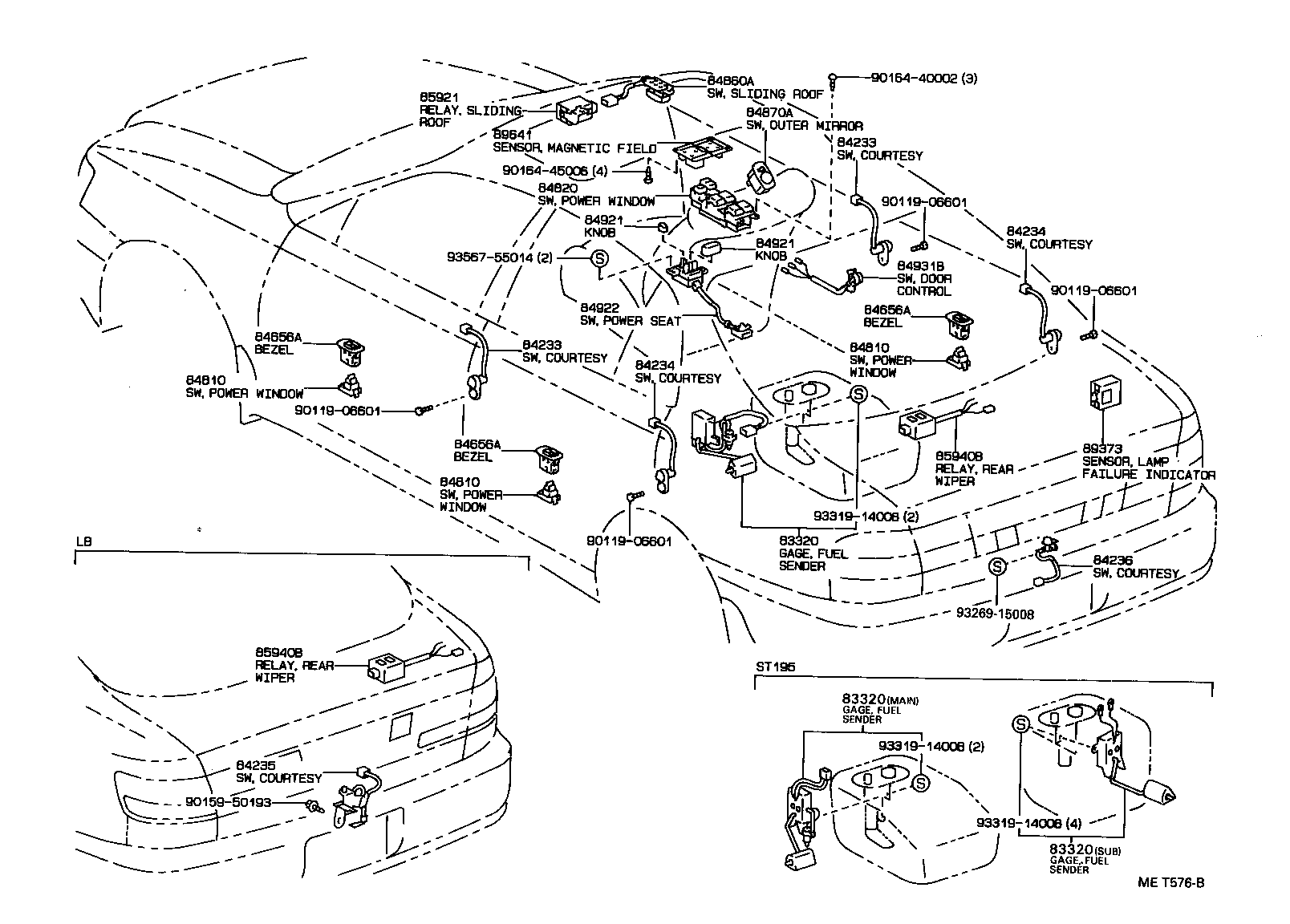

(9202- )
ﾙｰﾌ,ﾄﾞｱ,ｼｰﾄ & ﾄﾗﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT190,ST190,191 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT190,ST190,191 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80243 |
AT190,ST190,191 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT190,CT19#,ST19# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT190,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT190,CT19#,ST19# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT190,CT19#,ST19# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20290 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20010C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,FRONT ASSISTANT |
1 | ||
| 84656-20030C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,REAR |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20010C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,FRONT ASSISTANT |
1 | ||
| 84656-20030C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,REAR |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20010C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,FRONT ASSISTANT |
1 | ||
| 84656-20030C0 |
AT190,CT190,ST190..GX ﾙｼｱ,BLACK,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
AT190,CT190,ST190..GX ﾙｼｱ |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
AT190,CT190,ST190..GX ﾙｼｱ |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
AT190,CT190,ST190..GX ﾙｼｱ |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16030 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20110 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20231 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-50193 | ||||
| 90164-40002 | ||||
| 90164-45006 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
