ST190-AEMNK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )GX,SELS ; (9211- )KYO

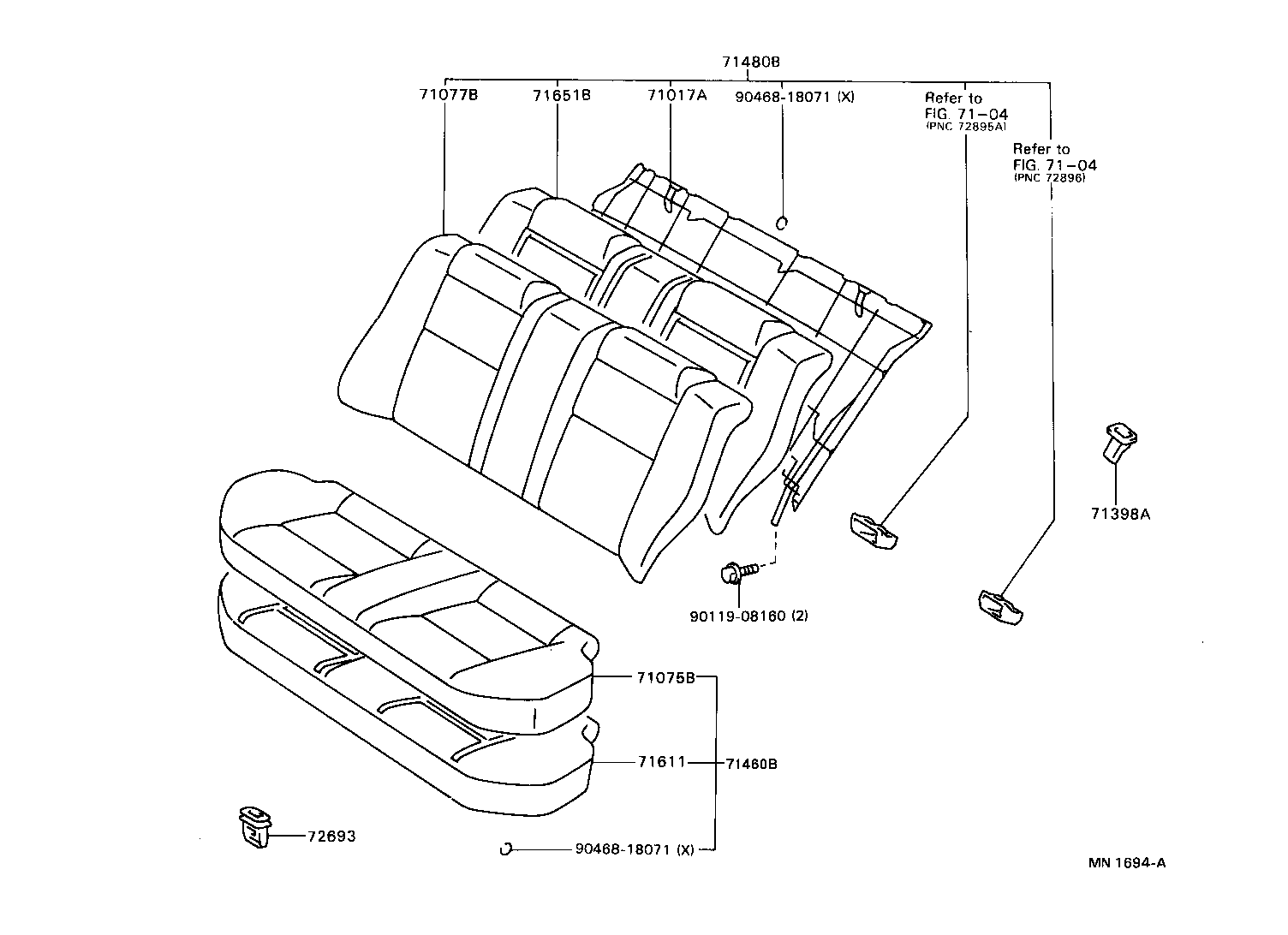

Click highlighted areas on diagram

diagram 71017A 7104 7104 71075B 71077B 71398A 71460B 71480B 71611 71651B 72693 9011908160 9046818071 9046818071
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-20450

AT190,CT19#,ST190,195..GX,KYO,SELS

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2B860B0

AT190,CT190,ST190,195..GX,KYO

GRAY,TRIM2#

 1
71075-2B860B1

AT190,CT190,ST190,195..GX,KYO

SHADOW GRAY,TRIM1#

 1
71075-2B860E0

AT190,CT190,ST190,195..GX,KYO

ANTELOPE,TRIM4#

 1
71065-2B740B0

AT190,CT190,ST190..GX

ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2D880E4

AT190,CT190,ST190,195..GX,KYO

ANTELOPE,TRIM4#

 1
71077-2D880B1

AT190,CT190,ST190,195..GX,KYO

GRAY,TRIM2#

 1
71077-2D880E1

AT190,CT190,ST190,195..GX,KYO

ANTELOPE,TRIM4#

 1
71077-2D880B3

AT190,CT190,ST190,195..GX,KYO

SHADOW GRAY,TRIM1#

 1
71077-2G580B0

AT190,CT190,ST190..GX

ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1#

 1
71398A - HOLDER, REAR SEAT BACK
71398-12030

AT190,CT19#,ST190,195..GX,KYO,SELS

 3
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2B120C0

AT190,CT190,ST190,195..GX,KYO

***,BLACK,TRIM2#

 1
71560-2B120E0

AT190,CT190,ST190,195..GX,KYO

***,ANTELOPE,TRIM4#

 1
71560-2B120B0

AT190,CT190,ST190,195..GX,KYO

***,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2G310E0

AT190,CT190,ST190,195..GX,KYO

***,ANTELOPE,TRIM4#

 1
71480-2G310C0

AT190,CT190,ST190,195..GX,KYO

***,BLACK,TRIM2#

 1
71480-2G310B0

AT190,CT190,ST190,195..GX,KYO

***,SHADOW GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-20030

AT190,CT19#,ST19#..SED

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-20680

AT190,CT19#,ST190,195..GX,KYO,SELS

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

AT190,CT19#,ST19#..SED

 4
Common parts
90119-08160
90468-18071
Linked diagrams
7104
