ST190-AEMNK (1992)
Toyota Corona
ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

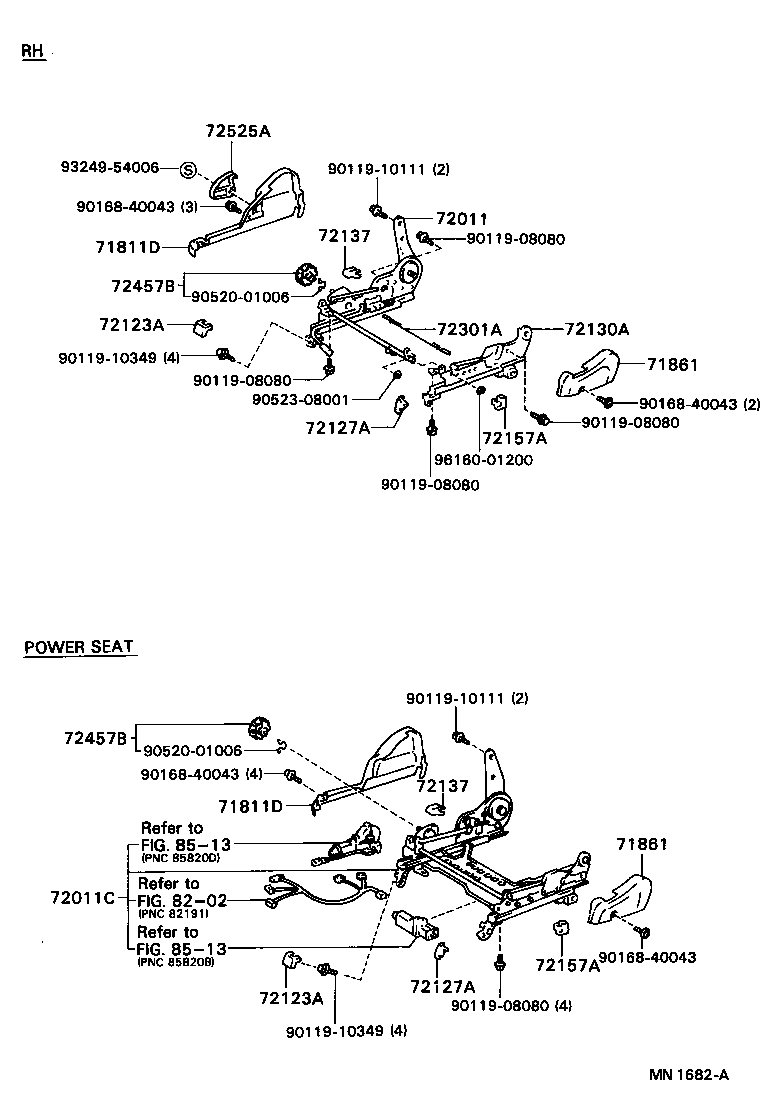

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230E0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 71811-20230C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 71811-20230B2 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20230E0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 71811-20230C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 71811-20230B2 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20040E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71861-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20040E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-20281 |
AT190,CT19#,ST19#..EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 72010-20280 |
AT190,CT19#,ST19#..EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72123-20130E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72123-20130E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127-20050E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72127-20050E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72127-20050C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20050C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72127-20050E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72127-20050E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72127-20050C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72127-20050E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20320 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72130-20321 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72137-20060B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72137-20060C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72137-20060B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72157-20020E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72157-20020E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72157-20020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72157-20020E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72157-20020C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72157-20020E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72157-20020E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72157-20020B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72157-20020E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72457-18010B3 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72457-18010B3 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
1 | ||
| 72525-12100E0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS ANTELOPE,TRIM4# |
1 | ||
| 72525-12100P0 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

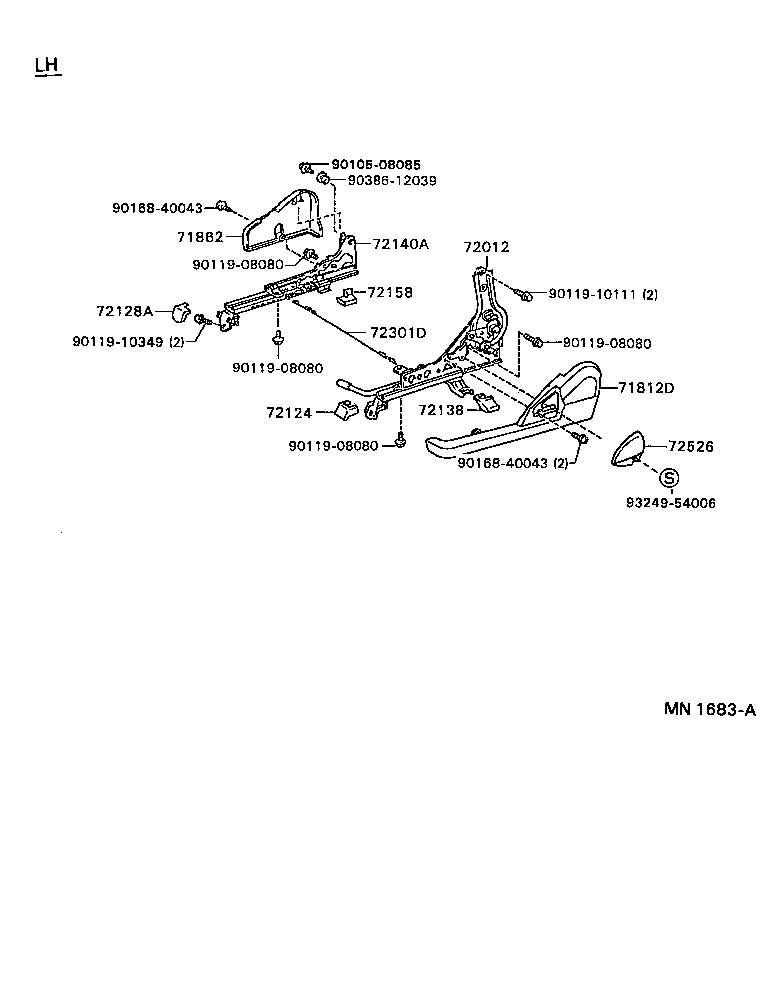

| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71812-20200E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 71812-20200B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 71862-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 71862-20040B2 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20040E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 71862-20040E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 71862-20040E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-21040 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190,CT190,ST19# |
1 | ||
| 72020-20221 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190,CT19#,ST19# |
1 | ||
| 72020-20220 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72123-20130C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72123-20130E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72123-20130E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20040E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72128-20040E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72128-20040E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72128-20040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72128-20040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72138-20030C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72138-20030C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72138-20030C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72138-20030E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72138-20030B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-20030E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72138-20030C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20271 |
AT190,CT19#,ST19# |
1 | ||
| 72140-20270 |
AT190,CT19#,ST19# |
1 | ||
| 72140-20270 |
AT190,CT190,ST19# |
1 | ||
| 72140-20270 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72158-20010E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72158-20010E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72158-20010C0 |
AT190,CT19#,ST19#..SED BLACK,TRIM1#,4# |
1 | ||
| 72158-20010C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72158-20010B0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AT190,CT19#,ST19# |
1 | ||
| 72301-12160 |
AT190,CT190,ST19# |
1 | ||
| 72301-12160 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040E0 |
AT190,CT190,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72526-12040E0 |
AT190,CT19#,ST19#..SED ANTELOPE,TRIM4# |
1 | ||
| 72526-12040C0 |
AT190,CT190,ST19# BLACK,TRIM2# |
1 | ||
| 72526-12040C0 |
AT190..ATM;CT19#,ST19#;AT190..MTM..(GX,SELS) BLACK,TRIM2# |
1 | ||
| 72526-12040C0 |
AT190,CT19#,ST19# BLACK,TRIM2# |
1 | ||
| 72526-12040E0 |
AT190..ATM;CT19#,ST19#..SED;AT190..MTM..(GX,SELS) ANTELOPE,TRIM4# |
1 | ||
| 72526-12040P0 |
AT190,CT19#,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90386-12039 | ||||
| 93249-54006 | ||||

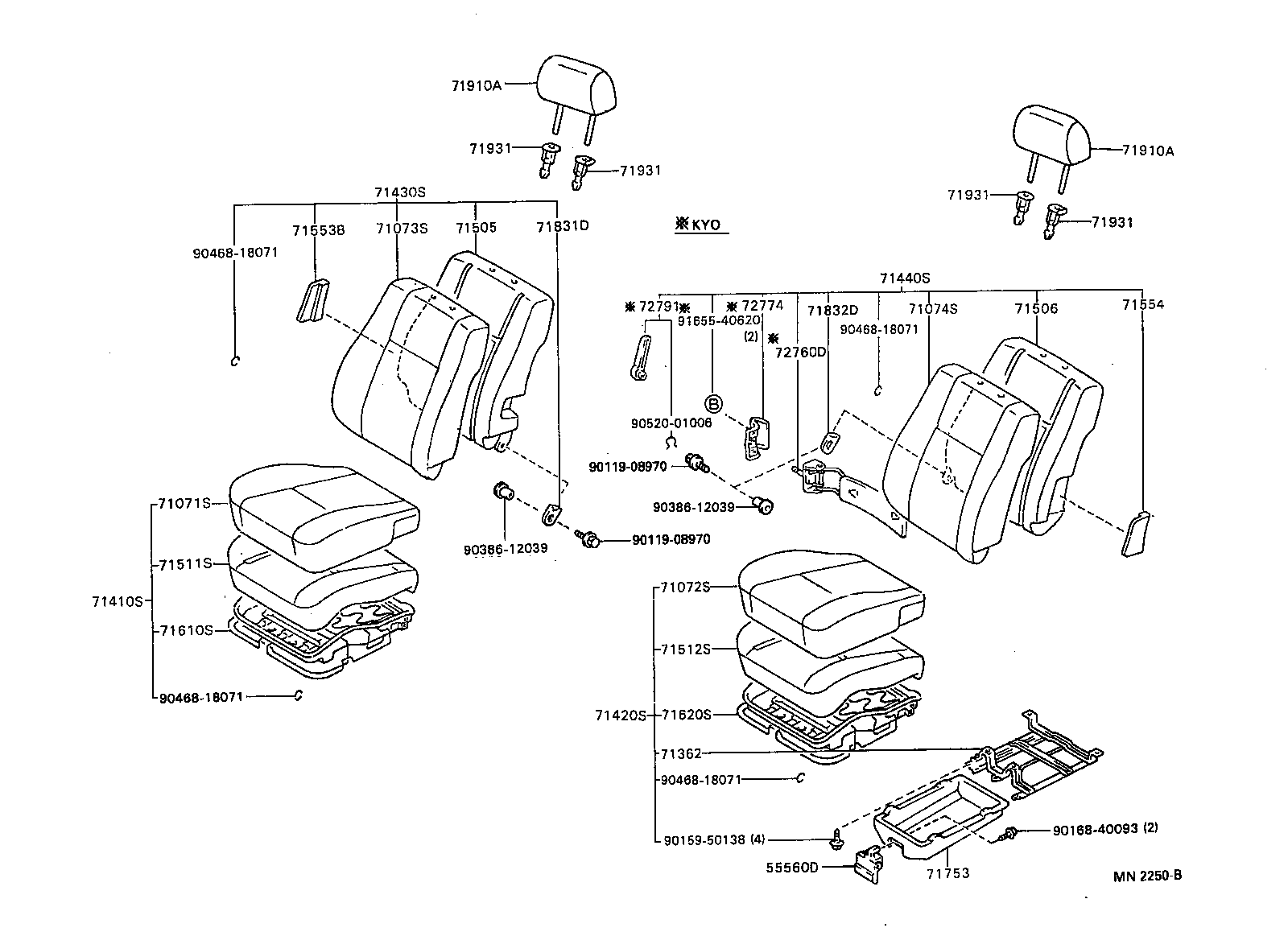

ILLUST NO. 1 OF 2(9202- )GX,SELS ; (9211- )KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS BLACK,TRIM2#,4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G190B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
1 | ||
| 71071-2G190E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 71071-2G190B1 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G870B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D600B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
1 | ||
| 71072-2D600E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 71072-2G290B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D600B1 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G060B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
1 | ||
| 71073-2G060E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 71073-2G060B1 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2G790B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D580B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
1 | ||
| 71074-2D580E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 71074-2D580B1 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2G110B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20130 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G730C0 |
AT190,CT190,ST190,195..GX,KYO ***,BLACK,TRIM2# |
1 | ||
| 71410-2G730E0 |
AT190,CT190,ST190,195..GX,KYO ***,ANTELOPE,TRIM4# |
1 | ||
| 71410-2G730B0 |
AT190,CT190,ST190,195..GX,KYO ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G360C0 |
AT190,CT190,ST190,195..GX ***,BLACK,TRIM2# |
1 | ||
| 71420-2G360E0 |
AT190,CT190,ST190,195..GX ***,ANTELOPE,TRIM4# |
1 | ||
| 71420-2G361B0 |
AT190,CT190,ST190,195..GX,KYO ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G361E0 |
AT190,CT190,ST190,195..GX,KYO ***,ANTELOPE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G580C0 |
AT190,CT190,ST190,195..GX,KYO ***,BLACK,TRIM2# |
1 | ||
| 71430-2G580E0 |
AT190,CT190,ST190,195..GX,KYO ***,ANTELOPE,TRIM4# |
1 | ||
| 71430-2G580B0 |
AT190,CT190,ST190,195..GX,KYO ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G220C0 |
AT190,CT190,ST190,195..GX ***,BLACK,TRIM2# |
1 | ||
| 71440-2G220B0 |
AT190,CT190,ST190,195..GX ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G220E0 |
AT190,CT190,ST190,195..GX ***,ANTELOPE,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20150 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20120 |
AT190,CT19#,ST190,195..GX,SELS |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20610 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20610 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20230 |
AT190,CT19#,ST190,195..GX,KYO,SELS 右側 |
1 | ||
| 71553-20230 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20200 |
AT190,CT19#,ST190,195..GX,KYO,SELS 左側 |
1 | ||
| 71554-20200 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20490 |
AT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1,TYPE2 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20290 |
AT190,CT19#,ST19# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AT190,CT19#,ST19# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AT190,CT19#,ST19# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B590B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
2 | ||
| 71910-2B590E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
2 | ||
| 71910-2B590B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B590B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM2# |
2 | ||
| 71910-2B590E0 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
2 | ||
| 71910-2B590B0 |
AT190,CT190,ST190,195..GX,KYO GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040E1 |
AT190,CT190,ST19#..SED ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-12070E1 |
AT190,CT190,ST19#..SED ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040E1 |
AT190,CT190,ST19#..SED ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-12070E1 |
AT190,CT190,ST19#..SED ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040E1 |
AT190,CT190,ST19#..SED ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-12070E1 |
AT190,CT190,ST19#..SED ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070C0 |
AT190,CT190,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040E1 |
AT190,CT190,ST19#..SED ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1007022 |
AT190,CT19#,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-1002022 |
AT190,CT19#,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-12070E1 |
AT190,CT190,ST19#..SED ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
AT190,CT19#,ST19#..SED ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-32020B0 |
AT190,CT19#,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E4 |
AT190,CT19#,ST19#..SED ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91655-40620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
