ST190-AEMNK (1992)
Toyota Corona

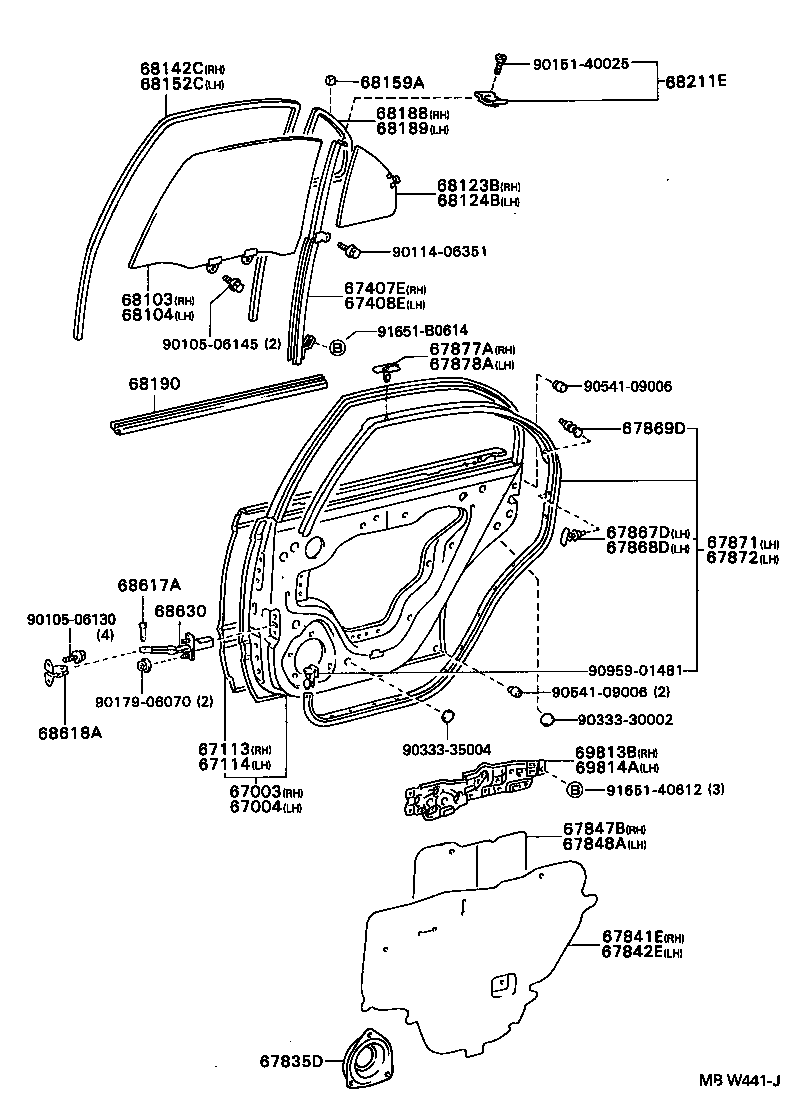

ILLUST NO. 1 OF 2(9202- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20650 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67003-20652 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20662 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67004-20660 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20210 |
AT190,CT19#,ST19# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20210 |
AT190,CT19#,ST19# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-20200 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-20190 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67835D - COVER, REAR DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-20060 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-20050 |
AT190,CT19#,ST19# |
1 | ||
| 67841-20340 |
AT190,CT19#,ST19# |
1 | ||
| 67805-20050 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
1 | ||
| 67805-20040 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾄﾞｱ ｽﾋﾟ-ｶ) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67806-20030 |
AT190,CT19#,ST190,195..GX,SELS ｱﾘ(ﾄﾞｱ ｽﾋﾟ-ｶ) |
1 | ||
| 67841-20340 |
AT190,CT19#,ST19# |
1 | ||
| 67806-20040 |
AT190,CT19#,ST19# |
1 | ||
| 67806-20040 |
AT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1 |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-20060 |
AT190,CT19#,ST19# |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-20060 |
AT190,CT19#,ST19# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AT190,CT19#,ST19# |
12 | ||
| 67868-20050 |
AT190,CT19#,ST19#..SED |
12 | ||
| 67868-20050 |
AT190,CT19#,ST19#..SED |
11 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20050 |
AT190,CT19#,ST19#..SED |
11 | ||
| 67868-20050 |
AT190,CT19#,ST19#..SED |
12 | ||
| 67867-12150 |
AT190,CT19#,ST19# |
12 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT19#,ST19# |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20280 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20280 |
AT190,CT19#,ST19#..SED |
1 | ||
| 67877A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH | ||||
| 67877-20030 |
AT190,CT19#,ST19# |
1 | ||
| 67878A - RETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, LH | ||||
| 67877-20030 |
AT190,CT19#,ST19# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-20170 |
AT190,CT190,ST190,195..GX,KYO *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-20170 |
AT190,CT190,ST190,195..GX,KYO *TEM,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-20560 |
AT190,CT190,ST190,195..GX,KYO *TEM,厚さ=3.1,ﾌﾞﾙｰ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-20480 |
AT190,CT190,ST190,195..GX,KYO *TEM,厚さ=3.1,ﾌﾞﾙｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-20140 |
AT190,CT19#,ST19#..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-20080 |
AT190,CT19#,ST19#..SED |
1 | ||
| 68159A - PAD, QUARTER WINDOW MOULDING, REAR NO.1 | ||||
| 68159-20020 |
AT190,CT19#,ST19#..SED |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-20160 |
AT190,CT19#,ST19#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-20160 |
AT190,CT19#,ST19#..SED |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-20020 |
AT190,CT19#,ST19#..SED 左側 |
1 | ||
| 68173-20070 |
AT190,CT19#,ST19#..SED 右側 |
1 | ||
| 68211E - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 90904-67016 |
AT190,CT19#,ST19#..SED |
2 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20030 |
AT190,CT19#,ST19# |
2 | ||
| 68617-20011 |
AT190,CT19#,ST19# |
2 | ||
| 68617-20011 |
AT190,CT19#,ST19# |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-20010 |
AT190,CT19#,ST19# |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20091 |
AT190,CT19#,ST19# |
2 | ||
| 68630-20090 |
AT190,CT19#,ST19# |
2 | ||
| 69813B - PLATE, REAR DOOR WINDOW REGULATOR BASE, RH | ||||
| 69813-20030 |
AT190,CT19#,ST19# |
1 | ||
| 69814A - PLATE, REAR DOOR WINDOW REGULATOR BASE, LH | ||||
| 69814-20020 |
AT190,CT19#,ST19#..SED |
2 | ||
| 69814-20020 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90105-06130 | ||||
| 90105-06145 | ||||
| 90114-06351 | ||||
| 90151-40025 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90959-01481 | ||||
| 91651-40612 | ||||
| 91651-B0614 | ||||

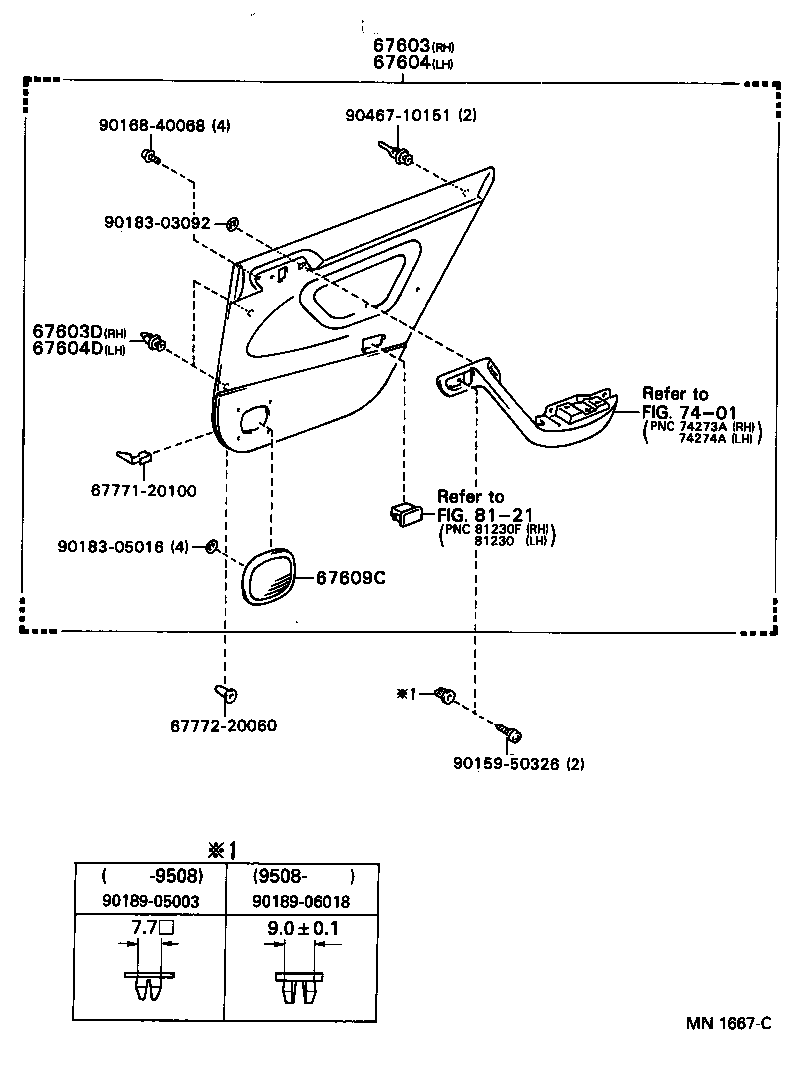

ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2G230E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210C1 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67630-2G230C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67630-2H110E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210C3 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67630-2G210E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210E3 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2H110C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67630-2G210B0 |
AT190,CT190,ST190,195..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H800E0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2H800B0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2L080B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19# |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2G160C1 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67640-2G170E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67640-2G170C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67640-2H070E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67640-2G160E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2H070C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67640-2G160E3 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2G160C3 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67640-2G160B0 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H750B0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2G160E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2L010B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H750E0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19# |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67609-20020C0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
2 | ||
| 67609-20020C0 |
CT195,ST195;AT190,CT190,ST190,191..EXG,EXS,GX,TYPE1,TYPE2 BLACK,TRIM2# |
2 | ||
| 67609-20020E0 |
CT195,ST195;AT190,CT190,ST190,191..EXG,EXS,GX ANTELOPE,TRIM4# |
2 | ||
| 67653-20010B2 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
2 | ||
| 67653-20010E1 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS ANTELOPE,TRIM4# |
2 | ||
| 67609-20020E0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS ANTELOPE,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90159-50326 | ||||
| 90168-40061 | ||||
| 90168-40068 | ||||
| 90183-05016 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 2 OF 2(9202- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2G230E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210C1 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67630-2G230C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67630-2H110E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210C3 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67630-2G210E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210E3 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2H110C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67630-2G210B0 |
AT190,CT190,ST190,195..GX SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2H800E0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67630-2G210E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67630-2H800B0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2L080B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19# |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2G160C1 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67640-2G170E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67640-2G170C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67640-2H070E1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67640-2G160E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2H070C1 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67640-2G160E3 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2G160C3 |
AT190,CT190,ST190,195..GX,KYO BLACK,TRIM2# |
1 | ||
| 67640-2G160B0 |
AT190,CT190,ST190,195..GX,KYO SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H750B0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2G160E1 |
AT190,CT190,ST190,195..GX,KYO ANTELOPE,TRIM4# |
1 | ||
| 67640-2L010B0 |
AT190,CT190,ST190..GX ﾙｼｱ(QZ11),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2H750E0 |
AT190,CT190,ST190,195..GX ｱﾘ(ｽﾋﾟ-ｶ),ANTELOPE,TRIM4# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19# |
7 | ||
| 67771-20110 |
AT190,CT19#,ST19#..SED |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67609-20020C0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK,TRIM2# |
2 | ||
| 67609-20020C0 |
CT195,ST195;AT190,CT190,ST190,191..EXG,EXS,GX,TYPE1,TYPE2 BLACK,TRIM2# |
2 | ||
| 67609-20020E0 |
CT195,ST195;AT190,CT190,ST190,191..EXG,EXS,GX ANTELOPE,TRIM4# |
2 | ||
| 67653-20010B2 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 SHADOW GRAY,TRIM1# |
2 | ||
| 67653-20010E1 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS ANTELOPE,TRIM4# |
2 | ||
| 67609-20020E0 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS ANTELOPE,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03092 | ||||
| 90183-05016 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
