ST190-AEMNK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9202- )3SFE,4SFE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

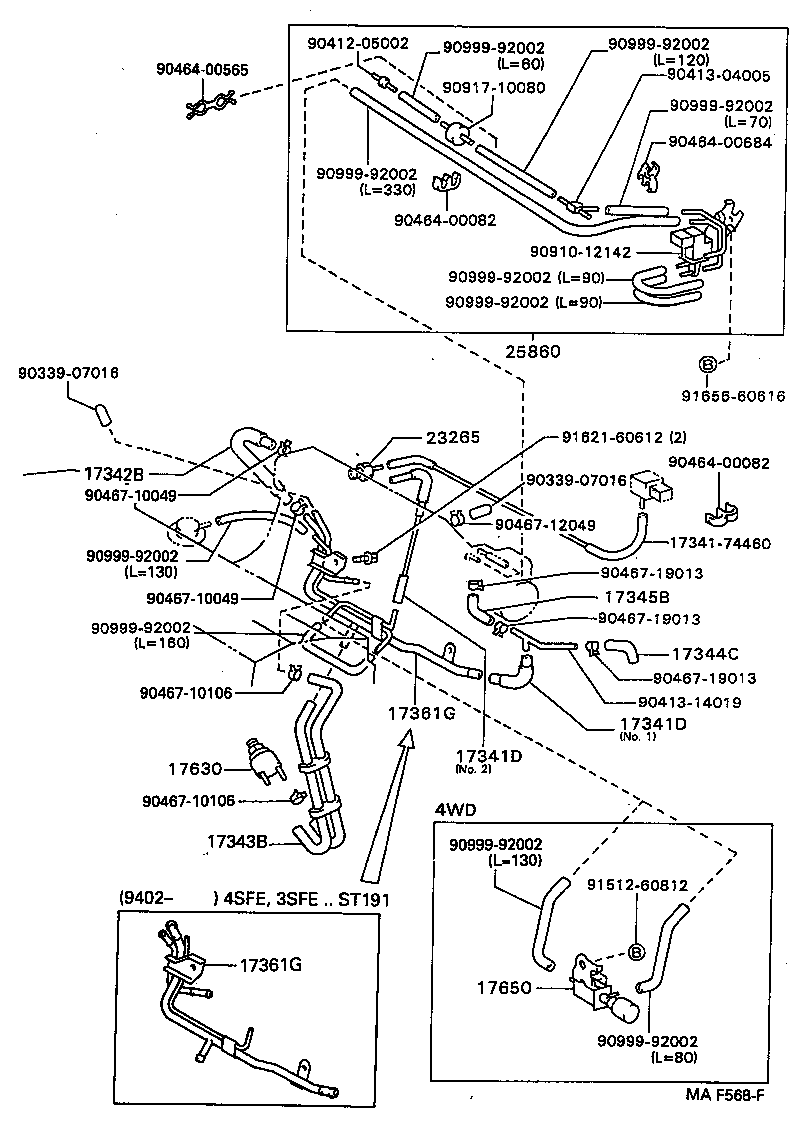

ILLUST NO. 2 OF 2(9202- )3SFE,4SFE

Click highlighted areas on diagram

diagram 1734174460 17341D 17341D 17342B 17343B 17344C 17345B 17361G 17361G 17630 17650 23265 25860 9033907016 9033907016 9041205002 9041304005 9041314019 9046400082 9046400082 9046400565 9046400684 9046710049 9046710049 9046710106 9046710106 9046712049 9046719013 9046719013 9046719013 9091012142 9091710080 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151260812 9162160612 9165660616
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430

3SFE,4SFE..ST19#

NO.2

 1
17341-74340

3SFE..ST191..EXS;3SFE,4SFE..ST190,195

NO.1

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430

3SFE,4SFE..ST19#

NO.2

 1
17341-74340

3SFE..ST191..EXS;3SFE,4SFE..ST190,195

NO.1

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74141

3SFE,4SFE..ST19#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74100

3SFE,4SFE..ST19#

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74110

3SFE,4SFE..ST19#

 1
17361-74150

3SFE,4SFE..ST190,191

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74110

3SFE,4SFE..ST19#

 1
17361-74150

3SFE,4SFE..ST190,191

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE,4SFE..ST19#

 1
23265 - FILTER, GAS, NO.1
90917-11023

3SFE,4SFE..ST19#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74100

3SFE,4SFE..ST19#

 1
Common parts
17341-74460
90339-07016
90412-05002
90413-04005
90413-14019
90464-00082
90464-00565
90464-00684
90467-10049
90467-10106
90467-12049
90467-19013
90910-12142
90917-10080
90999-92002
91512-60812
91621-60612
91656-60616
