ST190-AEMMK (1992)
Toyota Corona
Production
Feb 1992
-
Jan 1996
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )3SFE,4SFE

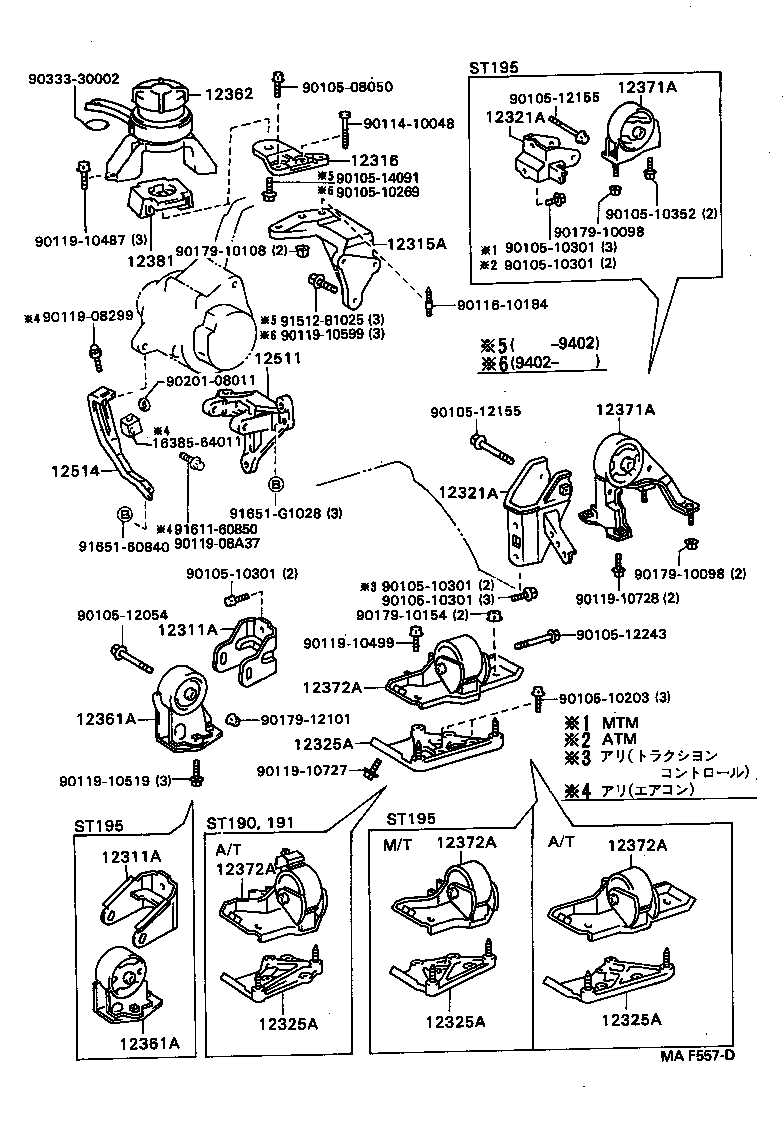

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74120 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74120 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74101 |
3SFE,4SFE..ST19# |
1 | ||
| 12315-74120 |
3SFE,4SFE..ST19# |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74040 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12316-74080 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74260 |
4SFE..ST190..MTM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74260 |
4SFE..ST190..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74180 |
4SFE..ST190..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74180 |
4SFE..ST190..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74180 |
4SFE..ST190..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74180 |
4SFE..ST190..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74260 |
4SFE..ST190..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74260 |
4SFE..ST190..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74280 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12362-74380 |
3SFE,4SFE..ST190,191 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74320 |
4SFE..ST190..MTM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74320 |
4SFE..ST190..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74350 |
4SFE..ST190..MTM |
1 | ||
| 12372-74351 |
4SFE..ST190..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74350 |
4SFE..ST190..MTM |
1 | ||
| 12372-74351 |
4SFE..ST190..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74350 |
4SFE..ST190..MTM |
1 | ||
| 12372-74351 |
4SFE..ST190..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74350 |
4SFE..ST190..MTM |
1 | ||
| 12372-74351 |
4SFE..ST190..MTM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-74010 |
3SFE,4SFE..ST19# |
1 | ||
| 12381-74020 |
3SFE,4SFE..ST19# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE,4SFE..ST19# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74011 |
3SFE,4SFE..ST19# |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 90105-08050 | ||||
| 90105-10203 | ||||
| 90105-10269 | ||||
| 90105-10301 | ||||
| 90105-10352 | ||||
| 90105-12054 | ||||
| 90105-12155 | ||||
| 90105-12243 | ||||
| 90105-14091 | ||||
| 90114-10048 | ||||
| 90116-10184 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10487 | ||||
| 90119-10499 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10727 | ||||
| 90119-10728 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-12101 | ||||
| 90201-08011 | ||||
| 90333-30002 | ||||
| 91512-81025 | ||||
| 91611-60850 | ||||
| 91651-60840 | ||||
| 91651-G1028 | ||||
